Isuzu WW
▶
PICKUP
▶
TFR
▶
51576 - TFR/TFS JIANGXI
▶
3 - Brakes, Brake System
▶

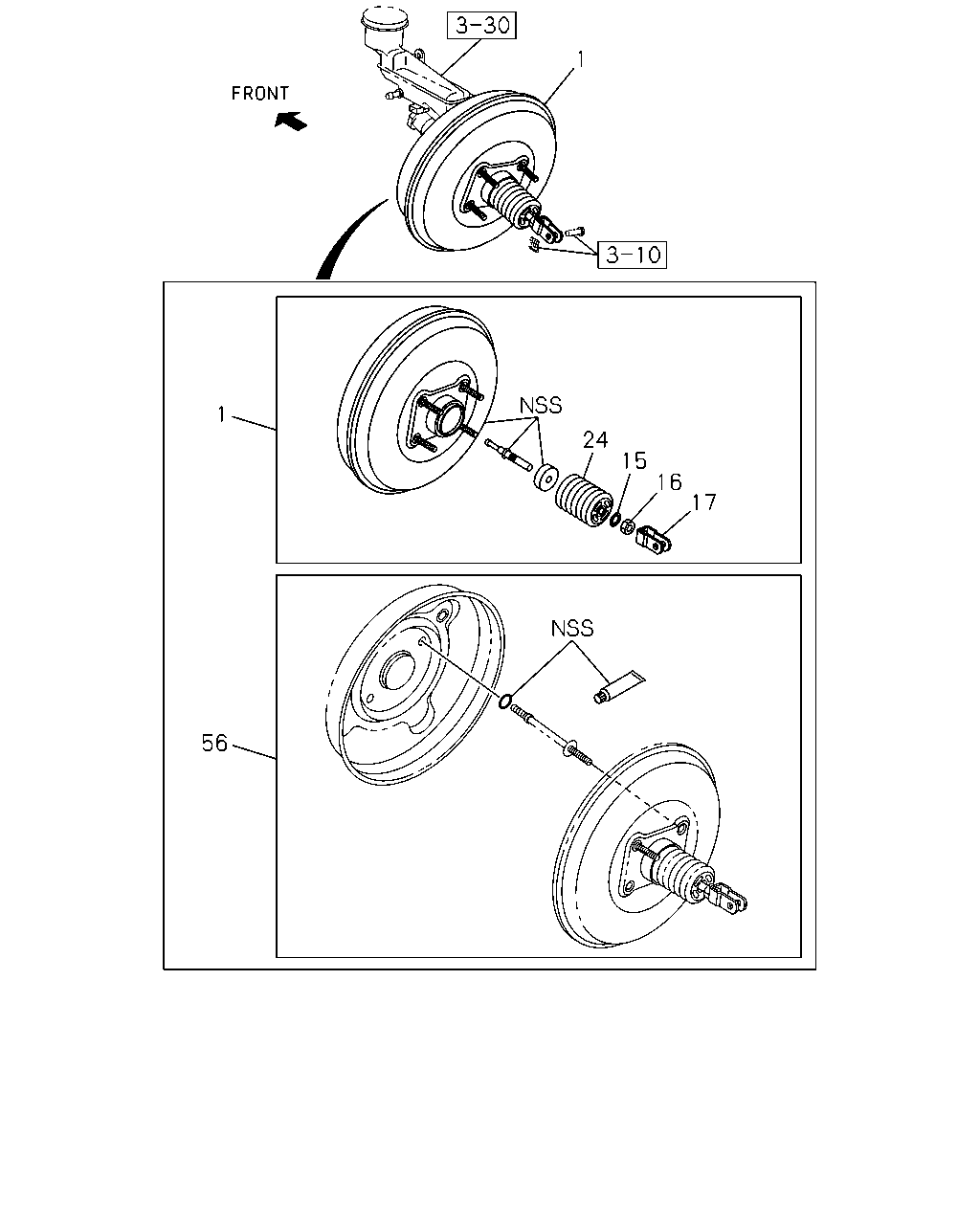

3-31 - BRAKE MASTER VAC AND BRAKE BOOSTER
▶
3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER
(#148774) — 18 parça
Tümü
A - TFB6WF
B - TFS6WF
24
15
16
17
56
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
MASTER VAC ASM; BRK
8-98163-232-1
01
1
1410-1506
●
●
1
MASTER VAC ASM; BRK
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5>
8-98163-232-1
01
1
1507-
●
1
MASTER VAC ASM; BRK
8-98163-232-1
01
1
1507-
●
15
RETAINER; GUARD,M/VAC
8-98048-040-0
01
1
1410-1506
●
●
15
RETAINER; GUARD,M/VAC
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5>
8-98048-040-0
01
1
1507-
●
15
RETAINER; GUARD,M/VAC
8-98048-040-0
01
1
1507-
●
16
NUT; VLV ROD,M/VAC
8-98048-038-0
01
1
1410-1506
●
●
16
NUT; VLV ROD,M/VAC
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5>
8-98048-038-0
01
1
1507-
●
16
NUT; VLV ROD,M/VAC
8-98048-038-0
01
1
1507-
●
17
CLEVIS; YOKE,M/VAC
8-98048-039-0
01
1
1410-1506
●
●
17
CLEVIS; YOKE,M/VAC
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5>
8-98048-039-0
01
1
1507-
●
17
CLEVIS; YOKE,M/VAC
8-98048-039-0
01
1
1507-
●
24
GUARD; VLV BODY,M/VAC
8-98185-212-0
01
1
1410-1506
●
●
24
GUARD; VLV BODY,M/VAC
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5>
8-98185-212-0
01
1
1507-
●
24
GUARD; VLV BODY,M/VAC
8-98185-212-0
01
1
1507-
●
56
GASKET KIT; M/CYL TO SERVO UNIT
8-98185-211-0
01
1
1410-1506
●
●
56
GASKET KIT; M/CYL TO SERVO UNIT
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5>
8-98185-211-0
01
1
1507-
●
56
GASKET KIT; M/CYL TO SERVO UNIT
8-98185-211-0
01
1
1507-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
