Isuzu WW
▶
PICKUP
▶
TFR
▶
51576 - TFR/TFS JIANGXI
▶
3 - Brakes, Brake System
▶

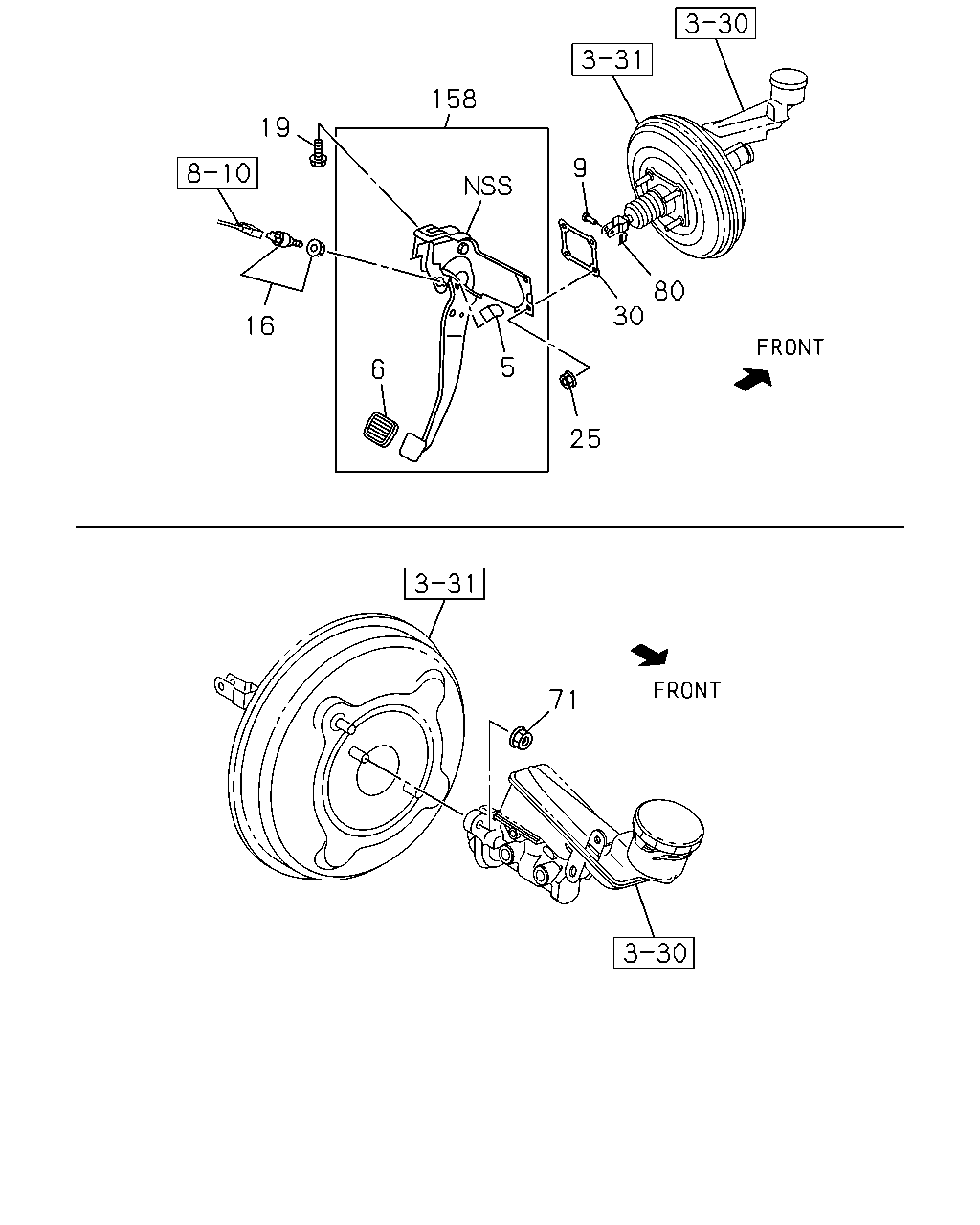

3-10 - BRAKE PEDAL AND CONTROL
▶
3-10 — BRAKE PEDAL AND CONTROL
(#148771) — 17 parça
Tümü
A - TFB6WF
B - TFS6WF
71
80
30
25
5
9
158
19
16
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
5
STOPPER; BRK PEDAL
8-98029-187-0
01
1
1410-
●
●
6
COVER; BRK PEDAL
M/T MUA 5 SPEED 5H(MWQ)
8-97318-799-0
01
1
1410-
●
●
6
COVER; BRK PEDAL
A/T 5 SPEED-AISIN(MA1)
8-97263-035-0
01
1
1410-
●
9
PIN; JAW JOINT
8-97311-602-0
01
1
1410-
●
●
16
SWITCH; STOP LAMP
M/T MUA 5 SPEED 5H(MWQ)
8-98140-487-0
01
1
1410-
●
●
16
SWITCH; STOP LAMP
A/T 5 SPEED-AISIN(MA1)
8-98140-486-0
01
1
1410-
●
19
BOLT; BRKT
M8X22.5 W/PL WASHER
8-97947-104-1
01
1
1410-
●
●
25
NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE
8-97581-233-0
04
1
1410-
●
●
30
GASKET; M/VAC TO BODY
8-97943-457-0
01
1
1410-1506
●
●
30
GASKET; M/VAC TO BODY
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5>
8-97943-457-0
01
1
1507-
●
30
GASKET; M/VAC TO BODY
8-97943-457-0
01
1
1507-
●
71
NUT; BRK M/CYL
8-98031-675-0
02
1
1410-1506
●
●
71
NUT; BRK M/CYL
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5>
8-98031-675-0
02
1
1507-
●
71
NUT; BRK M/CYL
8-98031-675-0
02
1
1507-
●
80
PIN; SNAP,BRK PEDAL
8-98007-161-0
01
1
1410-
●
●
158
PEDAL ASM; BRK
M/T MUA 5 SPEED 5H(MWQ)
8-98061-819-0
01
1
1410-
●
●
158
PEDAL ASM; BRK
A/T 5 SPEED-AISIN(MA1)
8-98061-820-0
01
1
1410-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
