◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51576 - TFR/TFS JIANGXI ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#148770) — 66 parça

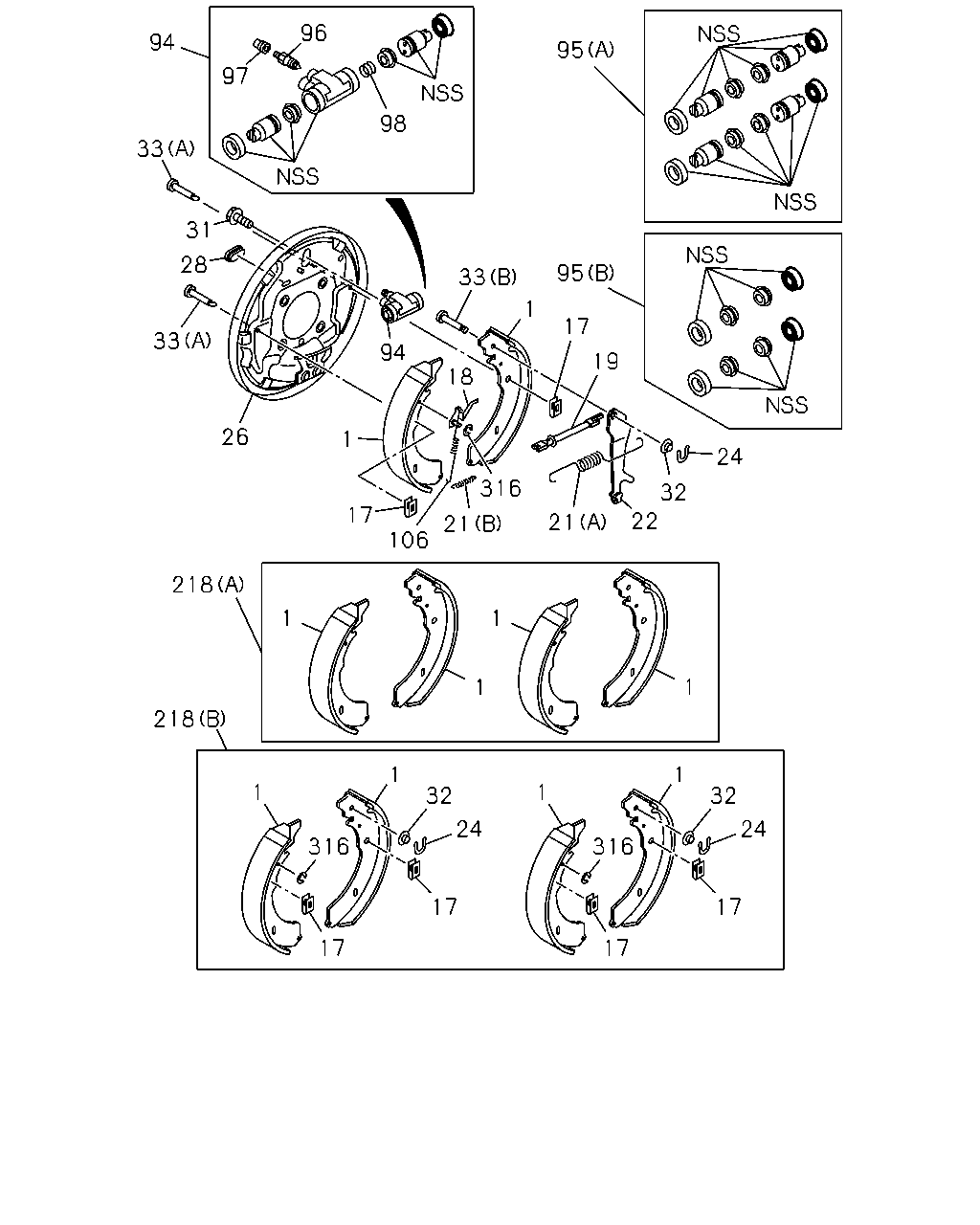

çizim 443008
96 98 97 94 33 31 28 33 26 1 17 21 316 22 32 24 21 1 1 1 106 218 218 1 316 1 32 24 17 17 1 316 1 1 32 24 17 17 17 1 33 19 18 94 95 95
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR
EXC. HIGH RIDE SUSPENSION(7YC) TRAILING 		8-98167-405-0 02 1 1410- ●
1 SHOE; BRK,RR
EXC. HIGH RIDE SUSPENSION(7YC) LEADING 		8-98167-406-0 01 1 1410- ●
1 SHOE; BRK,RR
EXC. HIGH RIDE SUSPENSION(7YC) LEADING 		8-98167-407-0 01 1 1410- ●
1 SHOE; BRK,RR
HIGH RIDE SUSPENSION(7YC) TRAILING 		8-97947-766-0 02 1 1410- ●
1 SHOE; BRK,RR
TRAILING 		8-97947-766-0 02 1 1410- ●
1 SHOE; BRK,RR
HIGH RIDE SUSPENSION(7YC) LEADING 		8-97947-767-0 01 1 1410- ●
1 SHOE; BRK,RR
LEADING 		8-97947-767-0 01 1 1410- ●
1 SHOE; BRK,RR
HIGH RIDE SUSPENSION(7YC) LEADING 		8-97947-768-0 01 1 1410- ●
1 SHOE; BRK,RR
LEADING 		8-97947-768-0 01 1 1410- ●
17 SPRING; SHOE HOLD DOWN 8-98164-787-0 04 1 1410- ● ●
18 LEVER; AUTO ADJ
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98007-996-0 01 1 1410- ●
18 LEVER; AUTO ADJ
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98007-997-0 01 1 1410- ●
18 LEVER; AUTO ADJ
HIGH RIDE SUSPENSION(7YC) 		8-97947-474-0 01 1 1410- ●
18 LEVER; AUTO ADJ 8-97947-474-0 01 1 1410- ●
18 LEVER; AUTO ADJ
HIGH RIDE SUSPENSION(7YC) 		8-97947-475-0 01 1 1410- ●
18 LEVER; AUTO ADJ 8-97947-475-0 01 1 1410- ●
19 ADJUSTER; RR BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97947-400-0 01 1 1410- ●
19 ADJUSTER; RR BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97947-401-0 01 1 1410- ●
19 ADJUSTER; RR BRK
HIGH RIDE SUSPENSION(7YC) 		8-97947-402-0 01 1 1410- ●
19 ADJUSTER; RR BRK 8-97947-402-0 01 1 1410- ●
19 ADJUSTER; RR BRK
HIGH RIDE SUSPENSION(7YC) 		8-97947-403-0 01 1 1410- ●
19 ADJUSTER; RR BRK 8-97947-403-0 01 1 1410- ●
21 SPRING; SHOE,RET
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97947-412-0 02 1 1410- ●
21 SPRING; SHOE,RET
(B) 		8-98008-002-0 02 1 1410- ● ●
21 SPRING; SHOE,RET
HIGH RIDE SUSPENSION(7YC) (A) 		8-97947-413-0 02 1 1410- ●
21 SPRING; SHOE,RET
(A) 		8-97947-413-0 02 1 1410- ●
22 LEVER; PARKING BRK,WHEEL BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97947-390-0 01 1 1410- ●
22 LEVER; PARKING BRK,WHEEL BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97947-391-0 01 1 1410- ●
22 LEVER; PARKING BRK,WHEEL BRK
HIGH RIDE SUSPENSION(7YC) 		8-97947-392-0 01 1 1410- ●
22 LEVER; PARKING BRK,WHEEL BRK 8-97947-392-0 01 1 1410- ●
22 LEVER; PARKING BRK,WHEEL BRK
HIGH RIDE SUSPENSION(7YC) 		8-97947-393-0 01 1 1410- ●
22 LEVER; PARKING BRK,WHEEL BRK 8-97947-393-0 01 1 1410- ●
24 RETAINER; PARKING BRK 8-97301-493-0 02 1 1410- ● ●
26 PLATE; BACK,RR BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97947-404-2 01 1 1410- ●
26 PLATE; BACK,RR BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97947-405-2 01 1 1410- ●
26 PLATE; BACK,RR BRK
HIGH RIDE SUSPENSION(7YC) 		8-97947-406-2 01 1 1410- ●
26 PLATE; BACK,RR BRK 8-97947-406-2 01 1 1410- ●
26 PLATE; BACK,RR BRK
HIGH RIDE SUSPENSION(7YC) 		8-97947-407-2 01 1 1410- ●
26 PLATE; BACK,RR BRK 8-97947-407-2 01 1 1410- ●
28 COVER; ADJ HOLE 8-97301-477-0 04 1 1410- ● ●
31 BOLT; RR WHEEL CYL
M6X14 		8-97947-469-0 04 1 1410- ● ●
32 WASHER; LK 8-97947-470-0 02 1 1410- ● ●
33 PIN; SHOE HOLD DOWN
(A) 		8-97301-509-0 04 1 1410- ● ●
33 PIN; SHOE HOLD DOWN
(B) 		8-98008-034-0 02 1 1410- ● ●
94 CYLINDER; WHEEL,RR BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97301-478-0 02 1 1410- ●
94 CYLINDER; WHEEL,RR BRK
HIGH RIDE SUSPENSION(7YC) 		8-97319-300-0 02 1 1410- ●
94 CYLINDER; WHEEL,RR BRK 8-97319-300-0 02 1 1410- ●
95 CUP SET; RR WHEEL CYL
EXC. HIGH RIDE SUSPENSION(7YC) (A) W/PISTON 		5-87832-026-0 01 1 1410- ●
95 CUP SET; RR WHEEL CYL
EXC. HIGH RIDE SUSPENSION(7YC) (B) WO/PISTON 		5-87832-246-0 01 1 1410- ●
95 CUP SET; RR WHEEL CYL
HIGH RIDE SUSPENSION(7YC) (A) W/PISTON 		5-87832-068-0 01 1 1410- ●
95 CUP SET; RR WHEEL CYL
(A) W/PISTON 		5-87832-068-0 01 1 1410- ●
95 CUP SET; RR WHEEL CYL
HIGH RIDE SUSPENSION(7YC) (B) WO/PISTON 		5-87832-247-0 01 1 1410- ●
95 CUP SET; RR WHEEL CYL
(B) WO/PISTON 		5-87832-247-0 01 1 1410- ●
96 SCREW; BLEEDER,RR BRK 8-97301-484-0 02 1 1410- ● ●
97 CAP; BLEEDER,RR WHEEL CYL 8-97301-485-0 02 1 1410- ● ●
98 SPRING; RR WHEEL CYL 8-97301-483-0 02 1 1410- ● ●
106 SPRING; ADJ LEVER
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98008-003-0 01 1 1410- ●
106 SPRING; ADJ LEVER
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98008-004-0 01 1 1410- ●
106 SPRING; ADJ LEVER
HIGH RIDE SUSPENSION(7YC) 		8-98008-006-0 01 1 1410- ●
106 SPRING; ADJ LEVER 8-98008-006-0 01 1 1410- ●
106 SPRING; ADJ LEVER
HIGH RIDE SUSPENSION(7YC) 		8-98008-007-0 01 1 1410- ●
106 SPRING; ADJ LEVER 8-98008-007-0 01 1 1410- ●
218 SHOE KIT; BRK,RR
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		5-87832-255-0 01 1 1410- ●
218 SHOE KIT; BRK,RR
HIGH RIDE SUSPENSION(7YC) (B) 		8-97947-802-0 01 1 1410- ●
218 SHOE KIT; BRK,RR
(B) 		8-97947-802-0 01 1 1410- ●
316 RING; SNAP 8-97330-511-0 02 1 1410- ● ●
