2-55 — AUTO TRANS SHIFT CONTROL LEVER (#148762) — 19 parça

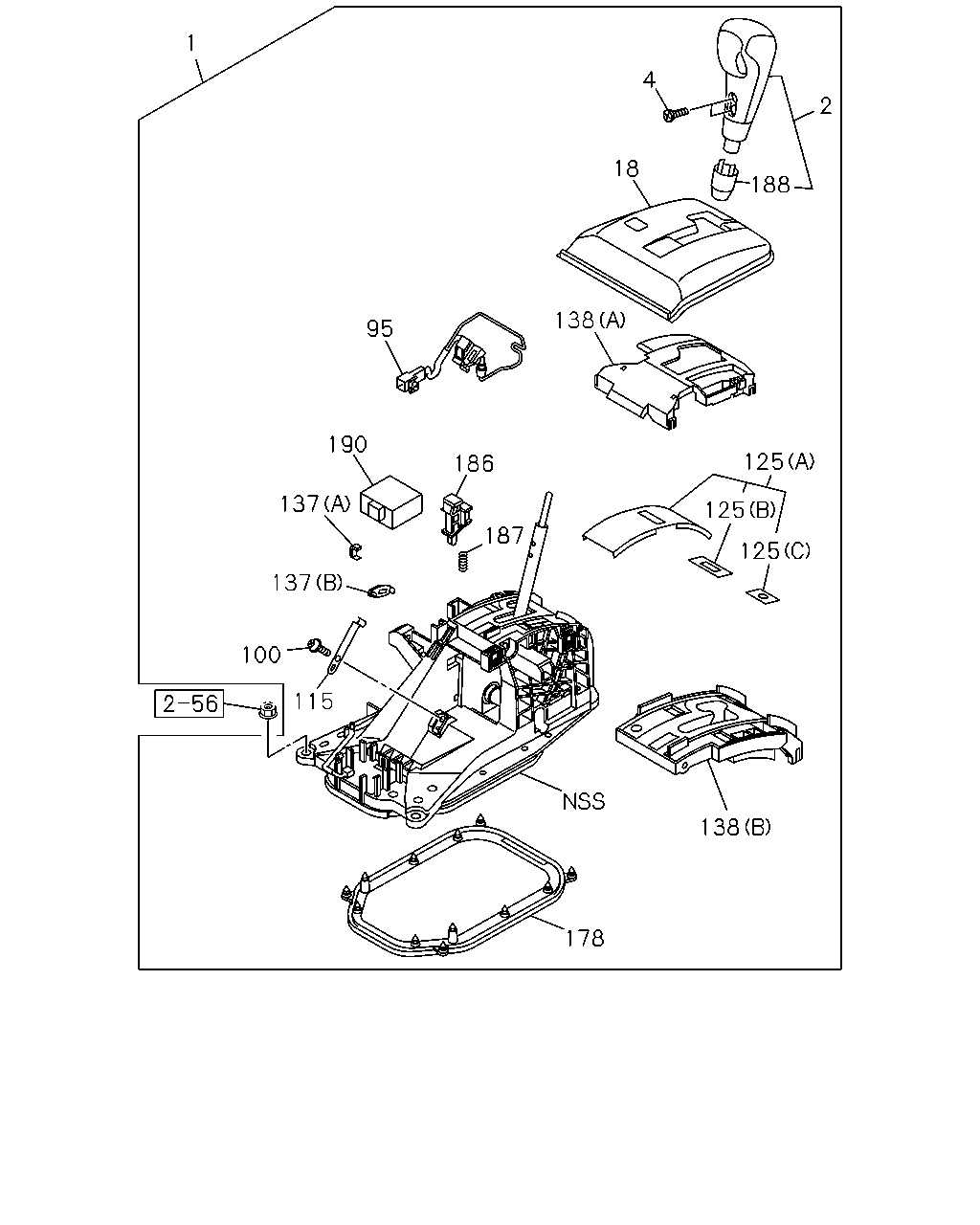

çizim 443290
1 95 190 137 137 100 115 178 138 125 125 125 138 18 4 2 188 186 187
BalonParca AdiParca NoAdetTipApplied Date
1 LEVER; SHIFT,A/T
SILVER 		8-97417-526-3 01 1 1410-
2 KNOB ASM; AUTO CONT LEVER
SILVER 		8-97421-017-0 01 1 1410-
4 SCREW; KNOB TO LEVER 8-98163-219-0 02 1 1410-
18 COVER; INDICATOR,UPR
BLACK 		8-97422-069-1 01 1 1410-
95 LAMP; INDICATOR 8-98173-050-0 01 1 1410-
100 SCREW 8-98163-221-0 01 1 1410-
115 PLATE; SPR,LEVER 8-98163-220-0 01 1 1410-
125 COVER; SHIFT LEVER
(A) 		8-98163-185-0 01 1 1410-
125 COVER; SHIFT LEVER
(C) 		8-98163-186-0 01 1 1410-
125 COVER; SHIFT LEVER
(B) 		8-98163-187-0 01 1 1410-
137 CUSHION
(A) 		8-98163-222-0 01 1 1410-
137 CUSHION
(B) 		8-98163-223-0 01 1 1410-
138 BOX; LAMP
(A) 		8-98173-049-1 01 1 1410-
138 BOX; LAMP
(B) 		8-98173-053-0 01 1 1410-
178 SHEET; SHIFT LEVER 8-98163-225-0 01 1 1410-
186 BUTTON; SHIFT LOCK
BLACK 		8-97421-016-0 01 1 1410-
187 SPRING; RETURN,SHIFT 8-98163-182-0 01 1 1410-
188 COVER; KNOB 8-98163-209-0 01 1 1410-
190 CONTROLLER; INTERLOCK 8-98163-217-0 01 1 1410-
