2-48 — AUTO TRANS MULTIPLE-DISC CLUTCH (#148759) — 68 parça

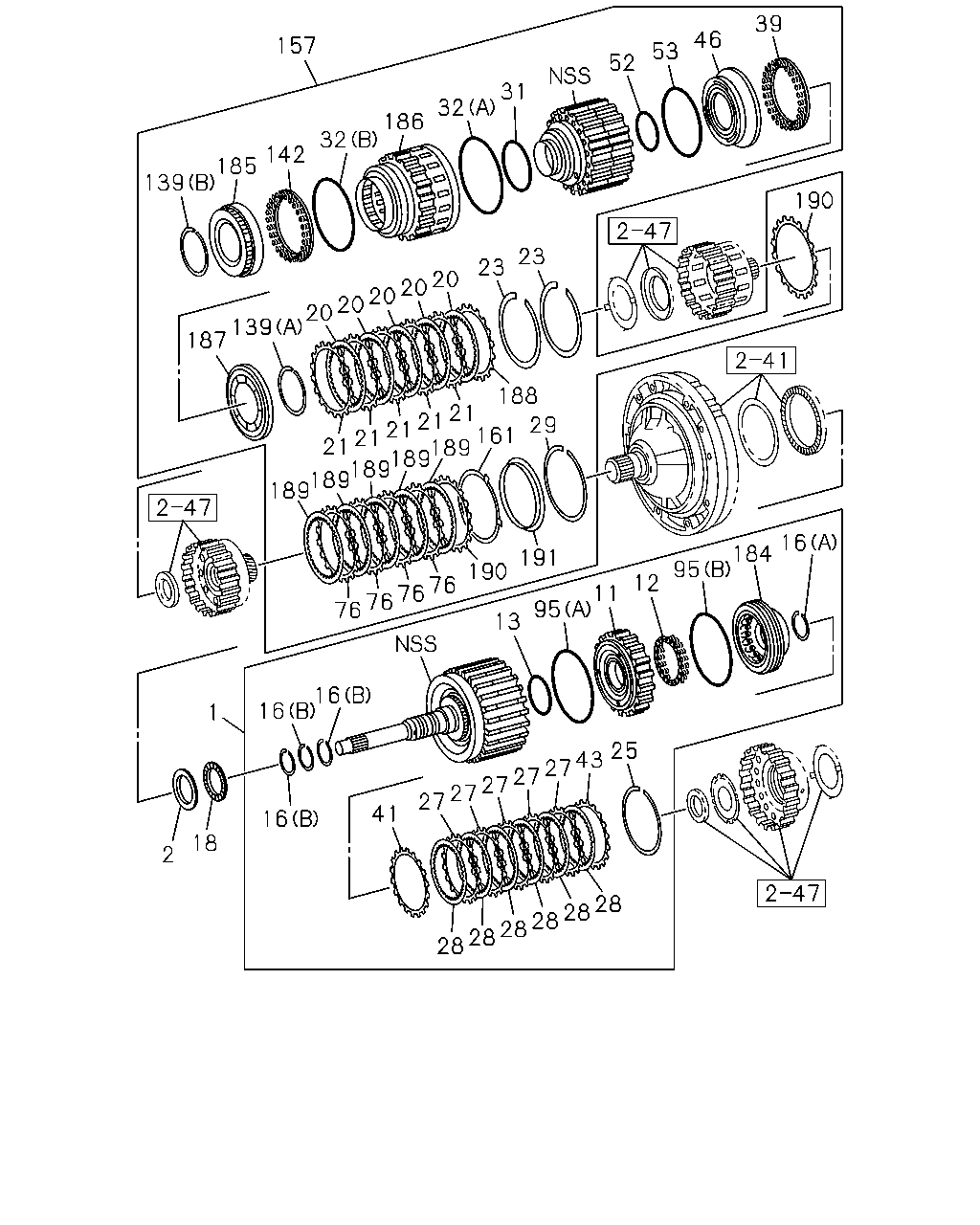

çizim 443675
157 139 185 142 32 186 32 31 52 53 46 39 190 191 190 76 76 76 76 189 189 189 189 189 161 29 188 21 21 21 21 21 187 139 23 23 20 20 20 20 20 28 28 28 28 28 28 25 43 27 27 27 27 27 41 16 16 1 16 18 2 13 16 184 95 12 11 95
BalonParca AdiParca NoAdetTipApplied Date
1 HUB ASM; CLU,INPUT SHAFT,A/T 8-98189-762-0 01 1 1410-
2 RACE; THRUST BRG,A/T 8-98189-534-0 01 1 1410-
11 PISTON ASM; CLU,A/T 8-98189-764-0 01 1 1410-
12 SPRING; CLU RETURN,A/T 8-98189-515-0 01 1 1410-
13 GASKET; INNER,CLU,A/T
ID=40 		8-98189-513-0 01 1 1410-
16 RING; SNAP,CLU,A/T
(A) ID=35 		8-98189-518-0 01 1 1410-
16 RING; SNAP,CLU,A/T
(B) ID=29 		8-98189-533-0 03 1 1410-
18 BEARING; THRUST,CLU,A/T 8-98189-535-0 01 1 1410-
20 DISC; CLU,A/T
OD=162 		8-98189-559-0 05 1 1410-
21 DISC ASM; CLU & FACING,A/T
ID=149 		8-98189-558-0 05 1 1410-
23 RING; RET,CLU,A/T
ID=160 		8-98189-576-0 02 1 1410-
25 RING; RET,BACKING PLATE,A/T
ID=115 		8-98189-532-0 01 1 1410-
27 DISC ASM; CLU & FACING,A/T
T=1.8 		8-98189-520-0 05 1 1410-
28 DISC; CLU,A/T
OD=120 		8-98189-519-0 06 1 1410-
29 RING; SNAP,CLU,A/T
ID=171 		8-98189-597-0 01 1 1410-
31 GASKET; CLU,INNER,A/T
ID=101 		8-98189-586-0 01 1 1410-
32 GASKET; CLU,OUTER,A/T
(A) ID=142 		8-98189-582-0 01 1 1410-
32 GASKET; CLU,OUTER,A/T
(B) ID=140 		8-98189-585-0 01 1 1410-
39 SPRING; DIRECT CLU RETURN 8-98189-543-0 01 1 1410-
41 FLANGE; DIRECT CLU
T=3.0 		8-98189-521-0 01 1 1410-
43 FLANGE; FWD CLU
T=3.0 		8-98189-521-0 AR 1 1410-
43 FLANGE; FWD CLU
T=3.1 		8-98189-522-0 AR 1 1410-
43 FLANGE; FWD CLU
T=3.2 		8-98189-523-0 AR 1 1410-
43 FLANGE; FWD CLU
T=3.3 		8-98189-524-0 AR 1 1410-
43 FLANGE; FWD CLU
T=3.4 		8-98189-525-0 AR 1 1410-
43 FLANGE; FWD CLU
T=3.5 		8-98189-526-0 AR 1 1410-
43 FLANGE; FWD CLU
T=3.6 		8-98189-527-0 AR 1 1410-
43 FLANGE; FWD CLU
T=3.7 		8-98189-528-0 AR 1 1410-
43 FLANGE; FWD CLU
T=3.8 		8-98189-529-0 AR 1 1410-
43 FLANGE; FWD CLU
T=3.9 		8-98189-530-0 AR 1 1410-
43 FLANGE; FWD CLU
T=4.0 		8-98189-531-0 AR 1 1410-
46 PISTON; DIRECT CLU,A/T 8-98189-766-0 01 1 1410-
52 GASKET; PISTON INNER,DIRECT CLU,A/T
ID=75 		8-98189-542-0 01 1 1410-
53 GASKET; PISTON OUTER,DIRECT CLU,A/T
ID=126.7 		8-98189-541-0 01 1 1410-
76 PLATE; 3RD CLU
T=2.4 		8-98189-591-0 04 1 1410-
95 GASKET; CLU HUB
(A) ID=108 		8-98189-514-0 01 1 1410-
95 GASKET; CLU HUB
(B) ID=107 		8-98189-517-0 01 1 1410-
139 RING; SNAP
(A) ID=64 		8-98189-557-0 01 1 1410-
139 RING; SNAP
(B) ID=79 		8-98189-589-0 01 1 1410-
142 SPRING; CLU 8-98189-587-0 01 1 1410-
157 CLUTCH ASM; A/T 8-98189-765-0 01 1 1410-
161 PLATE; CLU
T=1.5 		8-98189-595-0 01 1 1410-
184 BALANCER; CLUTCH NO 1 8-98189-516-0 01 1 1410-
185 BALANCER; CLUTCH NO 3 8-98189-588-0 01 1 1410-
186 PISTON; REVERSE CLUTCH 8-98189-579-0 01 1 1410-
187 BALANCER; CLUTCH NO 2 8-98189-556-0 01 1 1410-
188 FLANGE; REVERSE CLUTCH
T=3.0 		8-98189-560-0 AR 1 1410-
188 FLANGE; REVERSE CLUTCH
T=3.1 		8-98189-561-0 AR 1 1410-
188 FLANGE; REVERSE CLUTCH
T=3.2 		8-98189-562-0 AR 1 1410-
188 FLANGE; REVERSE CLUTCH
T=3.3 		8-98189-563-0 AR 1 1410-
188 FLANGE; REVERSE CLUTCH
T=3.4 		8-98189-564-0 AR 1 1410-
188 FLANGE; REVERSE CLUTCH
T=3.5 		8-98189-565-0 AR 1 1410-
188 FLANGE; REVERSE CLUTCH
T=3.6 		8-98189-566-0 AR 1 1410-
188 FLANGE; REVERSE CLUTCH
T=3.7 		8-98189-568-0 AR 1 1410-
188 FLANGE; REVERSE CLUTCH
T=3.8 		8-98189-572-0 AR 1 1410-
189 DISC; CLUTCH NO 3
OD=162 		8-98189-590-0 05 1 1410-
190 FLANGE; CLUTCH
T=3.0 		8-98189-560-0 AR 1 1410-
190 FLANGE; CLUTCH
T=3.1 		8-98189-561-0 AR 1 1410-
190 FLANGE; CLUTCH
T=3.2 		8-98189-562-0 AR 1 1410-
190 FLANGE; CLUTCH
T=3.3 		8-98189-563-0 AR 1 1410-
190 FLANGE; CLUTCH
T=3.4 		8-98189-564-0 AR 1 1410-
190 FLANGE; CLUTCH
T=3.5 		8-98189-565-0 AR 1 1410-
190 FLANGE; CLUTCH
T=3.6 		8-98189-566-0 AR 1 1410-
190 FLANGE; CLUTCH
T=3.7 		8-98189-568-0 AR 1 1410-
190 FLANGE; CLUTCH
T=3.8 		8-98189-572-0 AR 1 1410-
190 FLANGE; CLUTCH
T=2.8 		8-98189-592-0 AR 1 1410-
190 FLANGE; CLUTCH
T=2.9 		8-98189-594-0 AR 1 1410-
191 SLEEVE; CLUTCH 8-98189-596-0 01 1 1410-
