2-47 — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#148758) — 38 parça

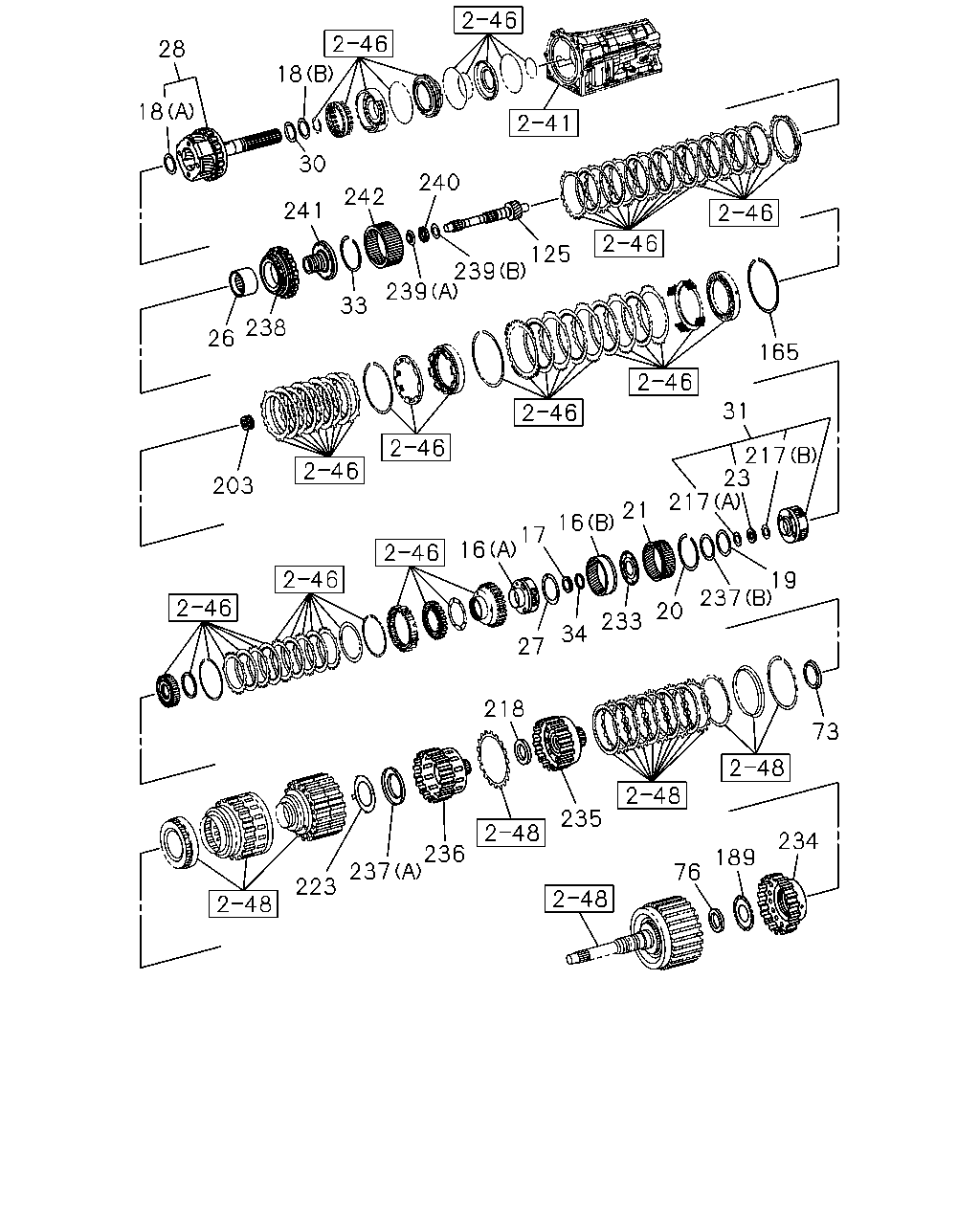

çizim 444035
18 28 18 240 242 241 30 26 238 33 239 239 125 165 31 217 23 217 21 16 17 16 203 19 237 20 233 34 27 218 73 234 189 76 236 237 223 235
BalonParca AdiParca NoAdetTipApplied Date
16 GEAR ASM; FRT PLANETARY,A/T
(A) 		8-98189-682-0 01 1 1410-
16 GEAR ASM; FRT PLANETARY,A/T
(B) 		8-98189-686-0 01 1 1410-
17 RACE; THRUST BRG,PLANETARY SHAFT,A/T
ID=38 		8-98189-684-0 01 1 1410-
18 BEARING; THRUST,RR PLANETARY GEAR,A/T
(A) 		8-98189-708-0 01 1 1410-
18 BEARING; THRUST,RR PLANETARY GEAR,A/T
(B) 		8-98189-712-0 01 1 1410-
19 RACE; THRUST BRG,PLANETARY SHAFT,A/T 8-98189-692-0 01 1 1410-
20 RING; RET,PLANETARY GEAR,A/T
T=1.4 		8-98189-691-0 01 1 1410-
21 GEAR; PLANETARY,INTERNAL FRT,A/T 8-98189-688-0 01 1 1410-
23 BEARING; THRUST,PLANETARY SHAFT,A/T 8-98189-695-0 01 1 1410-
26 RACE; ONEWAY CLU,A/T 8-98189-701-0 01 1 1410-
27 WASHER; THRUST,FRT PLANETARY,A/T
ID=64 		8-98189-683-0 01 1 1410-
28 GEAR ASM; RR PLANETARY,A/T 8-98189-784-0 01 1 1410-
30 RACE; THRUST BRG,RR PLANETARY FLANGE 8-98189-711-0 01 1 1410-
31 GEAR ASM; INTERNAL,PLANETARY,A/T 8-98189-694-0 01 1 1410-
33 RING; RET,PLANETARY GEAR,A/T
T=1.4 		8-98189-710-0 01 1 1410-
34 BEARING; THRUST,FRT PLANETARY SHAFT,A/ 8-98189-685-0 01 1 1410-
73 WASHER; THRUST,CARRIER
ID=74 		8-98189-679-0 01 1 1410-
76 BEARING; THRUST,CARRIER 8-98189-673-0 01 1 1410-
125 SHAFT ASM; INTERMEDIATE,PLANETARY GEAR 8-98189-698-0 01 1 1410-
165 RING; RET
ID=151 		8-98189-702-0 01 1 1410-
189 RACE; INNER,LOW CLU
ID=23 		8-98189-670-0 01 1 1410-
203 GEAR; SUN
Z=31 		8-98189-699-0 01 1 1410-
217 RACE; THRUST BRG,INTERNAL GEAR
(A) 		8-98189-696-0 01 1 1410-
217 RACE; THRUST BRG,INTERNAL GEAR
(B) 		8-98189-697-0 01 1 1410-
218 BEARING; THRUST,INTERNAL GEAR 8-98189-680-0 01 1 1410-
223 RACE; BRG,CARRIER 8-98189-675-0 01 1 1410-
233 FLANGE; FR PLANETARY 8-98189-687-0 01 1 1410-
234 HUB; FORWARD CLUTCH 8-98189-674-0 01 1 1410-
235 HUB; REVERSE CLUTCH 8-98189-681-0 01 1 1410-
236 HUB; CLUTCH 8-98189-678-0 01 1 1410-
237 BEARING; THRUST
(A) 		8-98189-676-0 01 1 1410-
237 BEARING; THRUST
(B) 		8-98189-693-0 01 1 1410-
238 CLUTCH ASM; 1WAY 8-98189-700-0 01 1 1410-
239 RACE; INTERMEDIATE SHAFT
(A) 		8-98189-703-0 01 1 1410-
239 RACE; INTERMEDIATE SHAFT
(B) 		8-98189-704-0 01 1 1410-
240 BEARING; THRUST NEEDLE ROLLER 8-98189-705-0 01 1 1410-
241 FLANGE; RR PLANETARY 8-98189-706-0 01 1 1410-
242 GEAR; RR PLANETARY 8-98189-709-0 01 1 1410-
