2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#148754) — 37 parça

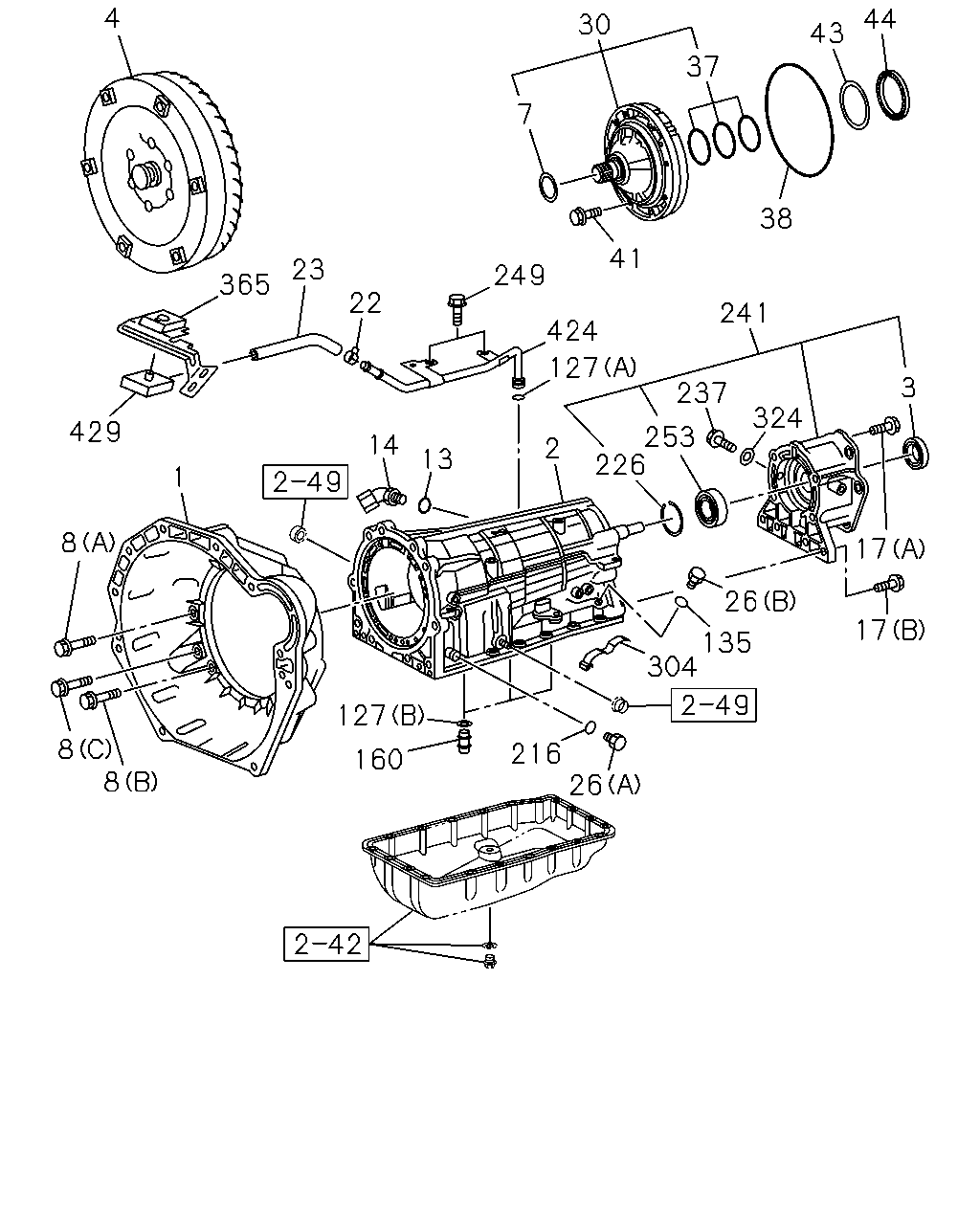

çizim 443940
4 365 429 23 22 1 8 8 8 14 13 127 160 216 26 304 2 249 424 127 226 7 30 41 37 38 43 44 241 237 253 324 26 135 3 17 17
BalonParca AdiParca NoAdetTipApplied Date
1 HOUSING; CONV,A/T 8-98189-468-0 01 1 1410-
2 CASE ASM; A/T 8-98189-783-0 01 1 1410-
3 SEAL; OIL,RR COVER,A/T 8-98189-757-0 01 1 1410-
4 CONVERTER ASM; TORQUE,A/T 8-98189-761-0 01 1 1410-
7 SEAL; OIL,LIP,A/T 8-98189-493-0 01 1 1410-
8 BOLT; HSG TO CASE
(A) M10X35 		8-90257-082-0 06 1 1410-
8 BOLT; HSG TO CASE
(B) M10X35 		8-98189-486-0 02 1 1410-
8 BOLT; HSG TO CASE
(C) M12X38 		8-98189-487-0 02 1 1410-
13 GASKET; OIL COOLER PIPE
ID=11.7 		8-94479-724-0 02 1 1410-
14 UNION; OIL COOLER RETURN PIPE 8-98189-473-0 02 1 1410-
17 BOLT; REAR COVER TO CASE
(A) M8X45 		8-94479-858-0 01 1 1410-
17 BOLT; REAR COVER TO CASE
(B) M10X50 		8-94479-935-0 08 1 1410-
22 CLIP; BREATHER HOSE,A/T
ID=11 		8-97173-219-0 01 1 1410-
23 HOSE; BREATHER,A/T
L=220 SERVICED BY L=3000 		0-02857-300-0 01 1 1410-
26 PLUG; TRANS CASE
(A) 		5-34119-002-0 05 1 1410-
26 PLUG; TRANS CASE
(B) M14X12 		8-98189-490-0 01 1 1410-
30 PUMP ASM; OIL,A/T 8-98189-491-0 01 1 1410-
37 RING; SEAL,OIL PUMP,A/T
ID=63 		8-98189-492-0 03 1 1410-
38 GASKET; OIL PUMP,A/T
ID=218 		8-98189-494-0 01 1 1410-
41 BOLT; OIL PUMP HSG,A/T
M8X40 		8-97141-759-0 10 1 1410-
43 RACE; THRUST BRG,OIL PUMP,A/T
ID=74 		8-98189-495-0 01 1 1410-
44 BEARING; THRUST,OIL PUMP,A/T 8-98189-496-0 01 1 1410-
127 GASKET; CASE TO COVER
(A) ID=5 		8-98189-476-0 01 1 1410-
127 GASKET; CASE TO COVER
(B) ID=10 		8-98189-488-0 03 1 1410-
135 GASKET; PLUG,A/T CASE
ID=11.7 		8-94479-724-0 01 1 1410-
160 GASKET; BRK DRUM,A/T 8-98189-489-0 03 1 1410-
216 GASKET; SOLENOID OUTER
ID=6 		5-34119-001-0 05 1 1410-
226 RING; SNAP
ID=67 		8-98189-790-0 01 1 1410-
237 PLUG; COVER 8-98189-760-0 01 1 1410-
241 ADAPTER; A/T 8-98189-788-0 01 1 1410-
249 BOLT; BRKT
M6X10 		8-94252-680-0 02 1 1410-
253 BEARING; BALL,COVER 8-98189-789-0 01 1 1410-
304 SPRING; LEAF,A/T 8-98189-484-0 01 1 1410-
324 GASKET; PLUG,REAR COVER
ID=15.4 		8-98189-759-0 01 1 1410-
365 BRACKET; BREATHER HOSE,A/T 8-98161-920-1 01 1 1410-
424 TUBE; BREATHER 8-98189-475-0 01 1 1410-
429 CLIP; BREATHER HOSE 8-98161-881-0 01 1 1410-
