Isuzu WW
▶
PICKUP
▶
TFR
▶
51576 - TFR/TFS JIANGXI
▶
2 - Clutch, Transmission, Trans Axle
▶
2-30 - GEAR SHIFTER AND QUADRANT BOX
▶

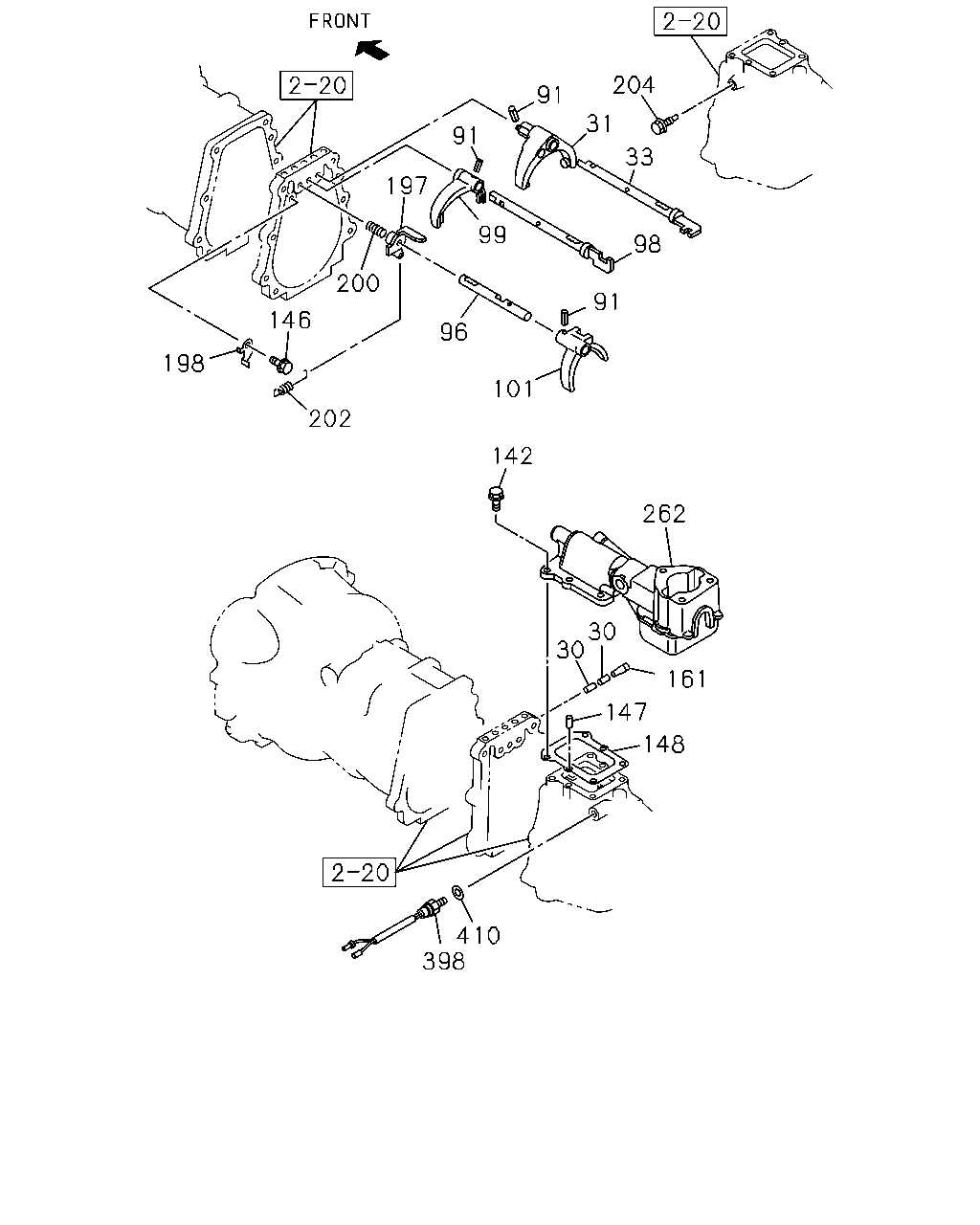

2-30 — GEAR SHIFTER AND QUADRANT BOX
(#148751) — 34 parça
◀
[230A] GEAR SHIFTER (21 parça)
[230A] SHIFT CONTROL BOX (13 parça)
▶
198
146
200
197
91
91
204
31
33
99
96
101
98
91
202
142
262
398
410
30
30
147
161
148
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
PIN; INTER LK
OD=5.5 L=10
5-33534-002-1
02
1
1410-
31
ARM; SHIFT,LOW & 2ND
8-94421-912-2
01
1
1410-
33
ROD; SHIFT,LOW & 2ND
8-97019-061-2
01
1
1410-
91
PIN; SPR,SHIFT ARM
D=4.2 L=25
8-94171-541-0
03
1
1410-
96
ROD; SHIFT,5TH
8-97232-886-0
01
1
1410-
98
ROD; SHIFT,TOP & 3RD
8-97019-060-3
01
1
1410-
99
ARM; SHIFT,4TH & 3RD
8-94421-911-2
01
1
1410-
101
ARM; SHIFT,REV & 5TH
8-97232-894-0
01
1
1410-
142
BOLT; QUAD BOX
M8X22 FLANGE
8-97365-376-0
04
1
1410-
146
BOLT; REV INHIBITOR
M8X20 FLANGE
0-28650-820-0
01
1
1410-
147
PIN; KNOCK
OD=6 L=12
9-08150-612-0
02
1
1410-
148
GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T).
8-97083-599-0
01
1
1410-
161
PLUG; INTER LK HOLE
8-94239-543-1
01
1
1410-
197
INHIBITOR; REV SHIFT
8-94448-753-0
01
1
1410-
198
BRACKET; REV INHIBITOR
8-94448-199-0
01
1
1410-
200
SPRING; REV INHIBITOR,COMP
8-94448-807-0
01
1
1410-
202
SPRING; REV INHIBITOR,EXT
8-97017-500-0
01
1
1410-
204
STOPPER; REV INHIBITOR
8-98035-673-0
01
1
1410-
262
BOX ASM; SHIFT CONT
8-98219-761-0
01
1
1410-
398
SWITCH; REV LAMP
8-98103-750-0
01
1
1410-
410
GASKET; REV SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 OD=20.0
9-09571-414-0
01
1
1410-
262
271
271
261
268
459
274
248
132
22
172
171
288
289
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
CAP; RETURN SPR,SHIFT BLOCK
8-97181-326-0
02
1
1410-
132
SPRING; SELECT STOP
8-97181-395-0
02
1
1410-
171
SWITCH; NEUTRAL
8-98103-743-0
01
1
1410-
172
GASKET; NEUTRAL SW
ID=14.2
8-94462-114-0
01
1
1410-
248
RETAINER; CONT BOX
8-98210-983-0
02
1
1410-
261
ROD; GEAR CONT
8-97257-909-0
01
1
1410-
262
BOX ASM; SHIFT CONT
8-98219-761-0
01
1
1410-
268
LEVER; CONT,INTERNAL
8-97184-895-0
01
1
1410-
271
BUSHING; QUAD BOX
ID=14 L=12
8-98017-908-0
02
1
1410-
274
COVER; SHAFT,QUAD BOX
8-97181-324-1
01
1
1410-
288
PLUG; AIR BREATHER
9-00097-517-0
01
1
1410-
289
SEAL; OIL,CONT SHAFT,QUAD BOX
8-98017-744-0
01
1
1410-
459
PIN; SPR,ROD TO ARM
OD=5
8-97184-905-0
01
1
1410-
