2-26 — MANUAL TRANSMISSION GEAR (#148750) — 156 parça

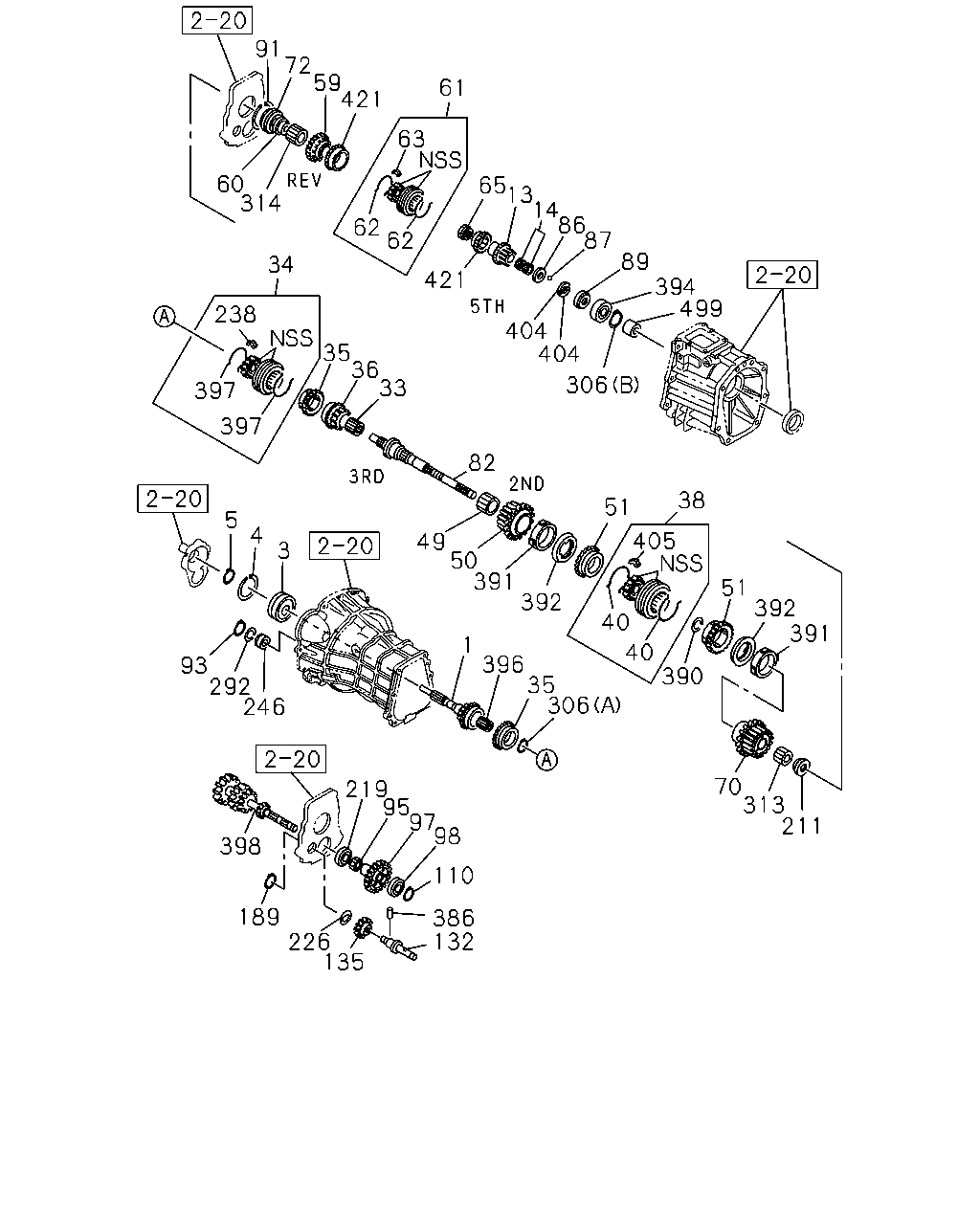

91 72 59 421 60 314 62 63 62 61 421 65 13 14 86 87 9 404 404 394 499 306 34 238 397 397 35 36 33 82 49 50 391 51 38 392 40 405 40 51 392 391 390 70 313 211 5 4 3 93 292 246 398 189 226 219 95 97 98 110 135 386 132 1 396 35 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
1	SHAFT; TOP GEAR,TRANS Z=26	8-98233-594-0	01	1	1410-	●
3	BEARING; TOP GEAR SHAFT NSK	8-97943-879-0	01	1	1410-	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	1410-	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.4	8-97254-316-0	01	1	1410-	●
13	GEAR; 5TH,MAINSHAFT	8-98210-227-0	01	1	1410-	●
14	BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1410-	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-028-1	01	1	1410-	●
34	SYNCHRONIZER; 4TH & 3RD	8-97977-991-0	01	1	1410-	●
35	RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	1410-	●
36	GEAR; 3RD,MAINSHAFT Z=27	8-98233-597-0	01	1	1410-	●
38	SYNCHRONIZER; LOW & 2ND	8-97977-989-0	01	1	1410-	●
40	SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	1410-	●
49	BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	1410-	●
50	GEAR; 2ND,MAINSHAFT Z=34	8-97301-183-1	01	1	1410-	●
51	RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1410-	●
59	GEAR; REV MAINSHAFT Z=41	8-98210-228-0	01	1	1410-	●
60	COLLAR; REV MAIN	8-97031-079-0	01	1	1410-	●
61	SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	1410-	●
62	SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	1410-	●
63	INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	1410-	●
65	NUT; MAINSHAFT M34	8-94422-071-1	01	1	1410-	●
70	GEAR; 1ST,MAINSHAFT Z=45	8-97301-182-1	01	1	1410-	●
72	BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	1410-	●
82	SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	1410-	●
82	SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	1410-	●
86	WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	1410-	●
86	WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	1410-	●
86	WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	1410-	●
86	WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	1410-	●
87	BALL; THRUST WASHER	8-94201-356-0	01	1	1410-	●
91	RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	1410-	●
93	RING; SNAP,COUNTER FRT BRG ID=23.2	9-09180-025-0	01	1	1410-	●
95	GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	1410-	●
97	GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	1410-	●
98	BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	1410-	●
110	RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	1410-	●
110	RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	1410-	●
110	RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	1410-	●
110	RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	1410-	●
110	RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	1410-	●
110	RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	1410-	●
132	SHAFT; REV	8-98245-493-0	01	1	1410-	●
135	GEAR; REV IDLER Z=33	8-98233-606-0	01	1	1410-	●
189	RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	1410-	●
189	RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	1410-	●
189	RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	1410-	●
211	BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	1410-	●
219	BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	1410-	●
226	WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	1410-	●
238	INSERT	8-94448-202-2	03	1	1410-	●
246	BEARING; ROLLER,COUNTER SHAFT FRT NSK	8-97029-600-4	01	1	1410-	●
292	RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	1410-	●
306	RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9 CHI	9-09180-030-0	02	1	1410-	●
306	RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	1410-	●
306	RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	1410-	●
306	RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	1410-	●
306	RING; SNAP,MAINSHAFT 4X4(TFS***) (B) ID=27.9 CHI	9-09180-030-0	01	1	1410-	●
313	BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	1410-	●
314	BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	1410-	●
314	BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	1410-	●
386	PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	1410-	●
390	RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	1410-	●
390	RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	1410-	●
390	RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	1410-	●
391	RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	1410-	●
392	RING; OUTSIDE,SYN OD=90.0	8-98115-793-0	02	1	1410-	●
394	BEARING; BALL,MAINSHAFT RR 4X4(TFS***)	8-97018-921-1	01	1	1410-	●
396	BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1410-	●
397	SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	1410-	●
398	GEAR; COUNTER Z=44-32-25-19	8-97301-186-2	01	1	1410-	●
404	PLATE; THRUST	8-94421-892-0	02	1	1410-	●
405	INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	1410-	●
421	RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	1410-	●
499	COLLAR; OIL SEAL 4X4(TFS***)	8-97300-954-0	01	1	1410-	●

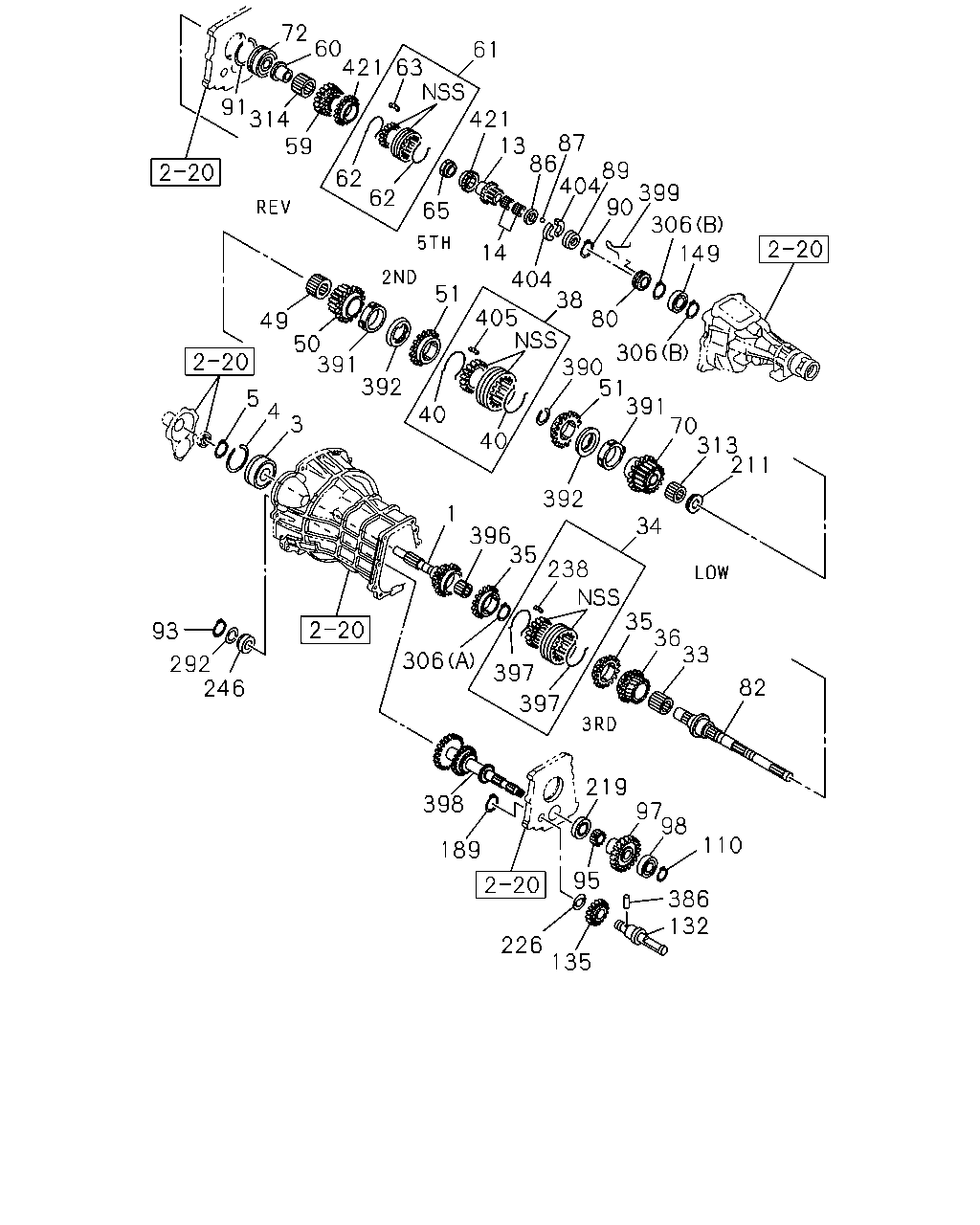

72 91 60 314 59 421 63 61 421 13 86 87 404 89 90 399 306 149 62 62 65 14 404 38 80 306 51 405 390 51 391 70 313 211 49 50 391 392 40 40 392 34 5 4 3 1 396 35 238 35 36 33 82 93 292 246 306 397 397 398 189 219 97 98 95 110 226 135 386 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
1	SHAFT; TOP GEAR,TRANS Z=26	8-98233-594-0	01	1	1410-	●
3	BEARING; TOP GEAR SHAFT NSK	8-97943-879-0	01	1	1410-	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	1410-	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.4	8-97254-316-0	01	1	1410-	●
13	GEAR; 5TH,MAINSHAFT	8-98210-227-0	01	1	1410-	●
14	BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1410-	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-028-1	01	1	1410-	●
34	SYNCHRONIZER; 4TH & 3RD	8-97977-991-0	01	1	1410-	●
35	RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	1410-	●
36	GEAR; 3RD,MAINSHAFT Z=27	8-98233-597-0	01	1	1410-	●
38	SYNCHRONIZER; LOW & 2ND	8-97977-989-0	01	1	1410-	●
40	SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	1410-	●
49	BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	1410-	●
50	GEAR; 2ND,MAINSHAFT Z=34	8-97301-183-1	01	1	1410-	●
51	RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1410-	●
59	GEAR; REV MAINSHAFT Z=41	8-98210-228-0	01	1	1410-	●
60	COLLAR; REV MAIN	8-97031-079-0	01	1	1410-	●
61	SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	1410-	●
62	SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	1410-	●
63	INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	1410-	●
65	NUT; MAINSHAFT M34	8-94422-071-1	01	1	1410-	●
70	GEAR; 1ST,MAINSHAFT Z=45	8-97301-182-1	01	1	1410-	●
72	BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	1410-	●
80	GEAR; SPD DRIVE 4X2(TFB***) Z=6	8-94472-608-1	01	1	1410-	●
82	SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	1410-	●
82	SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	1410-	●
86	WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	1410-	●
86	WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	1410-	●
86	WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	1410-	●
86	WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	1410-	●
87	BALL; THRUST WASHER	8-94201-356-0	01	1	1410-	●
89	RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	1410-	●
90	RING; SNAP,THRUST RING 4X2(TFB***) ID=29.6	9-09180-032-0	01	1	1410-	●
91	RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	1410-	●
93	RING; SNAP,COUNTER FRT BRG ID=23.2	9-09180-025-0	01	1	1410-	●
95	GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	1410-	●
97	GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	1410-	●
98	BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	1410-	●
110	RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	1410-	●
110	RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	1410-	●
110	RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	1410-	●
110	RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	1410-	●
110	RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	1410-	●
110	RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	1410-	●
132	SHAFT; REV	8-98245-493-0	01	1	1410-	●
135	GEAR; REV IDLER Z=33	8-98233-606-0	01	1	1410-	●
149	BEARING; NEEDLE,MAINSHAFT,RR 4X2(TFB***)	8-94173-863-0	01	1	1410-	●
189	RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	1410-	●
189	RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	1410-	●
189	RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	1410-	●
211	BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	1410-	●
219	BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	1410-	●
226	WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	1410-	●
238	INSERT	8-94448-202-2	03	1	1410-	●
246	BEARING; ROLLER,COUNTER SHAFT FRT NSK	8-97029-600-4	01	1	1410-	●
292	RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	1410-	●
306	RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9 CHI	9-09180-030-0	02	1	1410-	●
306	RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	1410-	●
306	RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	1410-	●
306	RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	1410-	●
306	RING; SNAP,MAINSHAFT 4X4(TFS***) (B) ID=27.9 CHI	9-09180-030-0	01	1	1410-	●
313	BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	1410-	●
314	BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	1410-	●
314	BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	1410-	●
386	PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	1410-	●
390	RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	1410-	●
390	RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	1410-	●
390	RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	1410-	●
391	RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	1410-	●
392	RING; OUTSIDE,SYN OD=90.0	8-98115-793-0	02	1	1410-	●
396	BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1410-	●
397	SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	1410-	●
398	GEAR; COUNTER Z=44-32-25-19	8-97301-186-2	01	1	1410-	●
399	CLIP; SPEEDOMETER DRIVE GEAR 4X2(TFB***)	8-94310-229-0	01	1	1410-	●
404	PLATE; THRUST	8-94421-892-0	02	1	1410-	●
405	INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	1410-	●
421	RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	1410-	●

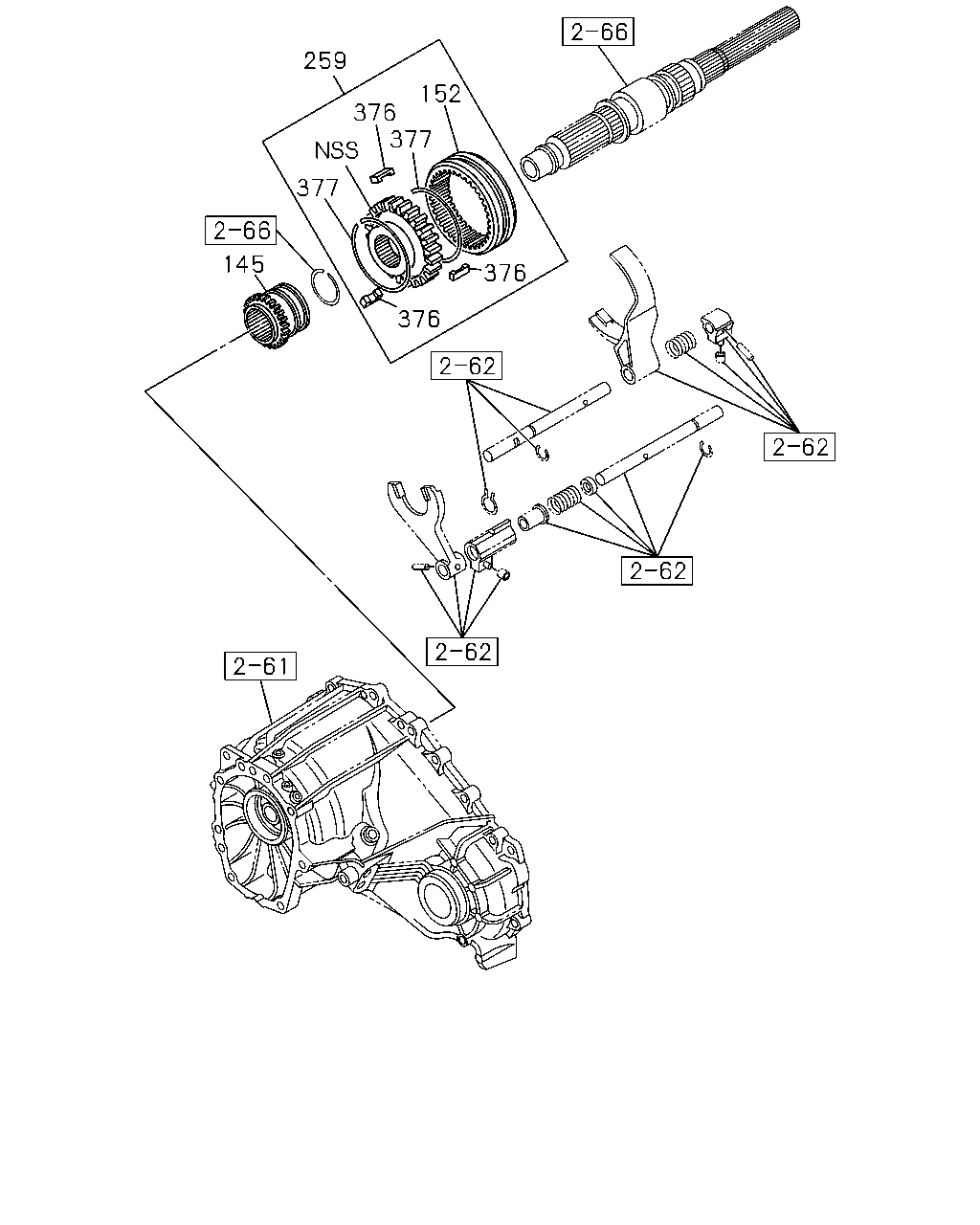

145 377 376 152 259 376 376 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
145	SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(TFS***)	8-98063-369-1	01	1	1410-	●	●
152	SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4(TFS***)	8-94363-060-0	01	1	1410-	●	●
259	SYNCHRONIZER; 4X2-4X4,TRANSFER 4X4(TFS***)	8-97234-225-0	01	1	1410-	●	●
376	INSERT; 4X2-4X4 SYN,TRANSFER 4X4(TFS***)	8-97238-590-0	03	1	1410-	●	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER 4X4(TFS***)	8-94448-045-0	02	1	1410-	●	●
