3 - Brakes, Brake System
▶
3-08 - PARKING BRAKE
▶

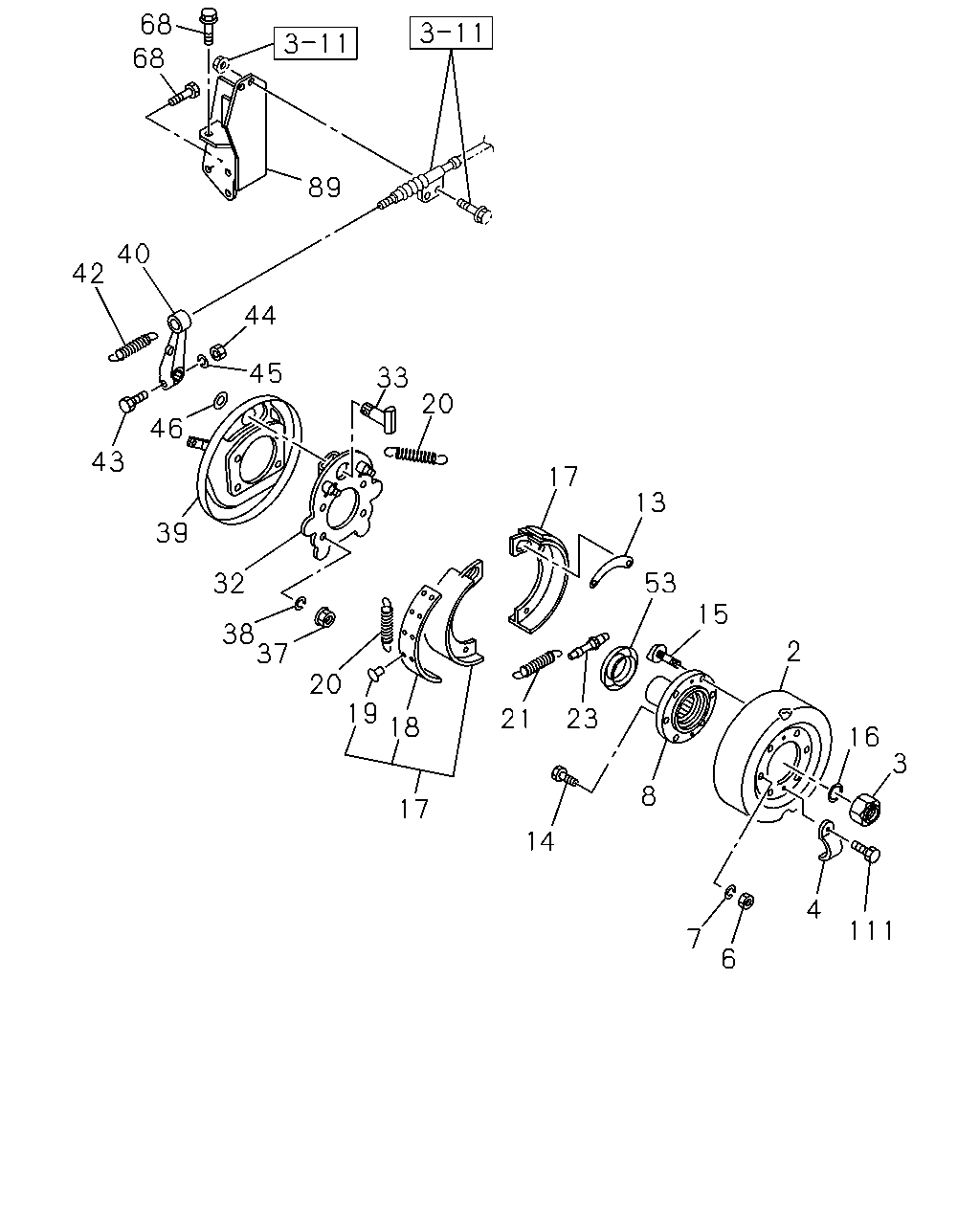

3-08 — PARKING BRAKE
(#14875) — 35 parça
68
68
89
40
42
44
45
33
20
46
43
17
13
39
53
32
15
38
37
2
20
19
23
21
18
16
3
8
17
14
4
111
7
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
DRUM; PARKING BRK
1-46211-026-1
01
1
0711-
3
NUT; LK
M44
1-09449-076-0
01
1
0711-
4
COVER; ADJ HOLE
1-46219-019-0
02
1
0711-0803
4
COVER; ADJ HOLE
8-98031-861-0
02
1
0804-
6
NUT; FLANGE
M16
0-91110-516-0
02
1
0711-
7
WASHER; LK,FLANGE
ID=16.2
0-91510-516-0
02
1
0711-
8
FLANGE; PARKING BRK
1-37243-213-0
01
1
0711-1204
8
FLANGE; PARKING BRK
8-98214-170-0
01
1
1205-
13
BRACE; PARKING BRK
9-46239-002-0
01
1
0711-
14
BOLT; DRUM TO FLANGE
M16X38
1-46219-010-0
02
1
0711-
15
BOLT; FLANGE
M16X55
8-98023-172-0
04
1
0711-
16
GASKET; FLANGE
ALSO INCLUDED IN GASKET SET(M/T).
9-09920-607-0
01
1
0711-
17
SHOE; PARKING BRK
1-46220-022-1
02
1
0711-
18
LINING; BRK,PARKING
1-46225-023-0
02
1
0711-
19
RIVET; LINING,PARKING BRK
1-09732-012-0
32
1
0711-0807
19
RIVET; LINING,PARKING BRK
1-09732-058-0
32
1
0808-
20
SPRING; RETURN,SECONDARY,PARKING BRK
9-09942-434-0
02
1
0711-
21
SPRING; RETURN,PARKING BRK SHOE
9-09942-516-0
01
1
0711-
23
SCREW; ADJ,PARKING BRK SHOE
1-46240-003-0
01
1
0711-
32
PLATE; SUPPORT,PARKING BRK
1-46213-096-0
01
1
0711-
33
SHAFT; CAM,PARKING BRK
9-46251-069-0
01
1
0711-
37
NUT; SUPPORT PLATE
M16
0-91110-516-0
04
1
0711-
38
WASHER; LK,SUPPORT PLATE
ID=16.2
0-91510-516-0
04
1
0711-
39
COVER; DUST,PARKING BRK
1-46213-093-0
01
1
0711-
40
LEVER; CM/SHF,PARKING BRK
1-46252-013-0
01
1
0711-
42
SPRING; RETURN,LEVER
1-09583-104-0
01
1
0711-
43
BOLT; LEVER TO CM/SHF
8-98061-595-0
01
1
0711-
44
NUT; LEVER TO CM/SHF
M10
0-91111-510-0
01
1
0711-
45
WASHER; LK,LEVER TO CM/SHF
ID=10.2
0-91510-510-0
01
1
0711-
46
WASHER; LEVER
9-09855-362-0
01
1
0711-
53
COVER; DUST,PARKING BRK
8-98211-048-0
01
1
1205-
68
BOLT; BRKT,PARKING BRK CONT
M10X22 FLANGE
0-28181-022-0
04
1
0711-
89
BRACKET; PARKING BRK CONT
1-46147-262-1
01
1
0711-
111
BOLT; COVER,CHECK HOLE
M8X20 W/LK WASHER
0-50040-820-0
02
1
0711-0906
111
BOLT; COVER,CHECK HOLE
M8X20 W/LK WASHER
0-50540-820-0
02
1
0907-
