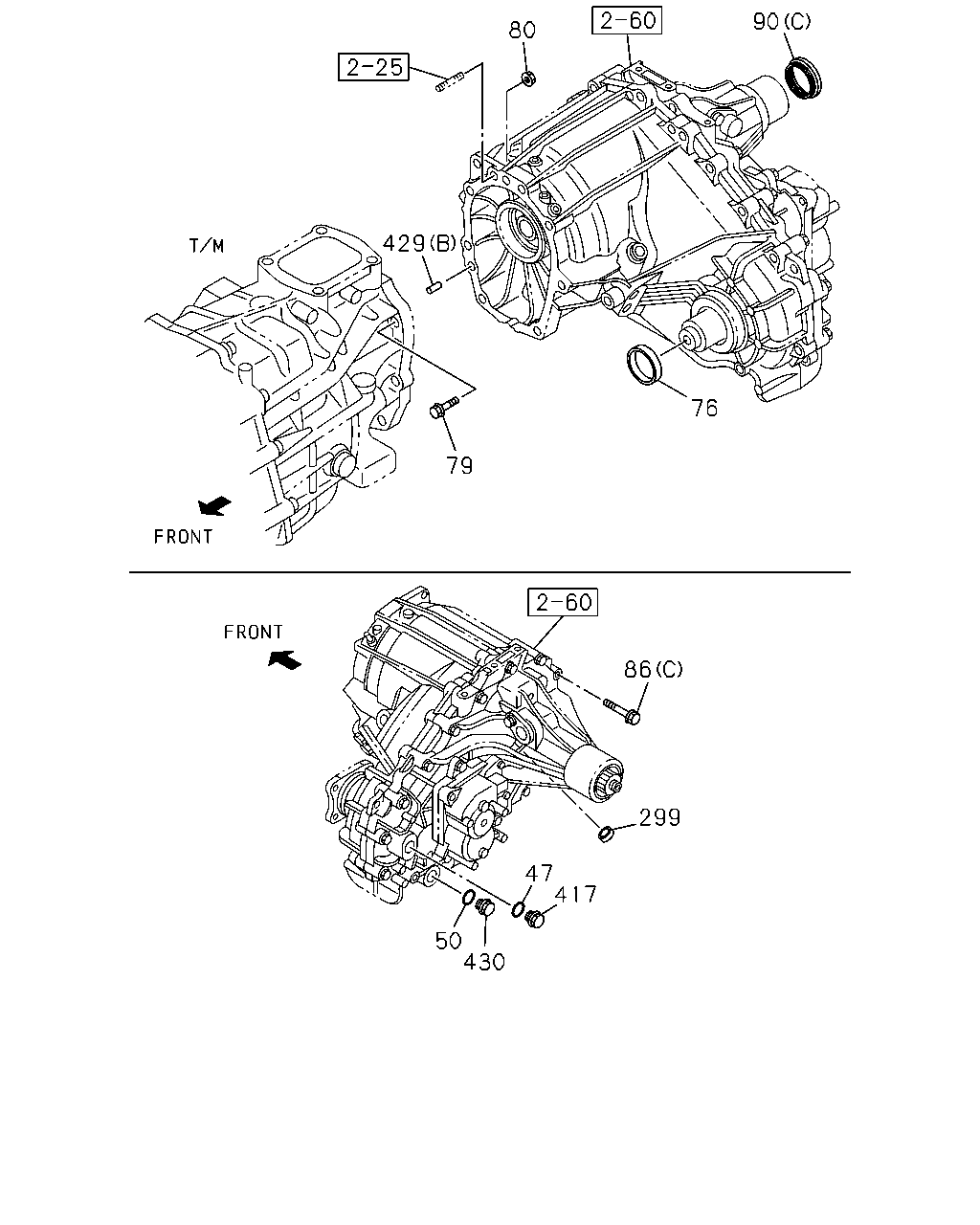

2-20 — MANUAL TRANSMISSION ASM AND CASE (#148748) — 89 parça

430 50 417 47 299 86 79 76 429 80 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1410-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) ID=17	8-97115-712-0	01	1	1410-		●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97238-999-0	01	1	1410-	●	●
79	BOLT; TRANSFER CASE M10X45 FLANGE	0-28051-045-0	07	1	1410-	●
79	BOLT; TRANSFER CASE 4X4(TFS***) M10X35 FLANGE	0-28051-035-0	06	1	1410-		●
80	NUT; TRANSFER CASE 4X4(TFS***) M10 FLANGE	0-91180-110-0	01	1	1410-		●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1410-		●
86	BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1410-		●
86	BOLT; RR COVER 4X4(TFS***) (C) M8X45 FLANGE	0-28050-845-0	16	1	1410-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (A) NOK	8-97947-840-0	01	1	1410-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK	8-97947-841-0	01	1	1410-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (C) NOK	8-97046-705-3	01	1	1410-	●	●
299	PLUG; SHIFTER ROD 4X4(TFS***) OD=15.6	8-94173-641-0	02	1	1410-	●	●
417	PLUG; OIL FILLER,TRANS 4X2(TFB***)	8-97365-373-0	01	1	1410-		●
429	PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1410-		●
429	PIN; STRAIGHT 4X4(TFS***) (B) OD=10 L=20	8-97135-423-0	02	1	1410-	●	●
430	PLUG; OIL DRAIN 4X2(TFB***)	8-97365-374-0	01	1	1410-		●

1 1

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	1	TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-98172-462-0	01	1	1410-		●
	1	TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98172-959-0	01	1	1410-		●

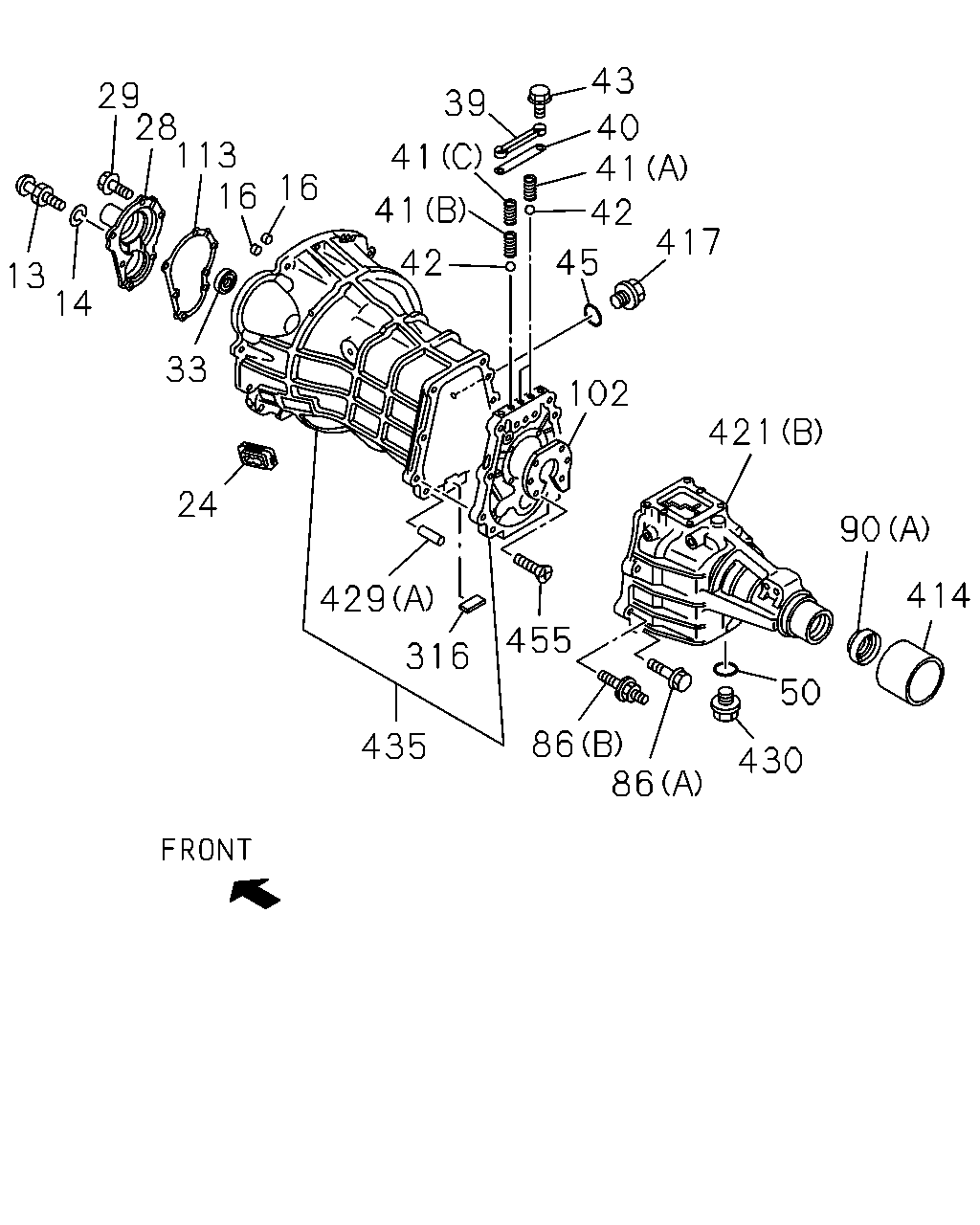

414 90 421 50 430 86 86 455 102 417 45 42 41 40 43 39 41 41 42 316 435 429 24 33 16 16 113 28 29 14 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1410-		●
14	WASHER; LK,SUPPORT ID=12.2	0-91510-512-0	01	1	1410-		●
16	PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	1410-		●
24	COVER; CHECK HOLE,DUST	8-94156-700-0	01	1	1410-		●
28	COVER; FRT,TRANS CASE	8-97381-406-0	01	1	1410-		●
29	BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1410-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-839-0	01	1	1410-		●
39	PLATE; DETENT SPR	8-98035-571-0	01	1	1410-		●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	1410-		●
41	SPRING; DETENT BALL (A) L=26.8	8-94320-193-0	02	1	1410-		●
41	SPRING; DETENT BALL (B) L=27.6	8-97214-402-0	01	1	1410-		●
41	SPRING; DETENT BALL (C) L=26.6	8-97214-403-0	01	1	1410-		●
42	BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	1410-		●
43	BOLT; PLATE TO PLATE M8X22 FLANGE	8-97365-376-0	02	1	1410-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1410-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) ID=17	8-97115-712-0	01	1	1410-		●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1410-		●
86	BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1410-		●
86	BOLT; RR COVER 4X4(TFS***) (C) M8X45 FLANGE	0-28050-845-0	16	1	1410-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (A) NOK	8-97947-840-0	01	1	1410-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK	8-97947-841-0	01	1	1410-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (C) NOK	8-97046-705-3	01	1	1410-	●	●
102	RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	1410-		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	1410-		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1410-		●
414	COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	1410-		●
417	PLUG; OIL FILLER,TRANS 4X2(TFB***)	8-97365-373-0	01	1	1410-		●
421	COVER; RR,TRANS 4X2(TFB***) (B)	8-97978-059-0	01	1	1410-		●
421	COVER; RR,TRANS 4X4(TFS***) (A)	8-98214-238-0	01	1	1410-1410		●
421	COVER; RR,TRANS 4X4(TFS***) (A)	8-97978-061-0	01	1	1410-		●
429	PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1410-		●
429	PIN; STRAIGHT 4X4(TFS***) (B) OD=10 L=20	8-97135-423-0	02	1	1410-	●	●
430	PLUG; OIL DRAIN 4X2(TFB***)	8-97365-374-0	01	1	1410-		●
435	CASE; TRANS	8-98047-230-0	01	1	1410-		●
455	SCREW; BRG RET M8X22	8-98035-654-0	04	1	1410-		●

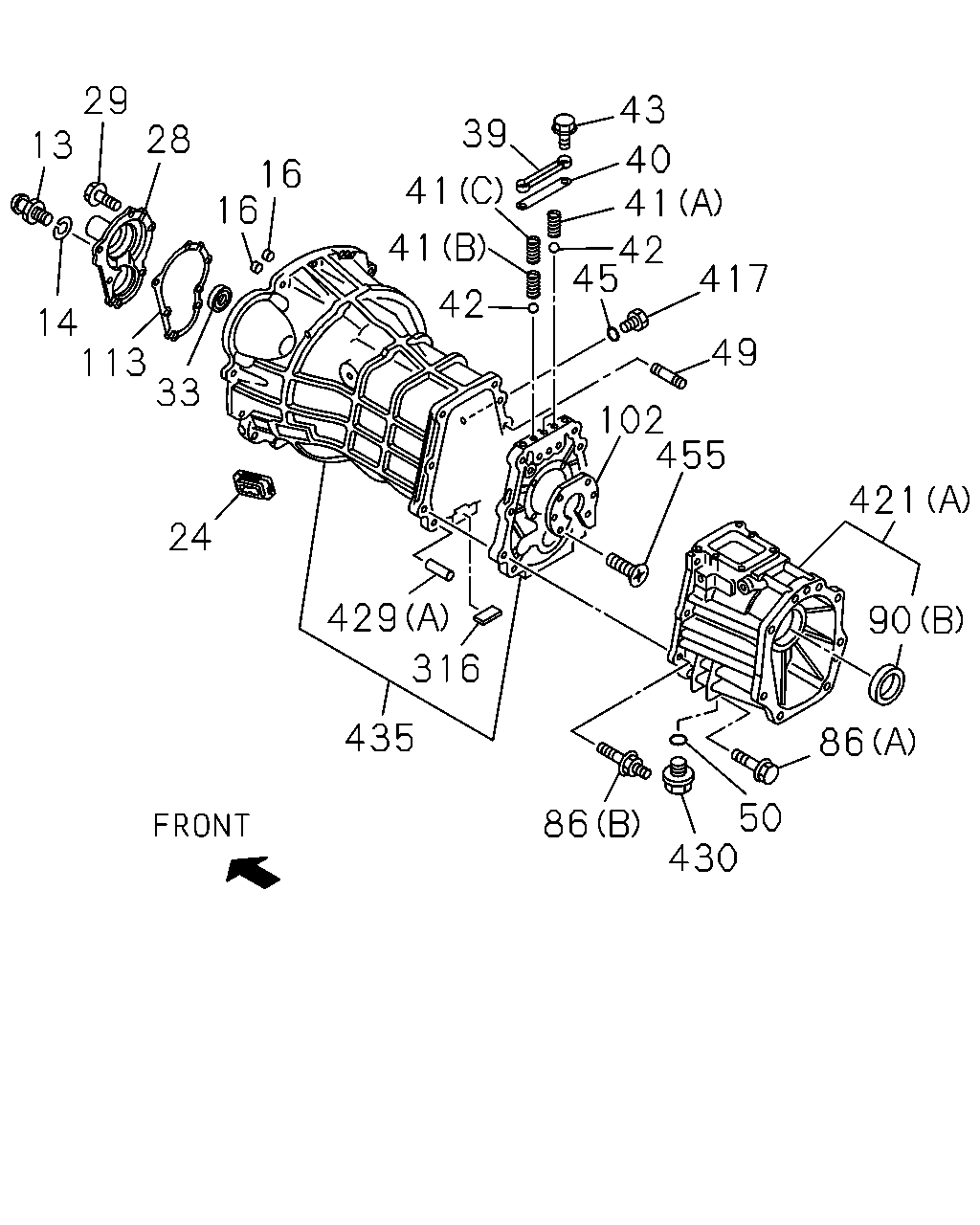

430 86 50 86 90 421 435 316 429 24 33 113 14 13 29 28 16 16 455 102 49 417 45 42 42 41 40 43 41 41 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1410-		●
14	WASHER; LK,SUPPORT ID=12.2	0-91510-512-0	01	1	1410-		●
16	PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	1410-		●
24	COVER; CHECK HOLE,DUST	8-94156-700-0	01	1	1410-		●
28	COVER; FRT,TRANS CASE	8-97381-406-0	01	1	1410-		●
29	BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1410-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-839-0	01	1	1410-		●
39	PLATE; DETENT SPR	8-98035-571-0	01	1	1410-		●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	1410-		●
41	SPRING; DETENT BALL (A) L=26.8	8-94320-193-0	02	1	1410-		●
41	SPRING; DETENT BALL (B) L=27.6	8-97214-402-0	01	1	1410-		●
41	SPRING; DETENT BALL (C) L=26.6	8-97214-403-0	01	1	1410-		●
42	BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	1410-		●
43	BOLT; PLATE TO PLATE M8X22 FLANGE	8-97365-376-0	02	1	1410-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1410-		●
49	STUD; TRANSFER CASE 4X4(TFS***) M10X30 L=45	8-98035-675-0	01	1	1410-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) ID=17	8-97115-712-0	01	1	1410-		●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1410-		●
86	BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1410-		●
86	BOLT; RR COVER 4X4(TFS***) (C) M8X45 FLANGE	0-28050-845-0	16	1	1410-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (A) NOK	8-97947-840-0	01	1	1410-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK	8-97947-841-0	01	1	1410-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (C) NOK	8-97046-705-3	01	1	1410-	●	●
102	RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	1410-		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	1410-		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1410-		●
417	PLUG; OIL FILLER,TRANS 4X2(TFB***)	8-97365-373-0	01	1	1410-		●
421	COVER; RR,TRANS 4X2(TFB***) (B)	8-97978-059-0	01	1	1410-		●
421	COVER; RR,TRANS 4X4(TFS***) (A)	8-98214-238-0	01	1	1410-1410		●
421	COVER; RR,TRANS 4X4(TFS***) (A)	8-97978-061-0	01	1	1410-		●
429	PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1410-		●
429	PIN; STRAIGHT 4X4(TFS***) (B) OD=10 L=20	8-97135-423-0	02	1	1410-	●	●
430	PLUG; OIL DRAIN 4X2(TFB***)	8-97365-374-0	01	1	1410-		●
435	CASE; TRANS	8-98047-230-0	01	1	1410-		●
455	SCREW; BRG RET M8X22	8-98035-654-0	04	1	1410-		●
