◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51576 - TFR/TFS JIANGXI ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-06 - CLUTCH SLAVE CYLINDER ▶
2-06 — CLUTCH SLAVE CYLINDER (#148745) — 14 parça

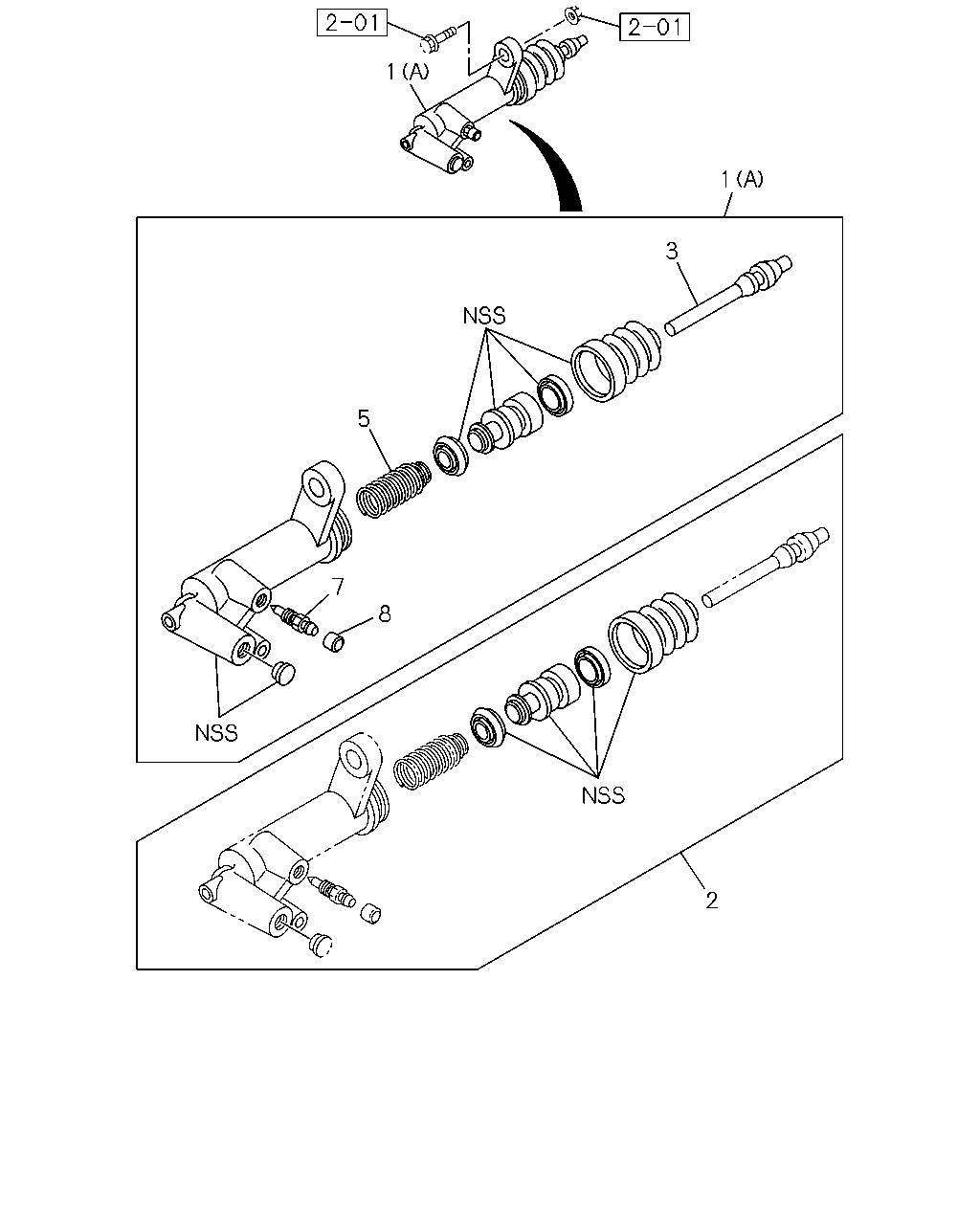

çizim 443252
1 1 3 5 8 7 2
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER; SLAVE,CLU
4X2(TFB***) (A) 		8-97945-177-0 01 1 1410-
1 CYLINDER; SLAVE,CLU
4X4(TFS***) (B) 		8-97946-625-1 01 1 1410-
2 REPAIR KIT; CLU SLAVE CYL 5-87832-048-0 01 1 1410-
3 ROD; PUSH,SLAVE CYL 8-97945-722-0 01 1 1410-
5 SPRING ASM; PISTON,SLAVE CYL 8-97942-801-0 01 1 1410-
7 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1410-
8 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1410-

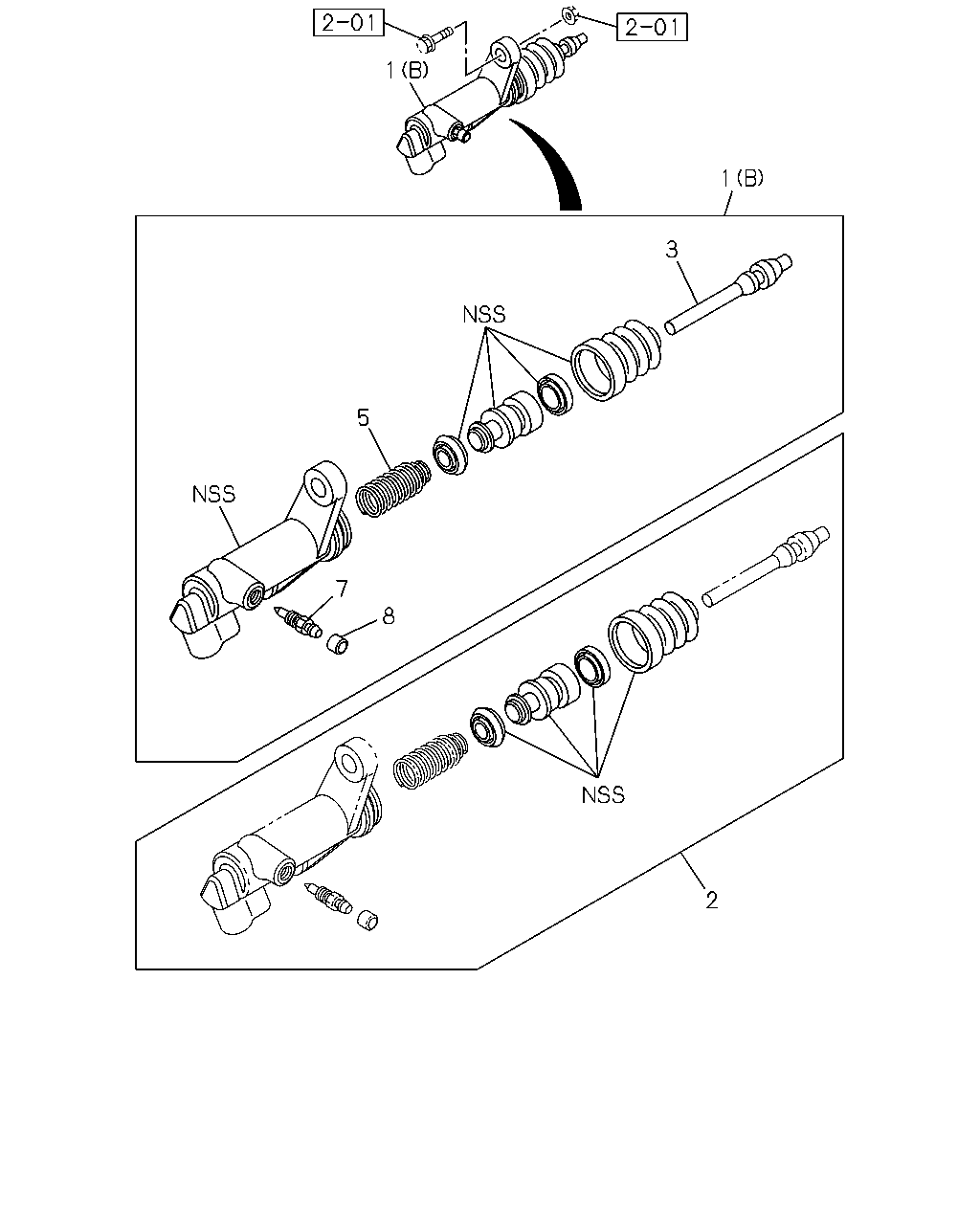

çizim 443253
1 3 5 7 8 2 1
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER; SLAVE,CLU
4X2(TFB***) (A) 		8-97945-177-0 01 1 1410-
1 CYLINDER; SLAVE,CLU
4X4(TFS***) (B) 		8-97946-625-1 01 1 1410-
2 REPAIR KIT; CLU SLAVE CYL 5-87832-048-0 01 1 1410-
3 ROD; PUSH,SLAVE CYL 8-97945-722-0 01 1 1410-
5 SPRING ASM; PISTON,SLAVE CYL 8-97942-801-0 01 1 1410-
7 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1410-
8 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1410-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
