Sayfa 2-05 - Isuzu EPC

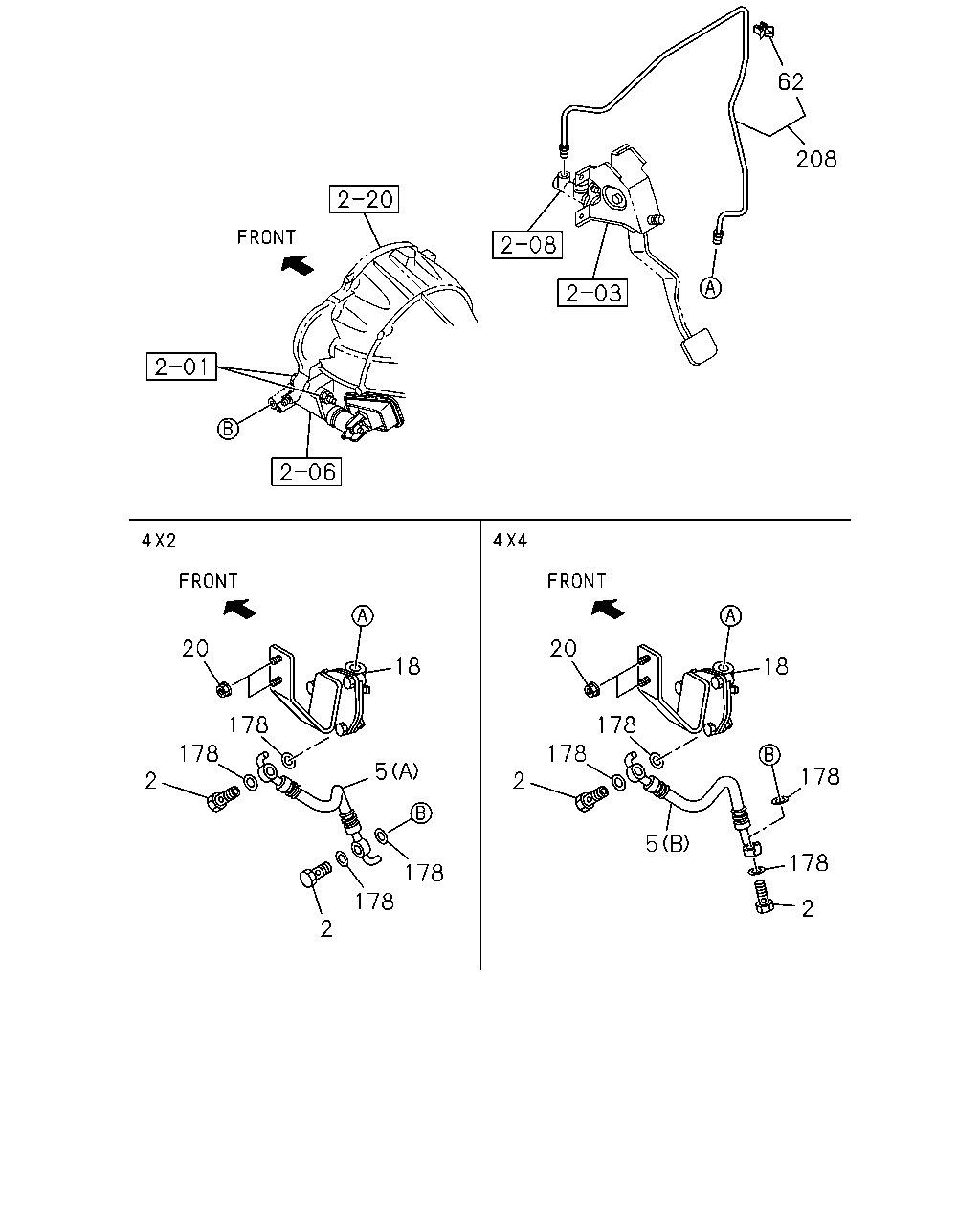

62 208 20 178 178 2 2 178 178 5 18 20 178 178 2 5 18 178 178 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; EYE,SLAVE CYL M10X22	8-97359-818-0	02	1	1410-
5	HOSE; FLEX,CLU PIPE 4X2(TFB***) (A)	8-98098-317-1	01	1	1410-
5	HOSE; FLEX,CLU PIPE 4X4(TFS***) (B)	8-98221-241-0	01	1	1410-
18	DAMPER ASM; CLU OIL	8-97946-616-1	01	1	1410-
20	NUT; CLU OIL DAMPER M6 FLANGE	0-91180-106-0	02	1	1410-
62	CLIP; CLU PIPE	8-98181-751-0	01	1	1410-
178	GASKET; FLEX HOSE TO M/CYL ID=10.2 OD=16.0	9-09571-410-0	04	1	1410-
208	PIPE; OIL,M/CYL TO DAMPER CYL	8-98100-270-1	01	1	1410-

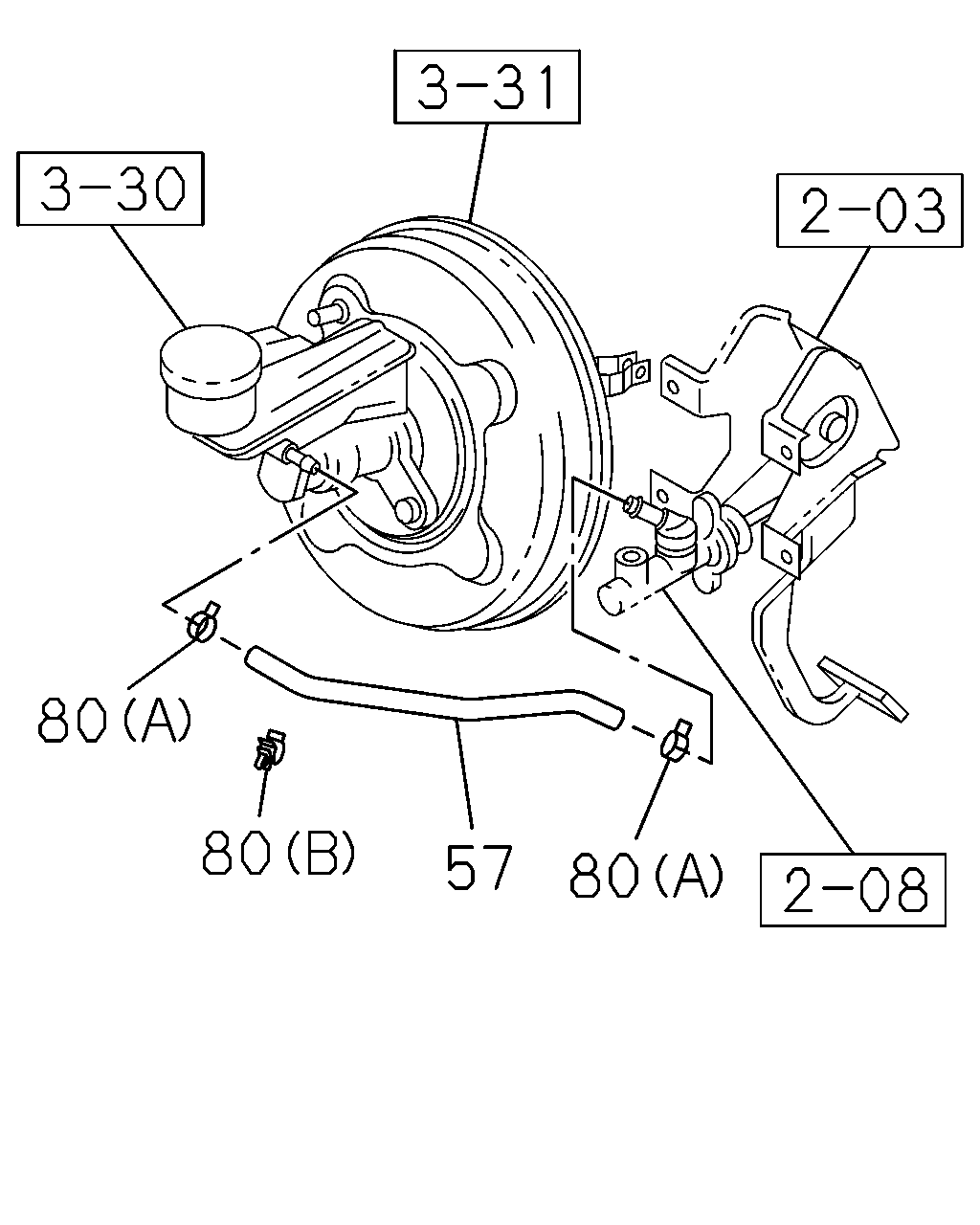

80 80 57 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
57	HOSE; CLU M/CYL TO OIL TANK	8-98097-544-1	01	1	1410-
80	CLIP; HOSE (B)	8-97947-817-0	01	1	1410-
80	CLIP; HOSE (A) ID=12 WO/PVC COATING	8-97947-824-0	02	1	1410-
