1-50 — EXHAUST PIPE AND SILENCER (#148741) — 21 parça

12 84 115 59 337 115 428 36 2 1 271 58 70 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH	8-98140-583-1	01	1	1410-
2	GASKET; PIPE TO MANIF ID=65	8-97263-052-0	01	1	1410-
12	SILENCER ASM; EXH CHI	8-98270-724-0	01	1	1410-
36	NUT; EXH PIPE M10 FLANGE	8-97096-192-1	02	1	1410-
58	BRACKET; EXH PIPE,RR	8-97368-450-0	01	1	1410-
59	BRACKET; EXH SILENCER,FRT	8-97365-312-0	01	1	1410-
70	BOLT; BRKT M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	1410-
84	GASKET; EXH PIPE ID=65	8-97263-052-0	01	1	1410-
115	RUBBER; MTG,SILENCER (A)	8-97289-169-0	01	1	1410-
115	RUBBER; MTG,SILENCER (B)	8-98124-470-0	02	1	1410-
271	RUBBER; HANGER,RR PIPE	8-97289-169-0	01	1	1410-
329	NUT; EXH PIPE TO PIPE M10 FLANGE	0-91180-110-0	02	1	1410-
337	BOLT; RUBBER,SUPPORT M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	1410-
428	RUBBER; MTG,CLAMP,EXH PIPE	8-98124-470-0	01	1	1410-

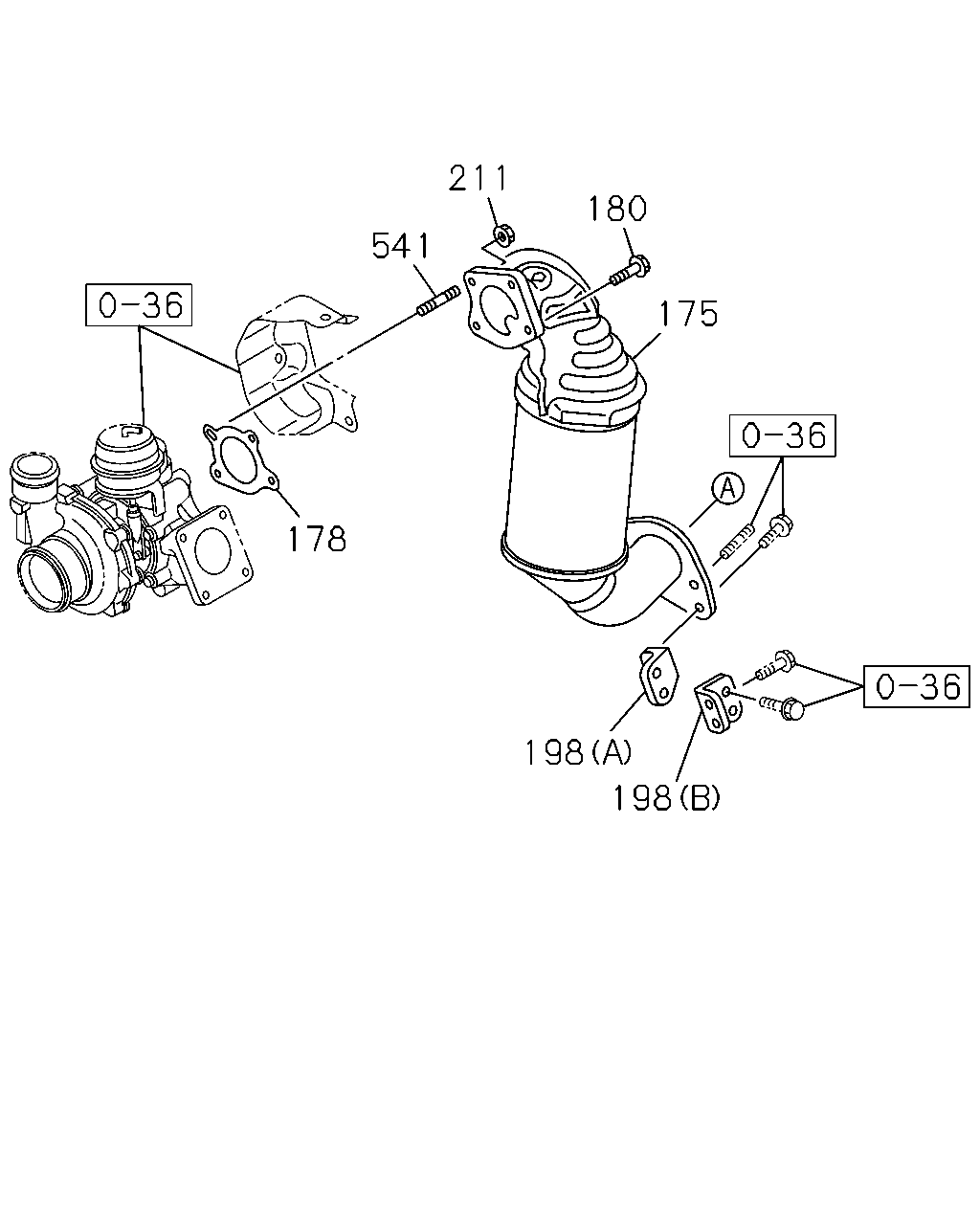

198 198 175 180 211 541 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
175	CONVERTER; CATALYST	8-97435-008-0	01	1	1410-
178	GASKET; CONV TO MANIF	8-98132-538-0	01	1	1410-
180	BOLT; CONV TO PIPE M8X23 FLANGE	8-97378-077-0	02	1	1410-
198	BRACKET; CONV MTG (B)	8-98196-696-1	01	1	1410-
198	BRACKET; CONV MTG (A)	8-98203-739-0	01	1	1410-
211	NUT; CONV M8 FLANGE	8-97379-384-0	02	1	1410-
541	STUD; CONV TO PIPE M8X25 L=36	8-97378-062-0	02	1	1410-
