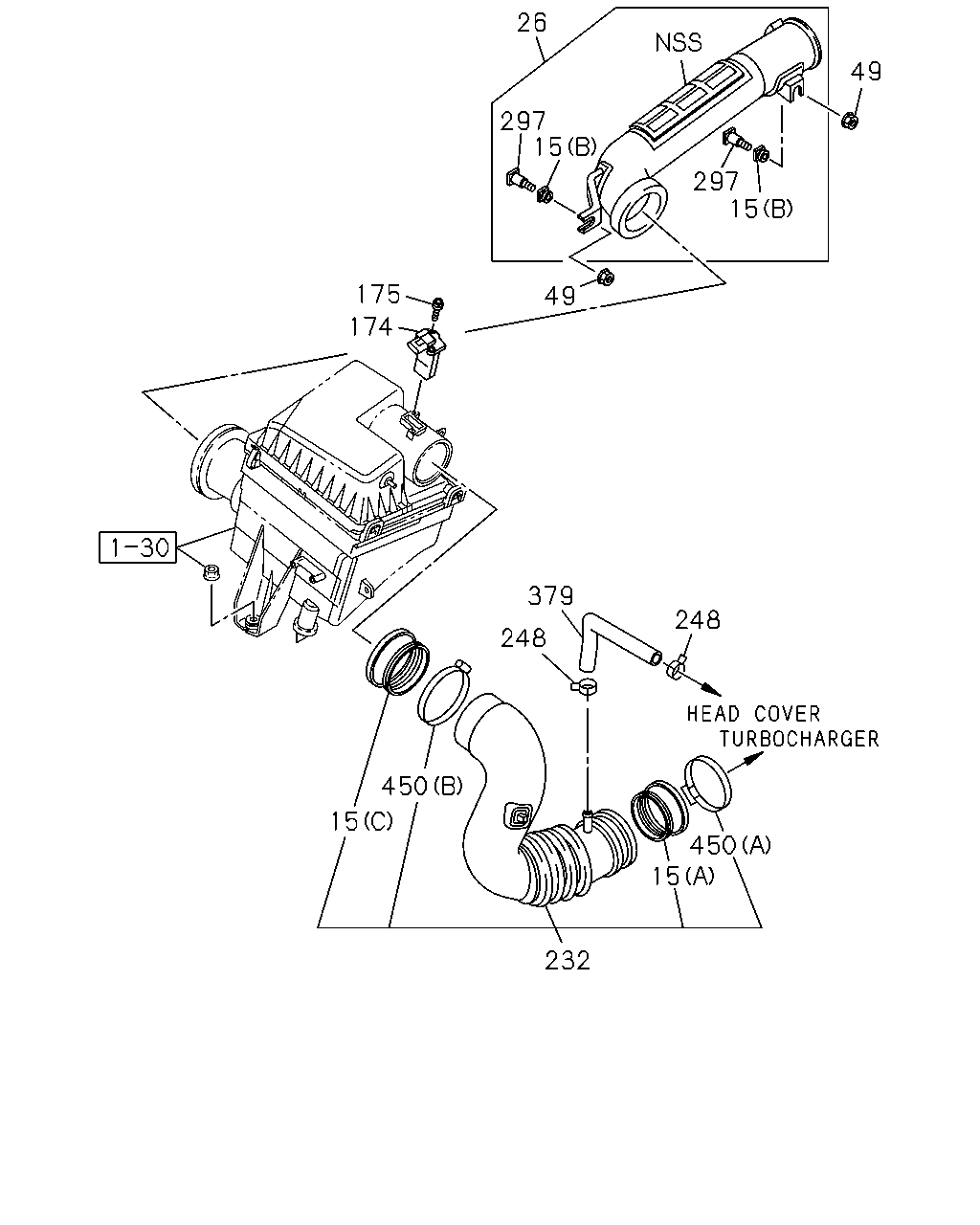

1-31 — AIR DUCT
(#148737) — 17 parça
26
297
15
297
15
49
49
175
174
379
248
248
450
15
232
15
450
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
INSULATOR
(A)
8-98137-140-0
01
1
1410-1410
15
INSULATOR
(B)
8-98203-901-0
02
1
1410-
15
INSULATOR
(C)
8-98214-036-0
01
1
1410-1410
26
DUCT; AIR INT
8-98104-472-1
01
1
1410-
49
NUT; AIR DUCT
M6 FLANGE
0-91180-106-0
02
1
1410-
174
SENSOR; AIR FLOW CONT
8-97601-967-0
01
1
1410-
175
BOLT; AIR FLOW CONT SENSOR
SCREW M4X10 W/LK&PL WASHER
0-36230-410-0
02
1
1410-
232
HOSE; CONN
8-98212-086-0
01
1
1410-1410
232
HOSE; CONN
CHI
8-97438-019-0
01
1
1411-
248
CLIP; RUBBER HOSE
ID=26.2
8-98202-540-0
01
1
1411-
248
CLIP; RUBBER HOSE
ID=20.4
8-94121-113-0
02
1
1410-1410
248
CLIP; RUBBER HOSE
ID=20.4
8-94121-113-0
01
1
1411-
297
BOLT; DUCT
8-98203-900-0
02
1
1410-
379
HOSE; RUBBER
8-98065-694-1
01
1
1410-1410
379
HOSE; RUBBER
CHI
8-97438-020-0
01
1
1411-
450
CLAMP; HOSE
(B)
8-98136-623-0
01
1
1410-1410
450
CLAMP; HOSE
(A)
8-98136-624-0
01
1
1410-1410
