0-66 — GENERATOR (#148732) — 14 parça

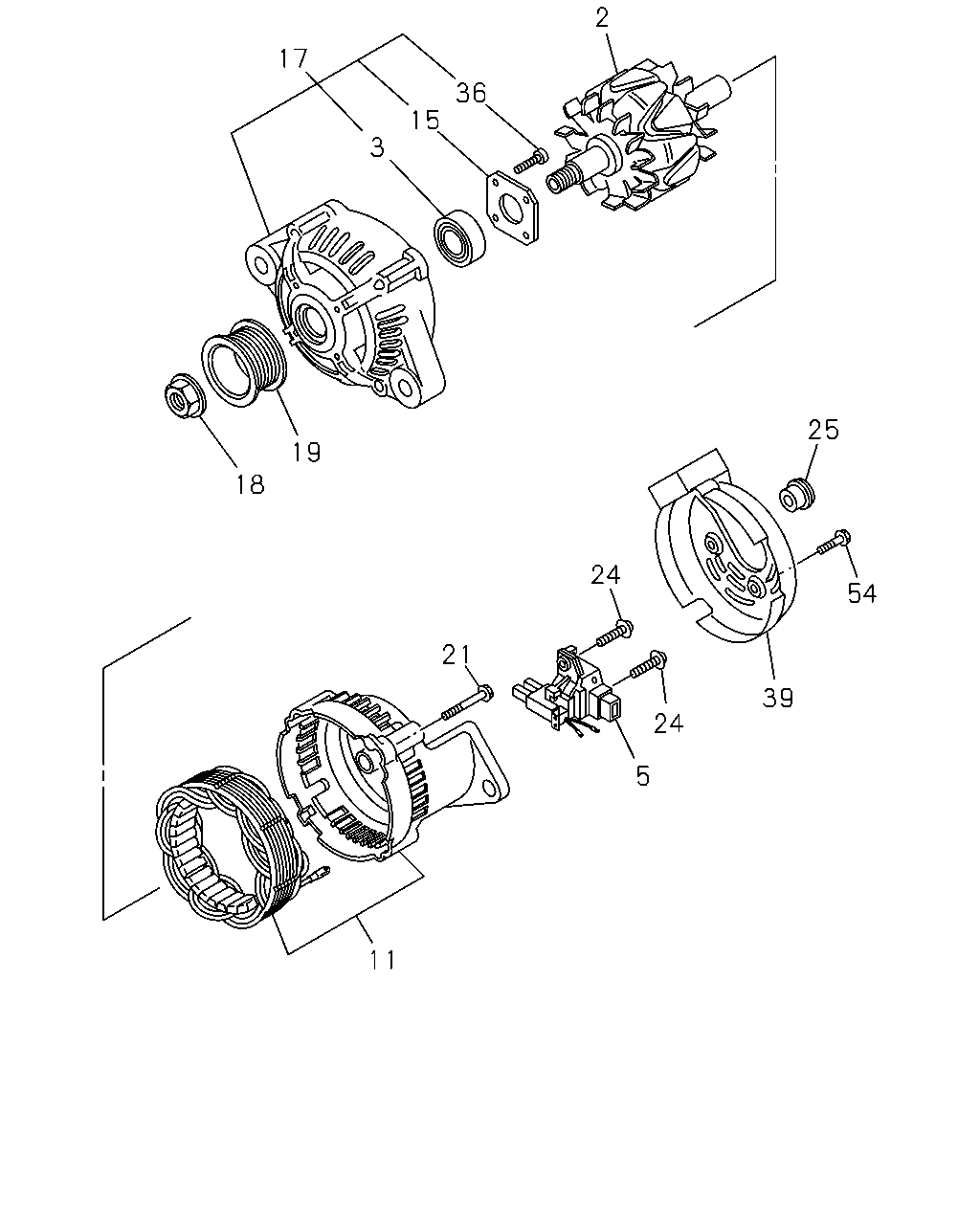

çizim 443169
17 3 15 36 2 19 18 21 24 25 54 39 24 5 11
BalonParca AdiParca NoAdetTipApplied Date
2 ROTOR; GEN
ASM PART: A = 8-98225-813-0 		8-97378-924-0 01 1 -
3 BEARING; ROTOR,GEN
ASM PART: A = 8-98225-813-0 		8-98228-965-0 01 1 -
5 HOLDER; BRUSH,GEN
ASM PART: A = 8-98225-813-0 		8-97378-926-0 01 1 -
11 COVER; RR,GEN
ASM PART: A = 8-98225-813-0 		8-98232-110-0 01 1 -
15 RETAINER; ROTOR,GEN
ASM PART: A = 8-98225-813-0 		8-94406-982-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: A = 8-98225-813-0 		8-98232-102-0 01 1 -
18 NUT; PULLEY,GEN
ASM PART: A = 8-98225-813-0 		8-94123-043-0 01 1 -
19 PULLEY; GEN
ASM PART: A = 8-98225-813-0 		8-98232-101-0 01 1 -
21 BOLT; THROUGH,GEN
ASM PART: A = 8-98225-813-0 		8-97319-752-0 04 1 -
24 SCREW; RECTIFIER,GEN
ASM PART: A = 8-98225-813-0 		8-97032-313-0 03 1 -
25 BUSHING; INSULATION TERMINAL
ASM PART: A = 8-98225-813-0 		8-98232-107-0 01 1 -
36 SCREW; FRT COVER
ASM PART: A = 8-98225-813-0 		8-97142-562-0 04 1 -
39 COVER; END,RR COVER,GEN
ASM PART: A = 8-98225-813-0 		8-98232-104-0 01 1 -
54 BOLT; RECTIFIER,GEN
ASM PART: A = 8-98225-813-0 		8-98232-109-0 03 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
