0-65 — STARTER (#148731) — 22 parça

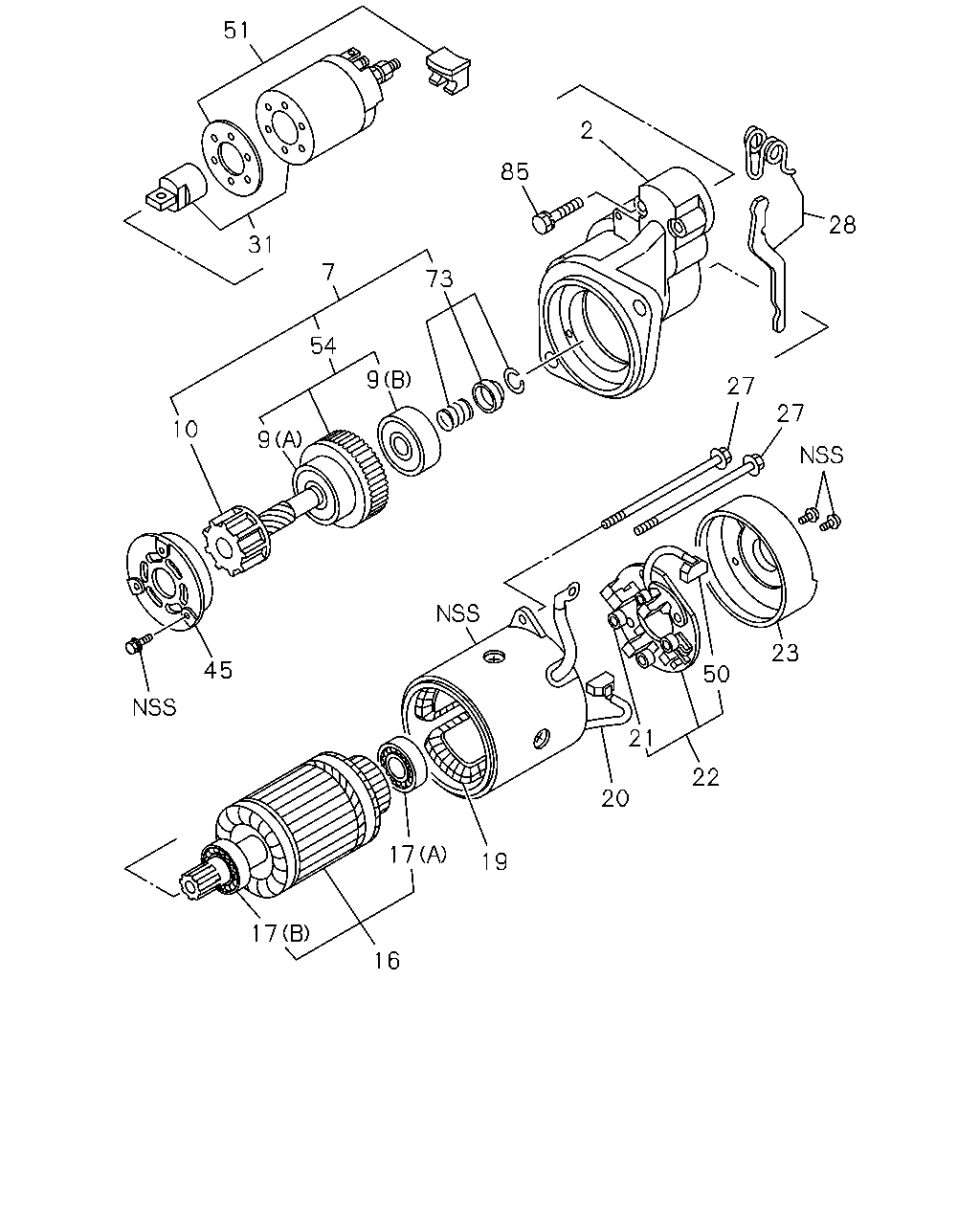

çizim 443162
28 2 85 73 7 31 51 54 9 10 45 17 16 17 19 20 21 22 50 23 27 27 9
BalonParca AdiParca NoAdetTipApplied Date
2 CASE; PINION,STARTER
ASM PART: A = 8-98028-199-0 		8-97368-562-0 01 1 -
7 CLUTCH ASM; PINION,STARTER
ASM PART: A = 8-98028-199-0 		8-97229-910-0 01 1 -
9 BEARING; GEAR SHAFT STARTER
(A) ASM PART: A = 8-98028-199-0 		8-97047-549-0 01 1 -
9 BEARING; GEAR SHAFT STARTER
(B) ASM PART: A = 8-98028-199-0 		8-97047-550-0 01 1 -
10 SHAFT; GEAR STARTER
ASM PART: A = 8-98028-199-0 		8-97130-189-1 01 1 -
16 ARMATURE; STARTER
ASM PART: A = 8-98028-199-0 		8-97262-027-0 01 1 -
17 BEARING; ARMATURE,STARTER
(A) ASM PART: A = 8-98028-199-0 		8-94228-436-0 01 1 -
17 BEARING; ARMATURE,STARTER
(B) ASM PART: A = 8-98028-199-0 		8-94228-437-0 01 1 -
19 COIL; FIELD,STARTER
ASM PART: A = 8-98028-199-0 		8-97376-957-1 01 1 -
20 BRUSH; (+),STARTER
ASM PART: A = 8-98028-199-0 		8-97113-286-0 02 1 -
21 SPRING; BRUSH HOLDER STARTER
ASM PART: A = 8-98028-199-0 		8-94242-064-0 04 1 -
22 HOLDER; BRUSH STARTER
ASM PART: A = 8-98028-199-0 		8-97112-559-1 01 1 -
23 COVER; RR COVER STARTER
ASM PART: A = 8-98028-199-0 		8-97319-418-0 01 1 -
27 BOLT; THROUGH,STARTER
ASM PART: A = 8-98028-199-0 		8-97319-423-0 02 1 -
28 LEVER; SHIFT,STARTER
ASM PART: A = 8-98028-199-0 		8-97351-967-0 01 1 -
31 SWITCH; ENGAGE STARTER
ASM PART: A = 8-98028-199-0 		8-97368-561-1 01 1 -
45 RETAINER; BEARING,STARTER
ASM PART: A = 8-98028-199-0 		8-94435-570-0 01 1 -
50 BRUSH; (-),STARTER
ASM PART: A = 8-98028-199-0 		8-97113-286-0 02 1 -
51 COVER SET; DUST ENGAGE SW STARTER
ASM PART: A = 8-98028-199-0 		8-97368-563-0 01 1 -
54 CLUTCH; PINION,STARTER
ASM PART: A = 8-98028-199-0 		8-97229-911-0 01 1 -
73 STOPPER SET; PINION
ASM PART: A = 8-98028-199-0 		8-94228-450-0 01 1 -
85 BOLT; ENGAGE SW FIX,STARTER
ASM PART: A = 8-98028-199-0 		8-94408-500-0 02 1 -
