Isuzu WW
▶
PICKUP
▶
TFR
▶
51576 - TFR/TFS JIANGXI
▶
0 - Engine, Emission, Engine Electrical
▶
0-57 - EMISSION PIPING
▶
0-57 — EMISSION PIPING
(#148728) — 27 parça
◀

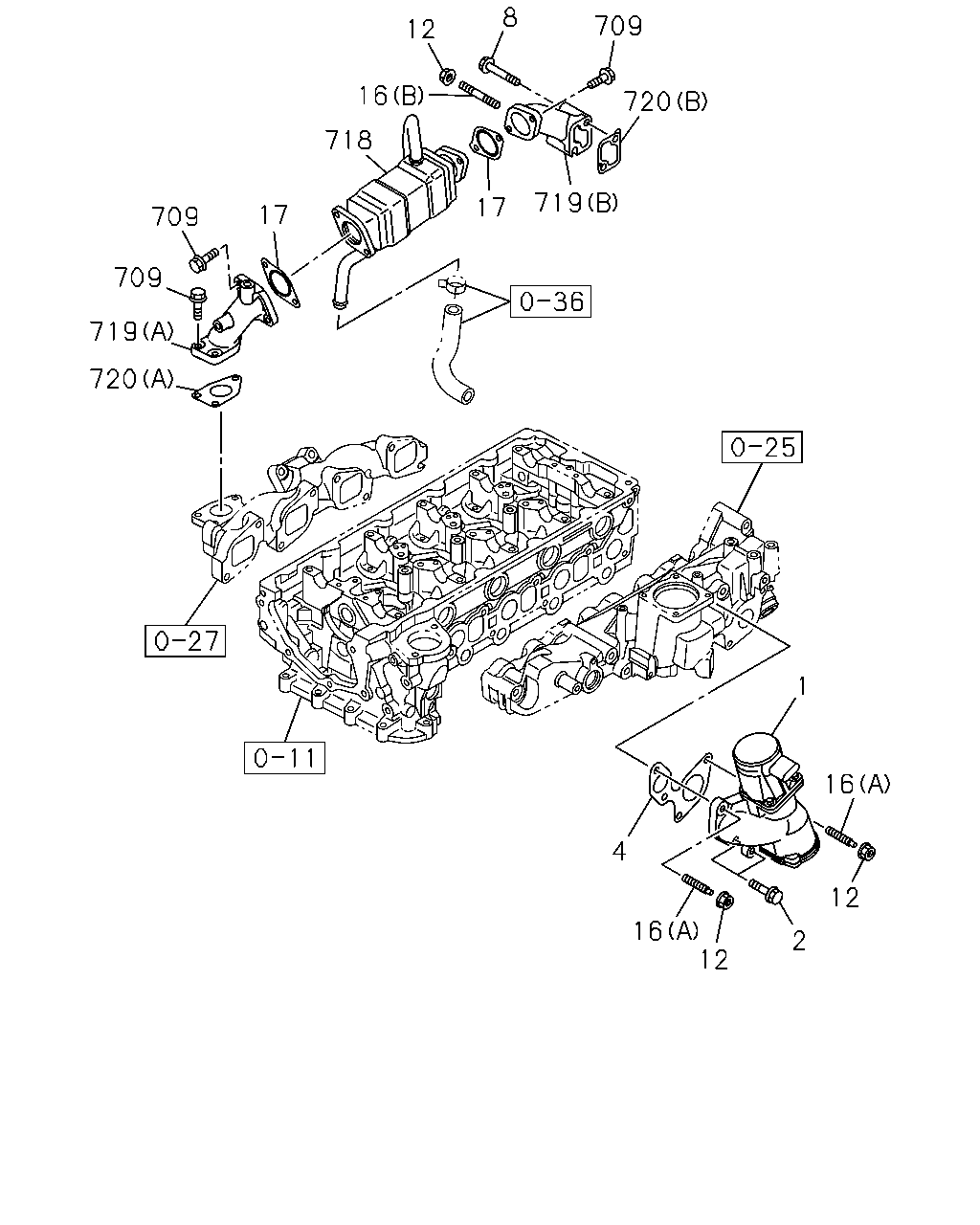

[057A] EGR (14 parça)

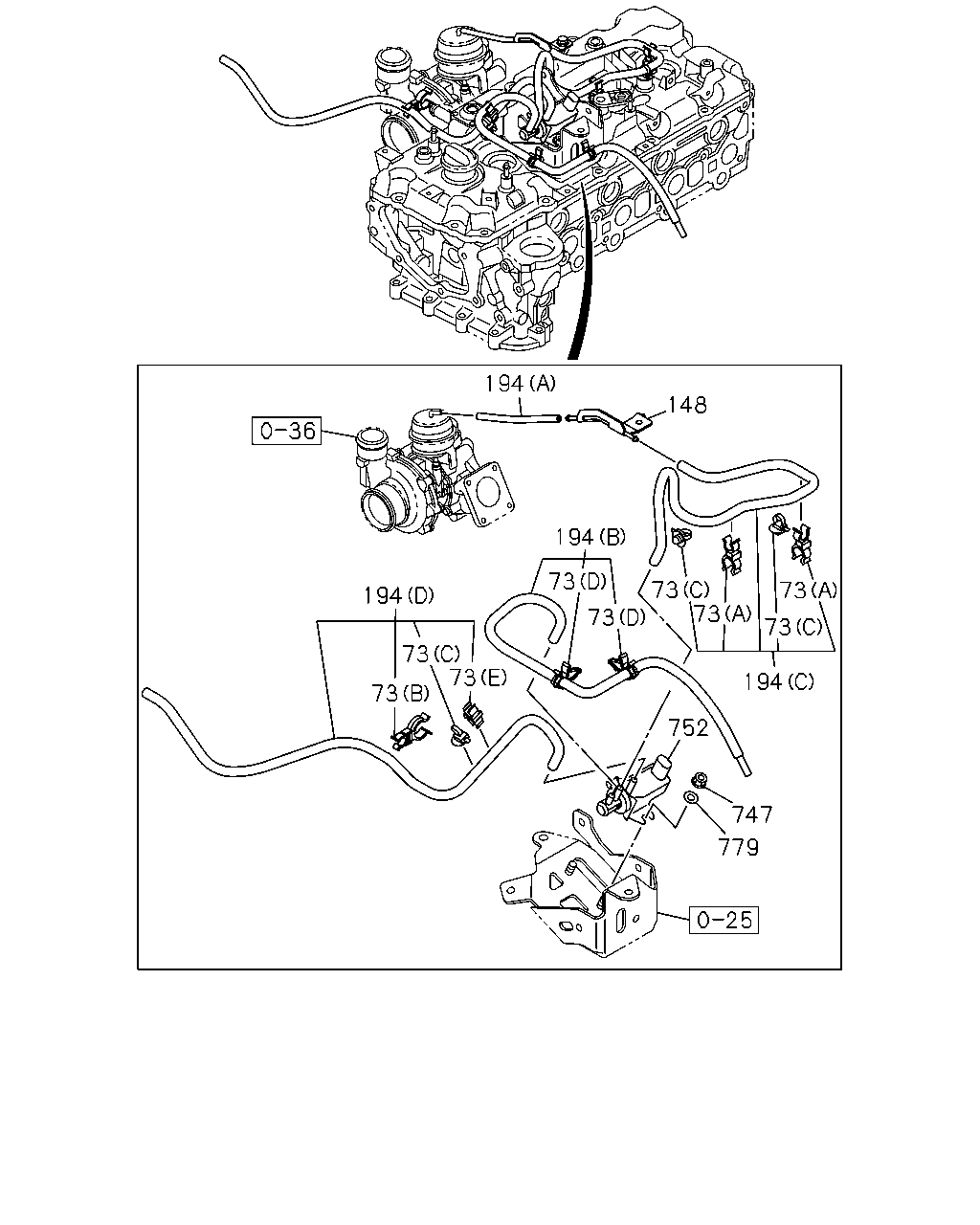

[057A] EVRV AND VACUUM HOSE (13 parça)
▶
12
8
709
720
719
17
718
16
17
709
709
719
720
4
1
16
12
2
12
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; EGR
8-97435-005-0
01
1
1410-
2
BOLT; EGR VLV
M8X25 FLANGE CHI
0-28650-825-0
02
1
1410-
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97356-711-3
01
1
1410-
8
BOLT; EGR ADAPTER
M8X60 FLANGE
0-28050-860-0
01
1
1410-
12
NUT; EGR VLV
M8 FLANGE CHI
0-91180-208-0
03
1
1410-
16
STUD; EGR VLV
(B) L=60
0-40210-860-0
01
1
1410-
16
STUD; EGR VLV
(A) M8X22 L=40
0-49140-822-0
02
1
1410-
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97357-684-3
02
1
1410-
709
BOLT; EGR COOLER
M8X23 FLANGE
8-97378-077-0
07
1
1410-
718
COOLER; EGR
8-98205-852-0
01
1
1410-
719
PIPE; EGR
(A)
8-98228-255-0
01
1
1410-
719
PIPE; EGR
(B)
8-98228-257-0
01
1
1410-
720
GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-98017-551-0
01
1
1410-
720
GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-98228-303-0
01
1
1410-
194
148
194
194
73
73
73
73
73
752
747
779
194
73
73
73
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
73
CLIP; VAC HOSE
(A) ID=8.3 & 12
8-94155-469-0
02
1
1506-
73
CLIP; VAC HOSE
(D) ID=6.5
8-94257-639-0
02
1
1506-
73
CLIP; VAC HOSE
(E) ID=7.5 & 7.5
8-97019-084-0
01
1
1506-
73
CLIP; VAC HOSE
(B) ID=21 & 9.8
8-97309-945-0
01
1
1506-
73
CLIP; VAC HOSE
(C)
8-98324-179-0
03
1
1506-
148
PIPE; VAC
8-98132-082-0
01
1
1410-
194
HOSE; VAC
(A)
0-14040-110-0
01
1
1410-
194
HOSE; VAC
(B)
8-98239-331-0
01
1
1410-
194
HOSE; VAC
(C)
8-98239-332-1
01
1
1410-
194
HOSE; VAC
(D)
8-98239-333-0
01
1
1410-
747
NUT; VAC REG VALVE
M8 FLANGE
0-91180-108-0
02
1
1410-
752
VALVE; EVRV
8-98116-260-0
01
1
1410-
779
WASHER; VALVE
ID=8.4 OD=18
0-91610-608-0
02
1
1410-
