Isuzu WW
▶
PICKUP
▶
TFR
▶
51576 - TFR/TFS JIANGXI
▶
0 - Engine, Emission, Engine Electrical
▶
0-51 - OIL PUMP AND OIL STRAINER
▶

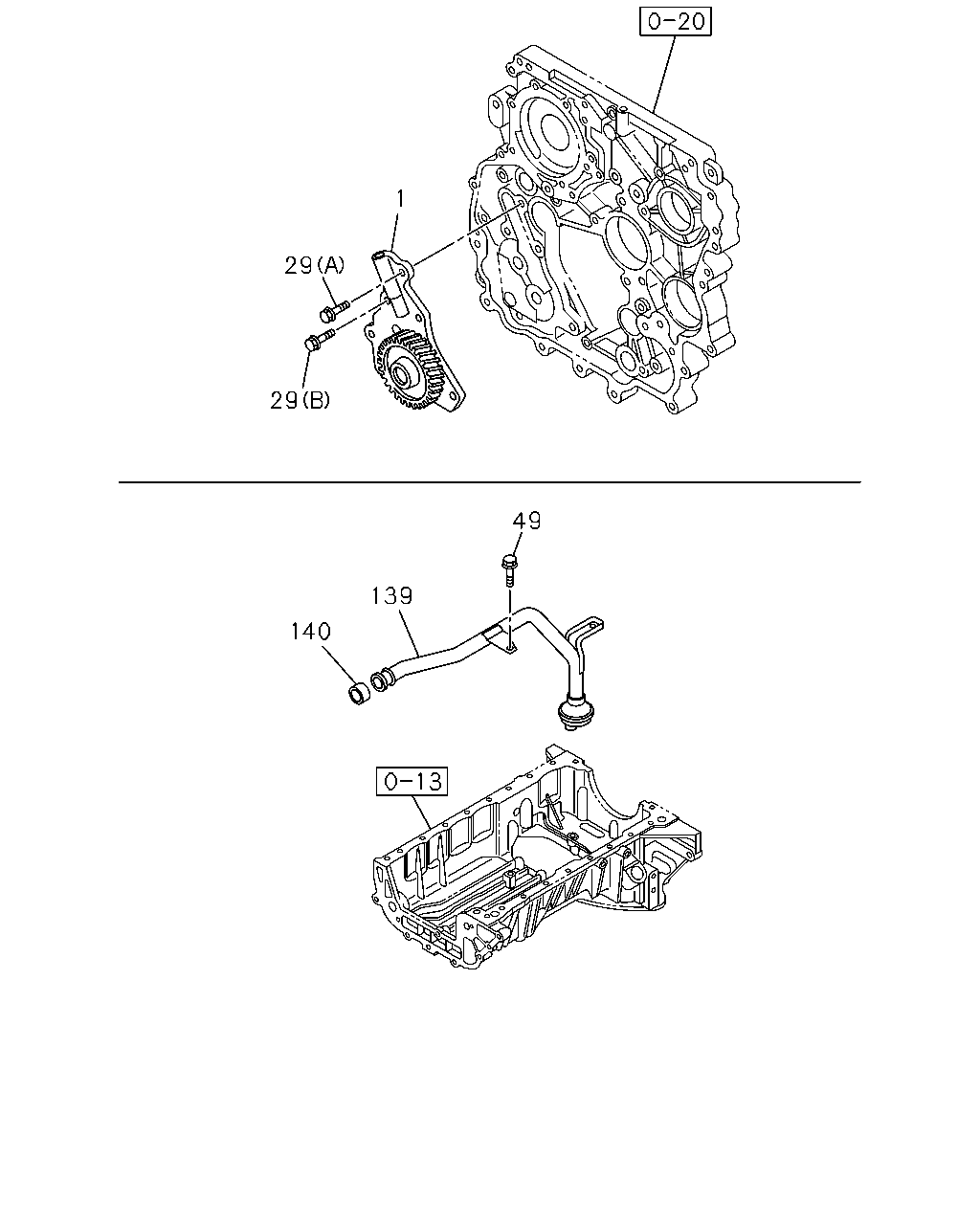

0-51 — OIL PUMP AND OIL STRAINER
(#148726) — 8 parça
29
29
1
49
139
140
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; OIL
8-98232-624-1
01
1
1410-
29
BOLT; OIL PUMP
(B) M8X30 FLANGE
0-28050-830-0
04
1
1410-
29
BOLT; OIL PUMP
(A) M8X45 FLANGE
0-28050-845-0
02
1
1410-
49
BOLT; STRAINER,OIL PUMP
M8X16 FLANGE
0-28050-816-0
02
1
1410-
139
PIPE; OIL STRAINER
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC)
8-98132-012-0
01
1
1410-
139
PIPE; OIL STRAINER
4X4(TFS***)
8-98132-012-0
01
1
1410-
139
PIPE; OIL STRAINER
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC)
8-98127-247-0
01
1
1410-
140
GASKET; OIL STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97356-150-0
01
1
1410-
