0-13 — OIL PAN AND LEVEL GAUGE (#148711) — 46 parça

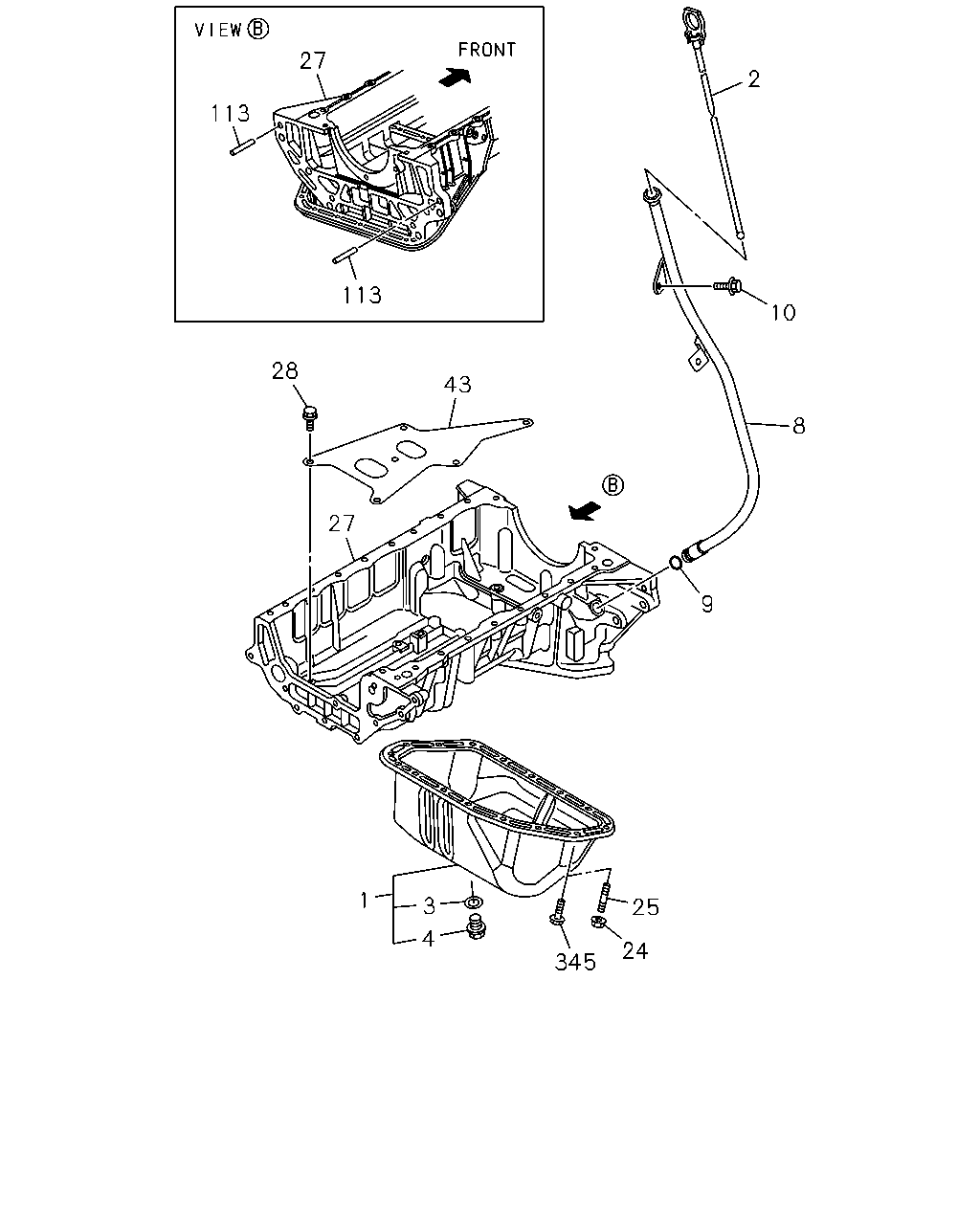

113 27 113 28 43 2 10 8 9 27 25 24 345 3 4 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PAN ASM; OIL 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC)	8-98132-001-2	01	1	1410-
1	PAN ASM; OIL 4X4(TFS***)	8-98132-001-2	01	1	1410-
1	PAN ASM; OIL 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC)	8-98156-371-0	01	1	1410-
2	GAUGE; OIL LEVEL 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC)	8-98228-328-2	01	1	1410-
2	GAUGE; OIL LEVEL 4X4(TFS***)	8-98228-328-2	01	1	1410-
2	GAUGE; OIL LEVEL 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC)	8-98228-327-2	01	1	1410-
3	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1410-
4	PLUG; DRAIN,OIL M14X14	8-97329-621-0	01	1	1410-
8	TUBE; GUIDE,OIL LEVEL GAUGE	8-98228-277-2	01	1	1410-
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 OD=15.8	8-98034-629-0	01	1	1410-
10	BOLT; GUIDE TUBE M8X16 FLANGE	0-28050-816-0	01	1	1410-
24	NUT; OIL PAN M8 FLANGE CHI	0-91180-208-0	02	1	1410-
25	STUD; OIL PAN M8X16 L=28	0-41010-816-0	02	1	1410-
27	CRANKCASE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC)	8-98225-708-2	01	1	1410-
27	CRANKCASE 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ)	8-98225-708-2	01	1	1410-
27	CRANKCASE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC)	8-98225-707-3	01	1	1410-
27	CRANKCASE A/T 5 SPEED-AISIN(MA1)	8-98225-710-2	01	1	1410-
28	BOLT; CRANKCASE TO C/BL M8X16 FLANGE	0-28050-816-0	06	1	1410-
43	PLATE; CRANKCASE	8-98225-711-0	01	1	1410-
113	PIN; STRAIGHT A/T 5 SPEED-AISIN(MA1) OD=10 L=32	9-08161-032-0	02	1	1410-
345	BOLT; SENSOR,OIL LEVEL 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) M8X12 FLANGE	0-28050-812-0	14	1	1410-
345	BOLT; SENSOR,OIL LEVEL 4X4(TFS***) M8X12 FLANGE	0-28050-812-0	14	1	1410-
345	BOLT; SENSOR,OIL LEVEL 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) M8X12 FLANGE	0-28050-812-0	21	1	1410-

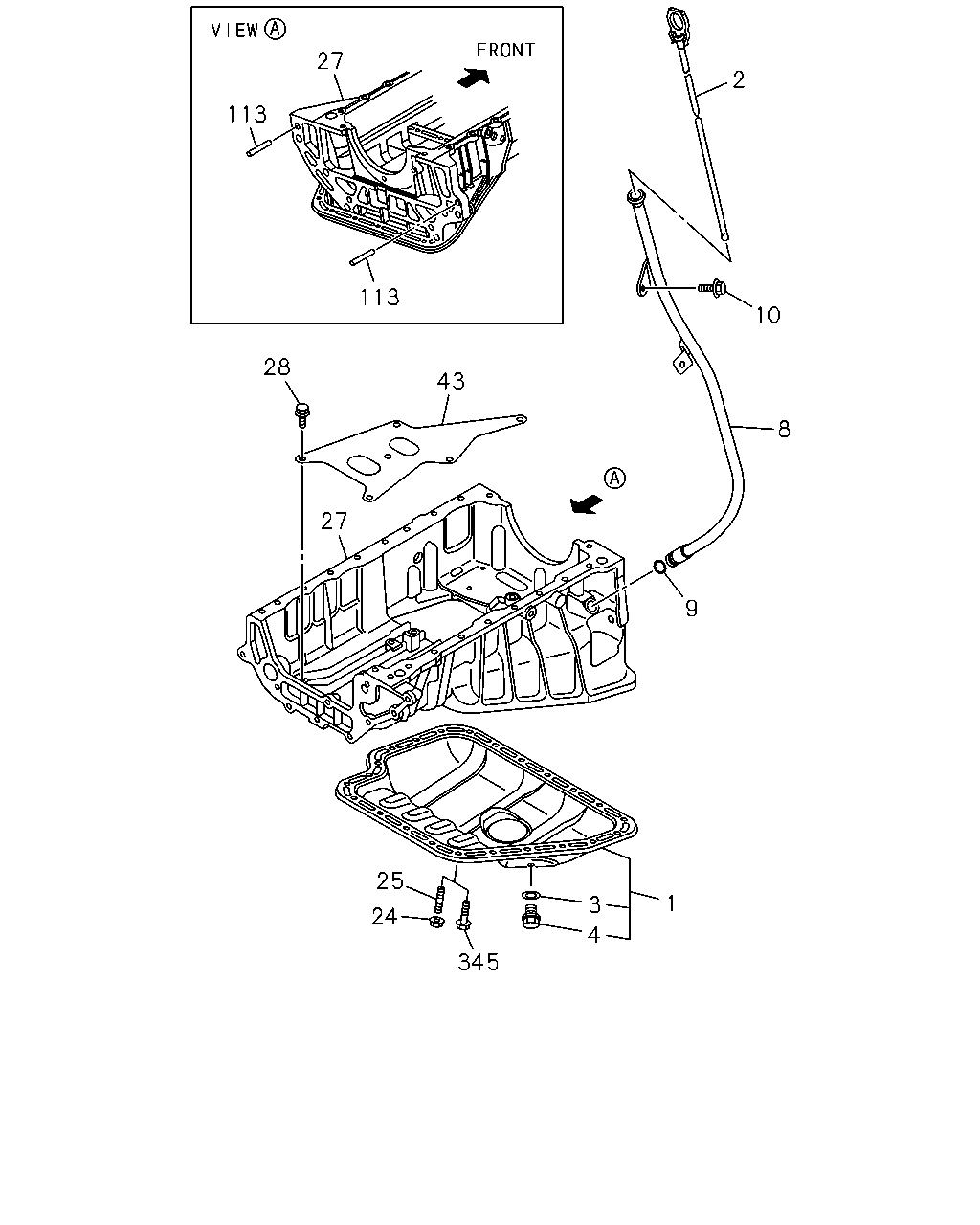

9 8 10 2 113 113 27 28 43 27 1 3 4 345 25 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PAN ASM; OIL 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC)	8-98132-001-2	01	1	1410-
1	PAN ASM; OIL 4X4(TFS***)	8-98132-001-2	01	1	1410-
1	PAN ASM; OIL 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC)	8-98156-371-0	01	1	1410-
2	GAUGE; OIL LEVEL 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC)	8-98228-328-2	01	1	1410-
2	GAUGE; OIL LEVEL 4X4(TFS***)	8-98228-328-2	01	1	1410-
2	GAUGE; OIL LEVEL 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC)	8-98228-327-2	01	1	1410-
3	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1410-
4	PLUG; DRAIN,OIL M14X14	8-97329-621-0	01	1	1410-
8	TUBE; GUIDE,OIL LEVEL GAUGE	8-98228-277-2	01	1	1410-
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 OD=15.8	8-98034-629-0	01	1	1410-
10	BOLT; GUIDE TUBE M8X16 FLANGE	0-28050-816-0	01	1	1410-
24	NUT; OIL PAN M8 FLANGE CHI	0-91180-208-0	02	1	1410-
25	STUD; OIL PAN M8X16 L=28	0-41010-816-0	02	1	1410-
27	CRANKCASE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC)	8-98225-708-2	01	1	1410-
27	CRANKCASE 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ)	8-98225-708-2	01	1	1410-
27	CRANKCASE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC)	8-98225-707-3	01	1	1410-
27	CRANKCASE A/T 5 SPEED-AISIN(MA1)	8-98225-710-2	01	1	1410-
28	BOLT; CRANKCASE TO C/BL M8X16 FLANGE	0-28050-816-0	06	1	1410-
43	PLATE; CRANKCASE	8-98225-711-0	01	1	1410-
113	PIN; STRAIGHT A/T 5 SPEED-AISIN(MA1) OD=10 L=32	9-08161-032-0	02	1	1410-
345	BOLT; SENSOR,OIL LEVEL 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) M8X12 FLANGE	0-28050-812-0	14	1	1410-
345	BOLT; SENSOR,OIL LEVEL 4X4(TFS***) M8X12 FLANGE	0-28050-812-0	14	1	1410-
345	BOLT; SENSOR,OIL LEVEL 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) M8X12 FLANGE	0-28050-812-0	21	1	1410-
