Isuzu WW
▶
PICKUP
▶
TFR
▶
51576 - TFR/TFS JIANGXI
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

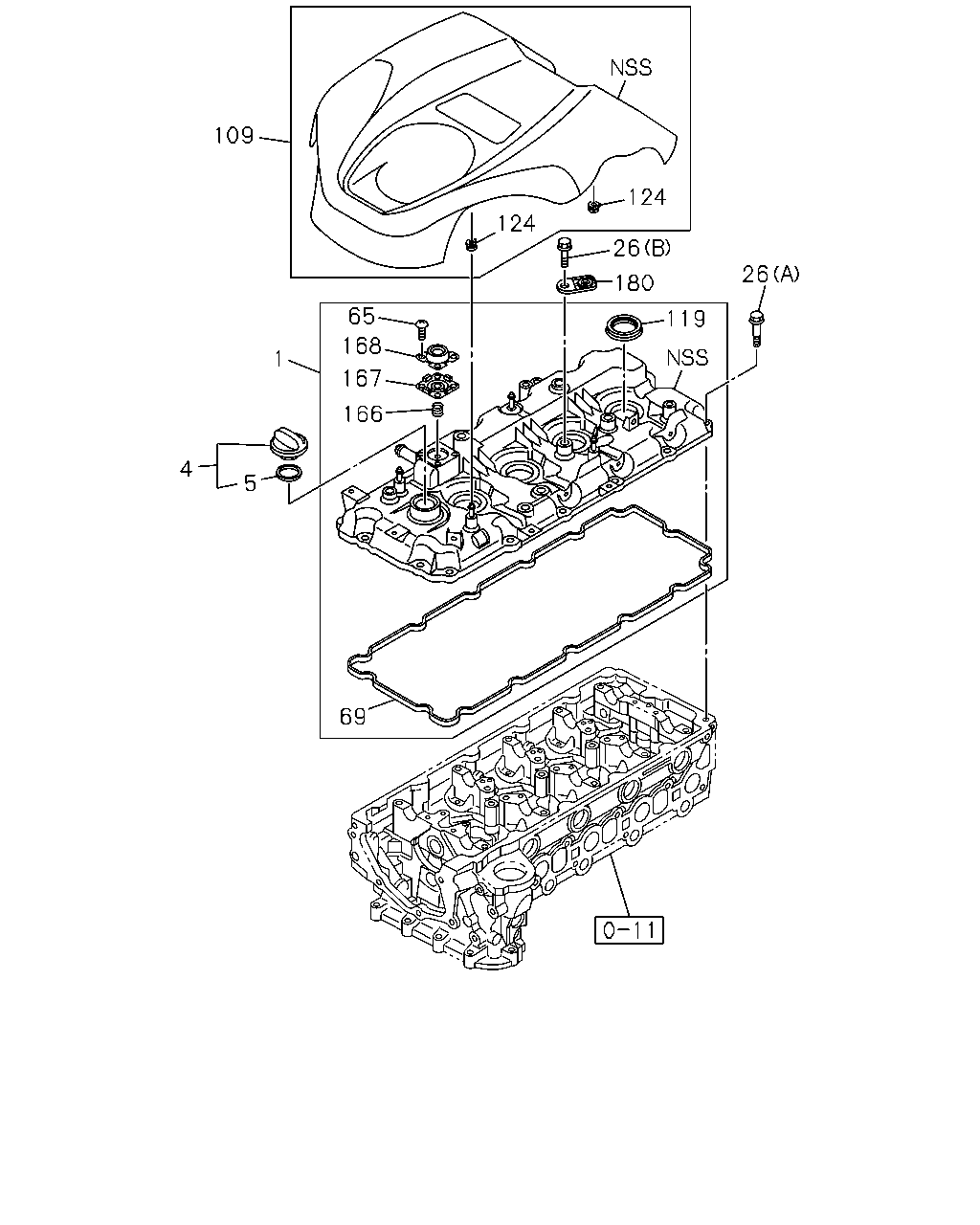

0-10 — CYLINDER HEAD COVER
(#148708) — 14 parça
109
124
124
26
180
119
26
166
167
168
65
1
5
4
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COVER; CYL HD
8-98228-367-4
01
1
1410-
4
CAP; OIL FILLER
8-98026-084-0
01
1
1410-
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40
8-97918-298-0
01
1
1410-
26
BOLT; CYL HD COVER
(B) M8X20 FLANGE
0-28050-820-0
01
1
1410-
26
BOLT; CYL HD COVER
(A) M6X25.7 FLANGE
8-98228-370-0
15
1
1410-
65
SCREW; ADAPTER
M4X10
8-98209-387-0
04
1
1410-
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98228-369-0
01
1
1410-
109
COVER; ENG
8-98147-401-0
01
1
1410-
119
COVER; SEAL,NOZZLE
8-98228-371-0
04
1
1410-
124
RUBBER; MTG,COVER
8-98269-869-0
04
1
1410-
166
SPRING; VENTILATOR
8-97088-445-0
01
1
1410-
167
DIAPHRAGM; VENTILATOR
8-98003-164-0
01
1
1410-
168
COVER; VENTILATOR
8-98234-092-0
01
1
1410-
180
DAMPENER; CYL HEAD
8-98244-154-0
01
1
1410-
