Isuzu WW
▶
TRUCKS
▶
NPR
▶
51566 - NPR MALAYSIA BUS CHASSIS
▶
9 - Tools
▶
9-01 - TOOLS
▶

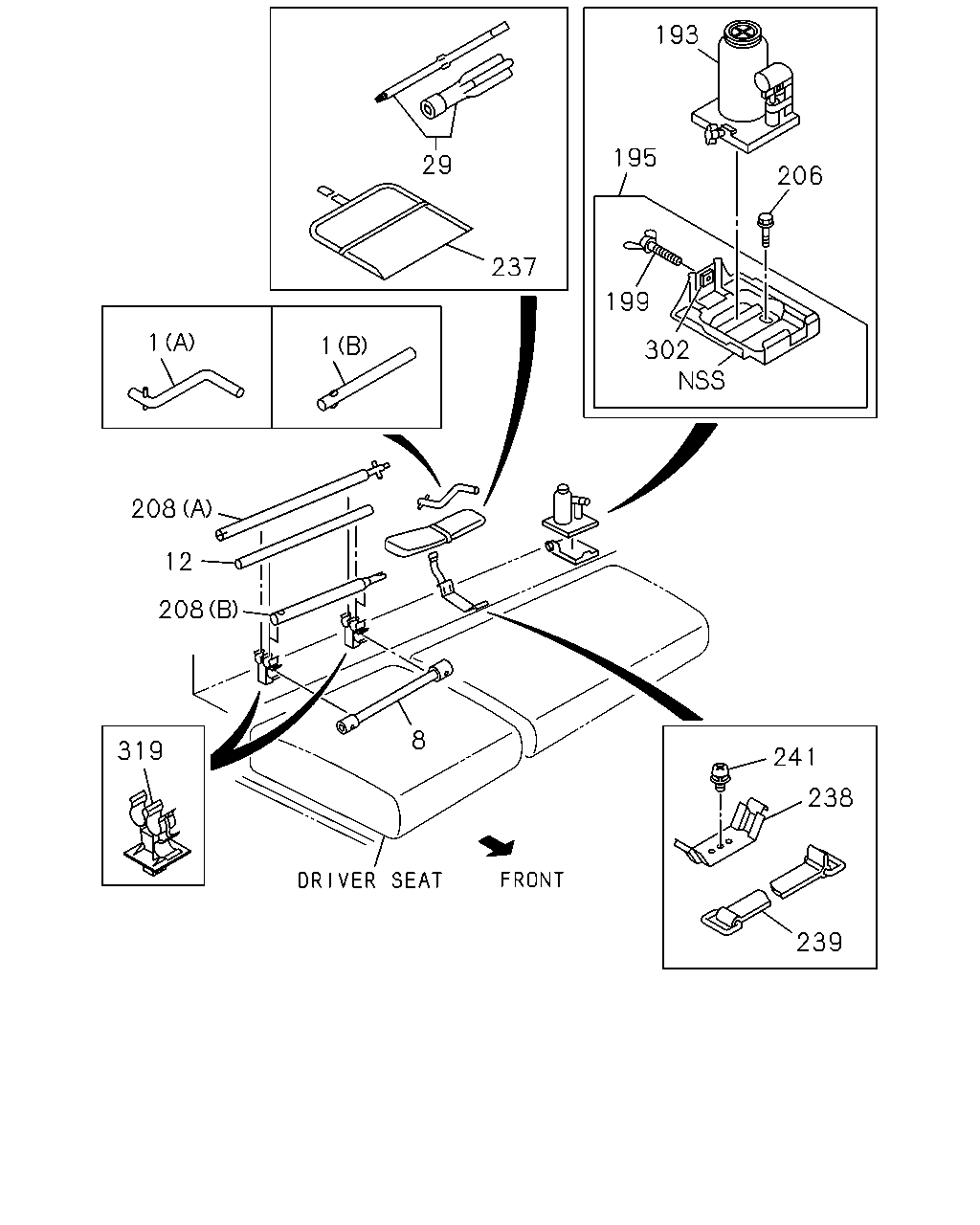

9-01 — TOOLS
(#148705) — 17 parça
29
237
193
195
206
199
302
1
1
208
208
12
8
319
241
238
239
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3800MM(38W) (B) L=280
8-98181-251-0
01
1
1409-
1
HANDLE; SPARE TIRE CARRIER
WHEEL BASE 4100MM(41W) (A) MAL
8-97218-985-0
01
1
1409-
8
WRENCH; WHEEL
B=41X21 L=440 MAL
1-85113-015-1
01
1
1409-
12
HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W) OD=25 L=480 MAL
8-98257-407-0
01
1
1409-
29
DRIVER; SCREW
<+>,<-> L=160 MAL
8-94242-798-1
01
1
1409-
193
JACK ASM
5TON
8-98114-047-0
01
1
1409-
195
BRACKET; JACK
8-97589-376-2
01
1
1409-
199
BOLT; JACK
M8X30 WING
8-98005-536-0
01
1
1409-
206
SCREW; OIL JACK BRKT
M8X25 FLANGE MAL
0-28650-825-0
01
1
1409-
208
HANDLE; JACK
WHEEL BASE 3800MM(38W) (B) L=580
8-98181-249-0
01
1
1409-
208
HANDLE; JACK
WHEEL BASE 4100MM(41W) (A) L=642 MAL
8-98181-477-0
01
1
1409-
237
BAG; TOOL
MAL
8-97130-903-1
01
1
1409-
238
SUPPORT; TOOL BAG
MAL
8-97994-977-0
01
1
1409-
239
BAND; TOOL BAG
L=100 MAL
5-73997-026-1
01
1
1409-
241
SCREW; TOOL BAG SUPPORT
M6X16
0-38050-616-0
01
1
1409-
302
NUT; JACK BRKT
8-98021-556-0
01
1
1409-
319
CLIP; TOOL BAR
MAL
8-97853-077-2
02
1
1409-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
