◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51566 - NPR MALAYSIA BUS CHASSIS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#148704) — 22 parça

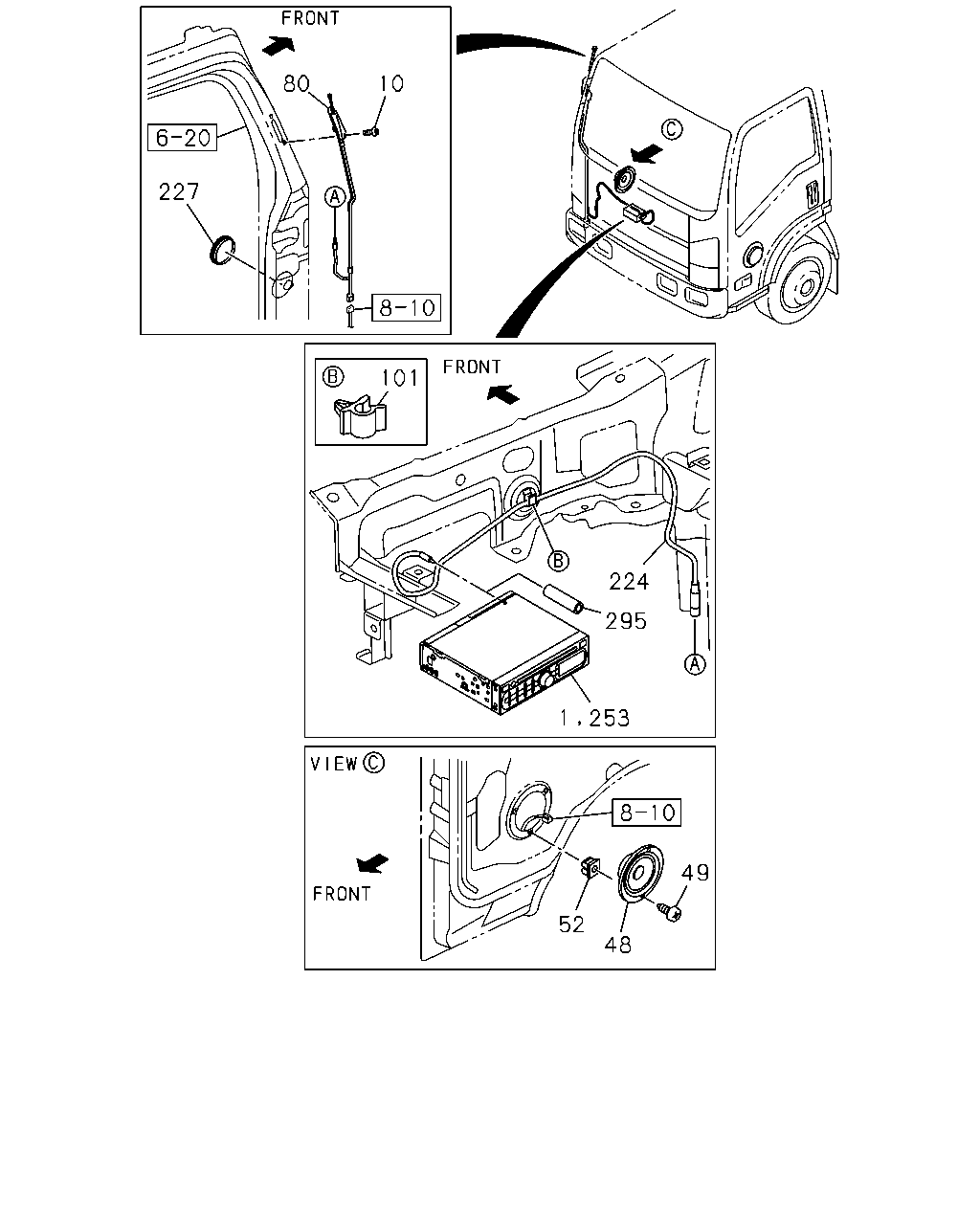

çizim 444379
80 10 227 101 224 295 1 253 49 48 52
BalonParca AdiParca NoAdetTipApplied Date
1 RADIO
AM/FM RADIO(U69) MAL 		8-98032-643-0 01 1 1409-
10 SCREW; ANTENNA CABLE
M5X11 TAPPING W/TORQUES 		8-98061-742-0 02 1 1409-
48 SPEAKER; AUDIO
2-SPEAKER SYSTEM BASE<U95> MAL 		8-97317-001-1 02 1 1409-
49 SCREW; SPEAKER
2-SPEAKER SYSTEM BASE<U95> M5X14 TAPPING W/TORQUES MAL 		8-98061-856-0 06 1 1409-
52 GROMMET; SCREW,SPEAKER
2-SPEAKER SYSTEM BASE<U95> D=8.6X7.7 L=7.5 MAL 		8-94279-078-0 06 1 1409-
80 ANTENNA
MAL 		8-97387-265-3 01 1 1409-
101 CLIP; FEEDER TO BRKT
ID=4.8 MAL 		8-94128-483-0 01 1 1409-
224 CABLE; EXT,FEEDER
MAL 		8-98029-970-1 01 1 1409-
227 PROTECTOR; EDGE 8-98053-117-0 01 1 1409-
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) TUNER BAND LATIN AMERICA<7DM> 		8-98112-329-0 01 1 1409-
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) EXC. TUNER BAND LATIN AMERICA<7DM> MAL 		8-98017-752-0 01 1 1409-
295 INSULATOR; ANTENNA
EXC. RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),AM/FM RADIO(U69) 		8-98095-617-1 01 1 1409-

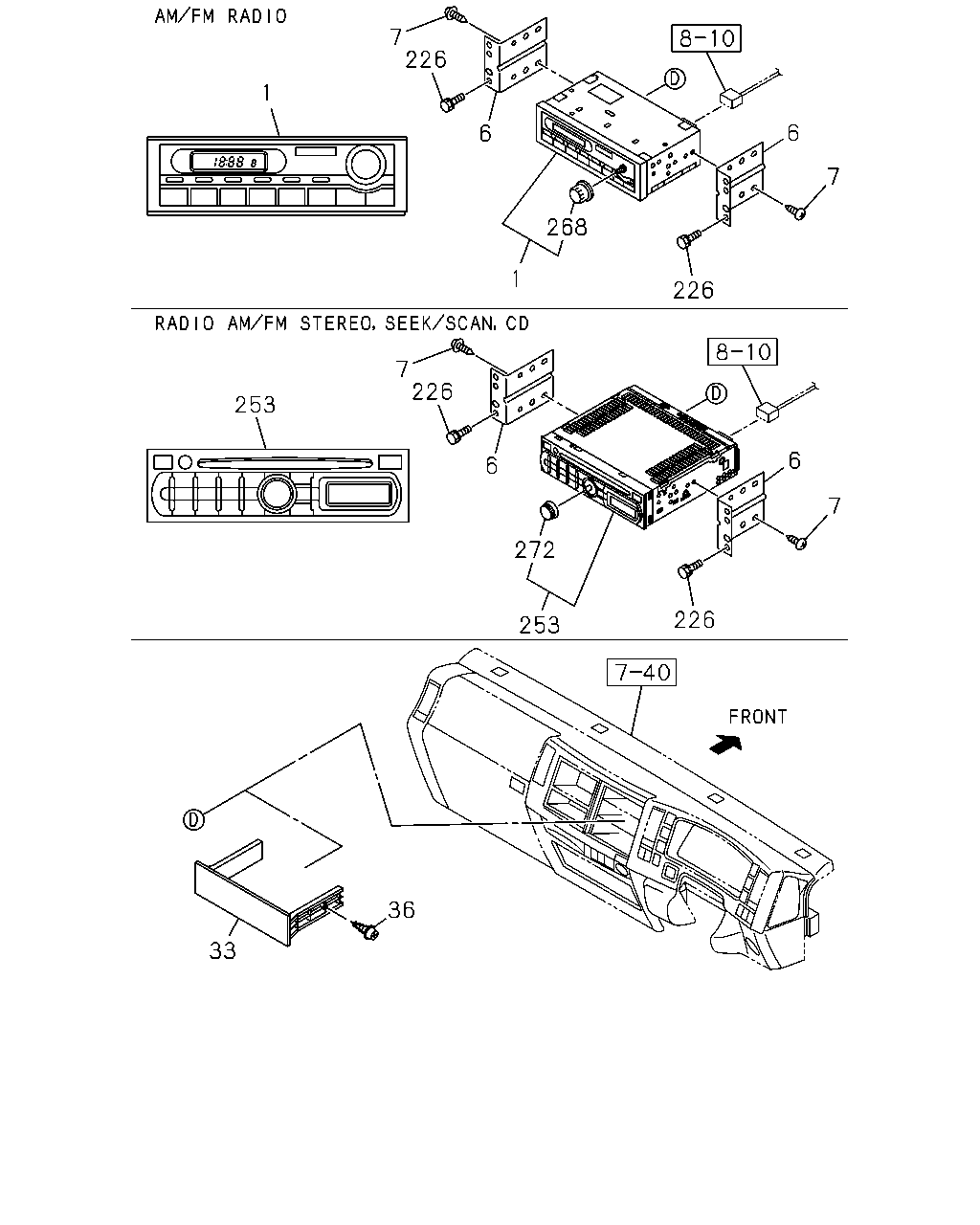

çizim 444423
7 1 6 226 268 1 226 7 6 6 7 226 253 272 6 226 7 253 36 33
BalonParca AdiParca NoAdetTipApplied Date
1 RADIO
AM/FM RADIO(U69) MAL 		8-98032-643-0 01 1 1409-
6 BRACKET; RADIO TO PANEL 8-97585-617-0 02 1 1409-
7 SCREW; RADIO
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),AM/FM RADIO(U69) M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1409-
33 COVER; RADIO
EXC. RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),AM/FM RADIO(U69) BLACK 		8-97407-896-2 01 1 1409-
36 SCREW; COVER
EXC. RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),AM/FM RADIO(U69) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1409-
226 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR MAL 		0-72180-520-0 02 1 1409-
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) TUNER BAND LATIN AMERICA<7DM> 		8-98112-329-0 01 1 1409-
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) EXC. TUNER BAND LATIN AMERICA<7DM> MAL 		8-98017-752-0 01 1 1409-
268 KNOB; VOL
AM/FM RADIO(U69) CLARION MAL 		8-97375-820-0 01 1 1409-
272 KNOB; AUDIO CONTROL
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) CLARION MAL 		8-98048-329-0 01 1 1409-
