Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10633 - FVZ-RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-75 - MAT AND CARPET
▶

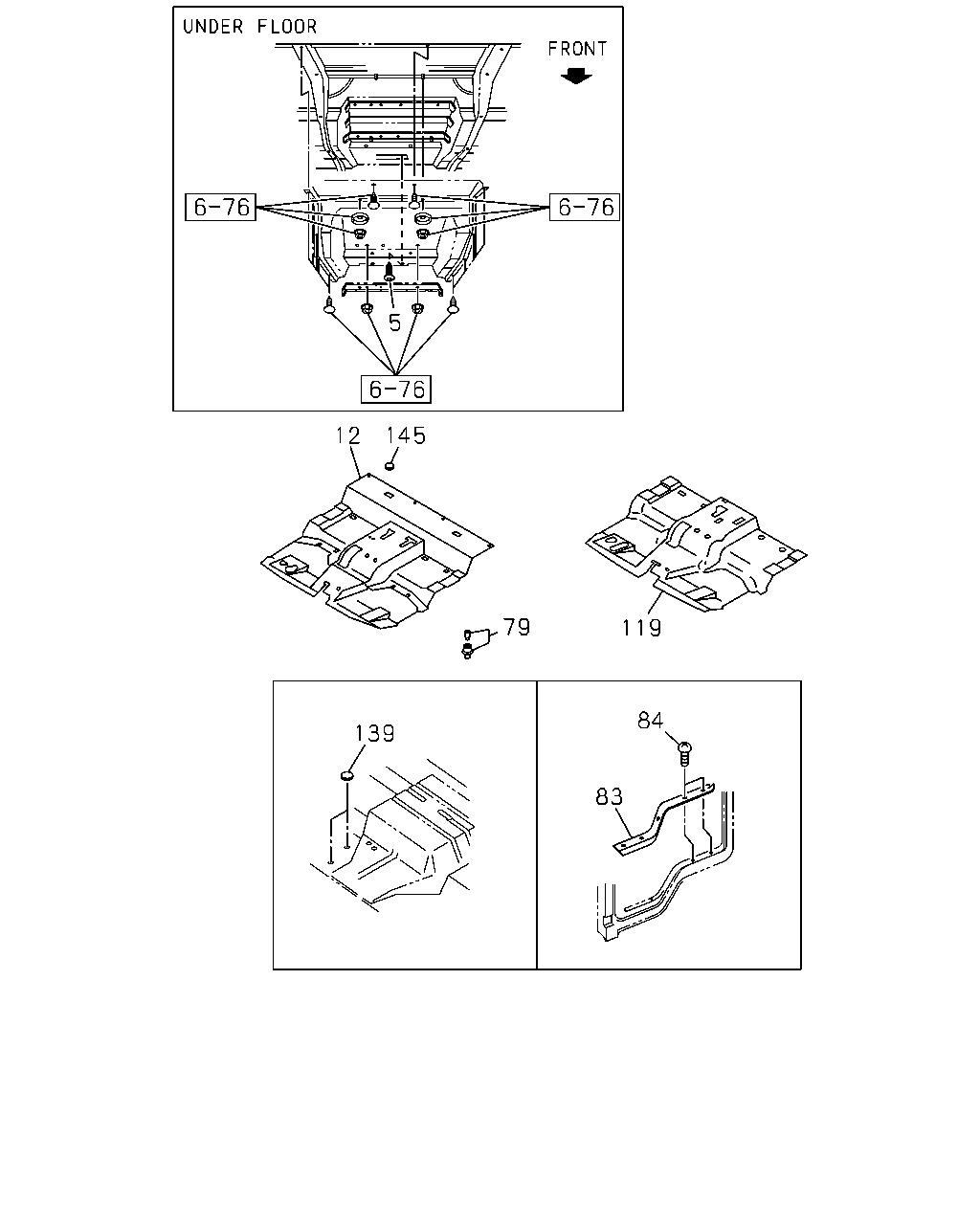

6-75 — MAT AND CARPET
(#1487) — 14 parça
5
12
145
79
119
84
139
83
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; TRIM,HEAT INSULATOR
ANTI NOISE EQUIPMENT VAR E<SLK> ID=6.2 L=11.4
8-97808-623-0
04
1
9404-9404
5
CLIP; TRIM,HEAT INSULATOR
EXC. ANTI NOISE EQUIPMENT VAR E<SLK>
8-94279-048-0
04
1
9404-9404
5
CLIP; TRIM,HEAT INSULATOR
8-94279-048-0
04
1
9405-
12
CARPET; FLOOR,RR
VINYL CARPET<B30>
1-73238-713-2
01
1
9203-
79
HOOK; MALE
NYLON 6
8-94291-778-0
08
1
9203-
83
PLATE; KICKING,FLOOR MAT
1-76797-019-3
01
1
9203-
83
PLATE; KICKING,FLOOR MAT
1-76797-018-3
01
1
9203-
84
SCREW; PLATE TO FLOOR
M6X24 W/PL WASHER
1-09981-504-0
04
1
9203-
84
SCREW; PLATE TO FLOOR
M6X16 W/PL WASHER
1-09981-505-0
06
1
9203-
119
MAT; FLOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VINYL CARPET<B30>
1-73238-794-1
01
1
9203-9203
119
MAT; FLOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. VINYL CARPET<B30>
1-73238-794-2
01
1
9204-
119
MAT; FLOOR
EXC. VINYL CARPET<B30>,HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
1-73238-689-2
01
1
9203-
139
SEAL; FLOOR
OD=36
1-76778-007-0
01
1
9203-
145
SEAL; FLOOR PANEL
OD=25 BLACK
1-76798-019-0
01
1
9203-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
