◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51566 - NPR MALAYSIA BUS CHASSIS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#148696) — 24 parça

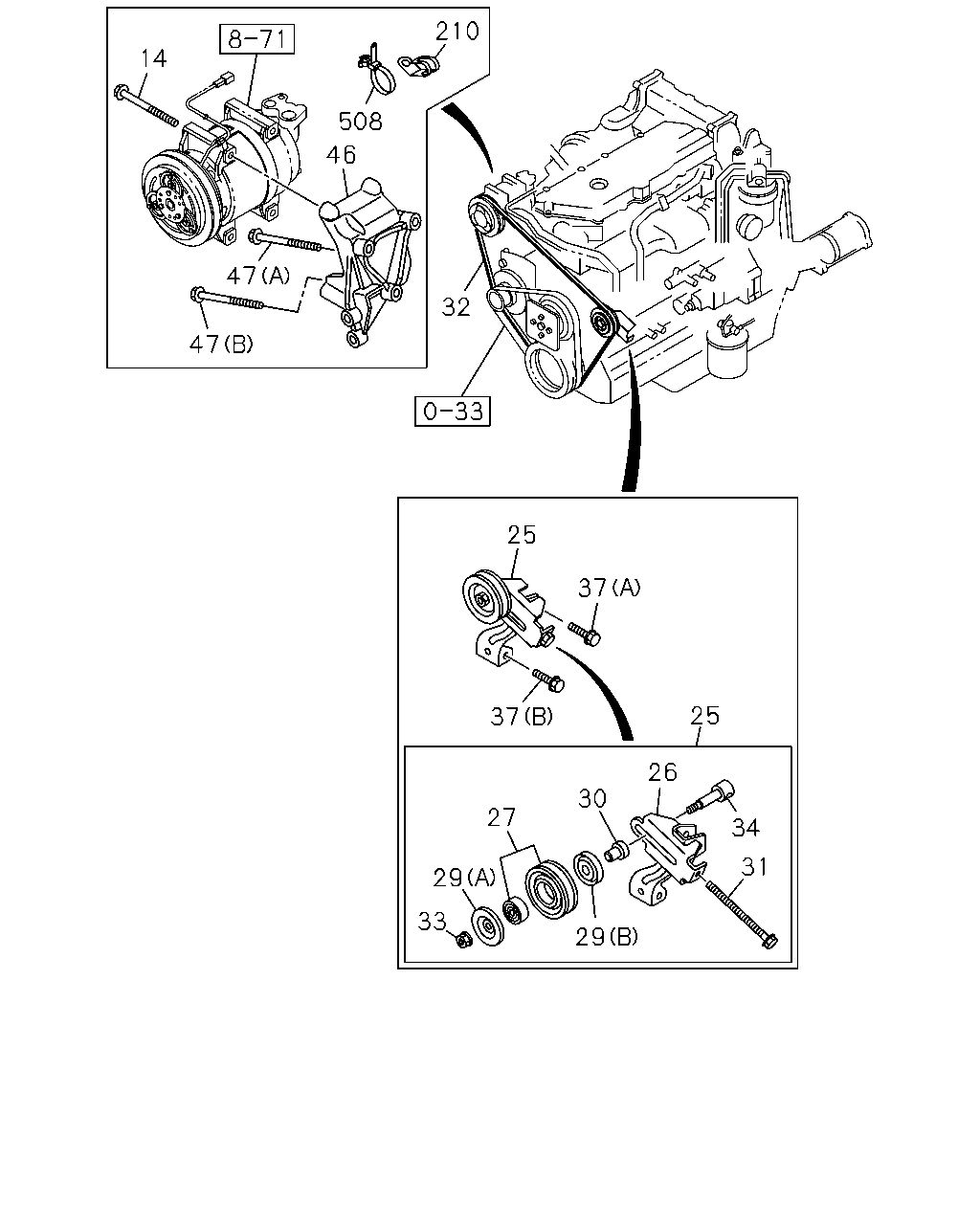

çizim 444337
14 210 508 46 47 47 32 25 37 37 25 26 30 27 29 33 29 34 31
BalonParca AdiParca NoAdetTipApplied Date
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M8X90 FLANGE 		0-28050-890-0 04 1 1409-
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 1-GROOVE 		8-97161-198-1 01 1 1409-
26 BRACKET; IDLE PULLEY,A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97161-031-1 01 1 1409-
27 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97386-869-0 01 1 1409-
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-97384-114-0 01 1 1409-
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-97384-115-0 01 1 1409-
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97384-117-0 01 1 1409-
31 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97384-113-0 01 1 1409-
32 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=1674 		8-98010-841-1 01 1 1409-
33 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97384-118-0 01 1 1409-
34 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97384-116-0 01 1 1409-
37 BOLT; PULLEY BRKT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M8X50 FLANGE 		0-28050-850-0 01 1 1409-
37 BOLT; PULLEY BRKT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M10X65 FLANGE 		8-94344-540-1 01 1 1409-
46 BRACKET; CMPR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98006-515-3 01 1 1409-
47 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M10X90 FLANGE 		0-28151-090-0 02 1 1409-
47 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M10X120 FLANGE 		0-28156-012-0 01 1 1409-
210 CLIP; HARNESS
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1409-
508 CLIP; HARNESS
L=170.3 		1-09987-182-0 01 1 1409-

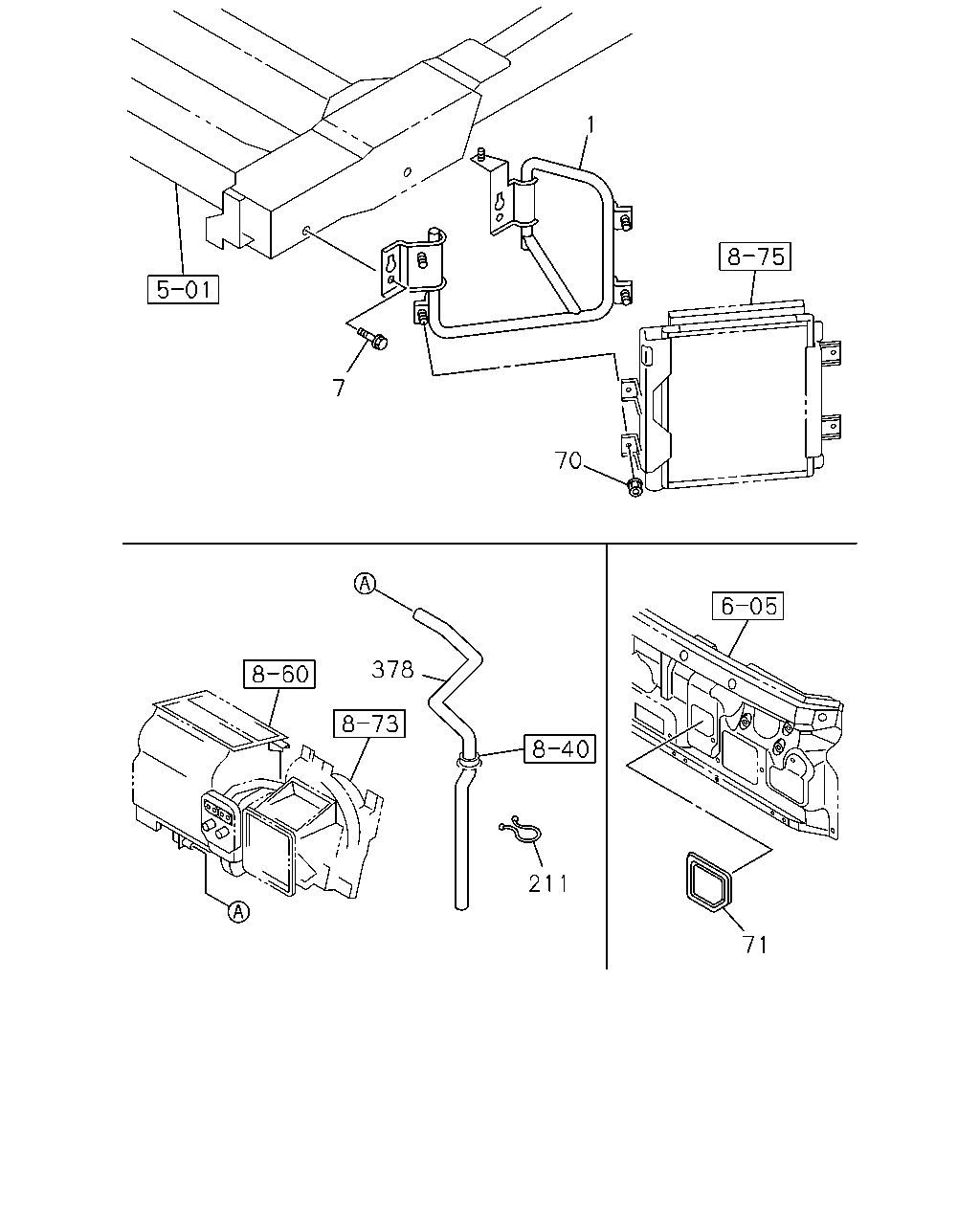

çizim 444354
1 7 70 378 211 71
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98214-411-0 01 1 1409-
7 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M12X30 FLANGE 		0-28651-230-0 04 1 1409-
70 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M8 FLANGE MAL 		0-91180-108-0 04 1 1409-
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60),COOLER WO/HEATER(C65) 		8-98017-234-1 01 1 1409-
211 CLIP; HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=44 		8-94463-508-0 01 1 1409-
378 HOSE; DRAIN,EVAPORATOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97387-174-2 01 1 1409-
