8-40 — HEATER SYSTEM (#148694) — 57 parça

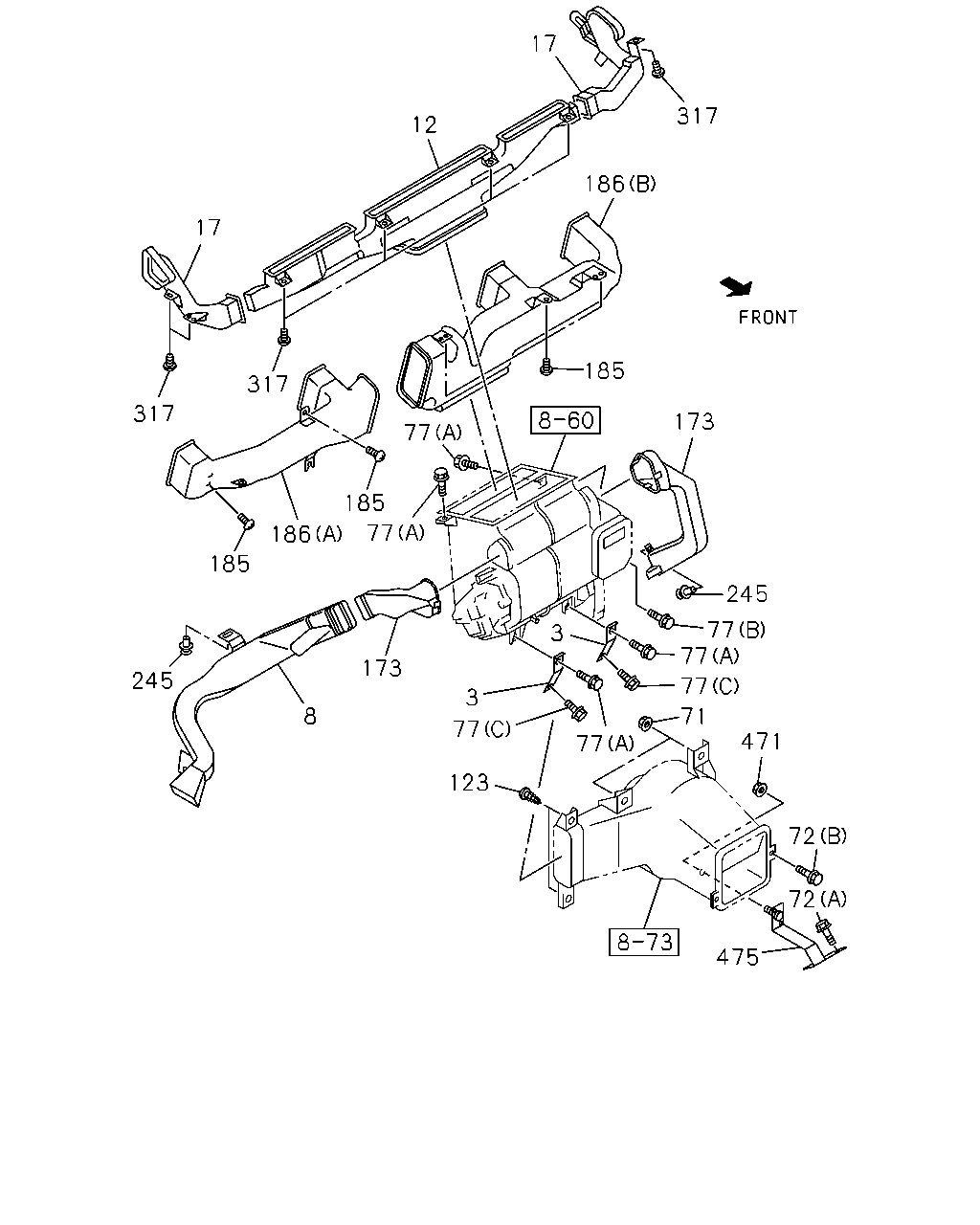

17 12 17 317 186 317 317 77 185 173 185 186 77 185 245 173 8 3 77 123 77 245 77 77 77 71 471 72 475 72 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	BRACKET; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98082-473-1	02	1	1409-
8	DUCT; HTR AIR,DRIVER FOOT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98084-146-0	01	1	1409-
12	NOZZLE; DEFROSTER	8-97585-480-4	01	1	1409-
17	NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97585-469-1	01	1	1409-
17	NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97585-475-5	01	1	1409-
71	NUT; BLOWER UNIT TO DASH FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 FLANGE MAL	0-91180-106-0	02	1	1409-
72	BOLT; BLOWER UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M8X20 W/LK&PL WASHER MAL	8-97359-709-0	01	1	1409-
72	BOLT; BLOWER UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M6X20 W/LK&PL WASHER MAL	8-98081-030-0	02	1	1409-
77	BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M6X16 FLANGE MAL	0-28650-616-0	04	1	1409-
77	BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) M6X20 W/LK&PL WASHER MAL	8-98081-175-0	02	1	1409-
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M6X20 W/LK&PL WASHER MAL	8-98081-030-0	01	1	1409-
123	SCREW; DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	02	1	1409-
173	DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97585-504-3	01	1	1409-
173	DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98084-145-0	01	1	1409-1411
173	DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98246-555-0	01	1	1412-
185	SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	04	1	1409-
186	DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97585-466-7	01	1	1409-1410
186	DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98285-582-0	01	1	1411-
186	DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-97585-486-6	01	1	1409-1410
186	DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98285-585-0	01	1	1411-
186	DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C)	8-98054-363-0	01	1	1409-
186	DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (E)	8-98054-371-0	01	1	1409-
186	DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (D)	8-98054-379-2	01	1	1409-
245	CLIP; FOOT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	1-09987-144-0	02	1	1409-
317	SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	02	1	1409-
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	04	1	1409-
471	NUT; BLOWER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 FLANGE MAL	0-91180-106-0	01	1	1409-
475	BRACKET; BLOWER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97387-092-2	01	1	1409-

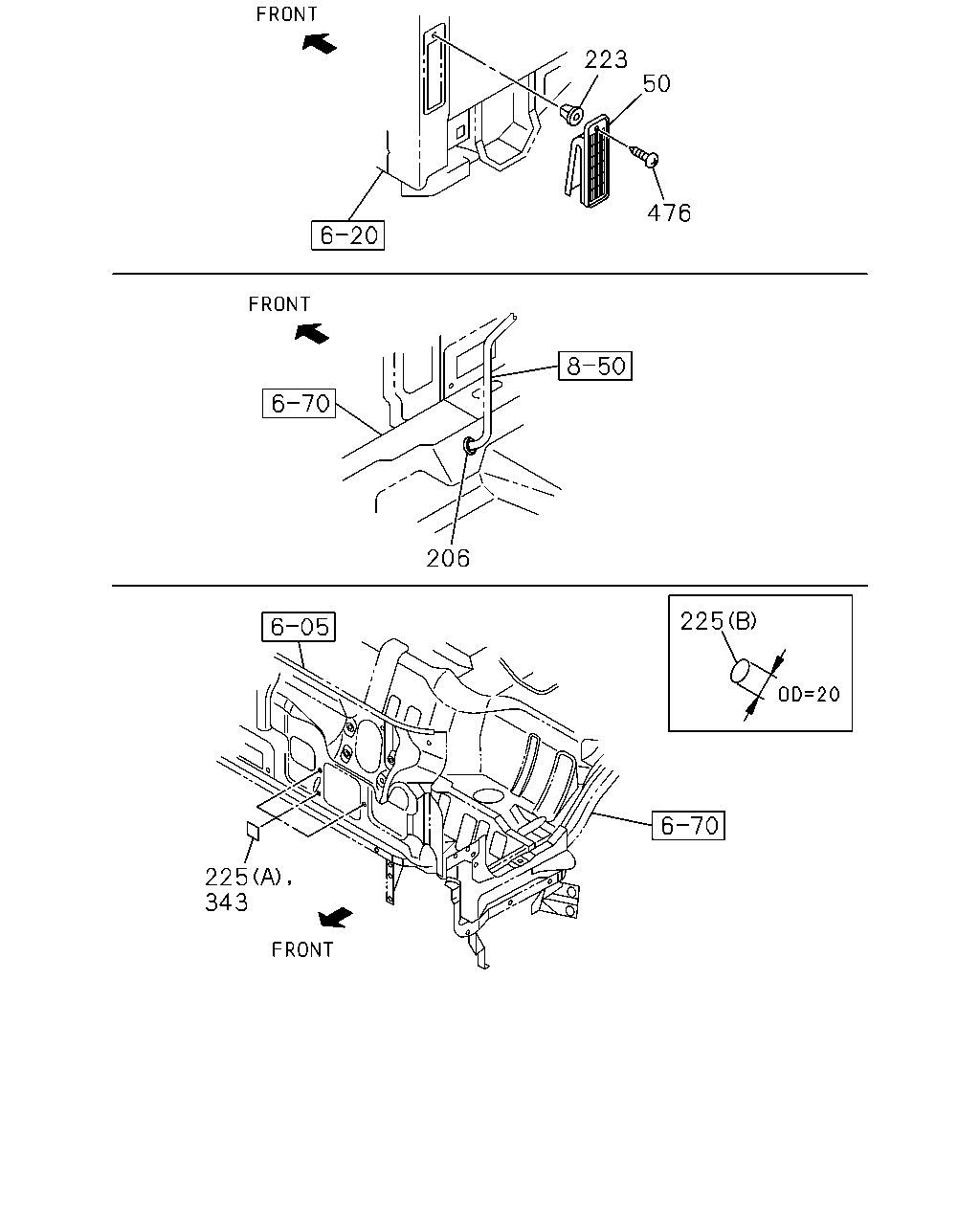

223 50 476 206 225 343 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	VALVE ASM; HTR	8-98080-998-1	01	1	1409-
206	GROMMET; A/C PIPE TO BLOWER UNIT MAL	8-98019-649-0	01	1	1409-
223	GROMMET; SCREW D=7.9X7.9 L=20 M5	8-94441-539-0	01	1	1409-
225	SEAL; WATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL	8-97856-616-0	02	1	1409-
225	SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL	8-97856-616-0	01	1	1409-
225	SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60),COOLER WO/HEATER(C65) (B) OD=20 T=0.05 BLACK MAL	5-76777-036-0	01	1	1409-
343	SEAL; AIR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-97856-616-0	02	1	1409-
476	SCREW; VALVE M5X16 TAPPING HEXALOBULAR	8-98062-675-0	01	1	1409-

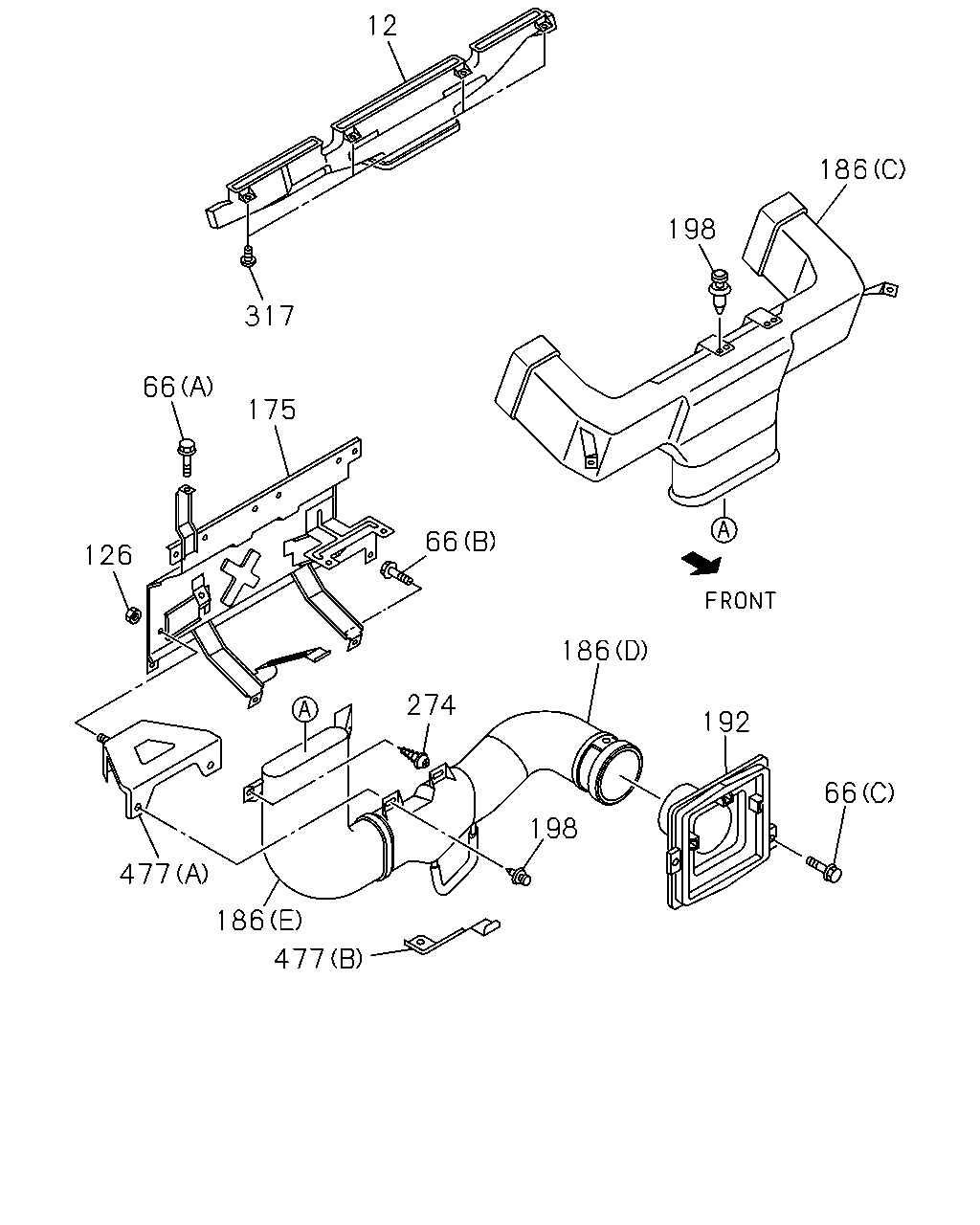

12 186 198 317 66 175 126 66 186 274 477 186 477 198 192 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NOZZLE; DEFROSTER	8-97585-480-4	01	1	1409-
66	BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M6X16 FLANGE MAL	0-28650-616-0	02	1	1409-
66	BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) M6X20 W/LK&PL WASHER MAL	8-98081-030-0	02	1	1409-
66	BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M6X20 W/LK&PL WASHER MAL	8-98081-175-0	02	1	1409-
126	NUT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 FLANGE MAL	0-91180-106-0	01	1	1409-
126	NUT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),KD PREPARATORY PACK VAR.4<7TV> M6 FLANGE MAL	0-91180-106-0	01	1	1409-
175	BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98184-165-0	01	1	1409-
186	DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97585-466-7	01	1	1409-1410
186	DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98285-582-0	01	1	1411-
186	DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-97585-486-6	01	1	1409-1410
186	DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98285-585-0	01	1	1411-
186	DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C)	8-98054-363-0	01	1	1409-
186	DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (E)	8-98054-371-0	01	1	1409-
186	DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (D)	8-98054-379-2	01	1	1409-
192	DUCT; RAM AIR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98054-386-4	01	1	1409-
198	CLIP; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	1-09987-144-0	05	1	1409-
274	SCREW; VENT DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	02	1	1409-
317	SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	02	1	1409-
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	04	1	1409-
477	BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98091-304-0	01	1	1409-
477	BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98164-455-0	01	1	1409-
