◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51566 - NPR MALAYSIA BUS CHASSIS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#148686) — 30 parça

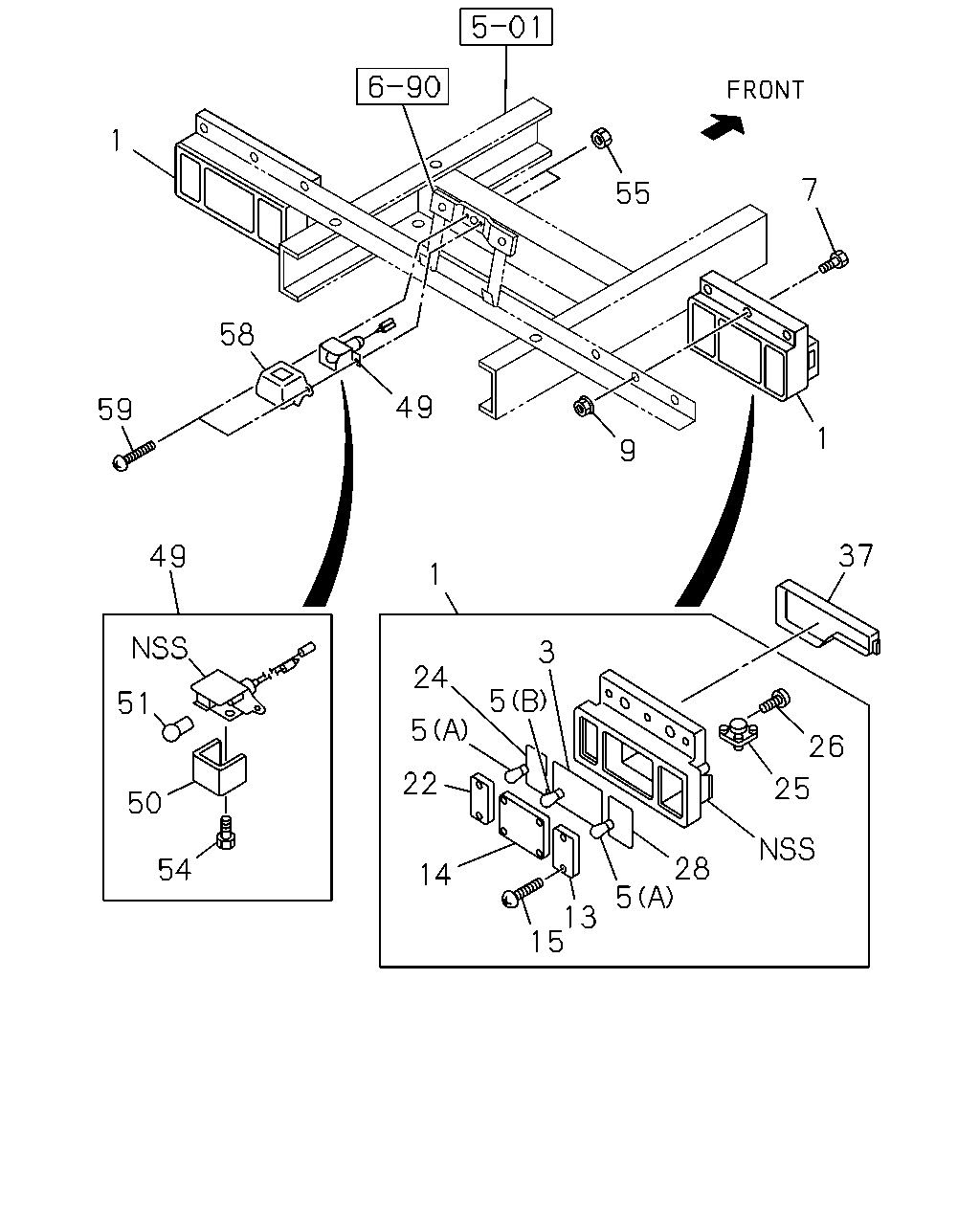

çizim 444506
1 58 59 49 51 50 54 1 49 9 1 7 55 37 26 25 28 5 13 15 14 22 5 24 5 3
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; RR COMB
BACK BUZZER<YM9> 		8-98034-328-0 01 1 1409-
1 LAMP ASM; RR COMB 8-98034-325-0 01 1 1409-
1 LAMP ASM; RR COMB
EXC. BACK BUZZER<YM9> 		8-98034-324-0 01 1 1409-
3 GASKET; RR COMB LAMP
MAL 		8-94257-505-0 02 1 1409-
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-108-0 04 1 1409-
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-109-0 02 1 1409-
7 SCREW; RR COMB LAMP
M6X20 		8-94402-623-0 04 1 1409-
9 NUT; LAMP,RR COMB
M6 FLANGE 		5-09440-004-0 04 1 1409-
13 LENS; TURN SIGNAL
MAL 		8-94174-638-0 01 1 1409-
13 LENS; TURN SIGNAL
MAL 		8-94174-639-0 01 1 1409-
14 LENS; TAIL & STOP,RR COMB LAMP
MAL 		8-94178-624-0 01 1 1409-
14 LENS; TAIL & STOP,RR COMB LAMP
MAL 		8-94178-625-0 01 1 1409-
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 16 1 1409-
22 LENS; BACKUP,RR COMB LAMP
CLEAR MAL 		8-94257-512-1 02 1 1409-
24 GASKET; BACK,LAMP
MAL 		8-94257-506-0 02 1 1409-
25 HORN ASM; BACK
BACK BUZZER<YM9> MAL 		8-94257-518-0 01 1 1409-
26 SCREW; BACK HORN
BACK BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 02 1 1409-
26 SCREW; BACK HORN
M4X14 TAPPING 		9-07076-414-0 01 1 1409-
26 SCREW; BACK HORN
EXC. BACK BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 01 1 1409-
28 GASKET; TURN,LAMP
MAL 		8-94257-507-0 02 1 1409-
37 COVER; RR COMB LAMP
MAL 		8-94128-858-4 01 1 1409-
37 COVER; RR COMB LAMP
MAL 		8-94129-274-4 01 1 1409-
49 LAMP; LICENSE PLATE
24V 5W 		8-97105-380-0 02 1 1409-1509
49 LAMP; LICENSE PLATE
24V 5W 		8-98329-430-0 02 1 1510-
50 LENS; LICENSE PLATE LAMP 8-97108-212-0 02 1 1409-
51 BULB; LICENSE PLATE LAMP
24V 5W 		1-82194-039-0 02 1 1409-
54 SCREW; LICENSE PLATE LAMP
M4X8 MAL 		8-94419-312-0 02 1 1409-
55 NUT; LICENSE PLATE LAMP
M5 FLANGE 		8-94153-039-0 04 1 1409-
58 COVER; LICENSE PLATE LAMP
MAL 		8-97076-590-1 02 1 1409-
59 SCREW; TAP,LICENSE LAMP BODY
M5X20 		9-93490-520-0 04 1 1409-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
