◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51566 - NPR MALAYSIA BUS CHASSIS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#148684) — 15 parça

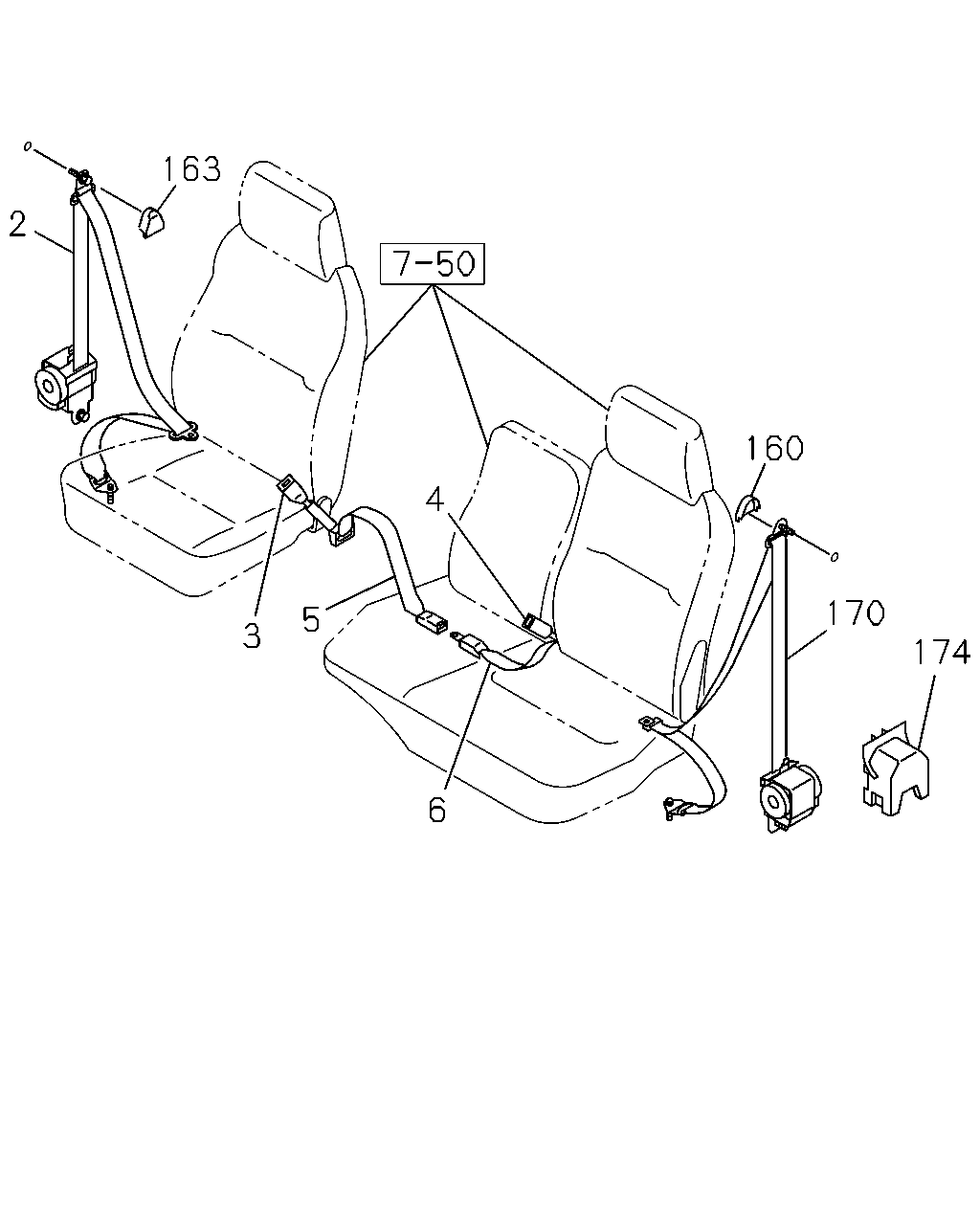

çizim 444362
2 163 3 6 5 4 160 170 174
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97428-457-1 01 1 1409-
3 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97405-175-2 01 1 1409-
4 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY 		8-97405-178-0 01 1 1409-
5 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97405-182-1 01 1 1409-
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97411-507-2 01 1 1409-
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1409-
163 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 1409-
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97428-457-1 01 1 1409-
174 COVER; RETRACTOR,SEAT BELT 8-98039-376-1 01 1 1409-

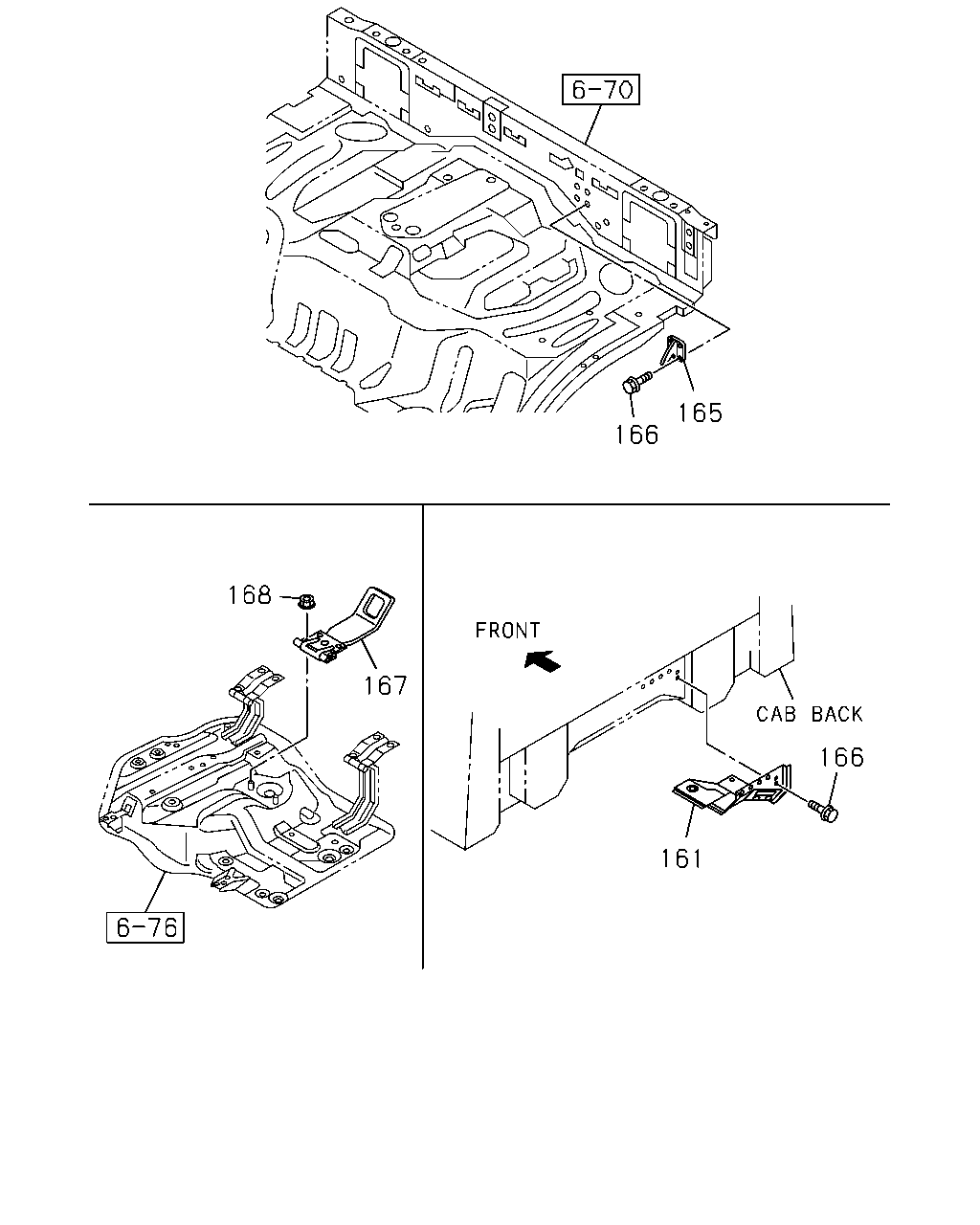

çizim 444393
166 165 166 161 168 167
BalonParca AdiParca NoAdetTipApplied Date
161 REINFORCEMENT; SEAT BELT ANCHOR 8-98015-216-2 01 1 1409-
165 HOOK; SEAT BELT ANCHOR 8-98040-143-0 01 1 1409-
166 BOLT; SEAT BELT ANCHOR
M8X25 FLANGE MAL 		0-28650-825-0 04 1 1409-
166 BOLT; SEAT BELT ANCHOR
M8X25 FLANGE MAL 		0-28650-825-0 05 1 1409-
167 PLATE; ANCHOR 8-97589-140-0 01 1 1409-
168 NUT; ANCHOR PLATE
M8 FLANGE MAL 		0-91180-108-0 02 1 1409-
