◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51566 - NPR MALAYSIA BUS CHASSIS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#148671) — 10 parça

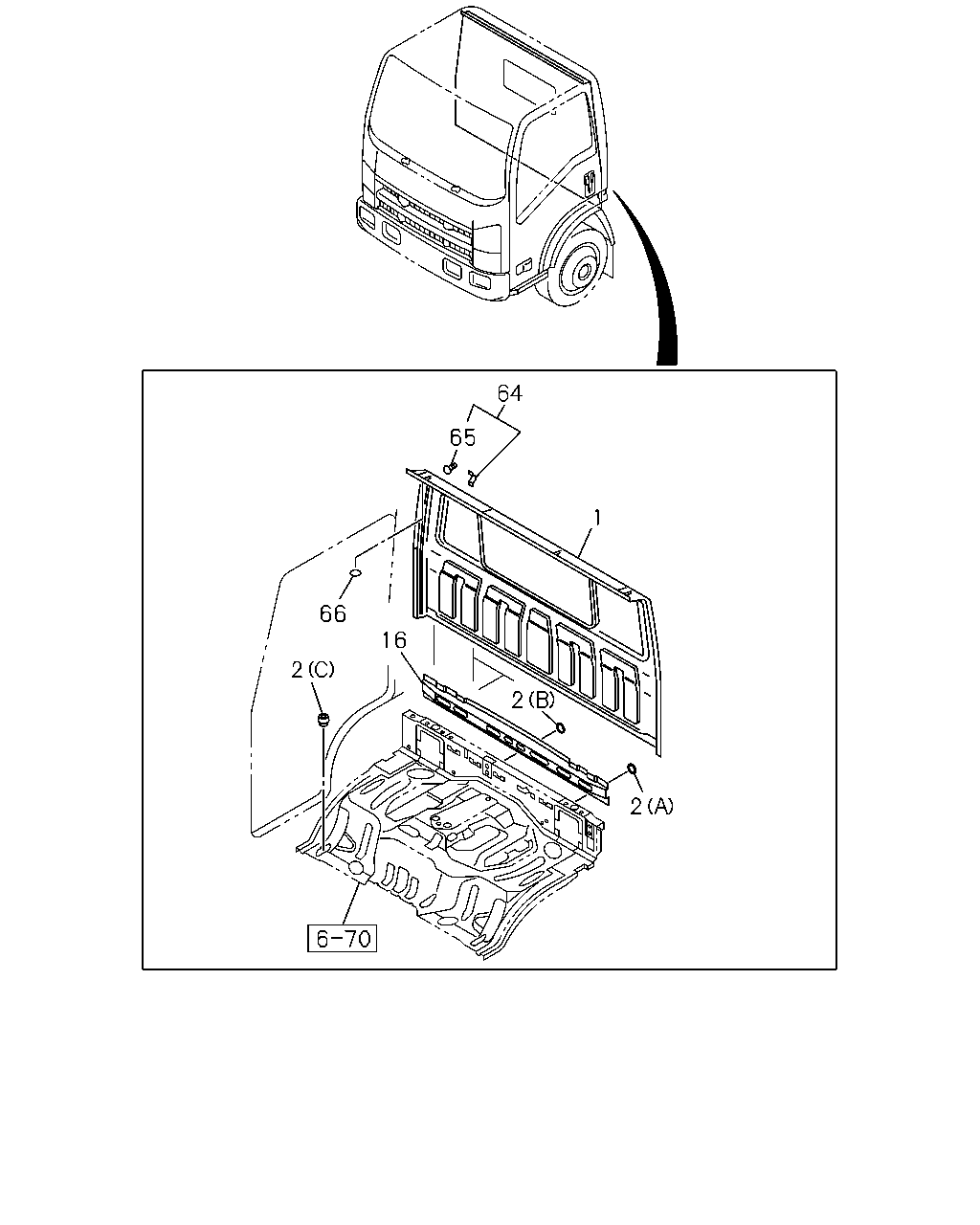

çizim 443832
64 65 66 2 16 2 1 2
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; BACK OUTER 8-97584-304-3 01 1 1409-
2 GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK MAL 		1-76798-019-0 02 1 1409-
2 GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=12.1 MAL 		8-97898-423-0 04 1 1409-
2 GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=32 BLACK MAL 		8-98031-126-0 02 1 1409-
2 GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=32 BLACK MAL 		8-98031-126-0 10 1 1409-
16 REINFORCEMENT; BACK OUTER PNL 8-97584-608-2 01 1 1409-
64 BRACKET; AIR INTAKE DUCT 8-97584-611-1 01 1 1409-
65 STUD; BACK PANEL
MAL 		8-94389-701-0 01 1 1409-
66 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE MAL 		8-98059-421-0 05 1 1409-
66 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVERMET(998),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK MAL 		5-76777-036-0 05 1 1409-
