Isuzu WW
▶
TRUCKS
▶
NPR
▶
51566 - NPR MALAYSIA BUS CHASSIS
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-76 - FLOOR EQUIPMENT AND SEALING
▶

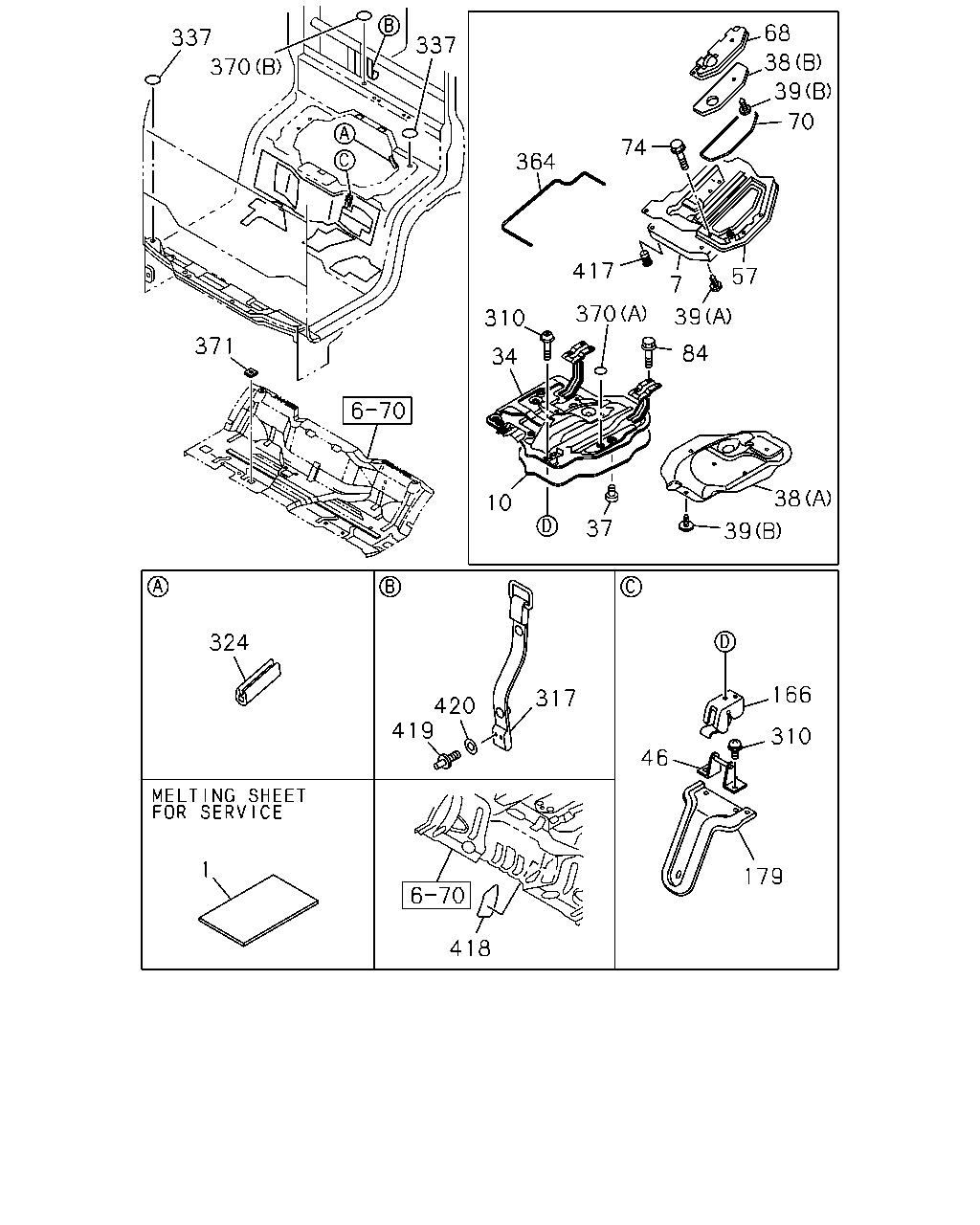

6-76 — FLOOR EQUIPMENT AND SEALING
(#148669) — 33 parça
337
370
337
371
310
364
74
68
38
39
70
417
57
7
370
39
84
34
10
37
39
38
420
317
419
324
46
166
310
179
418
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY MAL
8-94262-093-0
AR
1
1409-
7
INSULATOR; SUPPORT COVER
8-98242-228-0
01
1
1409-
10
SEAL; ENG COVER
8-98029-377-0
01
1
1409-
34
COVER ASM; ENG,CAB FLOOR
8-97587-395-3
01
1
1409-
37
RUBBER; BUFFER,ENG COVER
OD=30 T=10 MAL
5-74917-001-2
02
1
1409-
38
INSULATOR; ENG COVER
(A)
8-98242-226-0
01
1
1409-
38
INSULATOR; ENG COVER
(B)
8-98242-234-0
01
1
1409-
39
CLIP; INSULATOR,COVER
(B) OD=30 MAL
8-94279-952-0
07
1
1409-
39
CLIP; INSULATOR,COVER
(A) ID=6.2 L=11.4
8-97808-623-0
05
1
1409-
46
HOOK ASM; ENG COVER
8-98040-145-0
02
1
1409-
57
COVER ASM; SUPPORT,CAB FLOOR
8-97587-400-3
01
1
1409-
68
COVER ASM; SUB,ENG COVER
8-98040-141-0
01
1
1409-
70
SEAL; ENG SUB COVER,CAB FLOOR
MAL
8-97853-050-1
01
1
1409-
74
BOLT; SUPPORT COVER TO FLOOR
M8X20 FLANGE MAL
0-28650-820-0
10
1
1409-
84
BOLT; ENG COVER HINGE
M8X20 FLANGE MAL
0-28650-820-0
04
1
1409-
166
LOCK; ENG COVER
8-98040-152-0
02
1
1409-
179
REINFORCEMENT; COVER
8-98048-301-1
01
1
1409-
310
SCREW; ENG COVER HOOK
M6X16 FLANGE MAL
0-28650-616-0
04
1
1409-
310
SCREW; ENG COVER HOOK
M6X16
0-38050-616-0
05
1
1409-
317
BAND; ENGINE COVER
8-97585-575-0
01
1
1409-
324
FINISHER; FLOOR PANEL
L=140 MAL
8-97892-742-0
03
1
1409-
337
SEAL; CLIP HOLE
OD=32 BLACK MAL
8-98031-126-0
01
1
1409-
337
SEAL; CLIP HOLE
OD=32 BLACK MAL
8-98031-126-0
04
1
1409-
337
SEAL; CLIP HOLE
OD=32 BLACK MAL
8-98031-126-0
08
1
1409-
364
FINISHER; ENG COVER SIDE
L=1100
8-97892-744-0
01
1
1409-
370
SEAL; LOCATION HOLE
(A) OD=25 BLACK MAL
1-76798-019-0
01
1
1409-
370
SEAL; LOCATION HOLE
(B) OD=20 T=0.05 BLACK MAL
5-76777-036-0
03
1
1409-
371
GROMMET; LOCATION HOLE
14.5X14.5 BLACK
8-94279-714-0
02
1
1409-
417
NUT; POP
M6 POP NUT MAL
8-98013-752-0
01
1
1409-
418
SEAL; PROTECTOR
8-98090-191-1
01
1
1409-
418
SEAL; PROTECTOR
8-98090-192-1
01
1
1409-
419
RIVET; ENG COVER
8-98065-262-0
01
1
1409-
420
WASHER; ENG COVER
ID=5.3 OD=16
0-91614-705-0
01
1
1409-
