◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51566 - NPR MALAYSIA BUS CHASSIS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#148667) — 39 parça

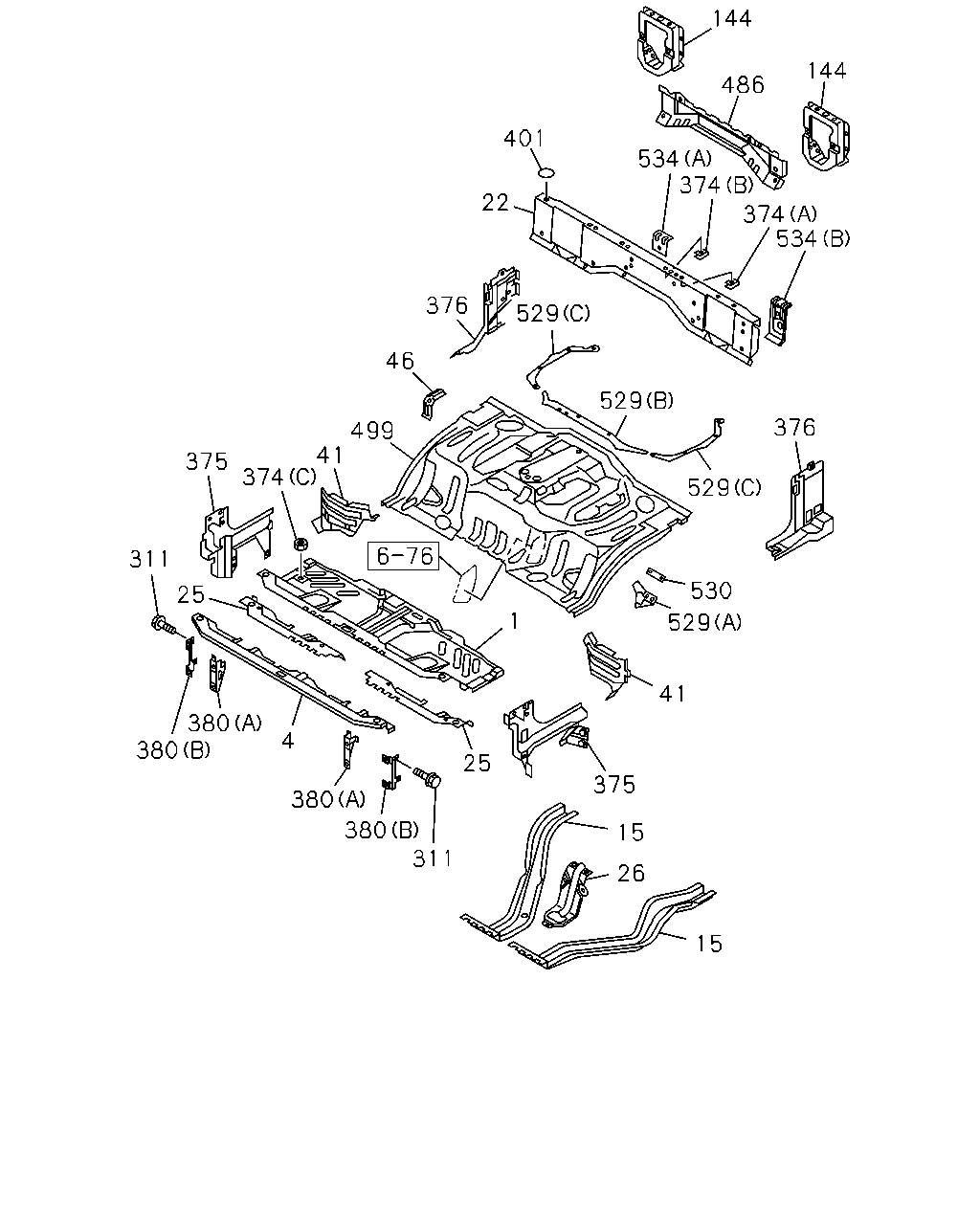

çizim 444045
144 144 486 534 374 534 374 376 529 529 529 376 22 401 530 529 41 1 375 15 26 15 311 25 380 380 380 380 311 375 374 41 499 46 4
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR 8-98112-870-0 01 1 1409-
4 FRAME; FLOOR,FRT
MAL 		8-98107-595-0 01 1 1409-
15 FRAME; UNDER
MAL 		8-98059-497-1 01 1 1409-
15 FRAME; UNDER
MAL 		8-98059-498-1 01 1 1409-
22 FRAME; FLOOR REAR 8-97587-394-4 01 1 1409-
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97583-823-0 01 1 1409-
25 REINFORCEMENT; FRAME FLOOR,FRT 8-98107-587-0 01 1 1409-
26 PANEL; GEAR CONT REINF 8-97589-382-1 01 1 1409-
41 SUPPORT; STEP,RR 8-97583-880-1 01 1 1409-
41 SUPPORT; STEP,RR 8-97583-881-1 01 1 1409-
46 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 1409-
144 BRACKET; MTG,RR 8-98112-244-2 02 1 1409-
311 BOLT; BRKT
M6X16 FLANGE MAL 		0-28650-616-0 04 1 1409-
374 NUT; FLOOR
(B) M6 MAL 		1-09984-110-0 02 1 1409-
374 NUT; FLOOR
(A) M8 		1-09984-111-0 04 1 1409-
374 NUT; FLOOR
(C) M8 		9-09114-068-0 04 1 1409-
375 CLOSING; PILLAR 8-97583-882-3 01 1 1409-
375 CLOSING; PILLAR 8-97583-883-2 01 1 1409-
376 CLOSING; PILLAR,LWR 8-97583-888-2 01 1 1409-
376 CLOSING; PILLAR,LWR 8-97584-618-2 01 1 1409-
380 BRACKET; HEAD LAMP
(A) MAL 		8-97589-384-4 01 1 1409-
380 BRACKET; HEAD LAMP
(A) MAL 		8-97589-385-3 01 1 1409-
380 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 1409-
380 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 1409-
401 GROMMET; HOLE
OD=24.5 T=7.5 MAL 		8-97224-683-0 01 1 1409-
486 REINFORCEMENT; FRAME FLOOR,REAR 8-98030-614-2 01 1 1409-
499 PANEL; FLOOR,RR 8-98205-116-0 01 1 1409-
529 RETAINER; FLOOR PANEL
(B) 		8-97589-249-0 01 1 1409-
529 RETAINER; FLOOR PANEL
(C) 		8-97589-467-1 01 1 1409-
529 RETAINER; FLOOR PANEL
(C) 		8-97589-468-1 01 1 1409-
529 RETAINER; FLOOR PANEL
(A) 		8-98030-358-0 01 1 1409-
530 BRACKET; COVER 8-97589-255-0 01 1 1409-
534 REINFORCEMENT; SEAT BACK
(B) 		8-97583-851-3 01 1 1409-
534 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 1409-

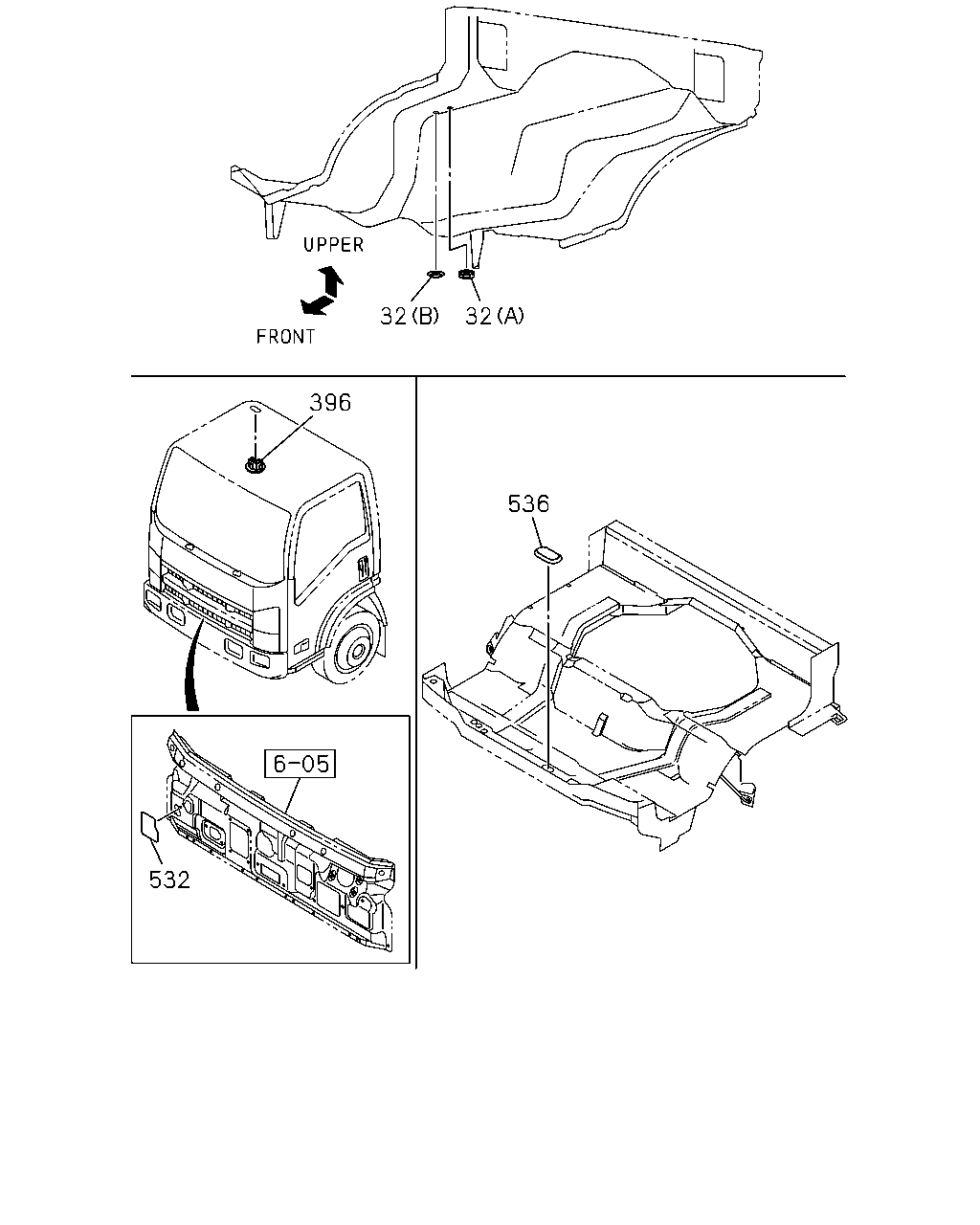

çizim 444254
32 32 536 396 532
BalonParca AdiParca NoAdetTipApplied Date
32 GROMMET; FLOOR PANEL,LOCATION HOLE
(A) OD=15.0 MAL 		8-94279-040-0 02 1 1409-
32 GROMMET; FLOOR PANEL,LOCATION HOLE
(B) OD=12.1 MAL 		8-97898-423-0 02 1 1409-
396 GROMMET; LOCATION HOLE 8-98054-990-0 02 1 1409-
532 SEAL; CABLE 8-98042-432-1 01 1 1409-
536 PLUG; CABLE,PTO 8-98029-219-1 01 1 1409-
