6-20 — SIDE PANEL AND STEP (#148658) — 48 parça

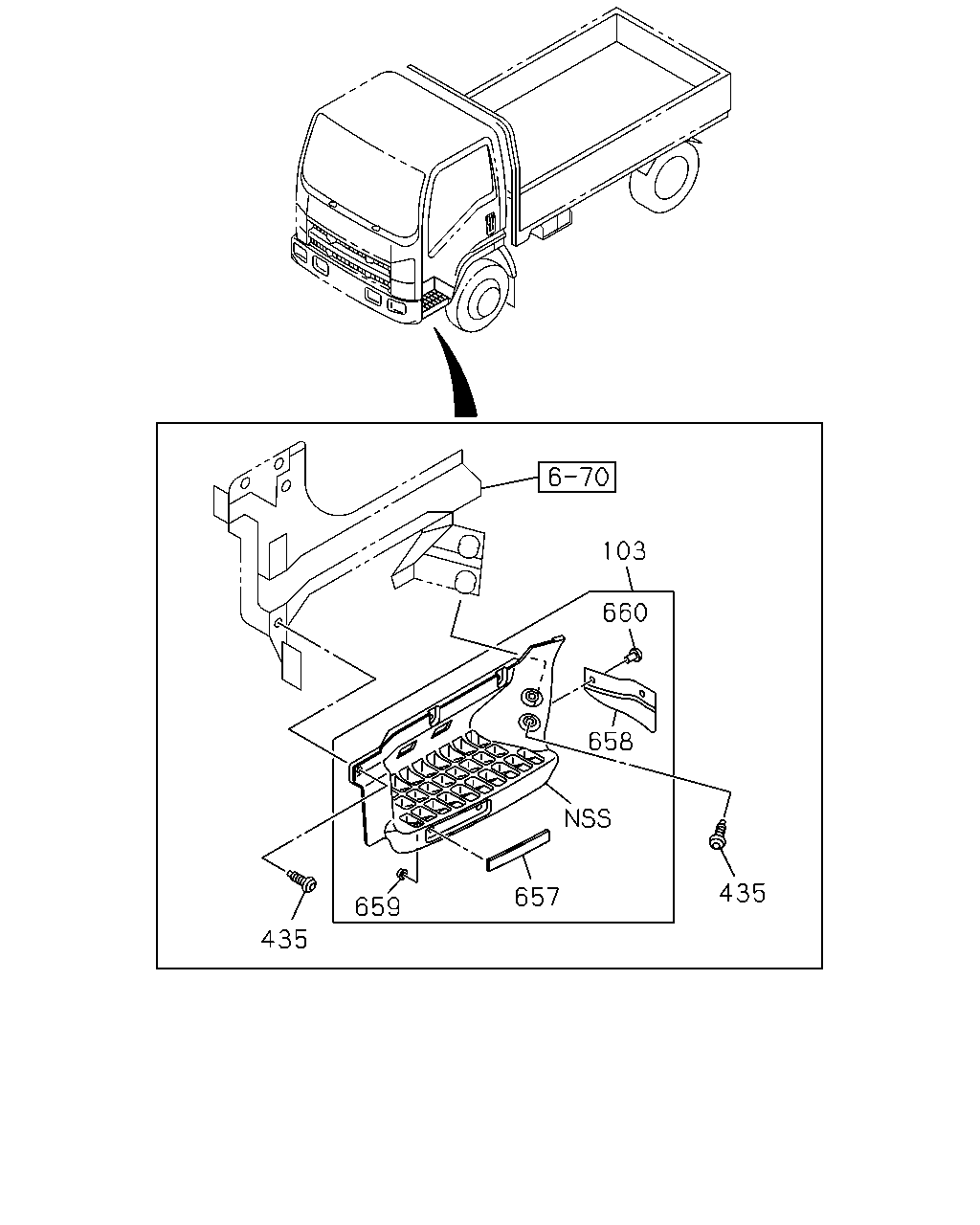

çizim 443605
103 660 658 657 435 659 435
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP 8-98022-774-3 01 1 1409-
103 PLATE; STEP 8-98022-775-3 01 1 1409-
435 BOLT; RR STEP
M8X18 		8-98004-345-0 12 1 1409-
657 REFLECTOR; REFLEX
AMBER 		8-97378-910-0 02 1 1409-
658 FLAP; STEP 8-98037-560-1 02 1 1409-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1409-
660 CLIP; FLAP 8-98111-558-0 04 1 1409-

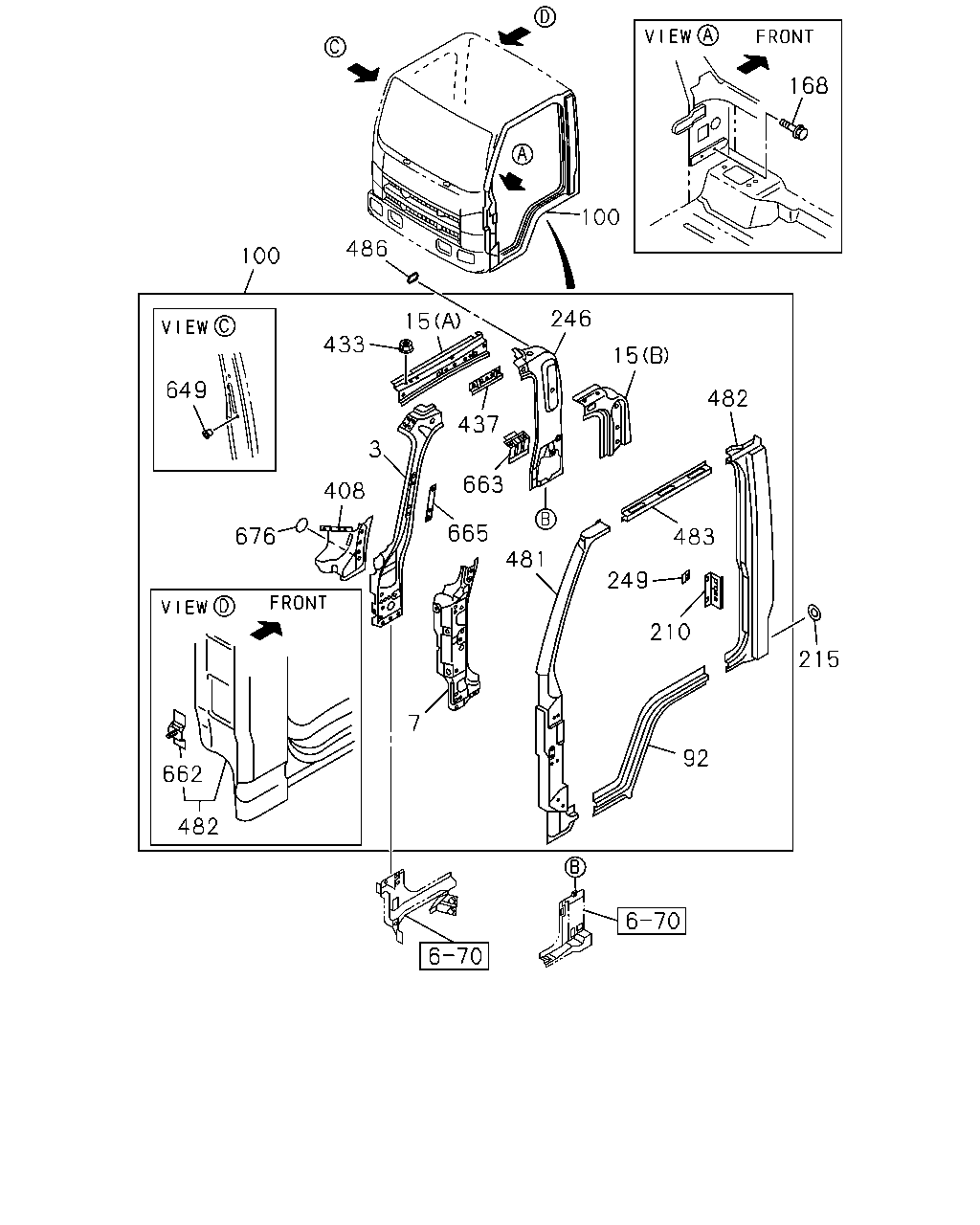

çizim 444243
100 168 486 100 433 15 246 482 15 437 663 665 481 483 215 210 249 408 92 7 676 3 649 662 482
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1409-
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1409-
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1409-
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1409-
15 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 1409-
15 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 1409-
15 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 1409-
15 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 1409-
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1409-
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1409-
100 PANEL ASM; BODY SIDE 8-97585-200-9 01 1 1409-
100 PANEL ASM; BODY SIDE 8-97586-023-5 01 1 1409-
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1409-
210 PANEL; DOOR STRIKER REINF 8-97585-260-4 01 1 1409-
210 PANEL; DOOR STRIKER REINF 8-97585-261-4 01 1 1409-
215 GROMMET; RR PILLAR
OD=35 MAL 		8-94122-971-0 01 1 1409-
246 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 1409-
246 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 1409-
249 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 1409-
249 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 1409-
408 GUSSET; PILLAR 8-97585-316-3 01 1 1409-
408 GUSSET; PILLAR 8-97585-317-4 01 1 1409-
433 NUT; HEADER SHELF
M6 MAL 		9-09114-086-0 02 1 1409-
433 NUT; HEADER SHELF
M6 MAL 		9-09114-086-0 02 1 1409-
437 BRACKET; ROOF RAIL 8-98039-019-0 01 1 1409-
437 BRACKET; ROOF RAIL 8-98039-020-0 01 1 1409-
481 PANEL; SIDE FRT PILLAR 8-98055-451-0 01 1 1409-
481 PANEL; SIDE FRT PILLAR 8-98055-470-0 01 1 1409-
482 PANEL; SIDE RR PILLAR 8-98055-463-0 01 1 1409-
482 PANEL; SIDE RR PILLAR 8-98055-464-0 01 1 1409-
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1409-
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1409-
486 SEAL; BODY SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE MAL 		8-98059-421-0 04 1 1409-
486 SEAL; BODY SIDE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVERMET(998),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK MAL 		5-76777-036-0 04 1 1409-
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1409-
662 BRACKET; DUCT 8-97584-611-1 01 1 1409-
663 BRACKET; AIR 8-97585-207-2 01 1 1409-
663 BRACKET; AIR 8-97585-208-2 01 1 1409-
665 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1409-
665 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1409-
676 SEAL
OD=20 T=0.05 BLACK MAL 		5-76777-036-0 01 1 1409-
