6-05 — FRONT PANEL (#148656) — 46 parça

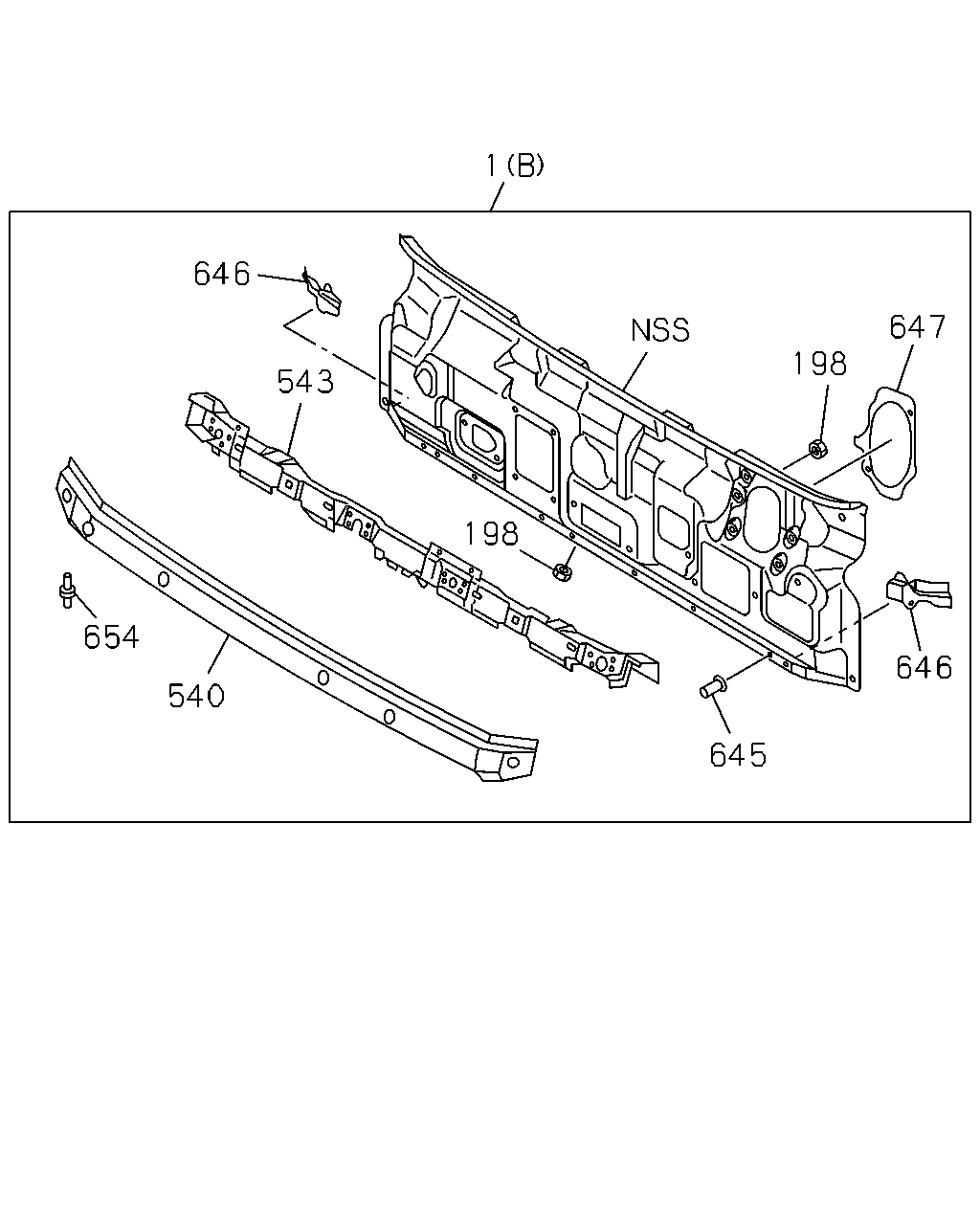

1 646 543 198 645 540 654 646 647 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PANEL ASM; FRT (A)	8-98122-695-0	01	1	1409-
1	PANEL ASM; FRT (B)	8-98181-027-0	01	1	1409-
198	NUT; PANEL M6 MAL	9-09114-086-0	04	1	1409-
540	PANEL; FRONT,OUTER	8-97585-325-3	01	1	1409-
543	CLOSING; FRT MTG RAIL	8-97585-328-5	01	1	1409-
645	STUD; FRT PANEL M6X12	8-98013-112-0	06	1	1409-
646	REINFORCEMENT; DASH	8-98023-098-1	01	1	1409-
646	REINFORCEMENT; DASH	8-98023-099-1	01	1	1409-
647	REINFORCEMENT; WIPER MOTOR	8-98006-327-0	01	1	1409-
654	PIN; FRT PANEL	8-98021-967-2	02	1	1409-

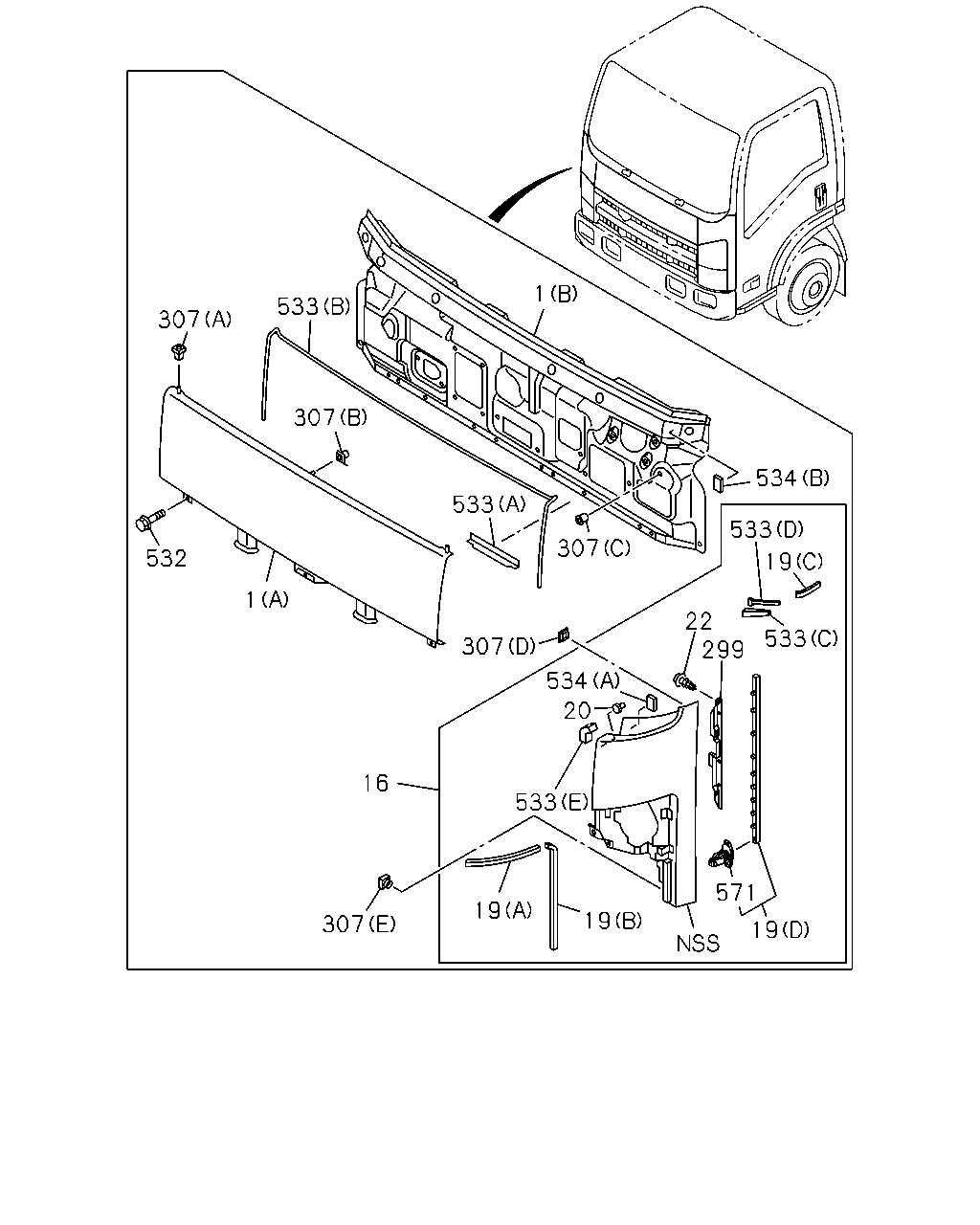

307 533 532 1 307 533 1 307 534 533 19 533 22 299 534 307 20 533 16 307 19 19 571 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PANEL ASM; FRT (A)	8-98122-695-0	01	1	1409-
1	PANEL ASM; FRT (B)	8-98181-027-0	01	1	1409-
16	PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) WHITE	8-97406-039-9	01	1	1409-
16	PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) WHITE	8-97406-040-9	01	1	1409-
16	PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) BLUE	8-97415-715-9	01	1	1409-
16	PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) BLUE	8-97415-716-9	01	1	1409-
16	PANEL; FRONT,SIDE BODY COLOR QUICK SILVER MET(998) LIGHT GRAY	8-97414-635-9	01	1	1409-
16	PANEL; FRONT,SIDE BODY COLOR QUICK SILVER MET(998) LIGHT GRAY	8-97414-636-9	01	1	1409-
16	PANEL; FRONT,SIDE BODY COLOR TRANS BLUE(999) BLUE	8-97409-870-9	01	1	1409-
16	PANEL; FRONT,SIDE BODY COLOR TRANS BLUE(999) BLUE	8-97409-872-9	01	1	1409-
19	SEAL; FRT SIDE PANEL BODY COLOR ARC WHITE(729),BODY COLOR TRANS BLUE(999) (D)	8-98028-749-3	01	1	1409-
19	SEAL; FRT SIDE PANEL BODY COLOR ARC WHITE(729),BODY COLOR TRANS BLUE(999) (D)	8-98028-750-3	01	1	1409-
19	SEAL; FRT SIDE PANEL BODY COLOR ARC WHITE(729),BODY COLOR TRANS BLUE(999) (A)	8-98035-268-0	02	1	1409-
19	SEAL; FRT SIDE PANEL BODY COLOR ARC WHITE(729),BODY COLOR TRANS BLUE(999) (C)	8-98038-608-0	02	1	1409-
19	SEAL; FRT SIDE PANEL BODY COLOR ARC WHITE(729),BODY COLOR TRANS BLUE(999) (B)	8-98062-215-0	02	1	1409-
20	CLIP; FRT PANEL SIDE BODY COLOR ARC WHITE(729),BODY COLOR TRANS BLUE(999)	8-97410-739-1	04	1	1409-
22	SCREW; FRT PANEL SIDE BODY COLOR ARC WHITE(729),BODY COLOR TRANS BLUE(999) M4X10 TAPPING W/PL WASHER	0-74360-410-0	06	1	1409-
299	COVER; FRT PANEL SIDE BODY COLOR ARC WHITE(729),BODY COLOR TRANS BLUE(999)	8-98028-144-1	01	1	1409-
299	COVER; FRT PANEL SIDE BODY COLOR ARC WHITE(729),BODY COLOR TRANS BLUE(999)	8-98028-145-1	01	1	1409-
307	GROMMET; FRT PANEL (D)	8-97410-738-0	02	1	1409-
307	GROMMET; FRT PANEL (E)	8-98021-300-1	04	1	1409-
307	GROMMET; FRT PANEL (A)	8-98021-968-0	01	1	1409-
307	GROMMET; FRT PANEL (A)	8-98021-969-0	01	1	1409-
307	GROMMET; FRT PANEL (B)	8-98023-229-1	01	1	1409-
307	GROMMET; FRT PANEL (C) OD=20	8-98034-363-1	04	1	1409-
532	BOLT; FRT PANEL M6X16 W/LK&PL WASHER	0-52010-616-0	04	1	1409-
533	SEAL; FRT PANEL (B)	8-98021-964-4	01	1	1409-1506
533	SEAL; FRT PANEL (B)	8-98309-764-0	01	1	1507-
533	SEAL; FRT PANEL (A)	8-98021-965-2	01	1	1409-
533	SEAL; FRT PANEL BODY COLOR ARC WHITE(729),BODY COLOR TRANS BLUE(999) (C)	8-98043-509-0	01	1	1409-
533	SEAL; FRT PANEL BODY COLOR ARC WHITE(729),BODY COLOR TRANS BLUE(999) (C)	8-98043-510-0	01	1	1409-
533	SEAL; FRT PANEL BODY COLOR ARC WHITE(729),BODY COLOR TRANS BLUE(999) (D)	8-98043-511-1	02	1	1409-
533	SEAL; FRT PANEL BODY COLOR ARC WHITE(729),BODY COLOR TRANS BLUE(999) (E)	8-98064-939-0	02	1	1409-
534	FASTENER (B) 40X25	8-98089-411-1	02	1	1409-
534	FASTENER BODY COLOR ARC WHITE(729),BODY COLOR TRANS BLUE(999) (A) 40X25	8-98089-412-1	02	1	1409-
571	CLIP; SEAL BODY COLOR ARC WHITE(729),BODY COLOR TRANS BLUE(999) NATURAL	8-98027-457-0	20	1	1409-
