51566 - NPR MALAYSIA BUS CHASSIS
▶
5 - Frame, Cab Mounting
▶

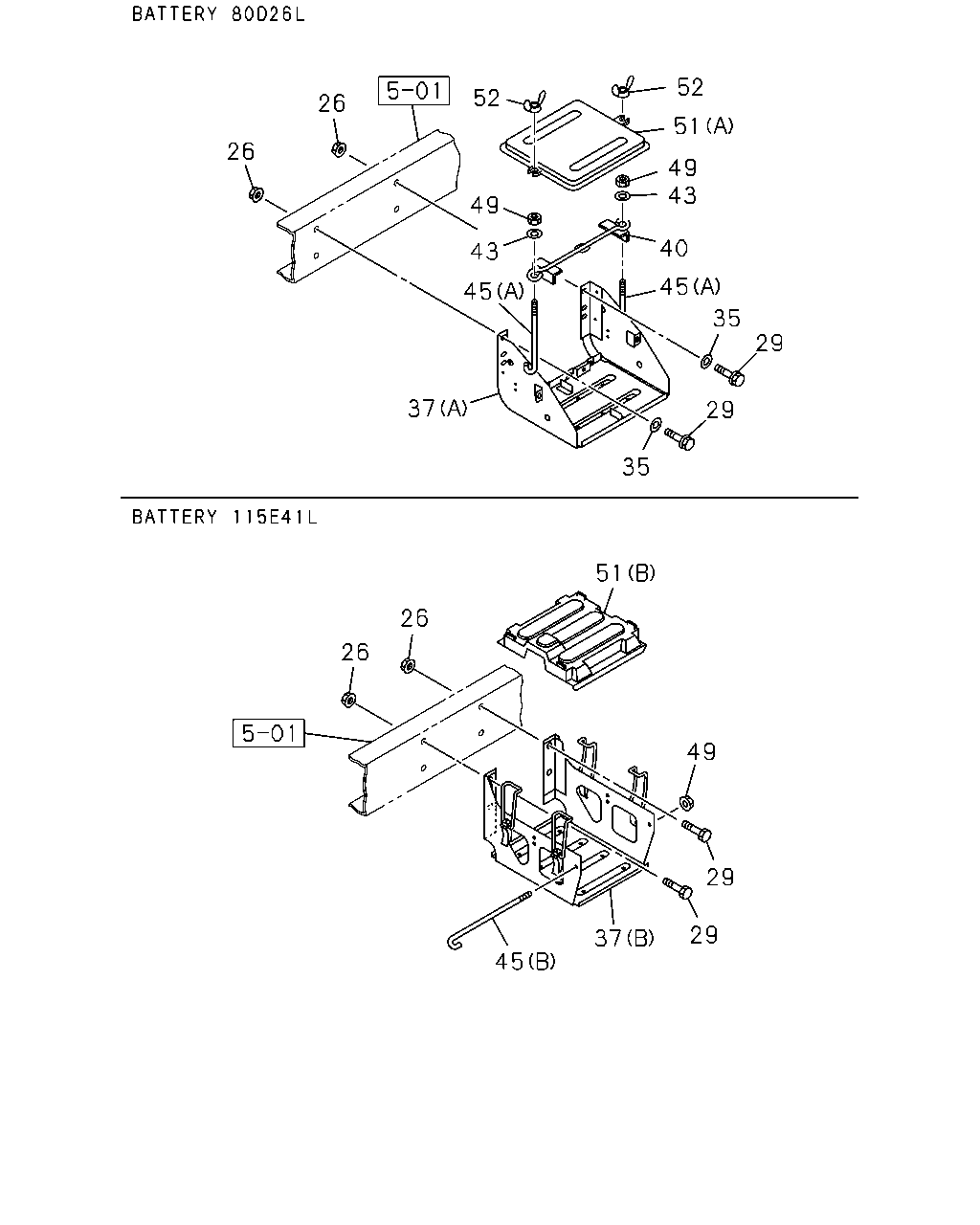

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#148652) — 13 parça
26
26
37
45
43
49
52
52
51
49
43
40
45
35
29
29
35
26
51
49
29
29
37
45
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
NUT; BRKT
M10 FLANGE MAL
0-91180-210-0
04
1
1409-
29
BOLT; BRKT TO FRAME
M10X35 FLANGE
0-28661-035-0
04
1
1409-
35
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1> ID=10.5 OD=22 T=1.6
0-91610-610-0
04
1
1409-
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (A) MAL
8-97384-067-2
01
1
1409-
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98091-497-0
01
1
1409-
40
CLAMP; BATTERY
BATTERY 80D26L<TM1> MAL
5-53615-004-1
01
1
1409-
43
WASHER; PL,CLAMP
BATTERY 80D26L<TM1> ID=8.4 OD=22
0-91614-708-0
02
1
1409-
45
ROD; TENSION,BATTERY
BATTERY 80D26L<TM1> (A) L=120 MAL
9-53616-615-0
02
1
1409-
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (B) L=430
8-97134-740-0
02
1
1409-
49
NUT; ROD,BATTERY
BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> M8 FLANGE MAL
0-91180-108-0
02
1
1409-
51
COVER; BATTERY
BATTERY 80D26L<TM1> (A) MAL
8-97120-747-0
01
1
1409-
51
COVER; BATTERY
BATTERY 115E41L<8MA> (B)
1-53612-029-1
01
1
1409-
52
NUT; WING,COVER FIX
BATTERY 80D26L<TM1> M8 WING NUT
0-91118-408-0
02
1
1409-
