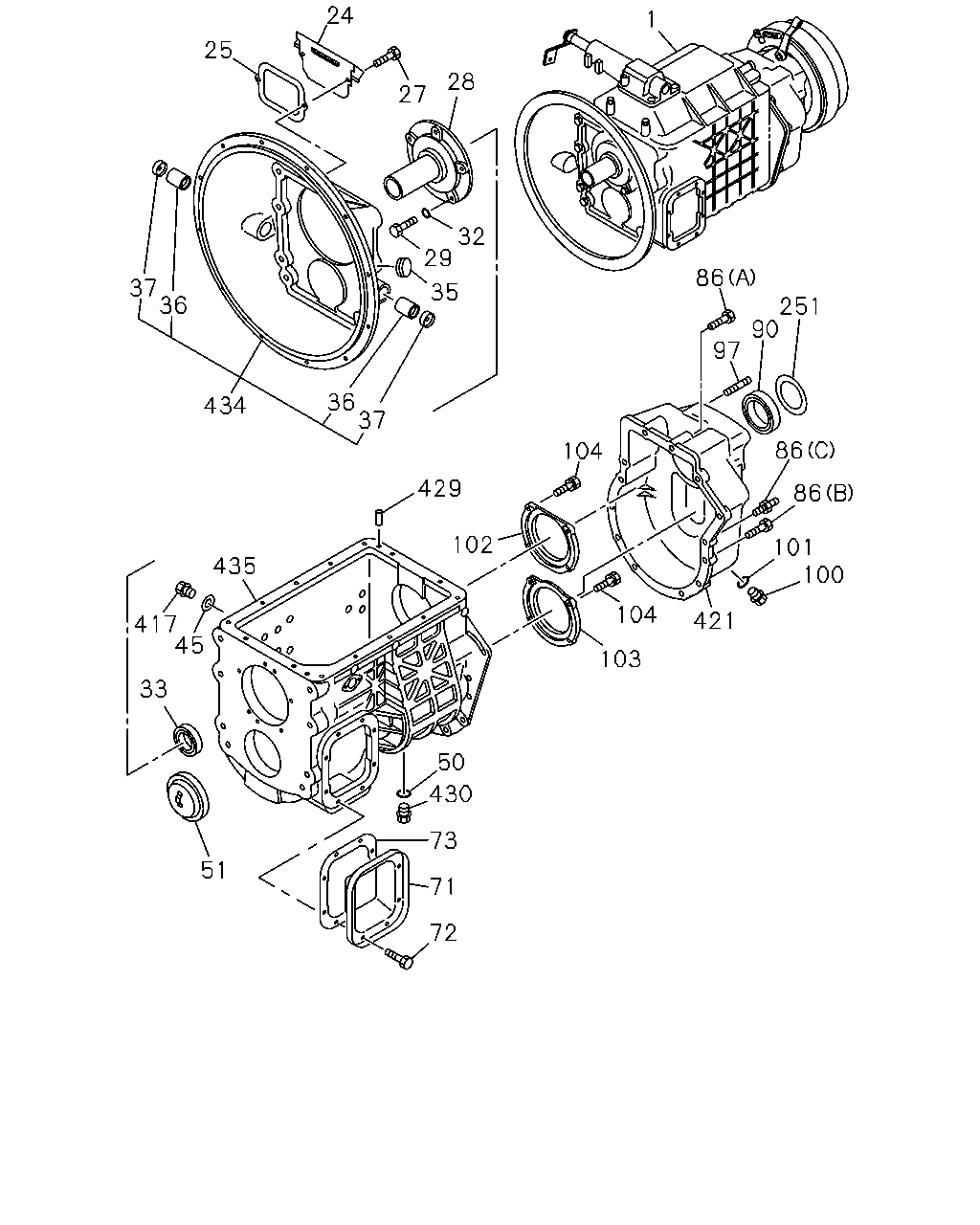

1 |
TRANSMISSION ASM; MANUAL
|
1-33043-709-0 |
01 |
1 |
0711- |
| |
24 |
COVER; CHECK HOLE,DUST
|
1-31131-030-0 |
01 |
1 |
0711- |
| |
25 |
GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T).
|
1-31139-008-0 |
01 |
1 |
0711-1406 |
| |
25 |
GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T).
|
8-98283-291-0 |
01 |
1 |
1407- |
| |
27 |
BOLT; COVER TO CLU HSG
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0711- |
| |
28 |
COVER; FRT,TRANS CASE
|
1-33121-130-0 |
01 |
1 |
0711- |
| |
29 |
BOLT; FRT COVER
M10X28 FLANGE REAMER
|
1-09040-089-1 |
05 |
1 |
0711-0805 |
| |
29 |
BOLT; FRT COVER
M10X28 FLANGE REAMER
|
8-97365-375-0 |
05 |
1 |
0806- |
| |
32 |
GASKET; BOLT,FRT COVER
ALSO INCLUDED IN GASKET SET(M/T).
ID=10
|
1-09623-369-0 |
05 |
1 |
0711- |
| |
33 |
SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
|
1-09625-497-0 |
01 |
1 |
0711- |
| |
35 |
GROMMET; CLU HSG
OD=45
|
9-31139-007-0 |
01 |
1 |
0711- |
| |
36 |
BEARING; NEEDLE,CLU HSG
NTN
|
1-09811-002-1 |
02 |
1 |
0711- |
| |
37 |
SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T).
|
1-09625-002-0 |
02 |
1 |
0711- |
| |
45 |
GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T).
ID=26.8
|
1-09623-058-0 |
01 |
1 |
0711- |
| |
50 |
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T).
ID=26.8
|
1-09623-058-0 |
01 |
1 |
0711- |
| |
51 |
COVER; SEAL,COUNTER,FRT
|
1-33319-195-1 |
01 |
1 |
0711- |
| |
71 |
COVER; SIDE,TRANS CASE
|
1-33141-030-1 |
01 |
1 |
0711- |
| |
72 |
BOLT; SIDE COVER
M10X16 FLANGE
|
0-28151-016-0 |
08 |
1 |
0711- |
| |
73 |
GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T).
|
1-33142-043-0 |
01 |
1 |
0711- |
| |
86 |
BOLT; RR COVER
(C)
M17X35
|
1-09044-076-0 |
08 |
1 |
0711- |
| |
86 |
BOLT; RR COVER
(A)
M12X65 FLANGE
|
1-09044-113-0 |
02 |
1 |
0711- |
| |
86 |
BOLT; RR COVER
(B)
M10X16,M12X30 L=57.7
|
1-09049-018-0 |
03 |
1 |
0711- |
| |
90 |
SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
|
1-09625-578-1 |
01 |
1 |
0711- |
| |
97 |
STUD; PARKING BRK
M16X51 L=72
|
1-09302-002-0 |
03 |
1 |
0711- |
| |
97 |
STUD; PARKING BRK
M16X41 L=62
|
1-09302-151-0 |
01 |
1 |
0711- |
| |
100 |
PLUG; DRAIN RR COVER
M24X17 FLANGE
|
1-09604-023-0 |
01 |
1 |
0711- |
| |
101 |
GASKET; DRAIN RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
ID=26.8
|
1-09623-058-0 |
01 |
1 |
0711- |
| |
102 |
RETAINER; BRG UPR,MAINSHAFT
|
1-33151-020-1 |
01 |
1 |
0711- |
| |
103 |
RETAINER; BRG
|
9-33151-014-0 |
01 |
1 |
0711- |
| |
104 |
BOLT; BRG RET
M10X25
|
1-09049-006-1 |
08 |
1 |
0711- |
| |
251 |
RETAINER; OIL,PARKING BRK
|
1-33139-116-0 |
01 |
1 |
0711-1204 |
| |
417 |
PLUG; OIL FILLER,TRANS
M24X17 FLANGE
|
1-09604-022-0 |
01 |
1 |
0711- |
| |
421 |
COVER; RR,TRANS
|
1-33131-191-2 |
01 |
1 |
0711-1002 |
| |
421 |
COVER; RR,TRANS
|
1-33131-192-2 |
01 |
1 |
1003- |
| |
429 |
PIN; STRAIGHT
OD=8 L=16
|
9-08150-816-0 |
02 |
1 |
0711- |
| |
430 |
PLUG; OIL DRAIN
M24X17 FLANGE
|
1-09604-023-0 |
01 |
1 |
0711- |
| |
434 |
HOUSING; CLU
|
1-31110-125-1 |
01 |
1 |
0711- |
| |
435 |
CASE; TRANS
|
1-33111-330-0 |
01 |
1 |
0711- |
