Isuzu WW
▶
TRUCKS
▶
NPR
▶
51566 - NPR MALAYSIA BUS CHASSIS
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶

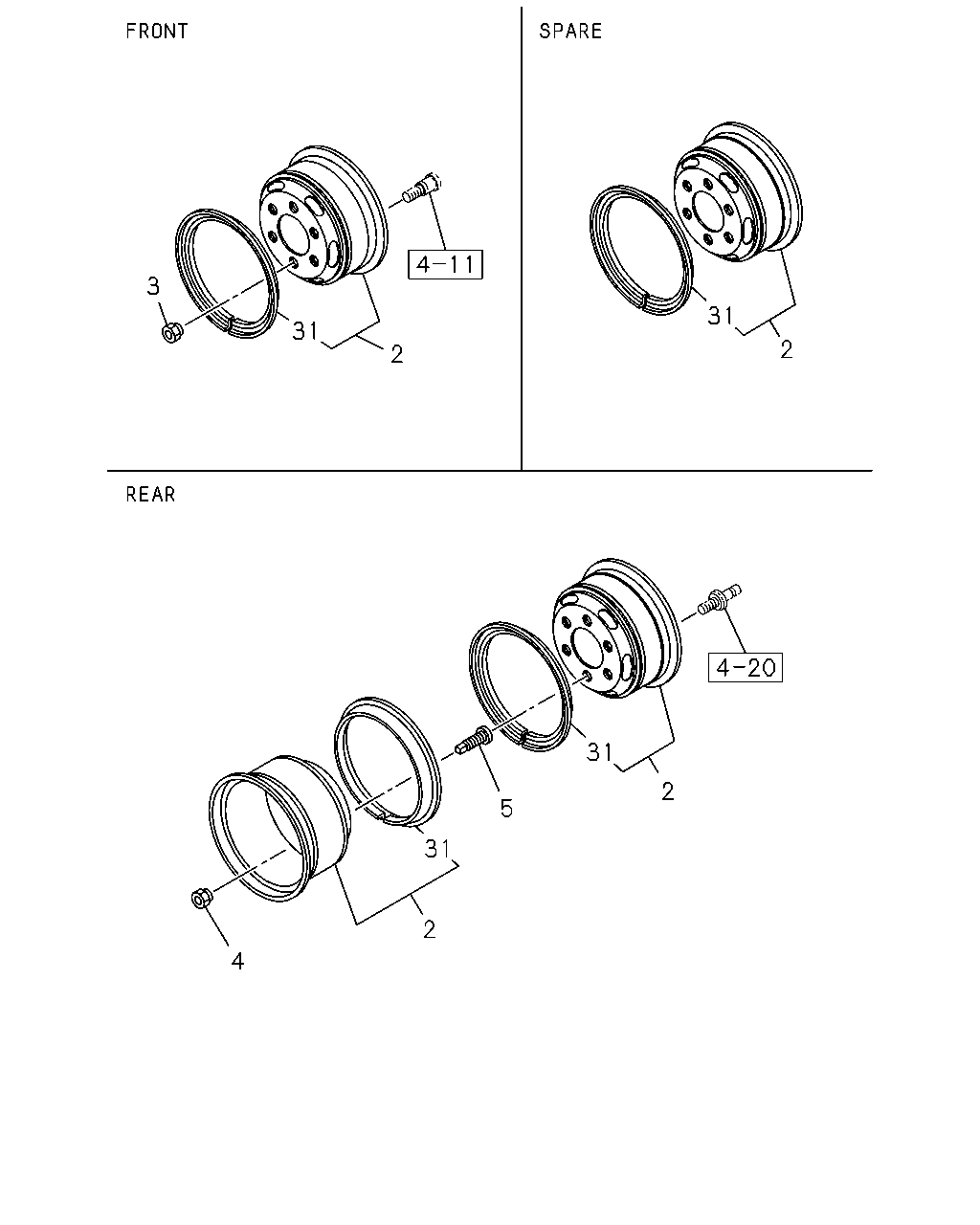

4-80 — ROAD WHEEL
(#148648) — 10 parça
2
31
2
31
3
2
31
5
31
2
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE MAL
8-94438-670-4
01
1
1409-
2
WHEEL; DISC
FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE MAL
8-94438-670-4
06
1
1409-
3
NUT; WHEEL,FRT AXLE
M20 RH THREAD MAL
8-97359-807-0
06
1
1409-
3
NUT; WHEEL,FRT AXLE
M20 LH THREAD MAL
8-97359-808-0
06
1
1409-
4
NUT; WHEEL,RR AXLE
M30 RH THREAD MAL
8-97359-809-0
06
1
1409-
4
NUT; WHEEL,RR AXLE
M30 LH THREAD MAL
8-97359-810-0
06
1
1409-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD MAL
8-97359-805-0
06
1
1409-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD MAL
8-97359-806-0
06
1
1409-
31
RING; SIDE,DISC WHEEL
SPARE 16X6.00GS STAMP, BLACK
8-94412-585-0
01
1
1409-
31
RING; SIDE,DISC WHEEL
FRONT,REAR 16X6.00GS STAMP, BLACK
8-94412-585-0
06
1
1409-
