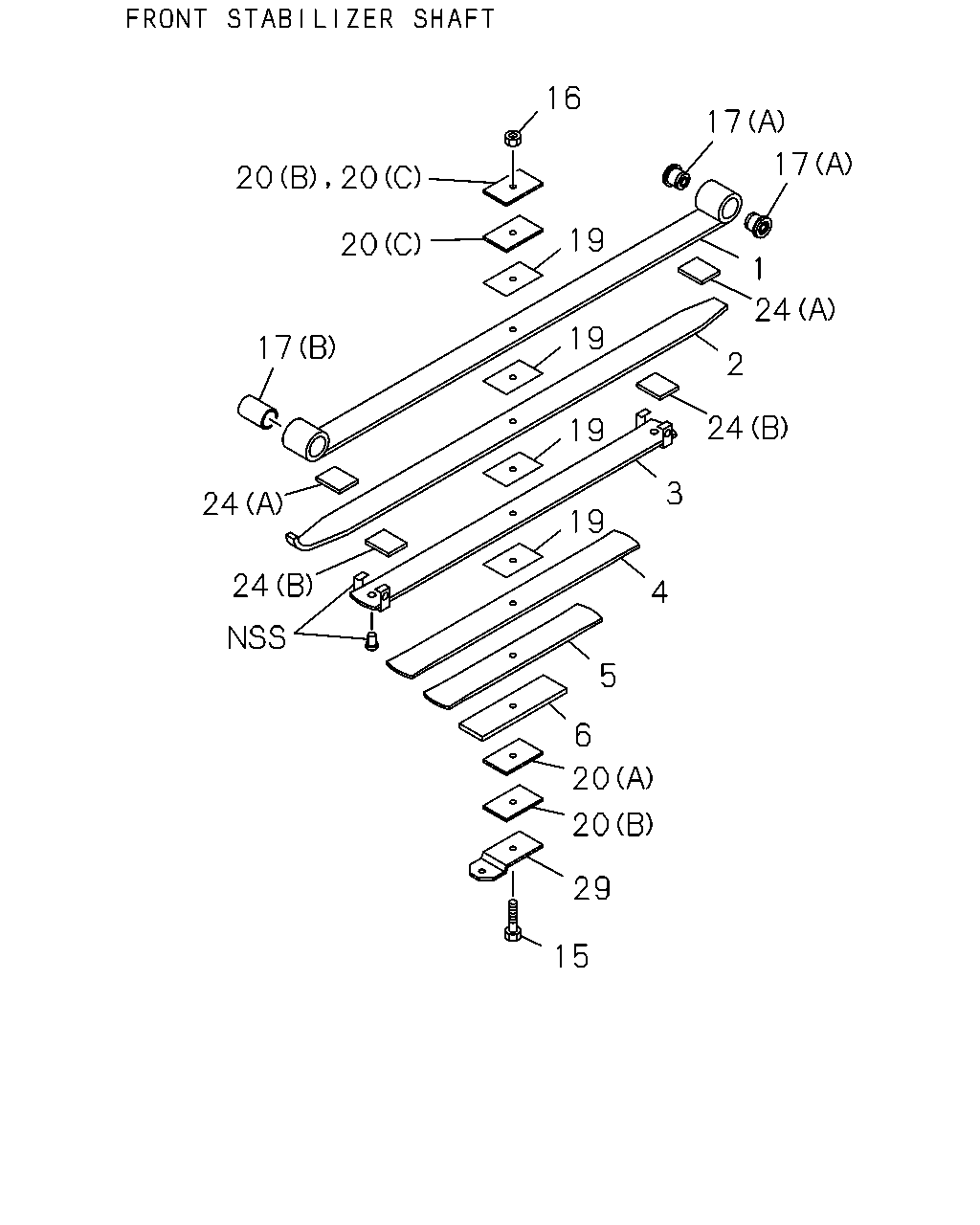

4-55 — FRONT LEAF SPRING (#148644) — 126 parça

16 19 19 19 19 15 20 20 20 20 20 20 6 5 4 3 24 24 2 1 17 17 24 24 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: H = 8-98190-546-1	8-98193-072-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 8-98190-539-1	8-98193-086-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 8-98190-540-1	8-98193-093-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 8-98190-541-1	8-98193-100-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 8-98190-542-1	8-98193-107-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: E = 8-98190-543-1	8-98193-114-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: F = 8-98190-544-1	8-98193-121-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: G = 8-98190-545-1	8-98193-128-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: H = 8-98190-546-1	8-98193-073-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 8-98190-539-1	8-98193-087-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 8-98190-540-1	8-98193-094-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 8-98190-541-1	8-98193-101-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 8-98190-542-1	8-98193-108-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: E = 8-98190-543-1	8-98193-115-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: F = 8-98190-544-1	8-98193-122-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: G = 8-98190-545-1	8-98193-129-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: H = 8-98190-546-1	8-98193-074-1	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 8-98190-539-1	8-98193-088-1	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 8-98190-540-1	8-98193-095-1	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 8-98190-541-1	8-98193-102-1	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 8-98190-542-1	8-98193-109-1	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: E = 8-98190-543-1	8-98193-116-1	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: F = 8-98190-544-1	8-98193-123-1	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: G = 8-98190-545-1	8-98193-130-1	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: H = 8-98190-546-1	8-98193-075-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 8-98190-539-1	8-98193-089-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: B = 8-98190-540-1	8-98193-096-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 8-98190-541-1	8-98193-103-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: D = 8-98190-542-1	8-98193-110-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: E = 8-98190-543-1	8-98193-117-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: F = 8-98190-544-1	8-98193-124-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: G = 8-98190-545-1	8-98193-131-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: H = 8-98190-546-1	8-98193-076-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: A = 8-98190-539-1	8-98193-090-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: B = 8-98190-540-1	8-98193-097-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: C = 8-98190-541-1	8-98193-104-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: D = 8-98190-542-1	8-98193-111-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: E = 8-98190-543-1	8-98193-118-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: F = 8-98190-544-1	8-98193-125-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: G = 8-98190-545-1	8-98193-132-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: H = 8-98190-546-1	8-98193-077-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: A = 8-98190-539-1	8-98193-091-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: B = 8-98190-540-1	8-98193-098-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: C = 8-98190-541-1	8-98193-105-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: D = 8-98190-542-1	8-98193-112-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: E = 8-98190-543-1	8-98193-119-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: F = 8-98190-544-1	8-98193-126-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: G = 8-98190-545-1	8-98193-133-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=110, MAL ASM PART: A = 8-98190-539-1, B = 8-98190-540-1, C = 8-98190-541-1, D = 8-98190-542-1	8-98081-376-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=115 ASM PART: E = 8-98190-543-1, F = 8-98190-544-1, G = 8-98190-545-1, H = 8-98190-546-1	8-98152-295-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M10, MAL ASM PART: A = 8-98190-539-1, B = 8-98190-540-1, C = 8-98190-541-1, D = 8-98190-542-1, E = 8-98190-543-1, F = 8-98190-544-1, G = 8-98190-545-1, H = 8-98190-546-1	1-09400-055-0	01	1	-
17	BUSHING; LEAF SPR,FRT (A), OD=40 L=43.7 ASM PART: A = 8-98190-539-1, B = 8-98190-540-1, C = 8-98190-541-1, D = 8-98190-542-1, E = 8-98190-543-1, F = 8-98190-544-1, G = 8-98190-545-1, H = 8-98190-546-1	8-94118-588-1	02	1	-
17	BUSHING; LEAF SPR,FRT (B), OD=42 L=81 ASM PART: A = 8-98190-539-1, B = 8-98190-540-1, C = 8-98190-541-1, D = 8-98190-542-1, E = 8-98190-543-1, F = 8-98190-544-1, G = 8-98190-545-1, H = 8-98190-546-1	8-94130-354-0	01	1	-
19	SPACER; LEAF SPRING,FRT T=1, MAL ASM PART: A = 8-98190-539-1, B = 8-98190-540-1, C = 8-98190-541-1, D = 8-98190-542-1, E = 8-98190-543-1, F = 8-98190-544-1, G = 8-98190-545-1, H = 8-98190-546-1	8-97084-845-0	04	1	-
20	SEAT; LEAF SPR,FRT (A), MAL ASM PART: A = 8-98190-539-1, B = 8-98190-540-1, E = 8-98190-543-1, F = 8-98190-544-1	8-98039-233-0	02	1	-
20	SEAT; LEAF SPR,FRT (B), MAL ASM PART: A = 8-98190-539-1, B = 8-98190-540-1, C = 8-98190-541-1, D = 8-98190-542-1	8-98041-368-0	02	1	-
20	SEAT; LEAF SPR,FRT (B), MAL ASM PART: G = 8-98190-545-1, H = 8-98190-546-1	8-98041-368-0	01	1	-
20	SEAT; LEAF SPR,FRT (A) ASM PART: C = 8-98190-541-1, D = 8-98190-542-1	8-98077-684-0	01	1	-
20	SEAT; LEAF SPR,FRT (C) ASM PART: E = 8-98190-543-1, F = 8-98190-544-1, G = 8-98190-545-1, H = 8-98190-546-1	8-98094-959-0	02	1	-
24	LINER; LEAF SPR,FWD FRT (A) ASM PART: A = 8-98190-539-1, B = 8-98190-540-1, C = 8-98190-541-1, D = 8-98190-542-1, E = 8-98190-543-1, F = 8-98190-544-1, G = 8-98190-545-1, H = 8-98190-546-1	8-97084-848-0	02	1	-
24	LINER; LEAF SPR,FWD FRT (B) ASM PART: A = 8-98190-539-1, B = 8-98190-540-1, C = 8-98190-541-1, D = 8-98190-542-1, E = 8-98190-543-1, F = 8-98190-544-1, G = 8-98190-545-1, H = 8-98190-546-1	8-98193-187-0	02	1	-1505
24	LINER; LEAF SPR,FWD FRT (B) ASM PART: A = 8-98190-539-1, B = 8-98190-540-1, C = 8-98190-541-1, D = 8-98190-542-1, E = 8-98190-543-1, F = 8-98190-544-1, G = 8-98190-545-1, H = 8-98190-546-1	8-98193-188-0	02	1	1506-

16 19 19 19 19 20 20 20 20 20 24 24 24 24 17 6 5 4 3 2 1 29 15 17 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: H = 8-98190-546-1	8-98193-072-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 8-98190-539-1	8-98193-086-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 8-98190-540-1	8-98193-093-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 8-98190-541-1	8-98193-100-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 8-98190-542-1	8-98193-107-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: E = 8-98190-543-1	8-98193-114-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: F = 8-98190-544-1	8-98193-121-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: G = 8-98190-545-1	8-98193-128-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: H = 8-98190-546-1	8-98193-073-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 8-98190-539-1	8-98193-087-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 8-98190-540-1	8-98193-094-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 8-98190-541-1	8-98193-101-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 8-98190-542-1	8-98193-108-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: E = 8-98190-543-1	8-98193-115-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: F = 8-98190-544-1	8-98193-122-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: G = 8-98190-545-1	8-98193-129-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: H = 8-98190-546-1	8-98193-074-1	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 8-98190-539-1	8-98193-088-1	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 8-98190-540-1	8-98193-095-1	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 8-98190-541-1	8-98193-102-1	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 8-98190-542-1	8-98193-109-1	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: E = 8-98190-543-1	8-98193-116-1	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: F = 8-98190-544-1	8-98193-123-1	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: G = 8-98190-545-1	8-98193-130-1	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: H = 8-98190-546-1	8-98193-075-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 8-98190-539-1	8-98193-089-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: B = 8-98190-540-1	8-98193-096-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 8-98190-541-1	8-98193-103-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: D = 8-98190-542-1	8-98193-110-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: E = 8-98190-543-1	8-98193-117-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: F = 8-98190-544-1	8-98193-124-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: G = 8-98190-545-1	8-98193-131-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: H = 8-98190-546-1	8-98193-076-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: A = 8-98190-539-1	8-98193-090-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: B = 8-98190-540-1	8-98193-097-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: C = 8-98190-541-1	8-98193-104-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: D = 8-98190-542-1	8-98193-111-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: E = 8-98190-543-1	8-98193-118-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: F = 8-98190-544-1	8-98193-125-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: G = 8-98190-545-1	8-98193-132-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: H = 8-98190-546-1	8-98193-077-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: A = 8-98190-539-1	8-98193-091-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: B = 8-98190-540-1	8-98193-098-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: C = 8-98190-541-1	8-98193-105-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: D = 8-98190-542-1	8-98193-112-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: E = 8-98190-543-1	8-98193-119-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: F = 8-98190-544-1	8-98193-126-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: G = 8-98190-545-1	8-98193-133-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=110, MAL ASM PART: A = 8-98190-539-1, B = 8-98190-540-1, C = 8-98190-541-1, D = 8-98190-542-1	8-98081-376-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=115 ASM PART: E = 8-98190-543-1, F = 8-98190-544-1, G = 8-98190-545-1, H = 8-98190-546-1	8-98152-295-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M10, MAL ASM PART: A = 8-98190-539-1, B = 8-98190-540-1, C = 8-98190-541-1, D = 8-98190-542-1, E = 8-98190-543-1, F = 8-98190-544-1, G = 8-98190-545-1, H = 8-98190-546-1	1-09400-055-0	01	1	-
17	BUSHING; LEAF SPR,FRT (A), OD=40 L=43.7 ASM PART: A = 8-98190-539-1, B = 8-98190-540-1, C = 8-98190-541-1, D = 8-98190-542-1, E = 8-98190-543-1, F = 8-98190-544-1, G = 8-98190-545-1, H = 8-98190-546-1	8-94118-588-1	02	1	-
17	BUSHING; LEAF SPR,FRT (B), OD=42 L=81 ASM PART: A = 8-98190-539-1, B = 8-98190-540-1, C = 8-98190-541-1, D = 8-98190-542-1, E = 8-98190-543-1, F = 8-98190-544-1, G = 8-98190-545-1, H = 8-98190-546-1	8-94130-354-0	01	1	-
19	SPACER; LEAF SPRING,FRT T=1, MAL ASM PART: A = 8-98190-539-1, B = 8-98190-540-1, C = 8-98190-541-1, D = 8-98190-542-1, E = 8-98190-543-1, F = 8-98190-544-1, G = 8-98190-545-1, H = 8-98190-546-1	8-97084-845-0	04	1	-
20	SEAT; LEAF SPR,FRT (A), MAL ASM PART: A = 8-98190-539-1, B = 8-98190-540-1, E = 8-98190-543-1, F = 8-98190-544-1	8-98039-233-0	02	1	-
20	SEAT; LEAF SPR,FRT (B), MAL ASM PART: A = 8-98190-539-1, B = 8-98190-540-1, C = 8-98190-541-1, D = 8-98190-542-1	8-98041-368-0	02	1	-
20	SEAT; LEAF SPR,FRT (B), MAL ASM PART: G = 8-98190-545-1, H = 8-98190-546-1	8-98041-368-0	01	1	-
20	SEAT; LEAF SPR,FRT (A) ASM PART: C = 8-98190-541-1, D = 8-98190-542-1	8-98077-684-0	01	1	-
20	SEAT; LEAF SPR,FRT (C) ASM PART: E = 8-98190-543-1, F = 8-98190-544-1, G = 8-98190-545-1, H = 8-98190-546-1	8-98094-959-0	02	1	-
24	LINER; LEAF SPR,FWD FRT (A) ASM PART: A = 8-98190-539-1, B = 8-98190-540-1, C = 8-98190-541-1, D = 8-98190-542-1, E = 8-98190-543-1, F = 8-98190-544-1, G = 8-98190-545-1, H = 8-98190-546-1	8-97084-848-0	02	1	-
24	LINER; LEAF SPR,FWD FRT (B) ASM PART: A = 8-98190-539-1, B = 8-98190-540-1, C = 8-98190-541-1, D = 8-98190-542-1, E = 8-98190-543-1, F = 8-98190-544-1, G = 8-98190-545-1, H = 8-98190-546-1	8-98193-187-0	02	1	-1505
24	LINER; LEAF SPR,FWD FRT (B) ASM PART: A = 8-98190-539-1, B = 8-98190-540-1, C = 8-98190-541-1, D = 8-98190-542-1, E = 8-98190-543-1, F = 8-98190-544-1, G = 8-98190-545-1, H = 8-98190-546-1	8-98193-188-0	02	1	1506-
29	SUPPORTER; LEAF SPR,FRT ASM PART: C = 8-98190-541-1, D = 8-98190-542-1	8-94342-292-1	01	1	-
29	SUPPORTER; LEAF SPR,FRT ASM PART: G = 8-98190-545-1, H = 8-98190-546-1	8-98152-826-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
