4-50 — FRONT SUSPENSION (#148643) — 76 parça

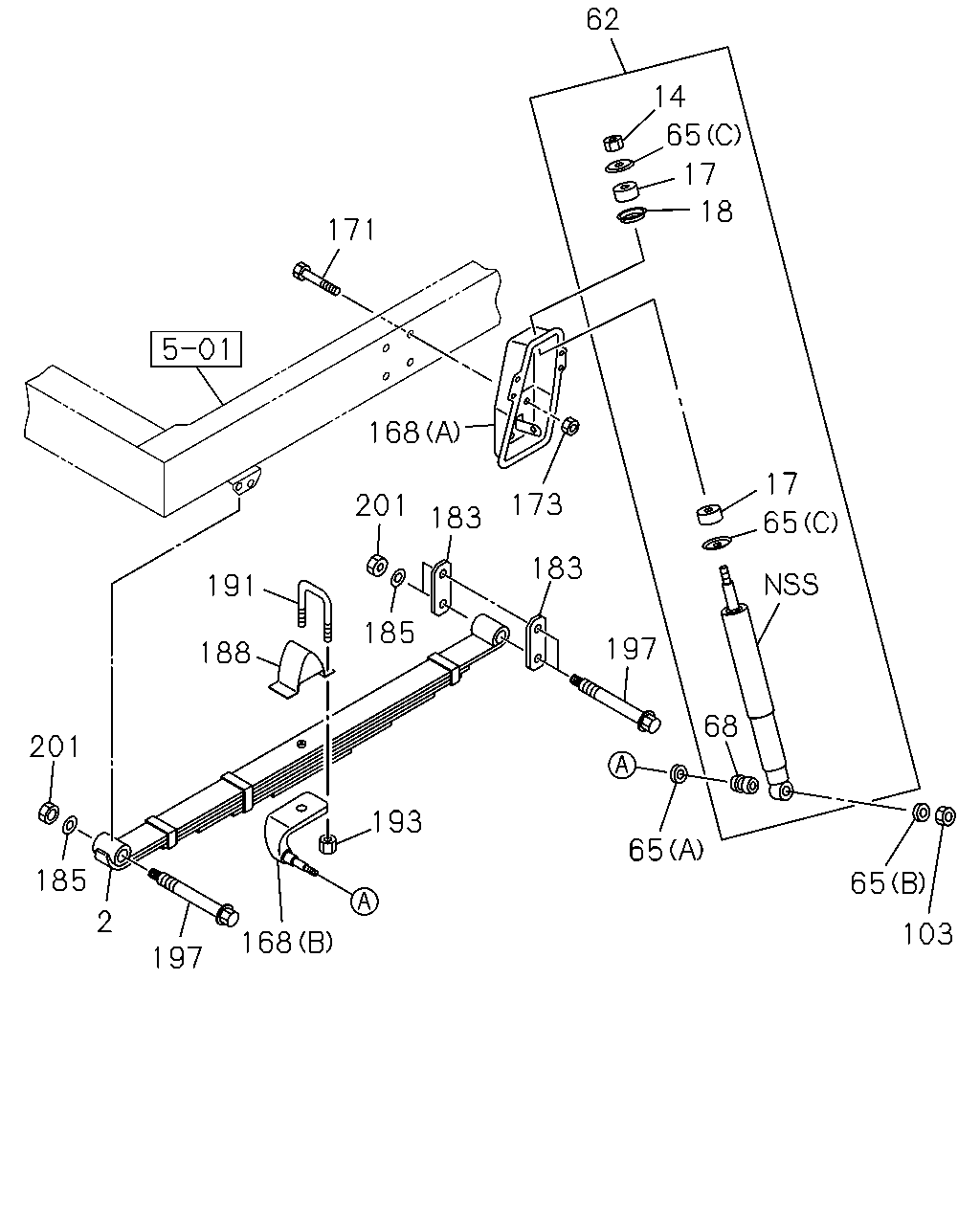

62 14 18 17 171 168 183 173 183 197 68 65 17 65 103 65 193 188 191 185 201 168 197 2 185 201 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-545-1	01	1	1409-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-546-1	01	1	1409-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-541-1	01	1	1409-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-542-1	01	1	1409-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98190-543-1	01	1	1409-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98190-544-1	01	1	1409-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-539-1	01	1	1409-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-540-1	01	1	1409-
14	NUT; S/ABS,UPR M10 T=8 MAL	9-09640-020-0	02	1	1409-
17	BUSHING; RUBBER,S/ABS TOKICO MAL	9-51631-603-0	04	1	1409-
18	WASHER; CENTERING,S/ABS TOKICO MAL	8-94412-791-0	02	1	1409-
62	ABSORBER ASM; SHOCK,FRT FRONT WIDE TREAD<7GV>	8-98154-636-0	02	1	1409-
62	ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV>	8-98080-129-1	02	1	1409-
62	ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV> BEST VALUE PARTS	5-87610-153-0	02	1	1409-
65	WASHER; S/ABS (A) ID=21 OD=40	0-91614-620-0	02	1	1409-
65	WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	1409-
65	WASHER; S/ABS (C) OD=40 MAL	9-51631-614-0	04	1	1409-
68	BUSHING; S/ABS TOKICO MAL	8-94382-149-0	02	1	1409-
103	NUT; S/ABS TO LWR LINK M14 MAL	0-91110-514-0	02	1	1409-
168	BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (B)	8-98139-556-0	01	1	1409-
168	BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (B)	8-98139-557-0	01	1	1409-
168	BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (A)	8-98150-406-1	01	1	1409-
168	BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (A)	8-98150-407-1	01	1	1409-
168	BRACKET; S/ABS,FRT SUSP EXC. FRONT WIDE TREAD<7GV> (A)	8-98015-001-0	01	1	1409-
168	BRACKET; S/ABS,FRT SUSP EXC. FRONT WIDE TREAD<7GV> (A)	8-98015-002-0	01	1	1409-
171	BOLT; S/ABS BRKT M12X35 FLANGE	0-28651-235-0	08	1	1409-
173	NUT; S/ABS M12	8-97360-126-0	08	1	1409-
183	SHACKLE; FRT SUSP MAL	8-94110-399-3	04	1	1409-
185	WASHER; LK,PIN KD PREPARATORY PACK<6HF> ID=16.5	8-98011-489-0	06	1	1409-
188	RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	1409-
191	U-BOLT; FRT SPR EXC. FRONT WIDE TREAD<7GV> L=135 MAL	5-51171-015-4	04	1	1409-
191	U-BOLT; FRT SPR FRONT WIDE TREAD<7GV> L=165 MAL	9-51171-075-1	04	1	1409-
193	NUT; U BOLT FRONT WIDE TREAD<7GV> M16	8-97360-121-0	08	1	1409-
193	NUT; U BOLT EXC. FRONT WIDE TREAD<7GV> M14 FLANGE	8-97360-124-0	08	1	1409-
197	PIN; FRT SPR,FRT KD PREPARATORY PACK<6HF> M16X122 MAL	8-98011-487-0	06	1	1409-
197	PIN; FRT SPR,FRT EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE	8-97360-110-0	06	1	1409-
201	NUT; PIN LK KD PREPARATORY PACK<6HF> M16	0-91110-516-0	06	1	1409-
201	NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> M16 FLANGE	8-97360-125-0	06	1	1409-

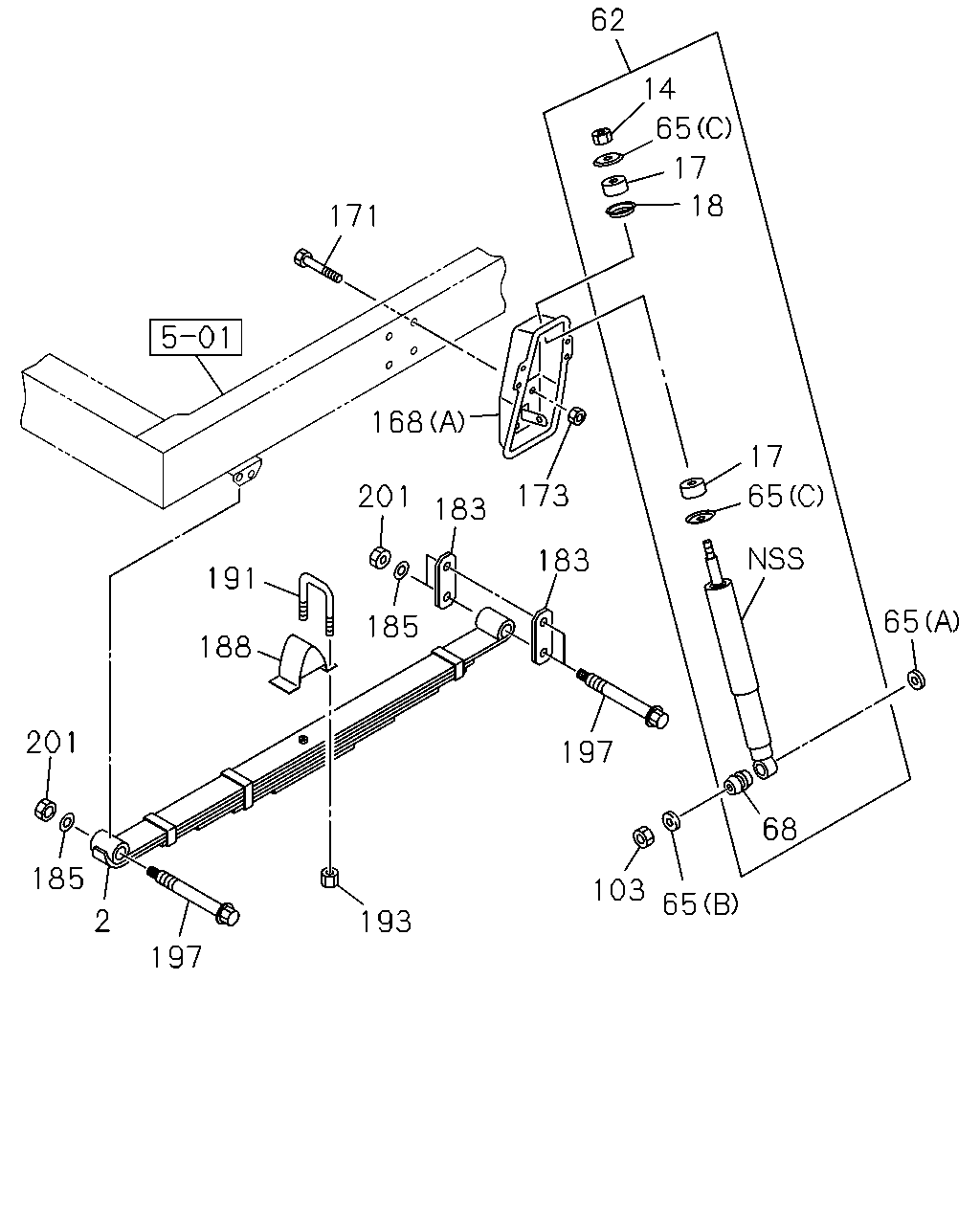

171 62 14 17 65 18 17 65 65 197 103 65 68 183 173 183 201 185 191 188 168 201 193 197 2 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-545-1	01	1	1409-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-546-1	01	1	1409-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-541-1	01	1	1409-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-542-1	01	1	1409-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98190-543-1	01	1	1409-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98190-544-1	01	1	1409-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-539-1	01	1	1409-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-540-1	01	1	1409-
14	NUT; S/ABS,UPR M10 T=8 MAL	9-09640-020-0	02	1	1409-
17	BUSHING; RUBBER,S/ABS TOKICO MAL	9-51631-603-0	04	1	1409-
18	WASHER; CENTERING,S/ABS TOKICO MAL	8-94412-791-0	02	1	1409-
62	ABSORBER ASM; SHOCK,FRT FRONT WIDE TREAD<7GV>	8-98154-636-0	02	1	1409-
62	ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV>	8-98080-129-1	02	1	1409-
62	ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV> BEST VALUE PARTS	5-87610-153-0	02	1	1409-
65	WASHER; S/ABS (A) ID=21 OD=40	0-91614-620-0	02	1	1409-
65	WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	1409-
65	WASHER; S/ABS (C) OD=40 MAL	9-51631-614-0	04	1	1409-
68	BUSHING; S/ABS TOKICO MAL	8-94382-149-0	02	1	1409-
103	NUT; S/ABS TO LWR LINK M14 MAL	0-91110-514-0	02	1	1409-
168	BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (B)	8-98139-556-0	01	1	1409-
168	BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (B)	8-98139-557-0	01	1	1409-
168	BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (A)	8-98150-406-1	01	1	1409-
168	BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (A)	8-98150-407-1	01	1	1409-
168	BRACKET; S/ABS,FRT SUSP EXC. FRONT WIDE TREAD<7GV> (A)	8-98015-001-0	01	1	1409-
168	BRACKET; S/ABS,FRT SUSP EXC. FRONT WIDE TREAD<7GV> (A)	8-98015-002-0	01	1	1409-
171	BOLT; S/ABS BRKT M12X35 FLANGE	0-28651-235-0	08	1	1409-
173	NUT; S/ABS M12	8-97360-126-0	08	1	1409-
183	SHACKLE; FRT SUSP MAL	8-94110-399-3	04	1	1409-
185	WASHER; LK,PIN KD PREPARATORY PACK<6HF> ID=16.5	8-98011-489-0	06	1	1409-
188	RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	1409-
191	U-BOLT; FRT SPR EXC. FRONT WIDE TREAD<7GV> L=135 MAL	5-51171-015-4	04	1	1409-
191	U-BOLT; FRT SPR FRONT WIDE TREAD<7GV> L=165 MAL	9-51171-075-1	04	1	1409-
193	NUT; U BOLT FRONT WIDE TREAD<7GV> M16	8-97360-121-0	08	1	1409-
193	NUT; U BOLT EXC. FRONT WIDE TREAD<7GV> M14 FLANGE	8-97360-124-0	08	1	1409-
197	PIN; FRT SPR,FRT KD PREPARATORY PACK<6HF> M16X122 MAL	8-98011-487-0	06	1	1409-
197	PIN; FRT SPR,FRT EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE	8-97360-110-0	06	1	1409-
201	NUT; PIN LK KD PREPARATORY PACK<6HF> M16	0-91110-516-0	06	1	1409-
201	NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> M16 FLANGE	8-97360-125-0	06	1	1409-
