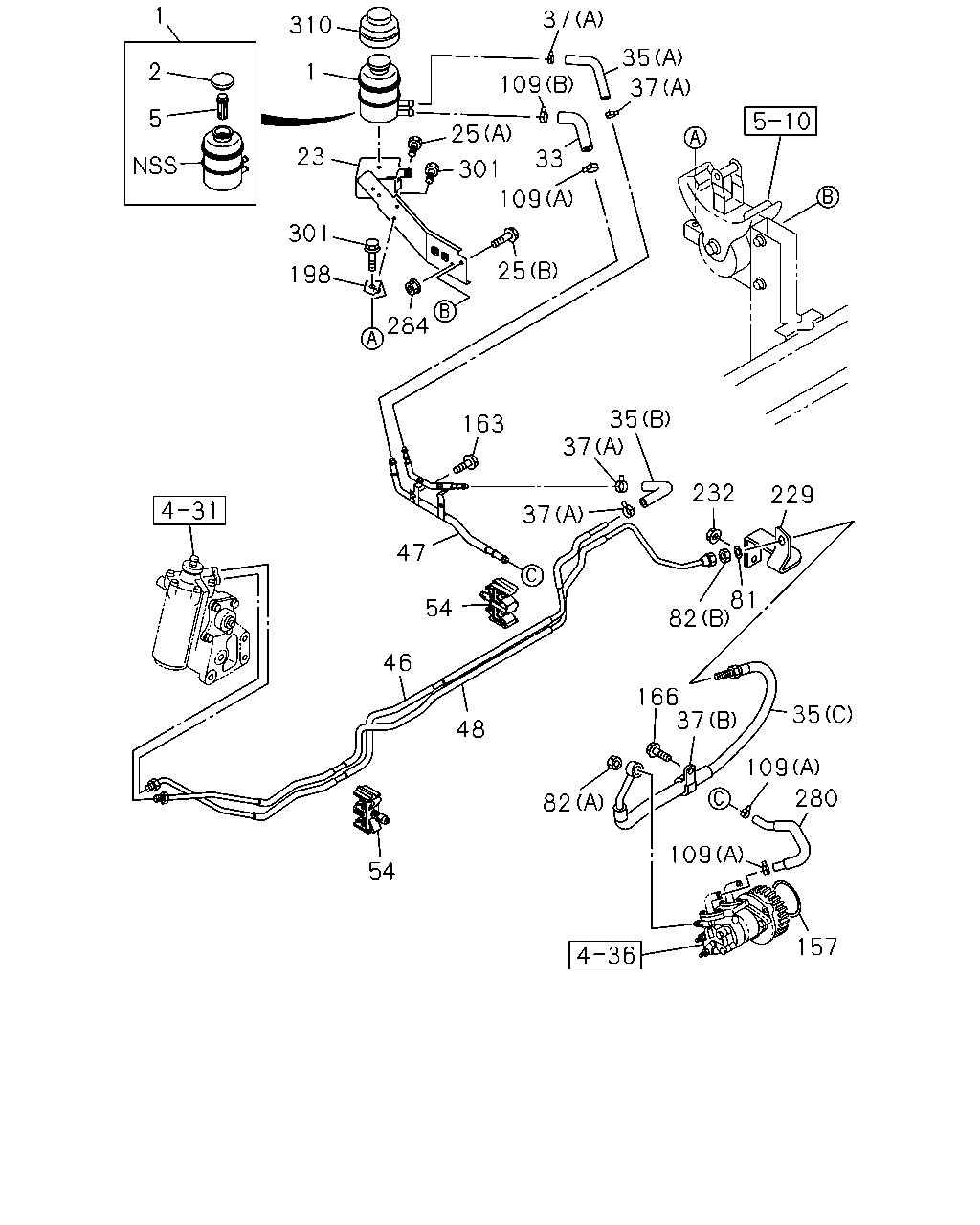

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#148639) — 34 parça

1 2 5 310 1 23 301 198 284 25 37 109 301 35 37 33 109 25 163 35 37 37 47 54 46 48 54 232 229 81 82 166 82 37 35 109 109 280 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	1409-
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	1409-
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1409-
23	BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1409-
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE MAL	0-28450-620-0	01	1	1409-
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1409-
33	HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1409-
35	HOSE; RETURN,P/S TANK (C)	8-97389-832-2	01	1	1409-
35	HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1409-
35	HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1409-
37	CLIP; HOSE,P/S (B) ID=26 L=26	1-09701-236-0	01	1	1409-
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	04	1	1409-
46	PIPE; OIL,P/S UNIT TO OIL TANK FRONT WIDE TREAD<7GV> L=1530	8-98138-265-0	01	1	1409-
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. FRONT WIDE TREAD<7GV> MAL	8-98041-184-3	01	1	1409-
47	PIPE; RETURN MAL	8-98083-166-1	01	1	1409-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT FRONT WIDE TREAD<7GV> L=1646	8-98138-267-0	01	1	1409-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRONT WIDE TREAD<7GV> MAL	8-98041-185-4	01	1	1409-
54	CLIP; OIL PIPE ID=10X2 H=37.5	8-97018-546-0	02	1	1409-
81	WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1409-
82	NUT; FLEX HOSE,P/S (B) M16	8-94370-339-0	01	1	1409-
82	NUT; FLEX HOSE,P/S (A) M12 SELF LOCK	8-97028-390-1	01	1	1409-
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1409-
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	01	1	1409-
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	02	1	1409-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	1409-
163	BOLT; OIL PIPE M8X25 FLANGE MAL	0-28650-825-0	02	1	1409-
166	BOLT; CLIP M8X25 FLANGE MAL	0-28650-825-0	01	1	1409-
198	STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1409-
229	BRACKET; HOSE,POWER STRG	8-98079-341-0	01	1	1409-
232	NUT; BRKT M10 FLANGE MAL	0-91180-110-0	01	1	1409-
280	HOSE; P/S OIL PUMP,INL	8-98082-972-0	01	1	1409-
284	NUT; PIPE M8 FLANGE MAL	0-91180-108-0	01	1	1409-
301	BOLT; STAY,OIL TANK M8X25 FLANGE MAL	0-28650-825-0	02	1	1409-
310	COVER; OIL TANK	8-97103-394-0	01	1	1409-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
