4-31 — STEERING COLUMN AND SHAFT
(#148637) — 31 parça
◀

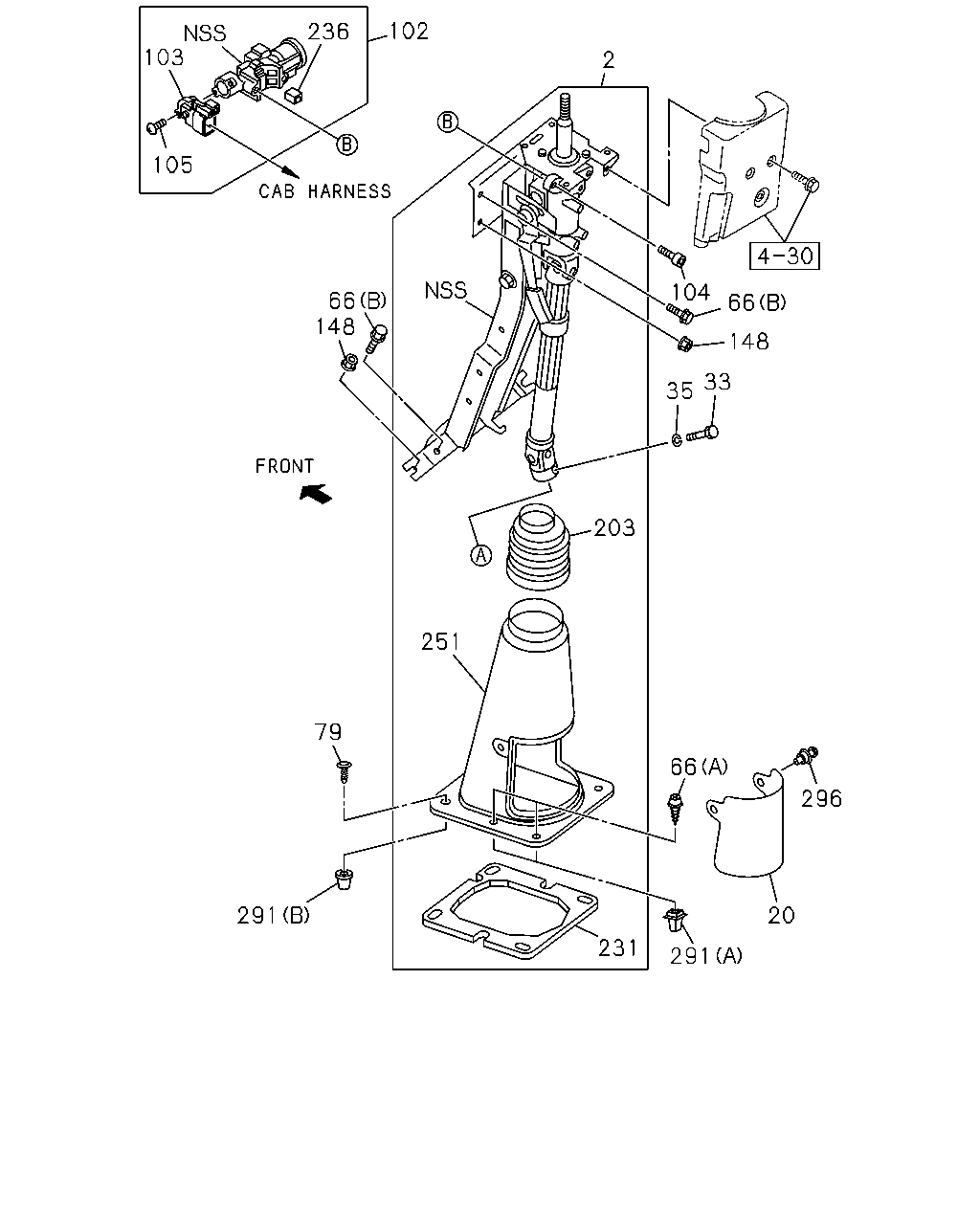

[431A] FIXING;STEERING SHAFT (20 parça)

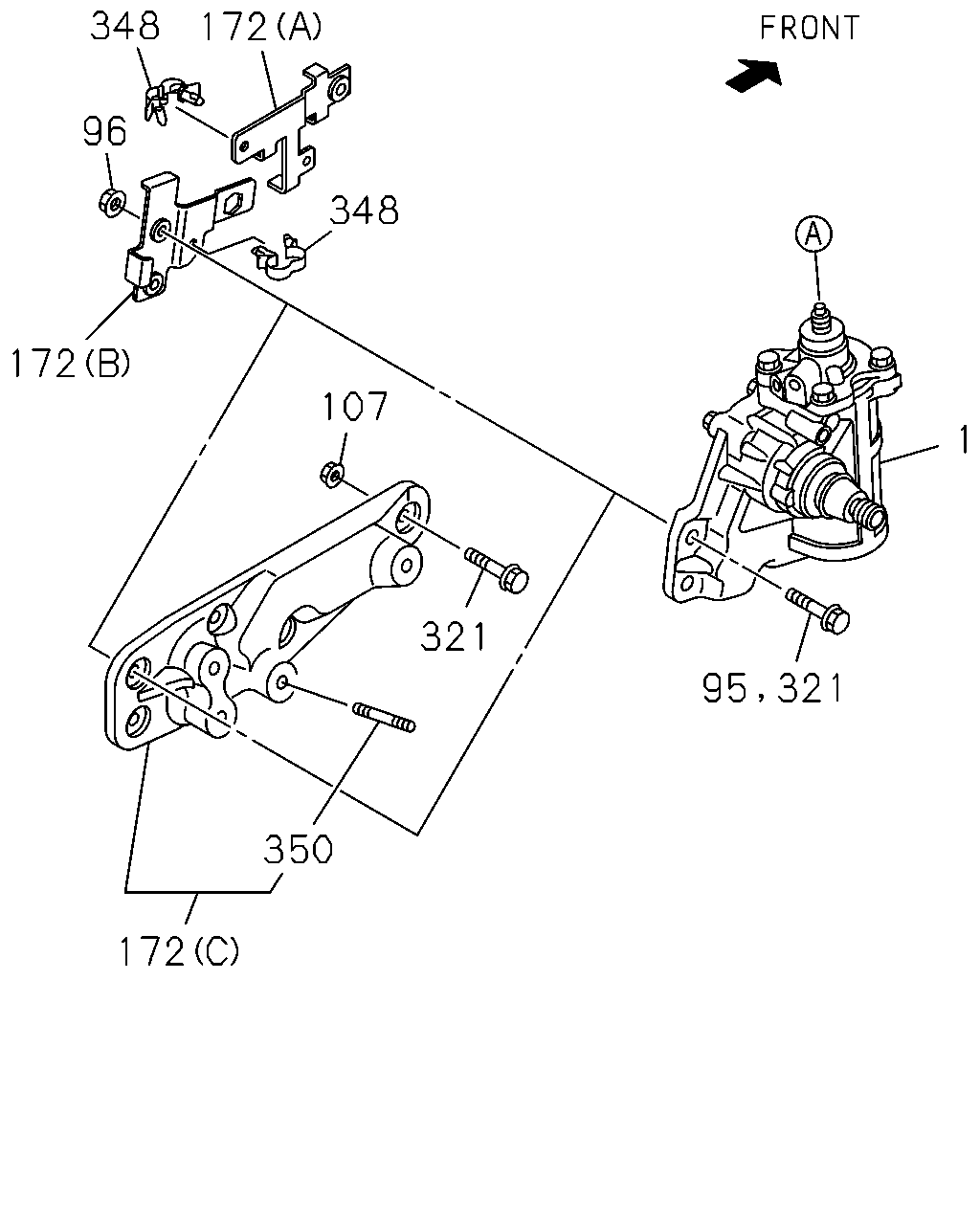

[431A] FIXING;STEERING UNIT (11 parça)
▶
291
20
296
66
231
291
79
251
203
35
33
148
66
104
2
148
66
102
236
105
103
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SHAFT ASM; STRG
BLACK
8-97406-375-8
01
1
1409-
20
COVER; STRG SHAFT
BLACK
8-97405-159-0
01
1
1409-
33
BOLT; STRG SHAFT TO UNIT
M8X30
8-97359-615-0
01
1
1409-
35
WASHER; LK,STRG SHAFT
ID=8.2
0-91510-808-0
01
1
1409-
66
BOLT; STRG COLUMN
(B) M8X20 FLANGE MAL
0-28650-820-0
02
1
1409-
66
BOLT; STRG COLUMN
(A) M5X18 TAPPING MAL
0-72180-518-0
04
1
1409-
66
BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER MAL
8-98051-939-0
02
1
1409-
79
CLIP; STRG COLUMN COVER
L=19 BLACK
8-94363-776-0
02
1
1409-
102
LOCK ASM; STRG
8-97387-036-0
01
1
1409-
103
SWITCH; IGNITION
8-98045-349-0
01
1
1409-
104
BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT
8-97321-385-0
02
1
1409-
105
SCREW; IGN SW
8-98045-346-0
02
1
1409-
148
NUT; COLUMN TO BRKT
M8 W/DISHED WASHER MAL
8-97329-625-0
03
1
1409-
203
BOOT; STRG COLUMN LWR
8-98137-331-0
01
1
1409-
231
SEAL; RUBBER,STRG COLUMN
8-98137-329-0
01
1
1409-
236
SWITCH; DOOR WARNING,STRG LOCK
8-98045-350-0
01
1
1409-
251
COVER; LWR
BLACK
8-97417-049-0
01
1
1409-
291
GROMMET; STRG SHAFT COVER
(A) H=15 MAL
8-94463-268-1
04
1
1409-
291
GROMMET; STRG SHAFT COVER
(B)
8-98029-442-1
02
1
1409-
296
CLIP; COVER
BLACK
8-97868-409-0
01
1
1409-
95
321
1
321
350
172
107
348
172
96
348
172
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
8-98110-219-5
01
1
1409-
95
BOLT; STRG UNIT
FRONT WIDE TREAD<7GV> M12X47 FLANGE
8-98055-055-0
03
1
1409-
95
BOLT; STRG UNIT
EXC. FRONT WIDE TREAD<7GV> M12X47 FLANGE
8-98055-055-0
04
1
1409-
96
NUT; STRG UNIT
M12 FLANGE
8-97359-618-0
01
1
1409-
107
NUT; BRKT
FRONT WIDE TREAD<7GV> M12 FLANGE
8-97359-618-0
03
1
1409-
172
BRACKET; STRG
FRONT WIDE TREAD<7GV> (C)
8-98196-129-0
01
1
1409-
172
BRACKET; STRG
(A)
8-98055-256-1
01
1
1409-
172
BRACKET; STRG
(B)
8-98081-033-0
01
1
1409-
321
BOLT; BRKT,STRG
FRONT WIDE TREAD<7GV> M12X47 FLANGE
8-98055-055-0
06
1
1409-
348
CLIP; BRKT,STRG
ID=5-12 L=22
1-09709-288-0
02
1
1409-
350
STUD; BRACKET
FRONT WIDE TREAD<7GV>
8-98196-098-0
01
1
1409-
