4-10 — FRONT AXLE (#148632) — 56 parça

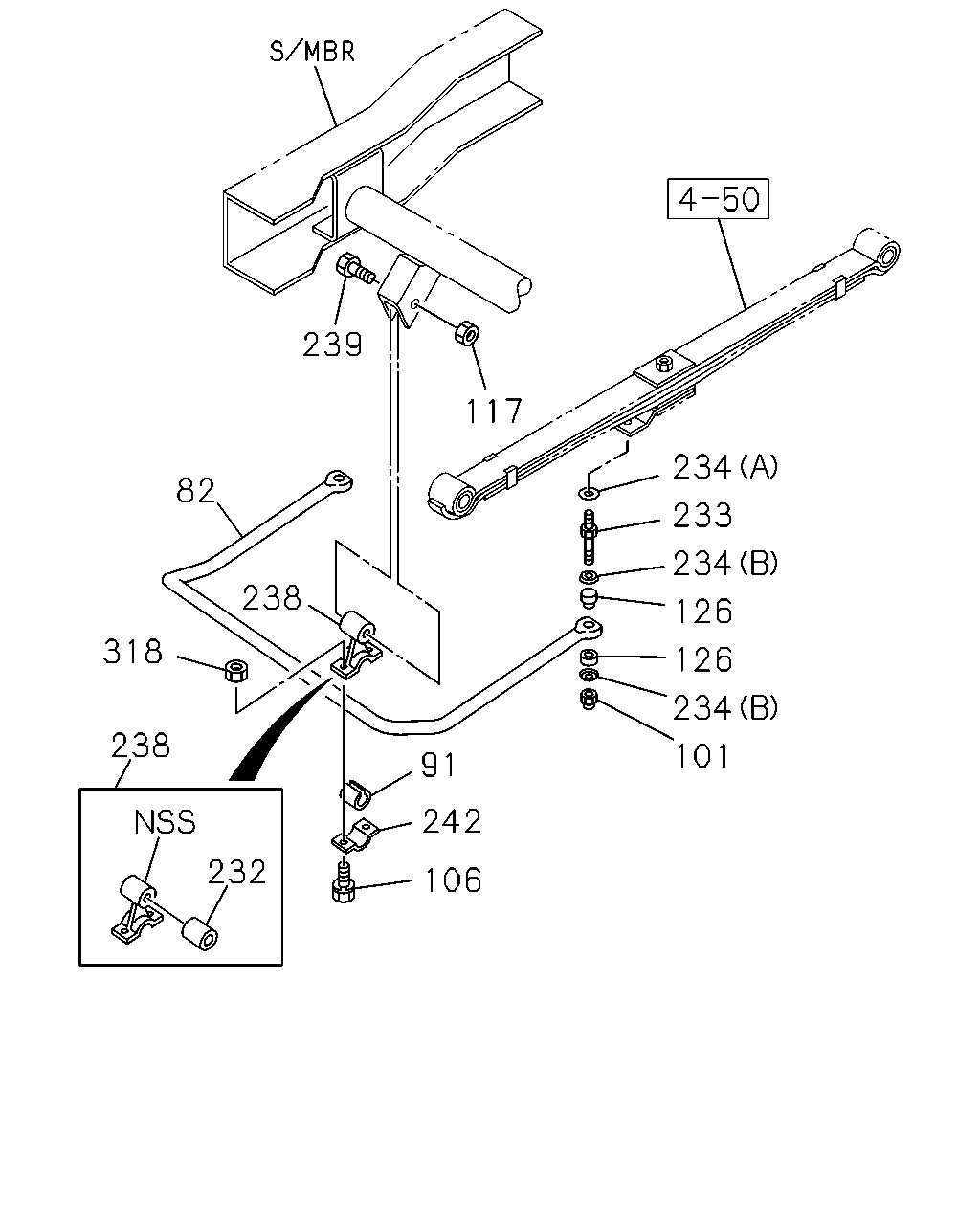

çizim 443378
239 82 318 238 238 117 91 242 106 101 234 126 126 234 233 234 232
BalonParca AdiParca NoAdetTipApplied Date
82 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 		8-98150-721-0 01 1 1409-
82 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 		8-98006-957-0 01 1 1409-
91 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 		8-94440-790-0 02 1 1409-
91 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 		8-94342-187-0 02 1 1409-
101 NUT; STAB BAR
FRONT STABILIZER SHAFT<F59> M12 LOCK NUT 		0-91370-012-0 02 1 1409-
106 BOLT; CAP FIX
FRONT STABILIZER SHAFT<F59> M10X25 FLANGE MAL 		0-28651-025-0 04 1 1409-
117 NUT; STAB BAR BUSHING
FRONT STABILIZER SHAFT<F59> M14 FLANGE 		8-97360-124-0 02 1 1409-
126 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> 		8-94342-083-0 04 1 1409-
232 BUSHING; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-97239-911-0 02 1 1409-
233 STUD; STABILIZER
FRONT STABILIZER SHAFT<F59> 		8-97360-120-0 02 1 1409-
234 WASHER; STAB
FRONT STABILIZER SHAFT<F59> (A) ID=14.2 		0-91510-514-0 02 1 1409-
234 WASHER; STAB
FRONT STABILIZER SHAFT<F59> (B) ID=12.5 		8-97360-055-0 04 1 1409-
238 ROD LINK ASM; STABILIZER,FRT
FRONT STABILIZER SHAFT<F59> 		8-97239-907-0 02 1 1409-
239 BOLT; LINK ROD
FRONT STABILIZER SHAFT<F59> M14X70 FLANGE 		0-28851-470-0 02 1 1409-
242 CAP; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-94178-430-2 02 1 1409-
318 NUT; CAP FIX
FRONT STABILIZER SHAFT<F59> M10 FLANGE MAL 		0-91180-110-0 04 1 1409-

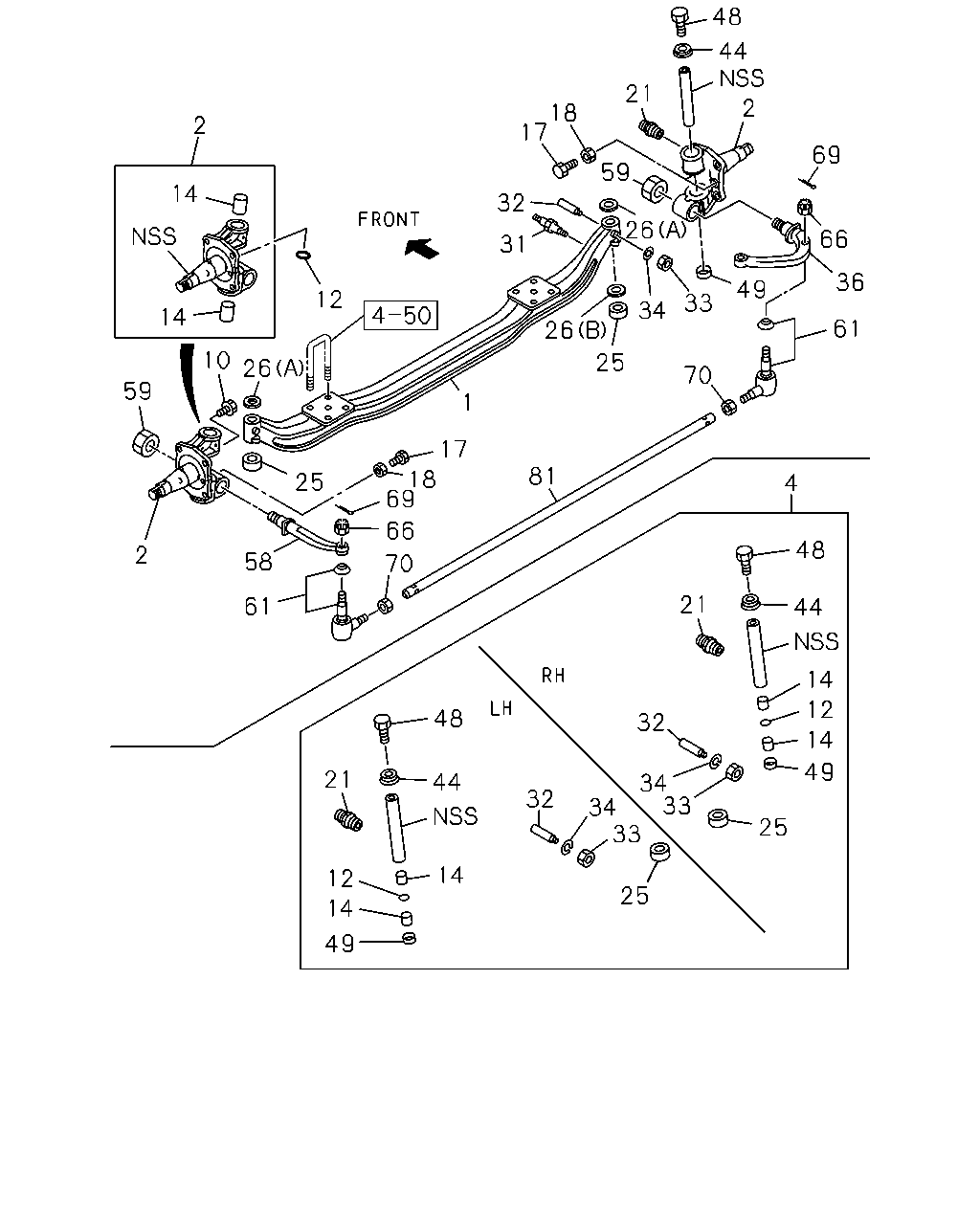

çizim 443735
18 17 32 31 21 59 26 48 44 2 69 66 36 49 61 33 34 26 25 70 1 81 17 18 69 66 70 25 58 61 26 10 59 2 14 14 2 12 48 21 12 14 49 14 44 32 34 33 25 33 34 32 21 25 49 14 12 14 48 44 4
BalonParca AdiParca NoAdetTipApplied Date
1 AXLE; FRT
FRONT WIDE TREAD<7GV> 		8-98141-521-1 01 1 1409-
1 AXLE; FRT
EXC. FRONT WIDE TREAD<7GV> 		8-98038-384-3 01 1 1409-
2 KNUCKLE; FRT AXLE 8-97261-549-2 01 1 1409-
2 KNUCKLE; FRT AXLE 8-97261-550-2 01 1 1409-
4 KING PIN KIT 5-87832-220-2 01 1 1409-
10 PLUG; PLATE,KNUCKLE 8-97360-117-0 01 1 1409-
12 GASKET; KNUCKLE 8-98084-500-0 02 1 1409-
14 BUSHING; KING PIN
DAIDO WO/NOTCH 		8-94107-672-3 04 1 1409-
17 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		8-97360-059-0 03 1 1409-
18 NUT; STOPPER BOLT,KNUCKLE
M12 		0-91111-512-0 03 1 1409-
21 NIPPLE; GREASE,KING PIN
M6 STRAIGHT 		0-90301-406-0 04 1 1409-
25 BEARING; THRUST,KING PIN
OD=54 ID=30.2 T=13.8 		8-94248-883-3 01 1 1409-
25 BEARING; THRUST,KING PIN
OD=51.6 ID=30.5 T=15.6 		8-97141-943-1 01 1 1409-
26 SHIM; KING PIN,BRG
(A) T=0.50 		8-94162-574-0 AR 1 1409-
26 SHIM; KING PIN,BRG
(A) T=0.55 		8-94162-575-0 AR 1 1409-
26 SHIM; KING PIN,BRG
(A) T=0.60 		8-94162-576-0 AR 1 1409-
26 SHIM; KING PIN,BRG
(A) T=0.65 		8-94162-577-0 AR 1 1409-
26 SHIM; KING PIN,BRG
(B) T=1.95 		8-94168-490-0 01 1 1409-
26 SHIM; KING PIN,BRG
(A) T=0.70 		8-94174-352-0 AR 1 1409-
26 SHIM; KING PIN,BRG
(A) T=0.80 		8-94174-354-0 AR 1 1409-
26 SHIM; KING PIN,BRG
(A) T=0.90 		8-94174-356-0 AR 1 1409-
31 PIN; S/ABS,LWR
EXC. FRONT WIDE TREAD<7GV> 		8-97145-460-0 02 1 1409-
32 BOLT; KEY,KING PIN 8-97141-945-2 02 1 1409-
33 NUT; KEY BOLT
M10 MAL 		0-91110-510-0 02 1 1409-
34 WASHER; LK,KEY BOLT
ID=10.2 MAL 		0-91510-510-0 02 1 1409-
36 ARM; KNUCKLE
FRONT WIDE TREAD<7GV> 		8-98135-281-2 01 1 1409-
36 ARM; KNUCKLE
EXC. FRONT WIDE TREAD<7GV> 		8-97202-776-5 01 1 1409-
44 COVER; KING PIN
OD=36 		8-97360-023-0 02 1 1409-
48 BOLT; COVER
M10X12 FLANGE 		0-28051-012-0 02 1 1409-
49 CAP; KNUCKLE 8-97360-024-0 02 1 1409-
58 ARM; TIE ROD 8-97138-304-2 01 1 1409-
59 NUT; TIE ROD ARM 8-97360-123-0 02 1 1409-
61 ROD END; TIE ROD 8-97107-348-2 01 1 1409-
61 ROD END; TIE ROD 8-97107-349-2 01 1 1409-
66 NUT; TIE ROD END
M16 SLOTTED 		8-98049-689-0 02 1 1409-
69 PIN; SPLIT,TIE ROD END
OD=3.7 L=20 		0-81124-020-0 02 1 1409-
70 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 1409-
70 NUT; TIE ROD END
M20 RH THREAD 		8-98043-530-0 01 1 1409-
81 ROD; TIE
FRONT WIDE TREAD<7GV> 		8-98137-615-0 01 1 1409-
81 ROD; TIE
EXC. FRONT WIDE TREAD<7GV> 		8-97061-869-0 01 1 1409-
