3-60 — BRAKE PIPING; VACUUM (#148630) — 115 parça

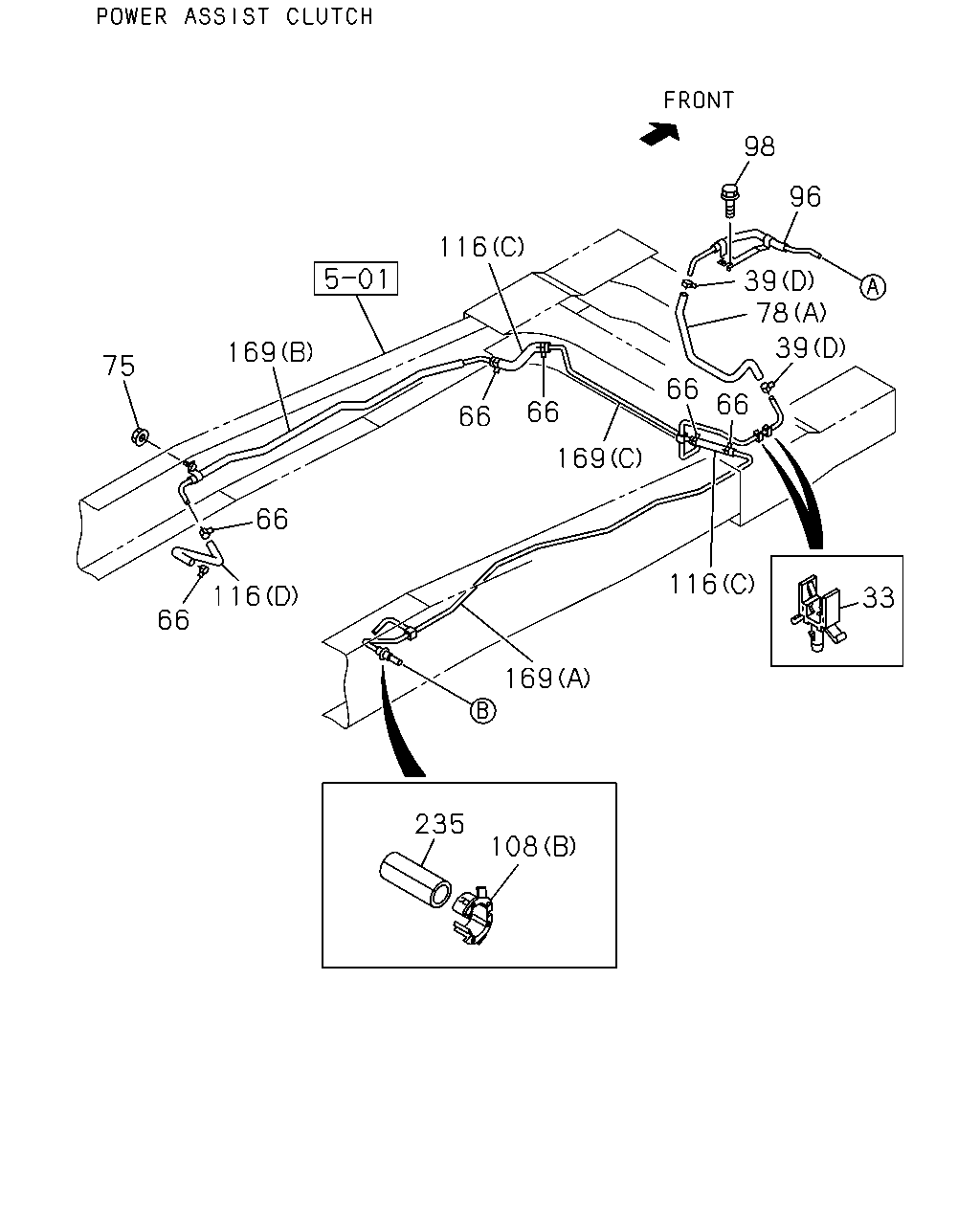

169 75 66 116 66 169 116 169 66 66 116 98 96 39 78 39 66 66 33 108 235

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) ID=10 H=40	8-94462-219-0	02	1	1409-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) L=170.3	1-09987-182-0	01	1	1409-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1409-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (D) ID=16	8-97329-628-0	02	1	1409-
39	CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	08	1	1409-
66	CLIP; VAC HOSE,M/VAC ID=16	8-98008-098-0	06	1	1409-
75	NUT; CLIP,VAC HOSE M8 FLANGE MAL	0-91180-108-0	01	1	1409-
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98080-833-1	01	1	1409-
78	HOSE; VAC,PIPE TO PIPE (E)	8-97386-589-0	01	1	1409-
78	HOSE; VAC,PIPE TO PIPE (C)	8-98057-462-0	01	1	1409-
78	HOSE; VAC,PIPE TO PIPE (D)	8-98112-680-0	01	1	1409-
78	HOSE; VAC,PIPE TO PIPE (F)	8-98136-613-0	01	1	1409-
78	HOSE; VAC,PIPE TO PIPE (B)	8-98171-287-0	01	1	1409-
96	PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T) MAL	8-98220-579-0	01	1	1409-
98	BOLT; VAC PIPE FIX POWER ASSIST CLUTCH(S2T) M6X12 FLANGE MAL	0-28050-612-0	01	1	1409-
98	BOLT; VAC PIPE FIX M6X12 FLANGE MAL	0-28050-612-0	01	1	1409-
98	BOLT; VAC PIPE FIX M8X25 FLANGE MAL	0-28650-825-0	01	1	1409-
98	BOLT; VAC PIPE FIX M8X25 FLANGE MAL	0-28650-825-0	01	1	1409-
108	GROMMET; PIPE (B) ID=17	8-94128-319-2	01	1	1409-
108	GROMMET; PIPE (B) ID=17	8-94128-319-2	01	1	1409-
108	GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1409-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98067-702-0	01	1	1409-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-98081-002-2	01	1	1409-
116	HOSE; VAC,M/VAC (D)	8-98158-378-0	01	1	1409-
116	HOSE; VAC,M/VAC (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1409-
116	HOSE; VAC,M/VAC (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1409-
169	PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (C) MAL	8-98041-053-4	01	1	1409-
169	PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98067-259-2	01	1	1409-
169	PIPE; VAC,BOOSTER SIDE (B) MAL	8-98041-052-2	01	1	1409-
169	PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) (C) MAL	8-98048-901-0	01	1	1409-
169	PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) (D) MAL	8-98048-903-0	01	1	1409-
235	RUBBER; SUPPORT,PIPE OD=16.5 L=50	8-97214-235-0	01	1	1409-
235	RUBBER; SUPPORT,PIPE OD=16.5 L=50	8-97214-235-0	01	1	1409-

136 78 136 44 136 78 136 44 136 236 158 78 136 122 136 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	PIPE; VAC,MAG VLV (B) MAL	8-98057-425-1	01	1	1409-
44	PIPE; VAC,MAG VLV (A) MAL	8-98070-194-0	01	1	1409-
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98080-833-1	01	1	1409-
78	HOSE; VAC,PIPE TO PIPE (E)	8-97386-589-0	01	1	1409-
78	HOSE; VAC,PIPE TO PIPE (C)	8-98057-462-0	01	1	1409-
78	HOSE; VAC,PIPE TO PIPE (D)	8-98112-680-0	01	1	1409-
78	HOSE; VAC,PIPE TO PIPE (F)	8-98136-613-0	01	1	1409-
78	HOSE; VAC,PIPE TO PIPE (B)	8-98171-287-0	01	1	1409-
122	HOSE; AIR,MAG VLV TO AIR PIPE	8-98189-104-0	01	1	1409-
136	CLIP; VAC HOSE ID=16	8-98008-098-0	02	1	1409-
136	CLIP; VAC HOSE ID=16	8-98008-098-0	06	1	1409-
158	CLIP; HOSE ID=14-20	8-97061-603-0	01	1	1409-
236	BOLT; PIPE M8X25 FLANGE MAL	0-28650-825-0	01	1	1409-

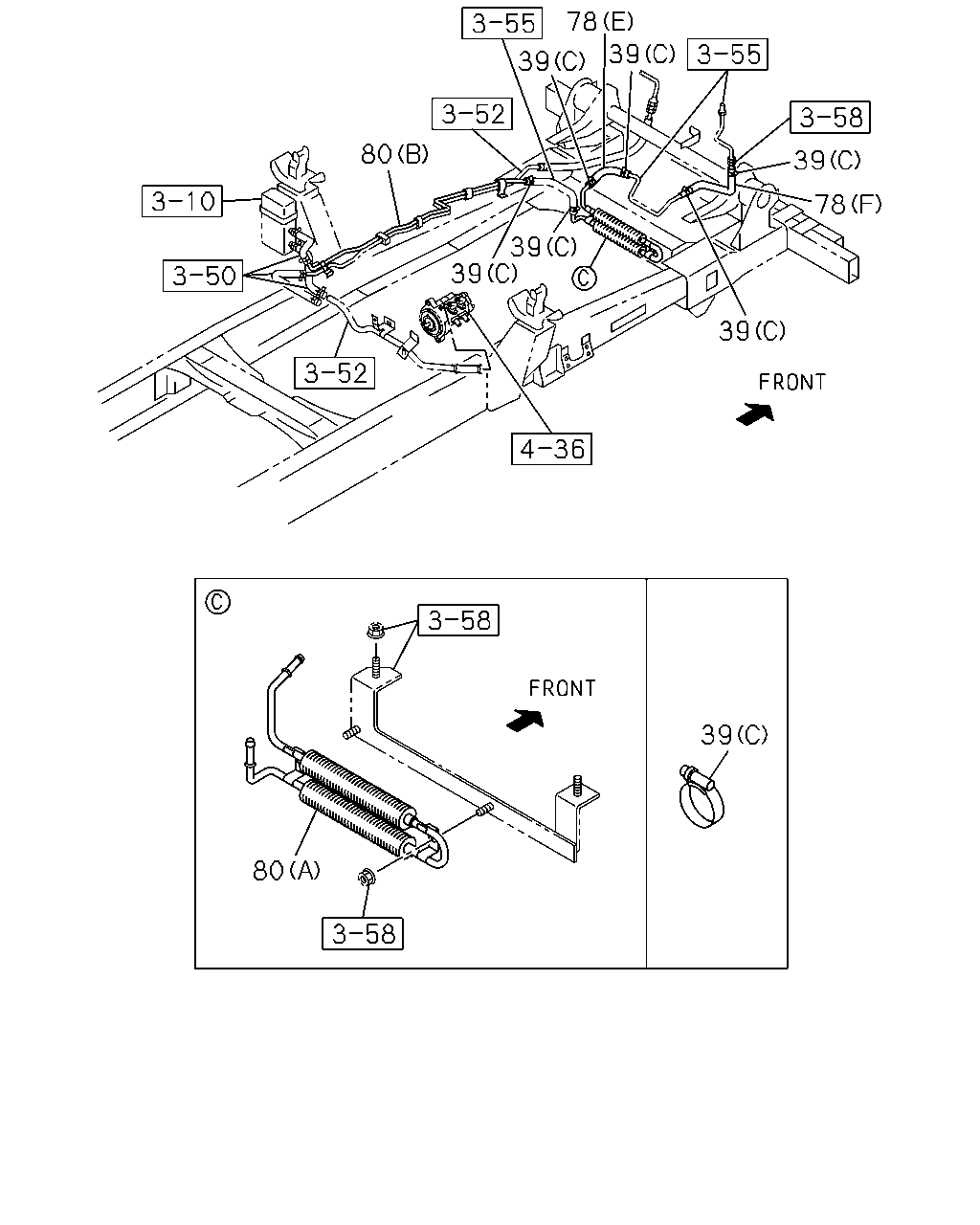

80 39 78 39 39 78 39 80 39 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) L=170.3	1-09987-182-0	01	1	1409-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1409-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (D) ID=16	8-97329-628-0	02	1	1409-
39	CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	08	1	1409-
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98080-833-1	01	1	1409-
78	HOSE; VAC,PIPE TO PIPE (E)	8-97386-589-0	01	1	1409-
78	HOSE; VAC,PIPE TO PIPE (C)	8-98057-462-0	01	1	1409-
78	HOSE; VAC,PIPE TO PIPE (D)	8-98112-680-0	01	1	1409-
78	HOSE; VAC,PIPE TO PIPE (F)	8-98136-613-0	01	1	1409-
78	HOSE; VAC,PIPE TO PIPE (B)	8-98171-287-0	01	1	1409-
80	PIPE; VAC,ENG SIDE (A) MAL	8-97386-605-0	01	1	1409-
80	PIPE; VAC,ENG SIDE (B) MAL	8-98097-788-0	01	1	1409-

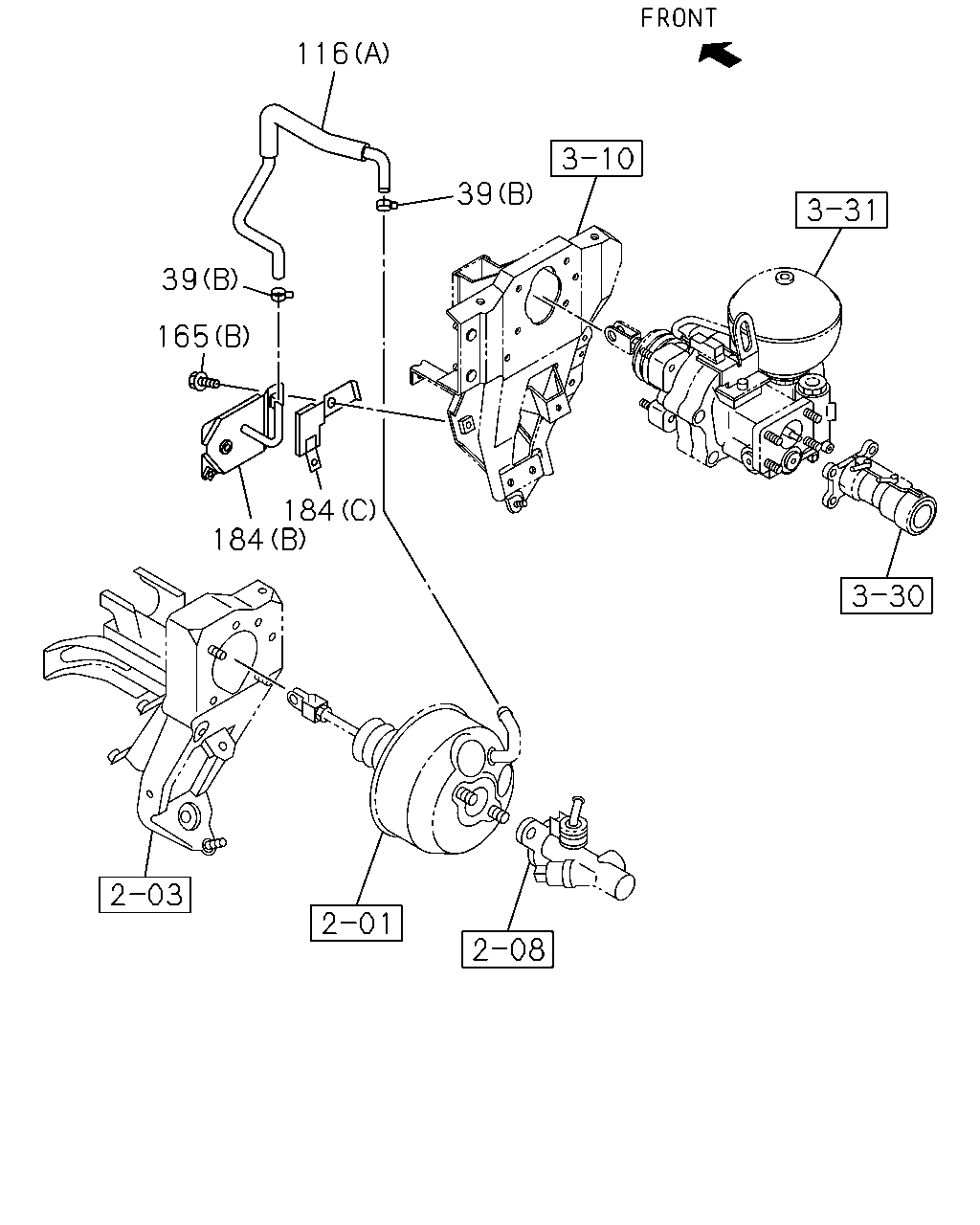

116 39 39 165 184 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) L=170.3	1-09987-182-0	01	1	1409-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1409-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (D) ID=16	8-97329-628-0	02	1	1409-
39	CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	08	1	1409-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98067-702-0	01	1	1409-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-98081-002-2	01	1	1409-
116	HOSE; VAC,M/VAC (D)	8-98158-378-0	01	1	1409-
116	HOSE; VAC,M/VAC (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1409-
116	HOSE; VAC,M/VAC (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1409-
165	BOLT; BRKT (B) M6X16 FLANGE MAL	0-28650-616-0	01	1	1409-
165	BOLT; BRKT (A) M6X20 W/LK&PL WASHER MAL	8-98031-842-0	02	1	1409-
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98156-526-0	01	1	1409-
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (B)	8-98193-145-0	01	1	1409-
184	BRACKET; UNION FIX (A)	8-98017-628-1	01	1	1409-
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98255-539-0	01	1	1409-
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-541-0	01	1	1409-

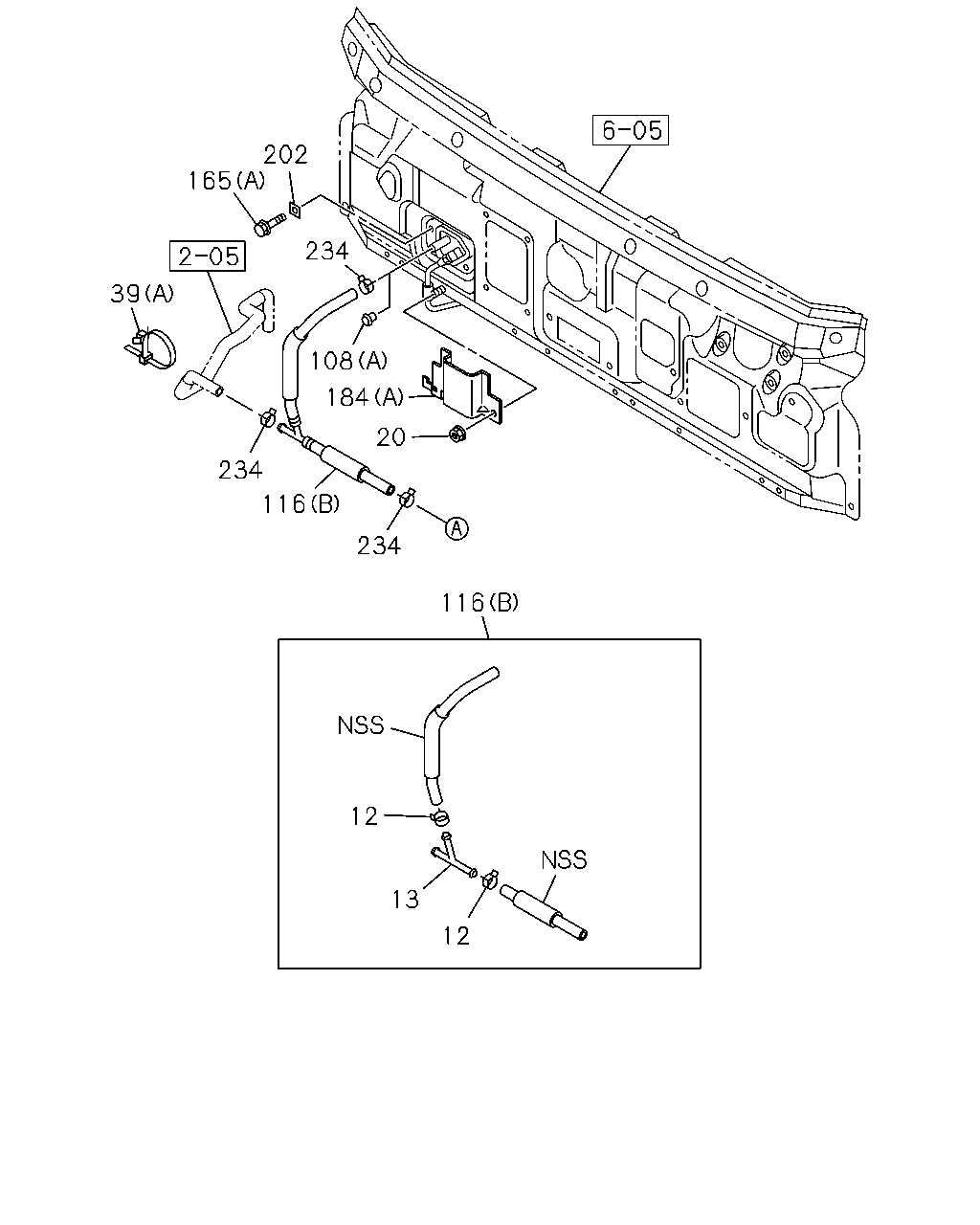

202 165 234 108 184 20 39 234 116 234 116 12 13 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	02	1	1409-
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1409-
20	NUT; BRKT M6 FLANGE MAL	0-91180-106-0	01	1	1409-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) L=170.3	1-09987-182-0	01	1	1409-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1409-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (D) ID=16	8-97329-628-0	02	1	1409-
39	CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	08	1	1409-
108	GROMMET; PIPE (B) ID=17	8-94128-319-2	01	1	1409-
108	GROMMET; PIPE (B) ID=17	8-94128-319-2	01	1	1409-
108	GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1409-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98067-702-0	01	1	1409-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-98081-002-2	01	1	1409-
116	HOSE; VAC,M/VAC (D)	8-98158-378-0	01	1	1409-
116	HOSE; VAC,M/VAC (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1409-
116	HOSE; VAC,M/VAC (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1409-
165	BOLT; BRKT (B) M6X16 FLANGE MAL	0-28650-616-0	01	1	1409-
165	BOLT; BRKT (A) M6X20 W/LK&PL WASHER MAL	8-98031-842-0	02	1	1409-
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98156-526-0	01	1	1409-
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (B)	8-98193-145-0	01	1	1409-
184	BRACKET; UNION FIX (A)	8-98017-628-1	01	1	1409-
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98255-539-0	01	1	1409-
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-541-0	01	1	1409-
202	SEAL MAL	8-97856-616-0	02	1	1409-
234	CLAMP; PIPE POWER ASSIST CLUTCH(S2T) ID=16	8-94238-568-0	03	1	1409-

116 169 75 66 116 66 169 235 108 66 66 169 116 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
66	CLIP; VAC HOSE,M/VAC ID=16	8-98008-098-0	06	1	1409-
75	NUT; CLIP,VAC HOSE M8 FLANGE MAL	0-91180-108-0	01	1	1409-
108	GROMMET; PIPE (B) ID=17	8-94128-319-2	01	1	1409-
108	GROMMET; PIPE (B) ID=17	8-94128-319-2	01	1	1409-
108	GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1409-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98067-702-0	01	1	1409-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-98081-002-2	01	1	1409-
116	HOSE; VAC,M/VAC (D)	8-98158-378-0	01	1	1409-
116	HOSE; VAC,M/VAC (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1409-
116	HOSE; VAC,M/VAC (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1409-
169	PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (C) MAL	8-98041-053-4	01	1	1409-
169	PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98067-259-2	01	1	1409-
169	PIPE; VAC,BOOSTER SIDE (B) MAL	8-98041-052-2	01	1	1409-
169	PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) (C) MAL	8-98048-901-0	01	1	1409-
169	PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) (D) MAL	8-98048-903-0	01	1	1409-
235	RUBBER; SUPPORT,PIPE OD=16.5 L=50	8-97214-235-0	01	1	1409-
235	RUBBER; SUPPORT,PIPE OD=16.5 L=50	8-97214-235-0	01	1	1409-
