◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11131 - FVM(INDONESIA)6SD1 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07 - CLUTCH BOOSTER; MINIPACK ▶
2-07 — CLUTCH BOOSTER; MINIPACK (#14862) — 51 parça

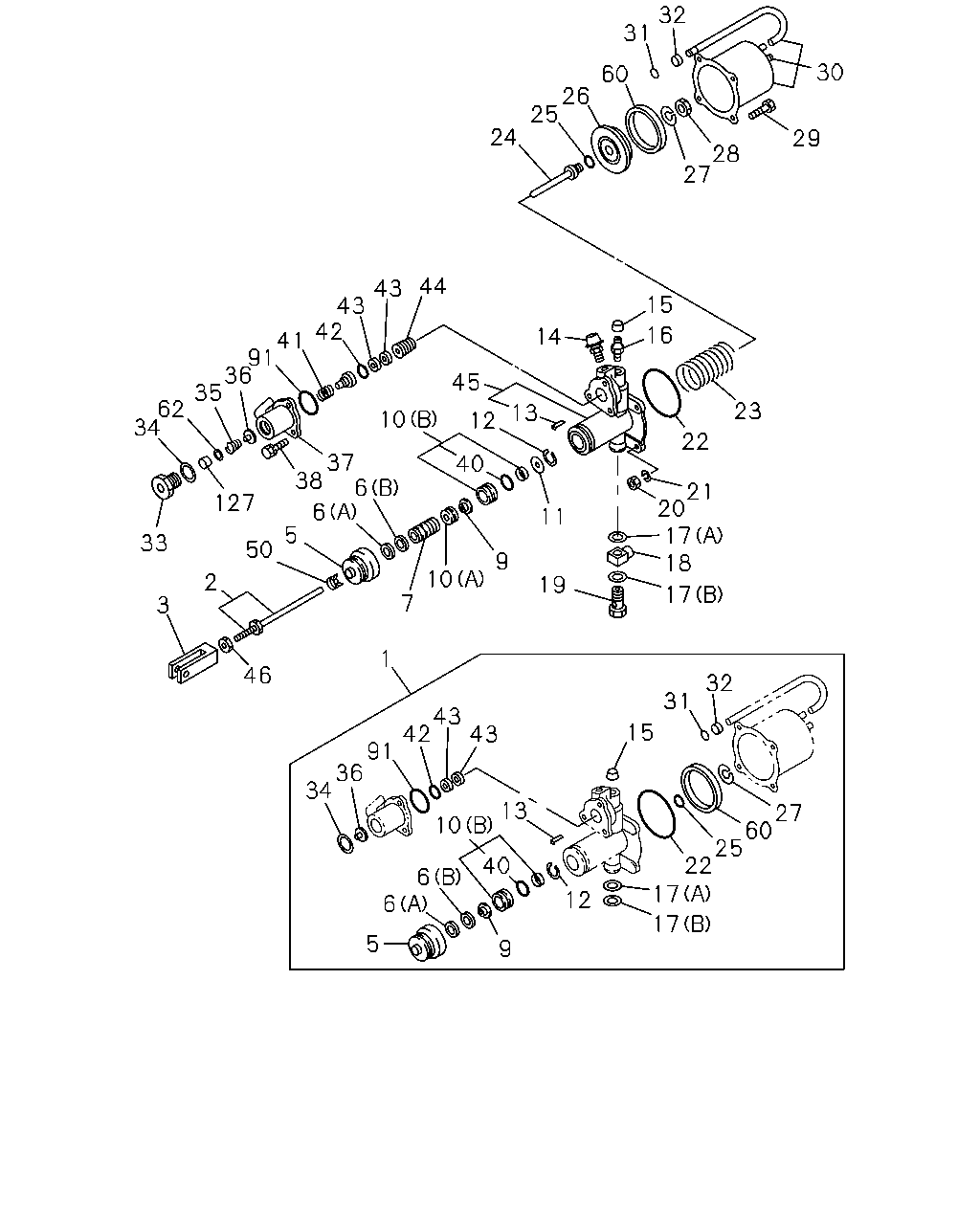

çizim 144340
32 31 30 60 26 25 24 29 28 27 44 43 43 42 15 16 14 41 91 36 35 62 34 45 23 13 10 12 22 37 38 6 40 21 20 17 18 127 6 11 5 33 50 9 10 2 19 17 7 3 1 46 32 31 43 15 91 36 34 13 27 60 25 22 17 10 40 6 12 6 17 5 9 43 42
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-543-0 01 1 0711-
2 ROD; PUSH,CLU BOOSTER 1-31824-233-0 01 1 0711-
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-1 01 1 0711-
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 0711-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0711-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0711-
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0711-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 0711-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 0711-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 0711-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0711-
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 0711-
13 PIN; SPR 1-31829-109-0 01 1 0711-
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0711-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0711-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0711-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0711-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0711-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0711-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0711-
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0711-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0711-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 0711-
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0711-
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 0711-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 0711-
26 PISTON; SHELL,CLU BOOSTER 1-31821-084-0 01 1 0711-
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 0711-
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 0711-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0711-
30 SHELL; CYL,CLU BOOSTER 1-31811-124-0 01 1 0711-
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0711-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0711-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0711-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0711-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0711-
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0711-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0711-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0711-
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0711-1412
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 0711-
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 0711-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0711-
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 0711-
45 PLATE; END,CLU BOOSTER 1-31811-060-0 01 1 0711-
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0711-
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 0711-
60 GASKET; SHELL,CLU BOOSTER 1-31829-544-0 01 1 0711-
62 RETAINER; POPPET 1-31829-489-0 01 1 0711-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0711-
127 FILTER; POPPET 1-31829-495-0 01 1 0711-
