Isuzu WW
▶
TRUCKS
▶
NPR
▶
51566 - NPR MALAYSIA BUS CHASSIS
▶
3 - Brakes, Brake System
▶

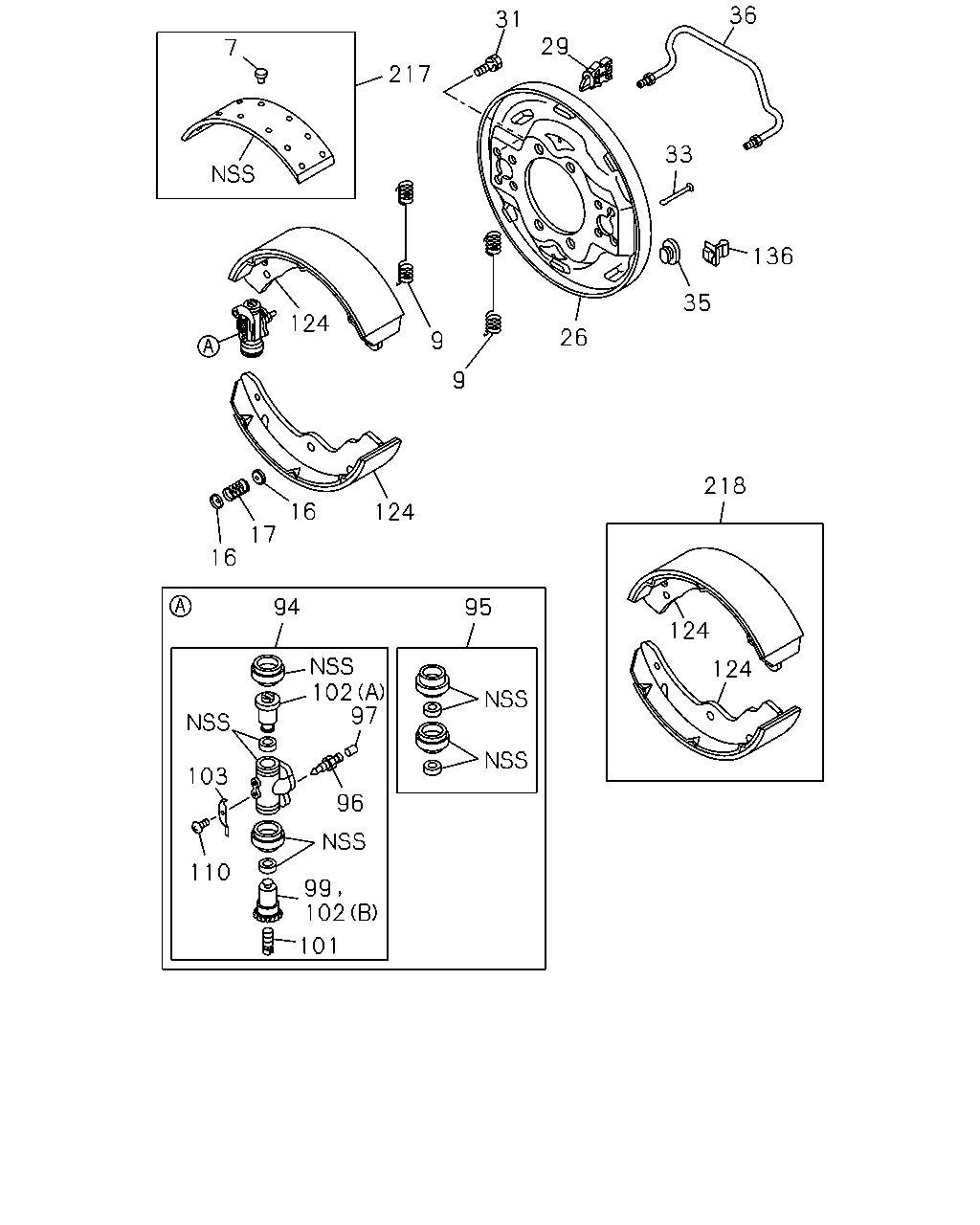

3-05 - REAR WHEEL BRAKE
▶
3-05 — REAR WHEEL BRAKE
(#148618) — 28 parça
7
217
31
29
36
33
136
35
26
9
9
124
124
16
17
16
218
124
124
95
94
102
97
103
99
102
101
110
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
RIVET; LINING,RR BRK
1-09732-029-0
64
1
1409-
9
SPRING; RETURN,BRK SHOE
8-97122-869-0
04
1
1409-
16
CUP; SHOE HOLDING
9-47165-096-0
08
1
1409-
17
SPRING; SHOE HOLD DOWN
5-09580-101-1
04
1
1409-
26
PLATE; BACK,RR BRK
8-97134-731-0
01
1
1409-
26
PLATE; BACK,RR BRK
8-97134-732-0
01
1
1409-
29
CLIP; PIPE,BRK
8-97022-086-0
02
1
1409-
31
BOLT; RR WHEEL CYL
8-97081-305-0
16
1
1409-
33
PIN; SHOE HOLD DOWN
8-97122-870-0
04
1
1409-
35
GROMMET; CHECK HOLE
8-97017-507-0
02
1
1409-
36
PIPE; OIL,RR BRK
8-97079-847-0
02
1
1409-
94
CYLINDER; WHEEL,RR BRK
8-97353-570-0
02
1
1409-
94
CYLINDER; WHEEL,RR BRK
REAR
8-97353-571-0
01
1
1409-
94
CYLINDER; WHEEL,RR BRK
FRONT
8-97353-572-0
01
1
1409-
95
CUP SET; RR WHEEL CYL
5-87832-080-0
02
1
1409-
96
SCREW; BLEEDER,RR BRK
8-98050-477-0
01
1
1409-
97
CAP; BLEEDER,RR WHEEL CYL
8-98050-479-0
01
1
1409-
99
PISTON; RR WHEEL CYL
8-97353-579-0
03
1
1409-
101
SCREW; ADJ,RR WHEEL CYL
8-94414-702-0
04
1
1409-
102
PISTON; REAR WHEEL CYL
(A)
8-97353-578-0
04
1
1409-
102
PISTON; REAR WHEEL CYL
(B)
8-97353-579-0
01
1
1409-
103
SPRING; LK,RR WHEEL CYL,ADJ
8-94128-486-0
04
1
1409-
110
SCREW; LOCK SPRING,RR WHEEL CYL
8-94128-727-0
04
1
1409-
124
SHOE ASM; BRK,RR
8-97188-455-0
04
1
1409-
136
GROMMET
8-97044-742-1
04
1
1409-
217
LINING KIT; RR BRK
5-87831-692-0
01
1
1409-
217
LINING KIT; RR BRK
BEST VALUE PARTS
5-87610-119-0
01
1
1409-
218
SHOE KIT; BRK,RR
5-87831-693-0
01
1
1409-
