2-26 — MANUAL TRANSMISSION GEAR (#148613) — 84 parça

118 115 506 508 528 423 48 527 529 300 408 268 408 510 93 507 511 135 314 132 108 507 325 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	1409-
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	1409-
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	1409-
108	SHAFT; COUNTER Z=47-39-33-20	8-97380-627-1	01	1	1409-
115	BEARING; NEEDLE,6TH,COUNTER OD=49.8	8-98286-084-0	01	1	1411-
115	BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	1409-
118	GEAR; 6TH,COUNTER Z=50	8-97386-580-0	01	1	1409-
132	SHAFT; REV	8-97252-655-0	01	1	1409-
135	GEAR; REV IDLER Z=25	8-98031-869-1	01	1	1409-
268	PLATE; ANTI LASH,COUNTER	8-97252-684-1	01	1	1409-
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.7	8-97254-727-0	01	1	1409-
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.8	8-97254-728-0	01	1	1409-
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.9	8-97254-734-0	01	1	1409-
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.6	8-97365-617-0	01	1	1409-
314	BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1409-
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	1409-
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	1409-
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	1409-
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	1409-
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	1409-
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	1409-
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	1409-
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	1409-
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	1409-
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	1409-
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	1409-
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	1409-
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	1409-
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	1409-
408	SPRING (B)	8-94148-196-0	03	1	1409-
408	SPRING (A)	8-97366-040-1	04	1	1409-
423	SLEEVE & HUB ASM; 6TH	8-97367-022-0	01	1	1409-
480	WASHER; THRUST,6TH	8-97253-123-1	01	1	1409-
506	COLLAR; 6TH,COUNTER	8-97253-121-1	01	1	1409-
507	BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	1409-
508	RING; BLOCK,6TH Z=45	8-97309-532-0	01	1	1409-
510	PIN; STRAIGHT,ANTI LASH	9-08160-825-0	03	1	1409-
511	RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	1409-
527	INSERT; 6TH	8-94448-202-2	03	1	1409-
528	SLEEVE; 6TH Z=45	8-94421-871-1	01	1	1409-
529	PLATE; STOPPER,6TH	8-97248-952-0	01	1	1409-

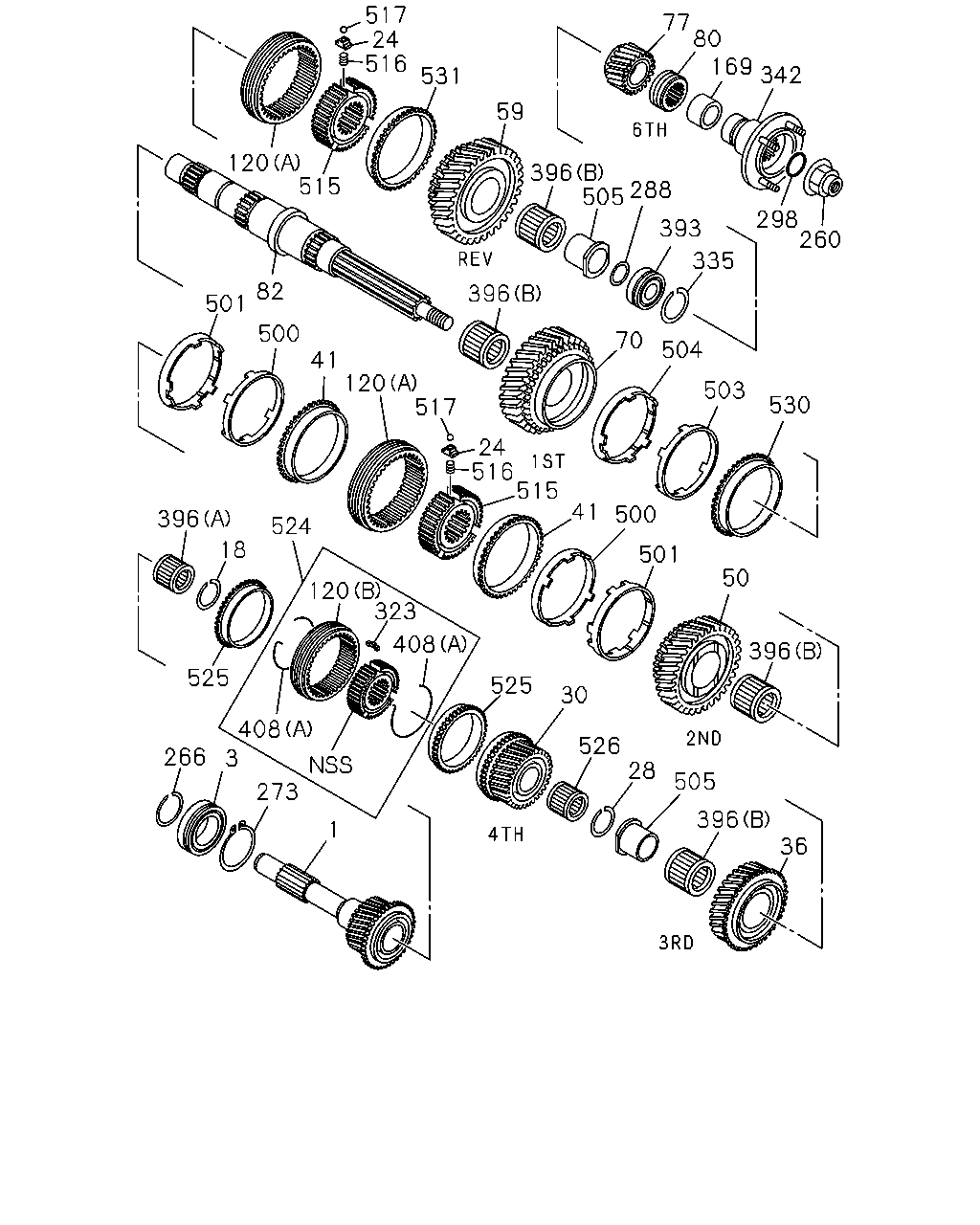

517 24 516 531 120 515 59 396 77 80 169 342 298 260 505 288 393 335 396 70 504 503 530 82 501 500 41 120 517 24 516 515 41 500 501 50 396 396 18 524 120 323 408 525 30 526 28 505 396 36 525 408 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; TOP GEAR,TRANS Z=26	8-98021-266-0	01	1	1409-
3	BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	1409-
18	RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	1409-
24	BLOCK; INDEX,SYN	8-97241-313-1	06	1	1409-
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1409-
30	GEAR; 4TH,MAINSHAFT Z=28	8-97241-230-0	01	1	1409-
36	GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	1409-
41	RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	1409-
50	GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	1409-
59	GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1409-
70	GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	1409-
77	GEAR; 6TH,MAINSHAFT Z=21	8-97386-582-0	01	1	1409-
80	GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	1409-
82	SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	1409-
120	SLEEVE (B) Z=45	8-94421-871-1	01	1	1409-
120	SLEEVE (A) Z=45	8-98258-279-0	02	1	1409-
169	COLLAR; MAINSHAFT	8-97252-937-1	01	1	1409-
260	NUT; MAINSHAFT END M27 H=25	8-97360-410-0	01	1	1409-
266	RING; SNAP,BRG INNER	8-97286-916-0	01	1	1409-
273	RING; SNAP,BRG OUTER	8-97254-610-0	01	1	1409-
288	SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	1409-
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	1409-
323	INSERT	8-94448-202-2	03	1	1409-
335	RING; SNAP,BEARING	8-97254-722-0	01	1	1409-
342	FLANGE; OUTPUT	8-98031-862-0	01	1	1409-
393	BEARING; MAINSHAFT END	8-97253-105-1	01	1	1409-
396	BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	1409-
396	BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1409-
408	SPRING (B)	8-94148-196-0	03	1	1409-
408	SPRING (A)	8-97366-040-1	04	1	1409-
500	RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	1409-
501	RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	1409-
503	RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	1409-
504	RING; INSIDE,LOW & REV	8-97241-312-1	01	1	1409-
505	COLLAR; 3RD & REV	8-97253-119-2	02	1	1409-
515	HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	02	1	1409-
516	SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	1409-
517	BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	1409-
524	SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	1409-
525	RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	1409-
526	BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	1409-
530	RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	1409-
531	RING; BLOCK,REV Z=45	8-97368-343-0	01	1	1409-
