◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51566 - NPR MALAYSIA BUS CHASSIS ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#148612) — 12 parça

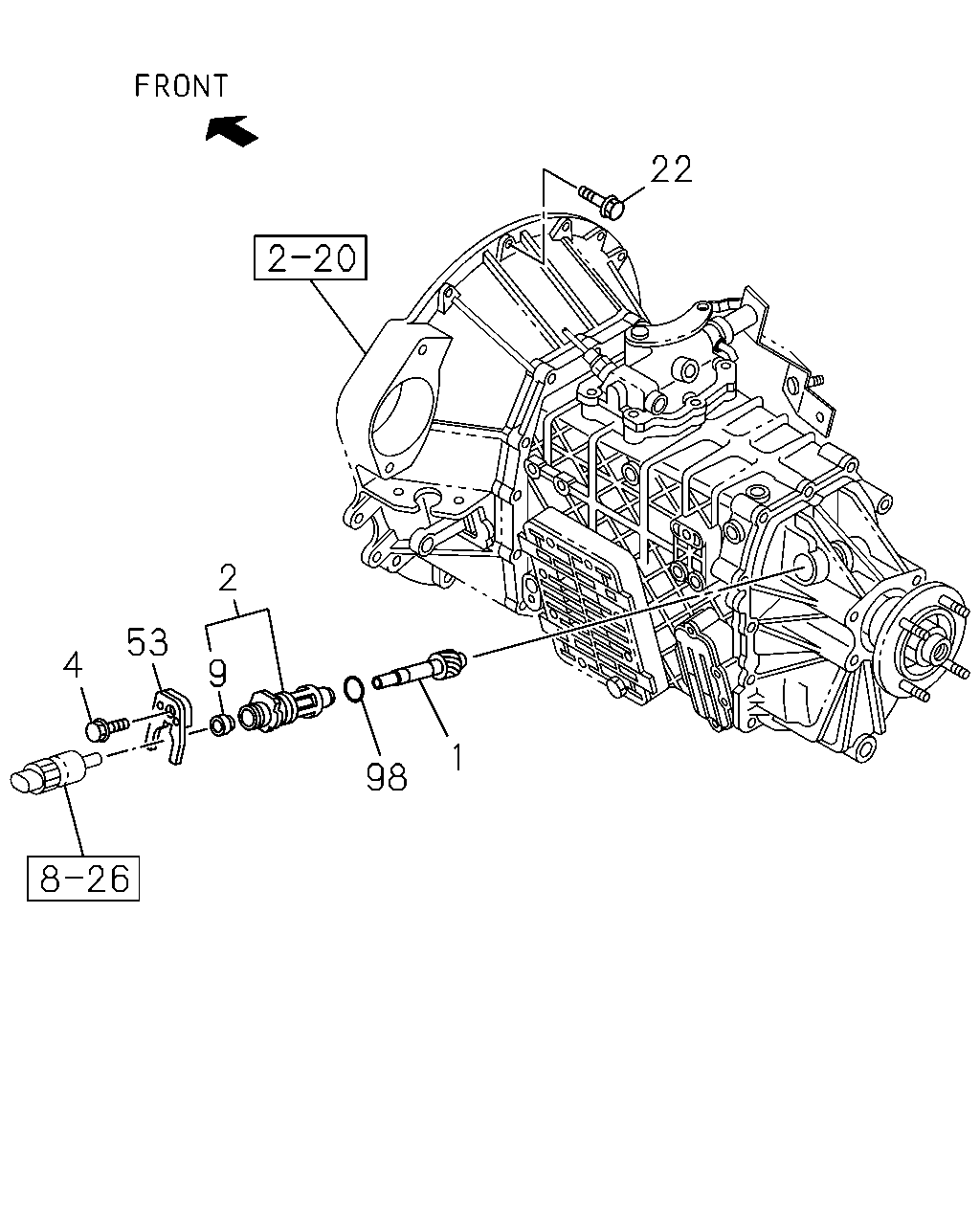

çizim 443898
1 98 2 9 53 4 22
BalonParca AdiParca NoAdetTipApplied Date
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/9(HC6) Z=11 		8-97253-559-1 01 1 1409-
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/8(RU1) Z=13 		8-97253-562-1 01 1 1409-
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/9(S2J) Z=12 		8-97253-563-1 01 1 1409-
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/9(HC6) MARK "10,11,16,17" 		8-97253-124-0 01 1 1409-
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) MARK "12,13,14,15" 		8-97253-125-0 01 1 1409-
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE MAL 		0-28650-820-0 01 1 1409-
9 SEAL; OIL,DRIVEN GEAR
NOK 		8-97131-328-1 01 1 1409-
22 BOLT; TRANS CASE TO ENG
M10X30 FLANGE 		0-28151-030-0 04 1 1409-
22 BOLT; TRANS CASE TO ENG
M10X35 FLANGE 		0-28151-035-0 03 1 1409-
22 BOLT; TRANS CASE TO ENG
M10X55 FLANGE 		8-97365-449-0 02 1 1409-
53 PLATE; LOCK,DRIVEN GEAR 8-98046-217-0 01 1 1409-
98 SEAL; OIL,BUSH 9-09561-324-0 01 1 1409-
