Isuzu WW
▶
TRUCKS
▶
NPR
▶
51566 - NPR MALAYSIA BUS CHASSIS
▶
2 - Clutch, Transmission, Trans Axle
▶
2-20 - MANUAL TRANSMISSION ASM AND CASE
▶

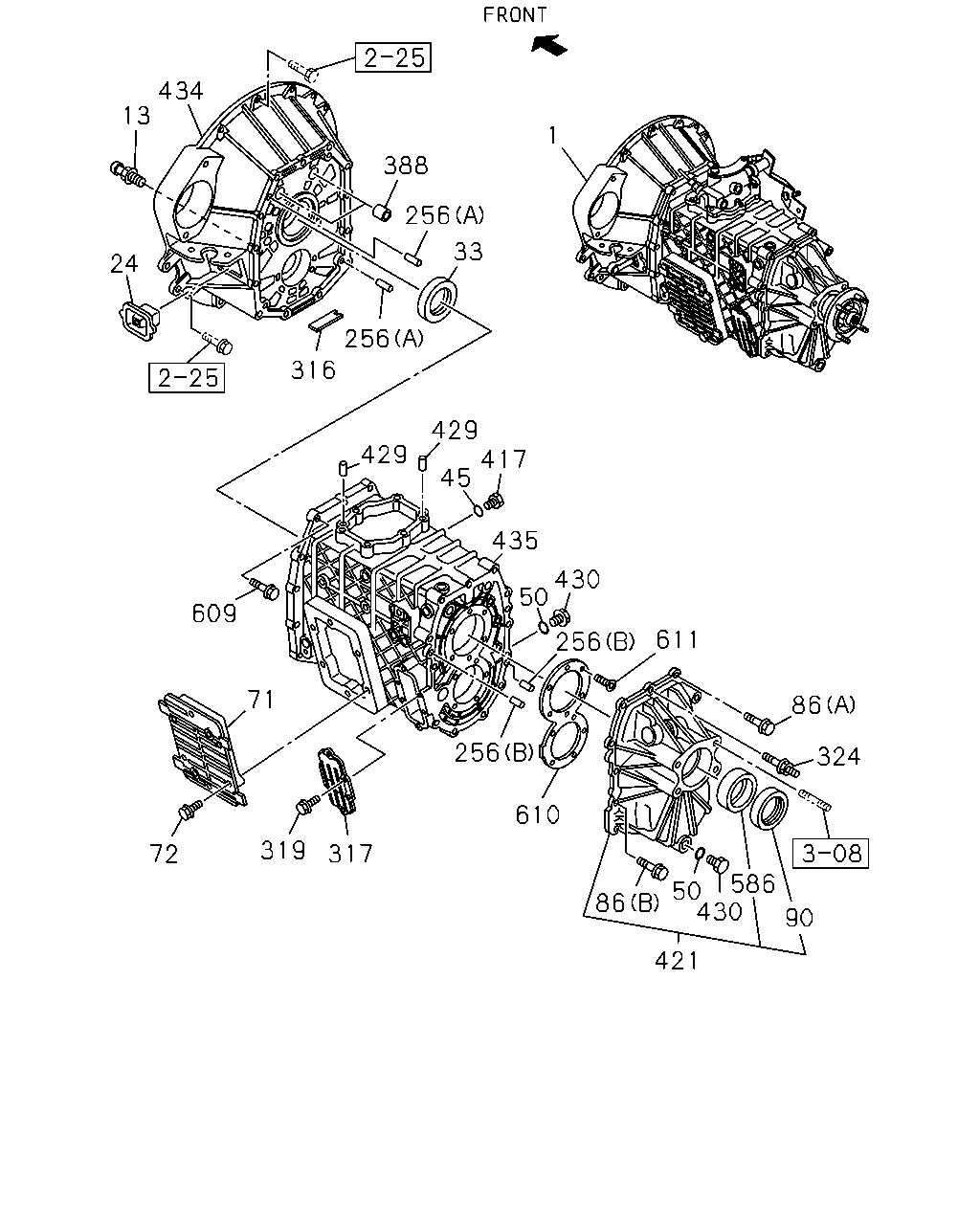

2-20 — MANUAL TRANSMISSION ASM AND CASE
(#148611) — 28 parça
421
430
90
586
324
86
50
86
610
611
256
256
317
319
72
71
609
430
50
435
417
45
429
429
316
256
33
256
388
24
13
434
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TRANSMISSION ASM; MANUAL
8-98067-680-0
01
1
1409-
13
SUPPORT; SHIFT FORK
8-97255-385-1
01
1
1409-
24
COVER; CHECK HOLE,DUST
8-97255-201-0
01
1
1409-
33
SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
8-97253-550-0
01
1
1409-
45
GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17
8-97115-712-0
01
1
1409-
50
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17
8-97115-712-0
02
1
1409-
71
COVER; SIDE,TRANS CASE
8-97252-625-0
01
1
1409-
72
BOLT; SIDE COVER
M10X20 FLANGE
8-98014-142-0
06
1
1409-
86
BOLT; RR COVER
(A) M10X40 FLANGE
0-28151-040-0
09
1
1409-
86
BOLT; RR COVER
(B) M10X40 FLANGE
8-97365-377-0
02
1
1409-
90
SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK
8-97253-552-1
01
1
1409-
256
PIN; KNOCK
(A) OD=10 L=20
8-97135-423-0
02
1
1409-
256
PIN; KNOCK
(B) ID=6 L=12
9-08160-612-0
02
1
1409-
316
MAGNET; TRANS CASE
8-94249-524-2
01
1
1409-
317
COVER; CASE
8-97252-626-0
01
1
1409-
319
BOLT; COVER
M8X20 FLANGE MAL
0-28050-820-0
06
1
1409-
324
STUD; RR COVER
M10X15,M10X40 L=65
8-97365-379-0
02
1
1409-
388
BUSHING; CLU HSG
8-97241-326-2
02
1
1409-
417
PLUG; OIL FILLER,TRANS
8-97365-373-0
01
1
1409-
421
COVER; RR,TRANS
8-98020-028-0
01
1
1409-
429
PIN; STRAIGHT
OD=10 L=20
8-97135-423-0
02
1
1409-
430
PLUG; OIL DRAIN
8-97365-374-0
02
1
1409-
434
HOUSING; CLU
8-97237-099-5
01
1
1409-
435
CASE; TRANS
8-97379-374-0
01
1
1409-
586
BEARING; NEEDLE
8-97253-109-0
01
1
1409-
609
BOLT; HSG TO CASE
M10X40 FLANGE
0-28151-040-0
13
1
1409-
610
RETAINER; BRG
8-97241-315-1
01
1
1409-
611
SCREW
M10X27 TORQUES
8-97365-354-0
11
1
1409-
