2-05 — CLUTCH PIPING (#14861) — 50 parça

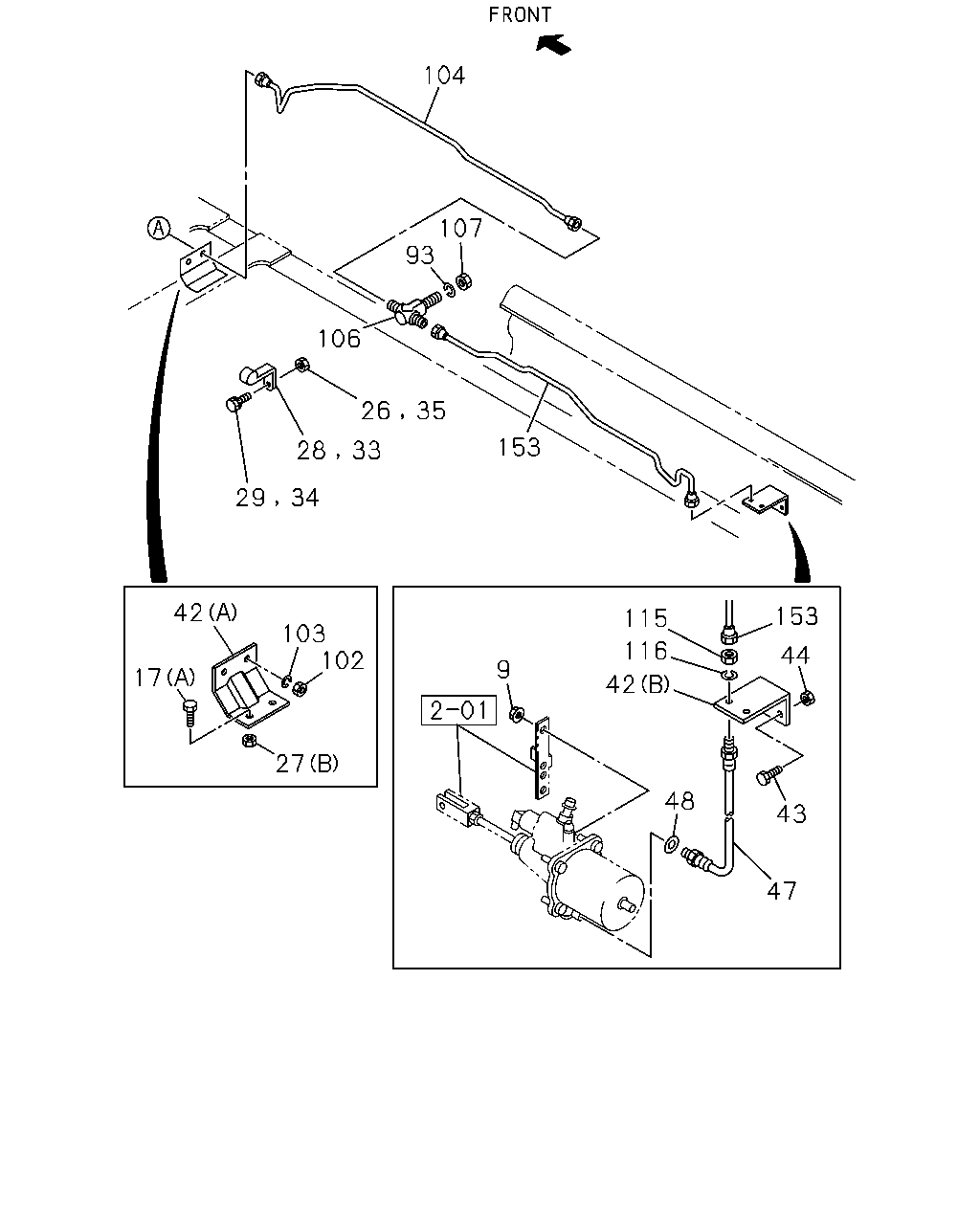

çizim 144344
104 107 93 106 26 35 153 28 33 34 29 42 153 115 103 102 116 44 9 17 42 27 48 43 47
BalonParca AdiParca NoAdetTipApplied Date
9 NUT; BRKT,FLEX HOSE
M10 FLANGE 		0-91180-210-0 02 1 0711-
17 BOLT; BRKT
(A) M8X20 FLANGE IDN 		0-28650-820-0 02 1 0711-
17 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0711-
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 02 1 0711-
27 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0711-
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0711-
28 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 02 1 0711-
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28650-830-0 02 1 0711-
33 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 02 1 0711-
34 BOLT; PIPE CLIP
M8X35 FLANGE 		0-28650-835-0 02 1 0711-
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0711-
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-781-0 01 1 0711-
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		1-47477-944-0 01 1 0711-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X35 FLANGE 		0-28650-835-0 02 1 0711-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 0711-
47 HOSE; FLEX,CLU CONT
L=430 		1-09364-725-0 01 1 0711-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 0711-
93 WASHER; LK,UNION,OIL PIPE
ID=12.2 		0-91510-512-0 01 1 0711-
102 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0711-
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 0711-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1605 SERVICED BY L=1700 		1-47426-391-0 01 1 0711-
106 UNION; OIL PIPE
M14 2WAY 		1-09654-176-2 01 1 0711-
107 NUT; UNION,OIL PIPE
M12 		0-91111-512-0 01 1 0711-
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0711-
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 0711-
153 PIPE ASM; CLU,UNION TO FLEX
L=1318 SERVICED BY L=1400 		1-47426-389-0 01 1 0711-

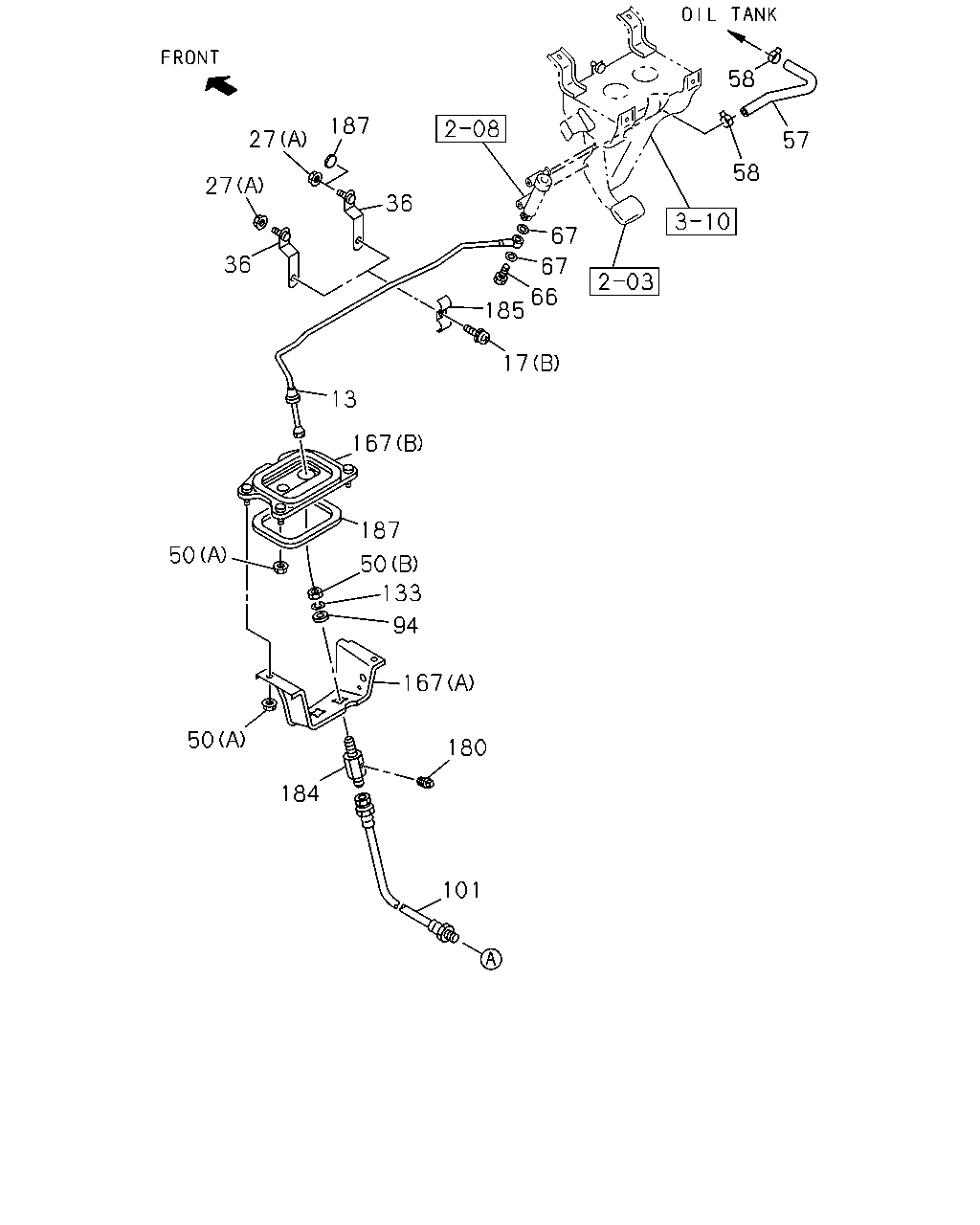

çizim 144350
58 187 27 57 58 27 36 67 36 67 66 185 17 13 167 187 50 50 133 94 167 50 180 184 101
BalonParca AdiParca NoAdetTipApplied Date
13 PIPE; OIL,FLEX HOSE TO CLU M/CYL 1-47423-750-4 01 1 0711-
17 BOLT; BRKT
(A) M8X20 FLANGE IDN 		0-28650-820-0 02 1 0711-
17 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0711-
27 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0711-
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0711-
36 BRACKET; CLIP 1-79738-186-1 02 1 0711-
50 NUT; UNION
(B) M14 		0-91111-514-0 01 1 0711-
50 NUT; UNION
(A) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 03 1 0711-
57 HOSE; CLU M/CYL TO OIL TANK 1-47424-533-0 01 1 0711-
58 CLIP; RUBBER HOSE TO M/CYL
ID=14 		8-94238-572-0 02 1 0711-
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		1-09675-146-0 01 1 0711-0805
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		8-98037-827-0 01 1 0806-
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		1-09630-085-0 02 1 0711-1312
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
94 WASHER; PL,UNION
ID=15 		0-91610-514-0 01 1 0711-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430 		8-98072-326-0 01 1 0711-
133 WASHER; LK,UNION
ID=14.2 		0-91510-514-0 01 1 0711-
167 BRACKET; UNION
(A) 		1-79738-193-6 01 1 0711-
167 BRACKET; UNION
(B) 		1-79738-845-1 01 1 0711-
180 PLUG; PIPE 9-09204-510-0 01 1 0711-0804
184 UNION; FLEX HOSE
3WAY 		1-09656-679-0 01 1 0711-0804
184 UNION; FLEX HOSE
STRAIGHT 		1-09654-435-0 01 1 0805-
185 CLIP; BRKT
ID=5 & 8 		5-09700-165-0 02 1 0711-
187 SEAL; BRKT 1-79738-190-0 01 1 0711-
