1-41 — FUEL PIPING; CHASSIS (#148600) — 86 parça

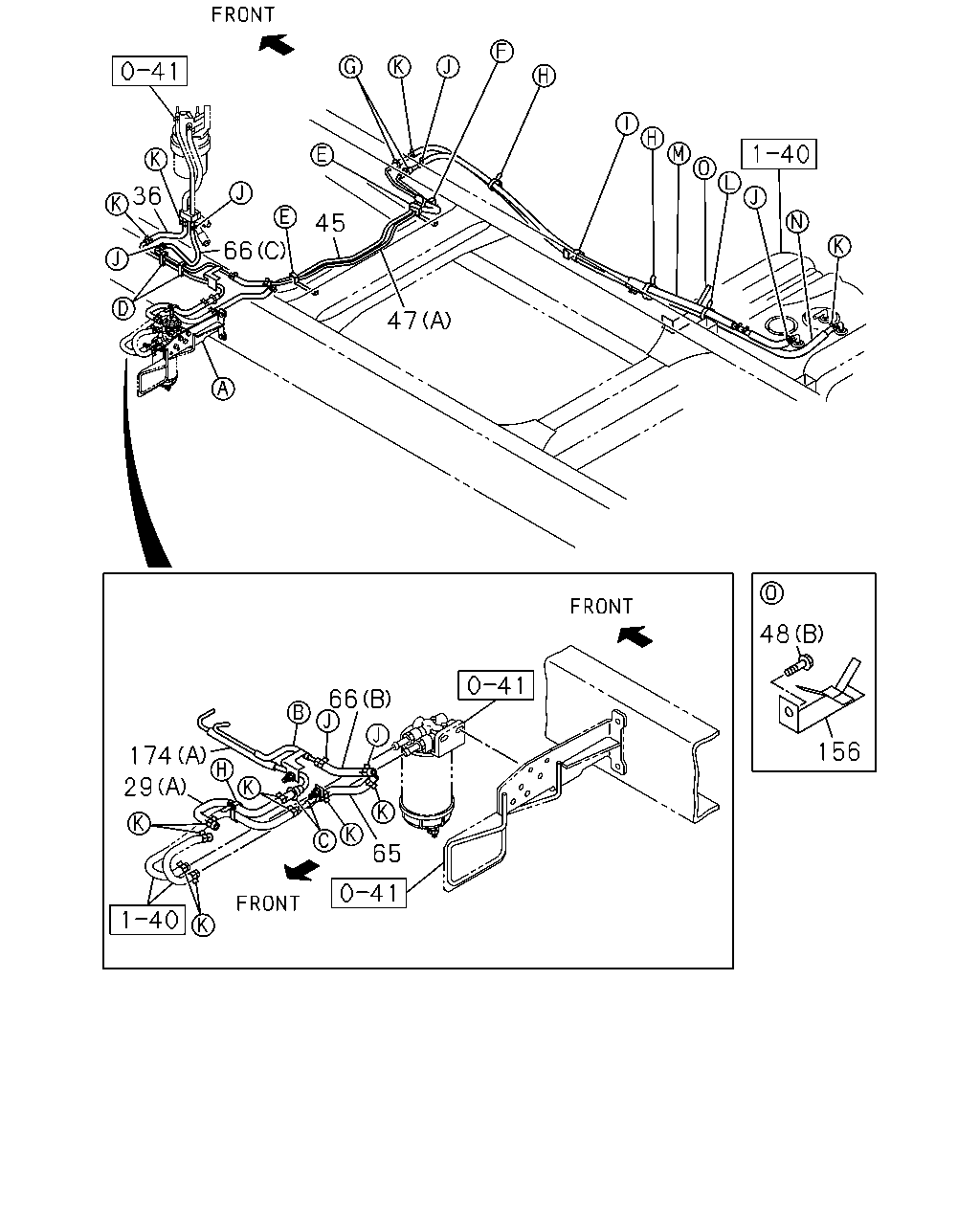

çizim 443200
36 66 45 47 48 156 65 66 174 29
BalonParca AdiParca NoAdetTipApplied Date
29 HOSE; FUEL
BIO DIESEL FUEL B10<8NV> (B) 		8-98120-950-3 01 1 1512-
29 HOSE; FUEL
BIO DIESEL FUEL B10<8NV> (A) 		8-98139-113-1 01 1 1512-
29 HOSE; FUEL
(B) 		8-98067-563-4 01 1 1409-1511
29 HOSE; FUEL
EXC. BIO DIESEL FUEL B10<8NV> (B) 		8-98067-563-4 01 1 1512-
29 HOSE; FUEL
(A) 		8-98099-502-0 01 1 1409-1511
29 HOSE; FUEL
EXC. BIO DIESEL FUEL B10<8NV> (A) 		8-98099-502-0 01 1 1512-
36 HOSE; FUEL,FILTER TO TANK
BIO DIESEL FUEL B10<8NV> 		8-98290-385-0 01 1 1512-
36 HOSE; FUEL,FILTER TO TANK 8-98171-618-0 01 1 1409-1511
36 HOSE; FUEL,FILTER TO TANK
EXC. BIO DIESEL FUEL B10<8NV> 		8-98171-618-0 01 1 1512-
45 PIPE; FUEL,DELIVERY
MAL 		8-98043-681-1 01 1 1409-
47 PIPE; FUEL,RETURN
(C) L=70 		8-98036-483-0 01 1 1409-
47 PIPE; FUEL,RETURN
(B) MAL 		8-98041-618-1 01 1 1409-
47 PIPE; FUEL,RETURN
(A) MAL 		8-98043-639-0 01 1 1409-
48 BOLT; BRKT
(A) M8X25 FLANGE MAL 		0-28650-825-0 02 1 1409-
48 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1409-
65 HOSE; FUEL,DELIVERY PIPE
BIO DIESEL FUEL B10<8NV> L=140 SERVICED BY L=3000 		0-01859-300-0 01 1 1512-
65 HOSE; FUEL,DELIVERY PIPE
L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 1409-1511
65 HOSE; FUEL,DELIVERY PIPE
EXC. BIO DIESEL FUEL B10<8NV> L=140 SERVICED BY L=3000 		0-01259-300-0 01 1 1512-
66 HOSE; FUEL,RETURN PIPE
(B) L=150 SERVICED BY L=3000 		0-01855-300-0 01 1 1409-
66 HOSE; FUEL,RETURN PIPE
(A) 		8-98067-566-2 01 1 1409-
66 HOSE; FUEL,RETURN PIPE
(C) 		8-98093-616-0 01 1 1409-
156 BRACKET; FUEL HOSE 8-98041-250-2 01 1 1409-
174 PIPE; FUEL,FEED,FRT
(A) MAL 		8-98033-844-1 01 1 1409-
174 PIPE; FUEL,FEED,FRT
(B) MAL 		8-98041-616-0 01 1 1409-
çizim 443205
270 426 199 61 106 174 97 15 48 61 199 8 61 24 41 147 147 147 24 24 24 15 62 64 15 15 106 47
BalonParca AdiParca NoAdetTipApplied Date
8 RUBBER; MTG
OD=17 L=50 		8-94157-054-1 01 1 1409-
15 CLIP; FUEL PIPE
(C) ID=12 & 6.35 & 4.76 		8-97202-954-1 02 1 1409-
15 CLIP; FUEL PIPE
(D) ID=12 & 6.35 		8-97215-437-0 02 1 1409-
15 CLIP; FUEL PIPE
(A) ID=10X2 OR 12X2 & 6.35 		8-97326-157-1 01 1 1409-
15 CLIP; FUEL PIPE
(B) ID=29 H=50 L=45.5 		1-09701-027-0 01 1 1409-
15 CLIP; FUEL PIPE
(B) ID=29 H=50 L=45.5 		1-09701-027-0 01 1 1409-
24 CLIP; FUEL HOSE
(D) L=170.3 		1-09987-182-0 01 1 1409-
24 CLIP; FUEL HOSE
(A) L=140 MAL 		5-09707-031-1 01 1 1409-
24 CLIP; FUEL HOSE
(A) L=140 MAL 		5-09707-031-1 02 1 1409-
24 CLIP; FUEL HOSE
(C) ID=16 		8-98008-098-0 04 1 1409-
24 CLIP; FUEL HOSE
(B) ID=12 		8-98150-358-0 02 1 1409-
41 CLIP; FUEL PIPE,FUEL TANK
ID=12 		8-98150-358-0 02 1 1409-
47 PIPE; FUEL,RETURN
(C) L=70 		8-98036-483-0 01 1 1409-
47 PIPE; FUEL,RETURN
(B) MAL 		8-98041-618-1 01 1 1409-
47 PIPE; FUEL,RETURN
(A) MAL 		8-98043-639-0 01 1 1409-
48 BOLT; BRKT
(A) M8X25 FLANGE MAL 		0-28650-825-0 02 1 1409-
48 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1409-
61 GROMMET; PIPE TO FRAME
ID=17 		8-94128-319-2 01 1 1409-
61 GROMMET; PIPE TO FRAME
ID=17 		8-94128-319-2 02 1 1409-
62 BOLT; CLIP FIX
M8X25 FLANGE MAL 		0-28650-825-0 01 1 1409-
62 BOLT; CLIP FIX
M8X25 FLANGE MAL 		0-28650-825-0 01 1 1409-
64 NUT; CLIP
M8 FLANGE MAL 		0-91180-108-0 01 1 1409-
64 NUT; CLIP
M8 FLANGE MAL 		0-91180-108-0 01 1 1409-
97 BRACKET; CLIP 8-98041-203-0 02 1 1409-
106 NUT; FUEL PIPE
M10 FLANGE MAL 		0-91180-110-0 01 1 1409-
106 NUT; FUEL PIPE
M10 FLANGE MAL 		0-91180-110-0 01 1 1409-
147 CLIP; FUEL PIPE TO HOSE
(C) ID=13 		8-98150-357-0 01 1 1409-
147 CLIP; FUEL PIPE TO HOSE
(B) ID=12 		8-98150-358-0 01 1 1409-
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1409-
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1409-
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1409-
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1409-
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1409-
174 PIPE; FUEL,FEED,FRT
(A) MAL 		8-98033-844-1 01 1 1409-
174 PIPE; FUEL,FEED,FRT
(B) MAL 		8-98041-616-0 01 1 1409-
199 PROTECTOR; FUEL PIPE
OD=15 L=50 		8-97077-629-0 01 1 1409-
199 PROTECTOR; FUEL PIPE
OD=15 L=50 		8-97077-629-0 01 1 1409-
270 PUMP ASM; FUEL 8-98018-187-4 01 1 1409-1409
270 PUMP ASM; FUEL 8-97948-892-0 01 1 1409-
426 BOLT; FUEL PUMP
M8X20 FLANGE MAL 		0-28650-820-0 02 1 1409-
çizim 443222
66 124 124 47 29 147 311 147
BalonParca AdiParca NoAdetTipApplied Date
29 HOSE; FUEL
BIO DIESEL FUEL B10<8NV> (B) 		8-98120-950-3 01 1 1512-
29 HOSE; FUEL
BIO DIESEL FUEL B10<8NV> (A) 		8-98139-113-1 01 1 1512-
29 HOSE; FUEL
(B) 		8-98067-563-4 01 1 1409-1511
29 HOSE; FUEL
EXC. BIO DIESEL FUEL B10<8NV> (B) 		8-98067-563-4 01 1 1512-
29 HOSE; FUEL
(A) 		8-98099-502-0 01 1 1409-1511
29 HOSE; FUEL
EXC. BIO DIESEL FUEL B10<8NV> (A) 		8-98099-502-0 01 1 1512-
47 PIPE; FUEL,RETURN
(C) L=70 		8-98036-483-0 01 1 1409-
47 PIPE; FUEL,RETURN
(B) MAL 		8-98041-618-1 01 1 1409-
47 PIPE; FUEL,RETURN
(A) MAL 		8-98043-639-0 01 1 1409-
66 HOSE; FUEL,RETURN PIPE
(B) L=150 SERVICED BY L=3000 		0-01855-300-0 01 1 1409-
66 HOSE; FUEL,RETURN PIPE
(A) 		8-98067-566-2 01 1 1409-
66 HOSE; FUEL,RETURN PIPE
(C) 		8-98093-616-0 01 1 1409-
124 CLIP; HOSE
(A) ID=13 		8-98150-357-0 01 1 1409-
124 CLIP; HOSE
(B) ID=12 		8-98150-358-0 01 1 1409-
147 CLIP; FUEL PIPE TO HOSE
(C) ID=13 		8-98150-357-0 01 1 1409-
147 CLIP; FUEL PIPE TO HOSE
(B) ID=12 		8-98150-358-0 01 1 1409-
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1409-
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1409-
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1409-
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1409-
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 02 1 1409-
311 JOINT; HOSE 8-97353-668-0 01 1 1409-
