Isuzu WW
▶
TRUCKS
▶
NPR
▶
51566 - NPR MALAYSIA BUS CHASSIS
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#148594) — 22 parça
◀

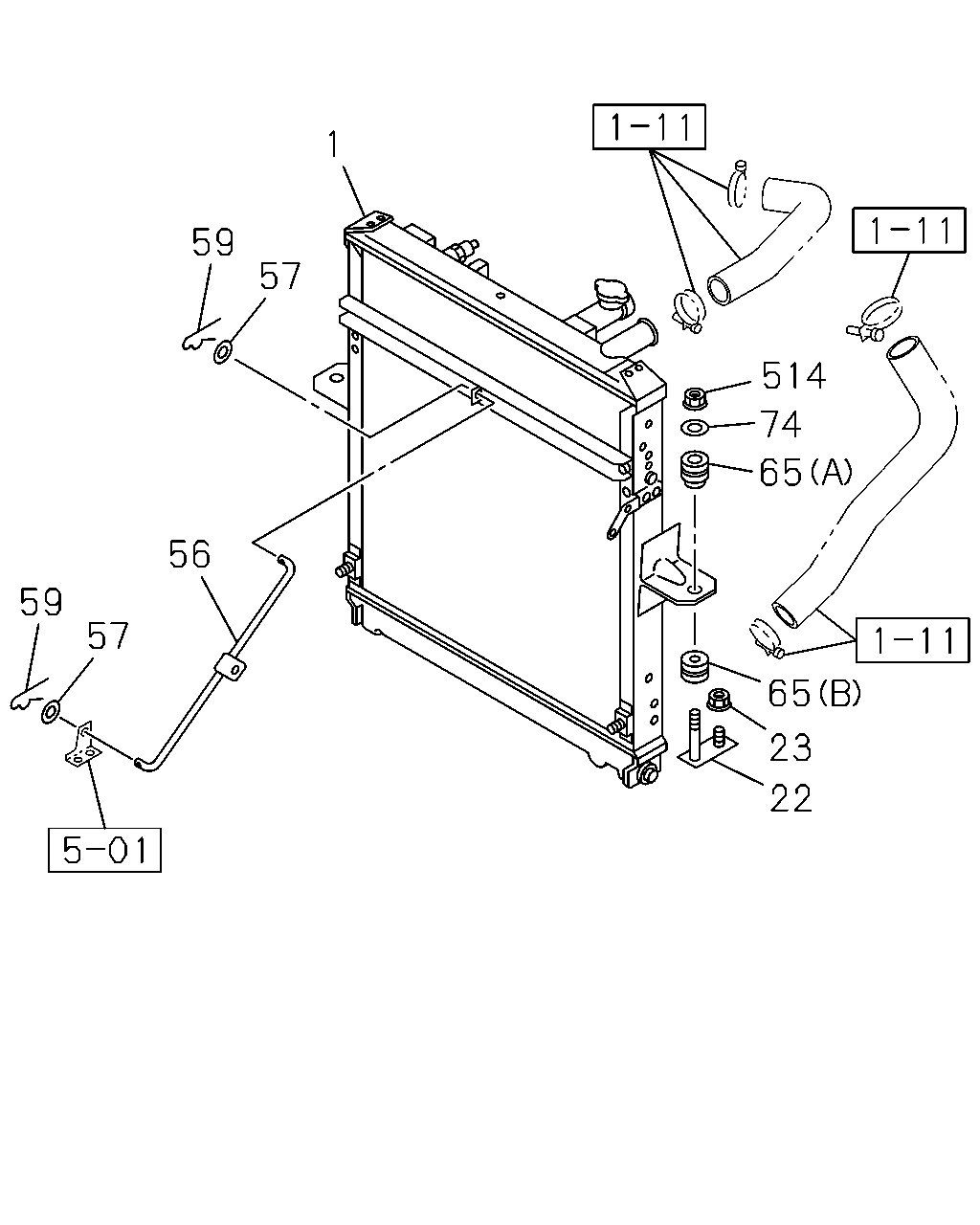

[110A] NO.1 (10 parça)

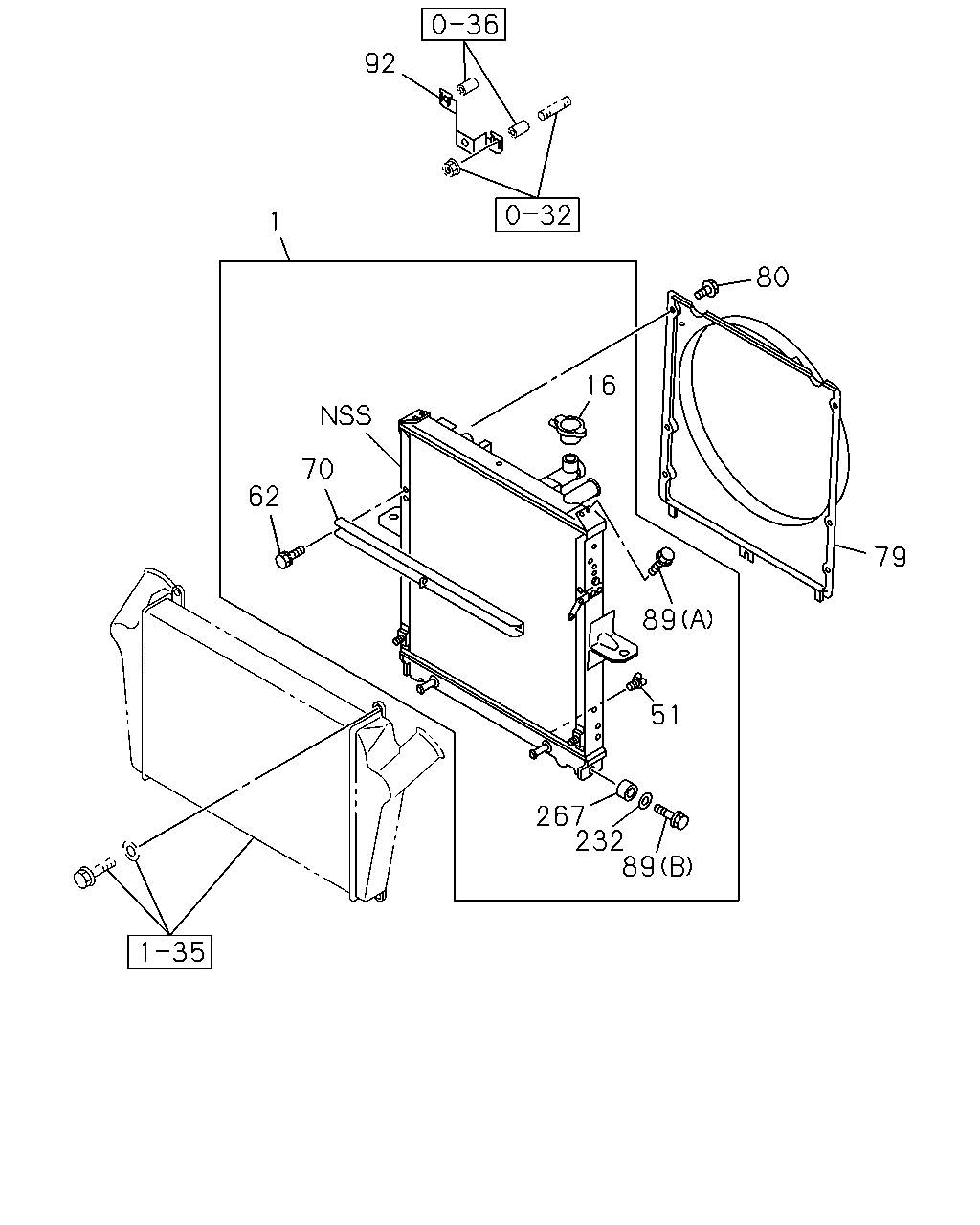

[110A] NO.2 (12 parça)
▶
1
59
57
56
57
59
514
74
65
65
23
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
8-98174-420-0
01
1
1409-
22
BRACKET; RAD MTG
8-97330-527-1
02
1
1409-
23
NUT; RAD MTG
M8 FLANGE MAL
0-91180-108-0
02
1
1409-
56
STAY; RAD
8-98006-490-2
01
1
1409-
57
WASHER; PL,STAY
ID=10.5
0-91610-510-0
02
1
1409-
59
PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
1409-
65
INSULATOR; RAD
(A) MAL
8-94249-346-0
02
1
1409-
65
INSULATOR; RAD
(B) MAL
8-94249-347-0
02
1
1409-
74
WASHER; PL,CUSHION RUBBER
ID=8.5 OD=36
8-97359-049-1
02
1
1409-
514
NUT; RAD
M8 FLANGE MAL
0-91180-108-0
02
1
1409-
92
1
70
62
16
89
51
267
232
89
79
80
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
8-98174-420-0
01
1
1409-
16
CAP; RAD
8-98096-226-0
01
1
1409-
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1409-
62
BOLT; STAY
M8X12 FLANGE
0-28050-812-0
02
1
1409-
70
STAY; RAD
8-98018-941-0
01
1
1409-
79
GUIDE; FAN,RAD
8-98172-924-0
01
1
1409-
80
BOLT; FAN GUIDE
M6X16
1-21559-481-0
04
1
1409-
89
BOLT
(A) M8X12 FLANGE
0-28050-812-0
02
1
1409-
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
02
1
1409-
92
BRACKET; FAN GUIDE
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN)
8-97382-827-2
01
1
1409-
232
COLLAR; DIST,CUSHION RUBBER
1-87410-723-0
02
1
1409-
267
RUBBER; CUSHION
1-21467-023-0
02
1
1409-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
